1. Introduction
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your GIGABYTE AORUS Elite 16 BWH gaming laptop. The AORUS Elite 16 BWH is designed for high-performance gaming and demanding applications, featuring an Intel Core Ultra 9 processor, NVIDIA GeForce RTX 5070 laptop GPU, a 16-inch WQXGA 165Hz display, and Windows 11 Pro.
Image: The GIGABYTE AORUS Elite 16 BWH gaming laptop, showcasing its open display and keyboard.
2. Setup
2.1 Unboxing and Initial Inspection
Carefully remove the laptop and all accessories from the packaging. Verify that all components listed in the "What's in the Box" section are present and undamaged.
- GIGABYTE AORUS ELITE 16 BWHC3FRC65SP Laptop
- Power Adapter and Cable
- Documentation (this manual, warranty card)
2.2 Connecting Power
Connect the power adapter to the laptop's power input port and then plug the power cable into an electrical outlet. It is recommended to fully charge the battery before initial use.
2.3 First Power On
Press the power button to turn on the laptop. Follow the on-screen instructions to complete the Windows 11 Pro setup process, including language selection, network connection, and user account creation.
2.4 Connecting Peripherals and Network
The laptop features various ports for connecting external devices and networks.

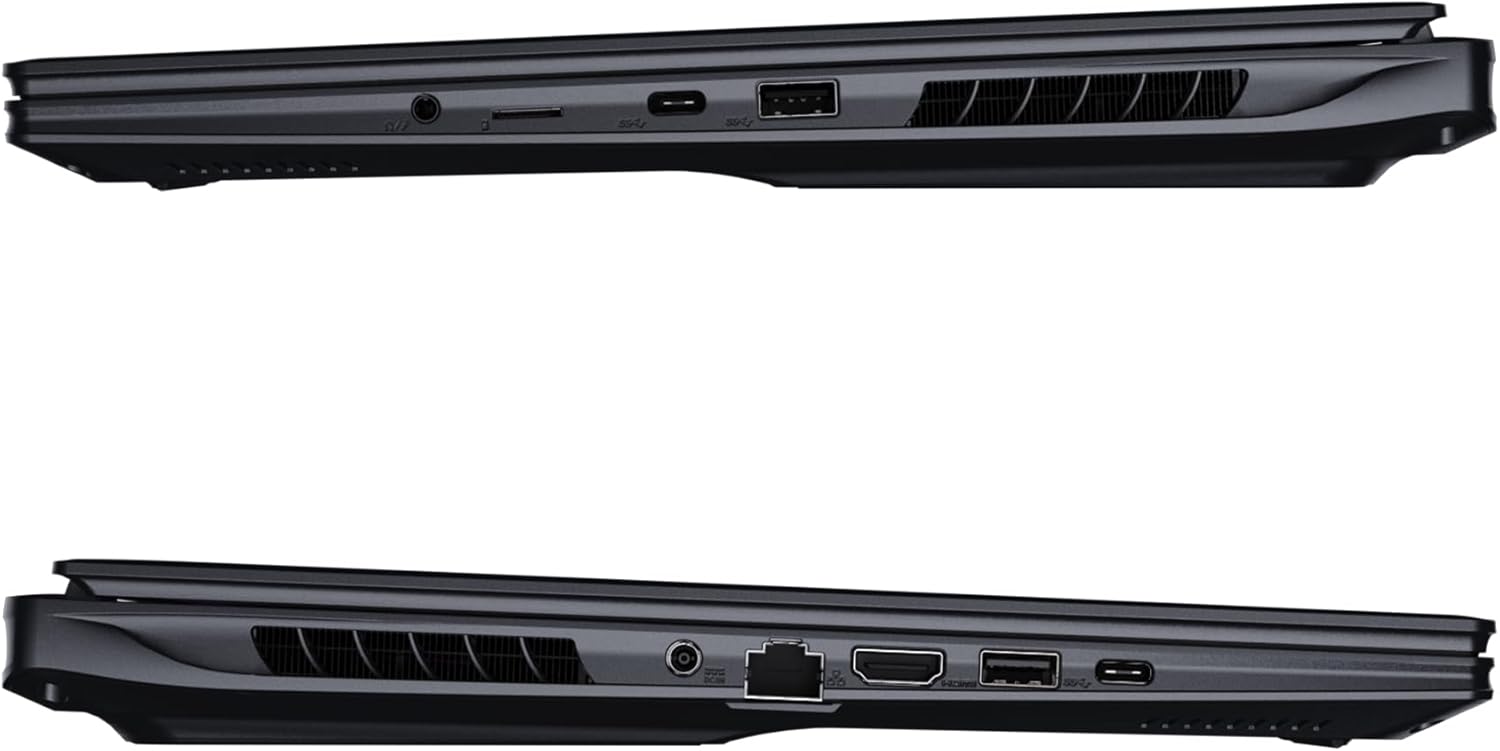

Image: Side view of the laptop illustrating the available ports for connectivity.
- USB Ports: Connect USB devices such as mice, keyboards, or external storage.
- HDMI Port: Connect to an external display or TV.
- Thunderbolt 4 Port: For high-speed data transfer and display output.
- Ethernet Port: For wired network connection.
- Headphone Jack: For audio output to headphones or external speakers.
- Wi-Fi 7: Connect to wireless networks via the integrated Wi-Fi 7 module.
- Bluetooth 5.4: Pair with Bluetooth-enabled devices.
3. Operating Your Laptop
3.1 Display Features
Your AORUS Elite 16 BWH features a 16-inch WQXGA (2560x1600) IPS display with a 165Hz refresh rate and 16:10 aspect ratio, offering a wide viewing experience. It supports Dolby Vision for enhanced visual quality and is Pantone validated for color accuracy.
Image: The laptop's 16:10 aspect ratio display, highlighting its IPS panel and Pantone validation.
3.2 Keyboard and Touchpad
The laptop is equipped with a backlit keyboard for comfortable typing in various lighting conditions and a responsive touchpad for navigation.

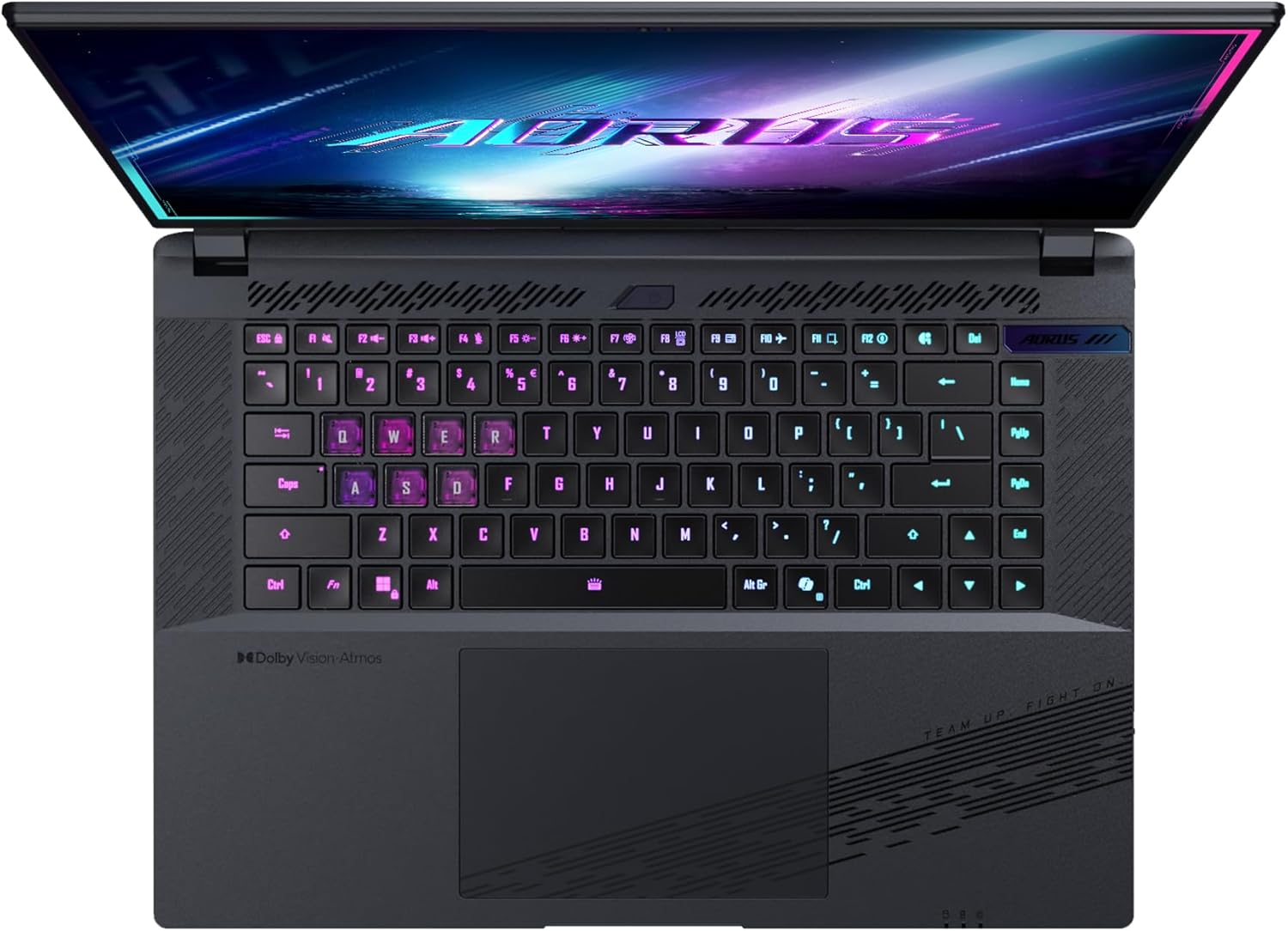

Image: Top-down view of the laptop's keyboard, showcasing its backlit keys.
The keyboard also features a dedicated Copilot Key for quick access to AI functionalities in Windows 11.
Image: Close-up of the keyboard, highlighting the Copilot Key for AI features.
3.3 Audio System
Experience immersive audio with Dolby Atmos support and integrated 2W speakers. The laptop also includes a built-in microphone for communication.
Image: Visual representation of Dolby Atmos and Dolby Vision audio and visual enhancements.
3.4 Performance Features
The AORUS Elite 16 BWH is powered by an Intel Core Ultra 9 processor with an integrated NPU for AI acceleration and an NVIDIA GeForce RTX 5070 laptop GPU, ensuring high performance for gaming and demanding tasks. It also features Advanced Optimus with DDS Technology for optimized graphics performance.
Image: A detailed view of the Intel Core Ultra 9 processor chip.
Image: A detailed view of the NVIDIA GeForce RTX 50 Series laptop GPU chip.
3.5 GiMATE AI Agent
Utilize GiMATE, your personal AI agent, to optimize performance, manage smart cooling, enhance privacy, control power settings, and improve audio and voice functionalities.
Image: GiMATE AI Agent interface showing various optimization features.
4. Maintenance
4.1 Cooling System
The laptop features the WINDFORCE Infinity cooling system to maintain optimal temperatures during intensive use. Ensure the vents are clear of obstructions to allow proper airflow.
Image: Representation of the WINDFORCE Infinity cooling system.
4.2 Cleaning
Use a soft, lint-free cloth to clean the screen and exterior surfaces. For stubborn marks, dampen the cloth slightly with water or a screen-cleaning solution. Avoid harsh chemicals.
4.3 Battery Care
To prolong battery life, avoid extreme temperatures and do not leave the laptop fully charged or fully discharged for extended periods.
4.4 Software Updates
Regularly update your Windows operating system, drivers, and GIGABYTE software to ensure optimal performance and security.
5. Troubleshooting
5.1 Power Issues
- Laptop does not turn on: Ensure the power adapter is securely connected and the outlet is functional. Check the battery charge level.
- Battery not charging: Verify the power adapter and cable are not damaged. Try a different outlet.
5.2 Display Issues
- No display: Connect an external monitor to check if the issue is with the laptop's screen. Ensure the laptop is powered on.
- Flickering or distorted display: Update graphics drivers. Check display cable connections if using an external monitor.
5.3 Connectivity Issues
- Wi-Fi not connecting: Check if Wi-Fi is enabled in Windows settings. Restart your router and laptop.
- Bluetooth device not pairing: Ensure the device is in pairing mode and within range. Update Bluetooth drivers.
5.4 General Performance Issues
- Slow performance: Close unnecessary applications. Check for malware. Ensure sufficient free disk space.
- Overheating: Ensure cooling vents are clear. Use the laptop on a hard, flat surface.
For more complex issues, refer to the GIGABYTE support website or contact customer service.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | GIGABYTE |
| Model Name | AORUS ELITE 16 BWHC3FRC65SP |
| Screen Size | 16 Inches |
| Color | Grey |
| Hard Disk Size | 2000 GB (2x 1TB SSD Gen4) |
| CPU Model | Intel Core Ultra 9 275HX |
| Installed RAM Size | 32 GB DDR5 |
| Operating System | Windows 11 Pro |
| Special Feature | Backlit Keyboard, Memory Card Slot |
| Graphics Card Description | Dedicated |
| Graphics Coprocessor | NVIDIA GeForce RTX 5070 |
| Hard Disk Technology | SSD |
| Item Weight | 2300 Grams |
| Webcam Capability | Yes (Frontal) |
| Graphics Card RAM Size | 8 GB GDDR6 |
| Max RAM Supported | 64 GB |
| Battery Energy Content | 99 Watt-hours (Lithium-polymer, 4 cells) |
| Connectivity | Bluetooth 5.4, Ethernet (10/1000 Mbit/s), HDMI (1 port), Thunderbolt 4 (1 port), USB 3.2 Gen 2 (2 ports), Wi-Fi 7 (802.11.be) |
| Processor Speed | 2.7 GHz (Max 5.4 GHz) |
| Number of Processors | 24 |
| Screen Resolution | 2560 x 1600 pixels (WQXGA) |
| Display Type | IPS LCD |
| Audio Features | Dolby Atmos, 2x 2W Integrated Speakers, Integrated Microphone |
7. Warranty Information
Your GIGABYTE AORUS Elite 16 BWH laptop comes with a 2-year limited warranty. This warranty covers manufacturing defects and hardware malfunctions under normal use. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or visit the official GIGABYTE website.
8. Support
For technical assistance, driver downloads, and further product information, please visit the official GIGABYTE support website. You can also find FAQs and community forums there.
- GIGABYTE Official Website: www.gigabyte.com
- Customer Service: Refer to your regional GIGABYTE website for local contact information.
