EVERCROSS 702/701 Electric Motorcycle User Manual

1. Product Overview

The EVERCROSS 702/701 Electric Motorcycle is a high-performance electric vehicle designed for off-road and urban use, offering a blend of power, comfort, and environmental friendliness. This manual provides essential information for the safe operation, maintenance, and care of your electric motorcycle.

Image: The EVERCROSS 702/701 Electric Motorcycle, showcasing its design and features.

Key Features:

• Powerful Motor: Equipped with a 2000W motor for robust performance and acceleration up to 45 km/h.
• Long Range Battery: Features a 60V 30Ah high-performance lithium battery, providing a range of 80-85 km per charge.
• Multiple Speed Modes: Offers 3 adjustable speed modes (25/35/45 km/h) for varied riding conditions.
• Advanced Suspension: Includes a cushioned telescopic fork and two rear shock absorbers for superior ride comfort and stability.
• Dual Disc Brake System: Front and rear double disc brakes ensure reliable and powerful stopping capabilities.
• LCD Display: A clear digital display shows speed, mileage, battery status, and other vital information.
• Detachable Storage Box: The 702 model includes a multi-functional, detachable, and waterproof storage box.

2. Setup Guide

2.1 Unboxing and Initial Inspection

Carefully remove all components from the packaging. Inspect the motorcycle for any signs of damage during transit. Ensure all listed parts are present.

2.2 Battery Charging

Before first use, fully charge the battery. The removable 60V 30Ah lithium battery can be charged directly on the motorcycle or removed for external charging.

• Locate the charging port on the motorcycle or the battery itself.
• Connect the charger to the battery/motorcycle and then to a standard power outlet.
• The charging indicator on the charger will show the charging status (e.g., red for charging, green for fully charged).
• Charging time may vary, typically several hours for a full charge.

Image: Illustration of the two fast charging options for the 48V 25AH battery, showing direct motorcycle charging and single battery charging.

2.3 Minor Assembly (if required)

While the motorcycle comes largely pre-assembled, some minor components like mirrors or handlebars may require attachment. Refer to the quick start guide included in the packaging for specific assembly steps.

Image: The multi-functional storage box for the 702 motorcycle, highlighting its installation manual, removable design, and waterproof material.

3. Operating Instructions

3.1 Starting the Motorcycle

• Ensure the battery is securely installed and charged.
• Turn the key to the 'ON' position.
• If the display shows 'P' (parking status), kick down the kickstand. The display should then show 'READY'.
• Twist the throttle gently to accelerate.

3.2 Speed Modes

The motorcycle features 3 speed modes to adapt to different riding environments and preferences:

• Mode 1: Approximately 25 km/h (for beginners or crowded areas)
• Mode 2: Approximately 35 km/h (balanced speed for general riding)
• Mode 3: Approximately 45 km/h (maximum speed for open roads)

Switch between modes using the designated button on the handlebar.

3.3 Remote Control Functions

The EVERCROSS 702/701 comes with a remote control for enhanced security and convenience:

Image: Diagram illustrating the functions of the 702 remote control, including lock, unlock, keyless start, and vehicle location.

• Lock Button: Activates theft protection and puts the vehicle into alarm mode.
• Unlock Key: Disables theft protection, making the vehicle ready to drive.
• Off Button (Press Twice): Activates keyless start mode. Press once to end the mode (turn off the vehicle).
• Locate Vehicle Button: Within a range of 30 meters, use this to quickly locate the vehicle (activates sound/lights).

3.4 LCD Multi-Function Display

The integrated LCD display provides real-time information about your ride:

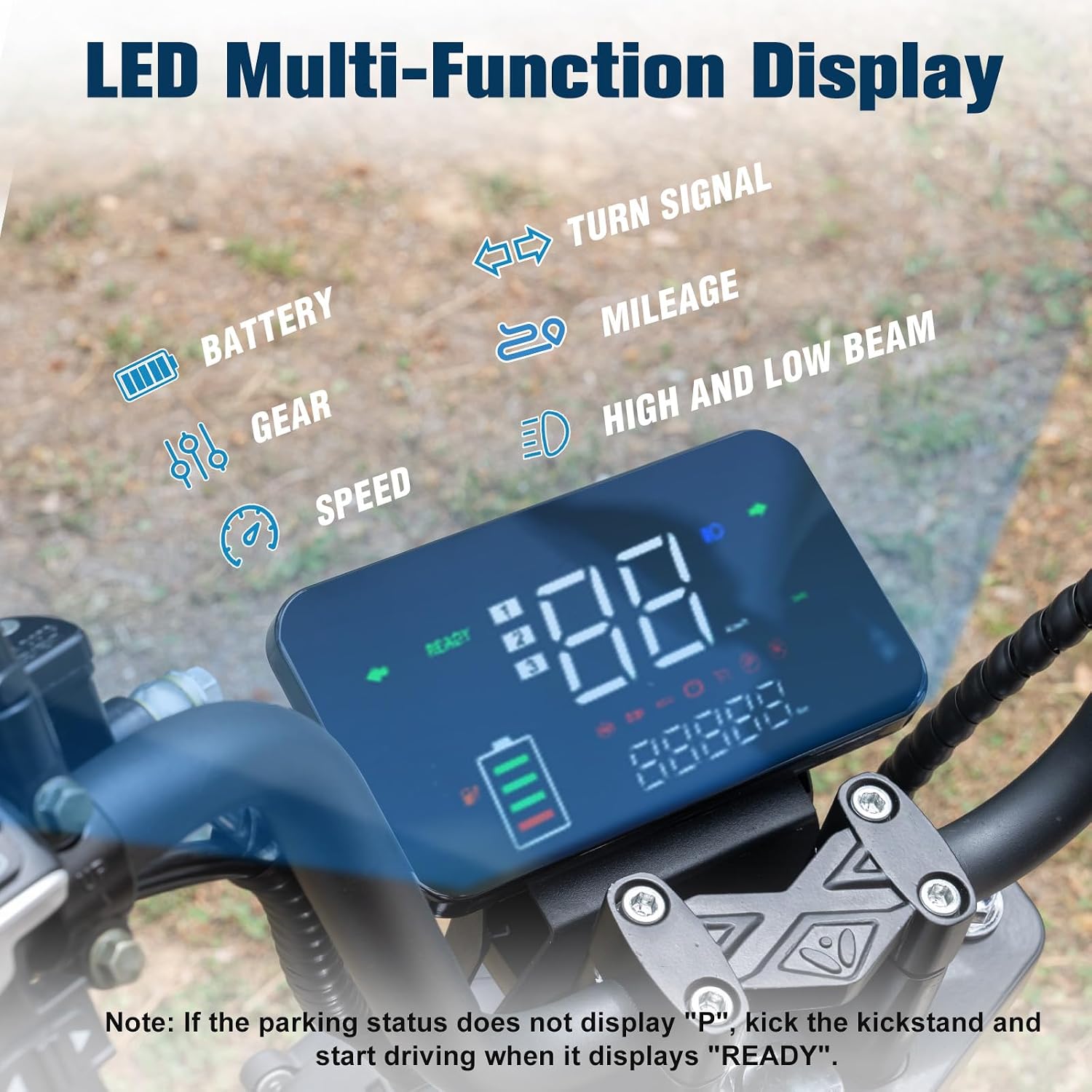

Image: Close-up of the LED Multi-Function Display, showing indicators for battery, gear, speed, turn signal, mileage, and high/low beam.

• Speed Indicator: Digital display of current speed.
• Battery Level: Shows remaining battery charge.
• Mileage: Displays daily and total mileage.
• Gear/Speed Mode: Indicates the current speed mode selected.
• Headlight Indicator: Shows if high or low beam is active.
• Turn Signal Indicators: Displays active turn signals.

4. Maintenance and Care

Regular maintenance ensures the longevity and safe operation of your EVERCROSS electric motorcycle.

4.1 Battery Care

• Charge the battery regularly, even if not in use, to maintain its health.
• Avoid completely draining the battery before recharging.
• Store the battery in a cool, dry place when not in use for extended periods.
• Do not expose the battery to extreme temperatures.

4.2 Cleaning

• Use a soft, damp cloth to wipe down the motorcycle.
• Avoid using high-pressure washers directly on electrical components.
• Do not use abrasive cleaners or solvents that could damage the finish.

4.3 Tire Pressure and Inspection

• Check tire pressure regularly and inflate to the recommended PSI (refer to tire sidewall for specifications).
• Inspect tires for wear, punctures, or damage before each ride.

4.4 Brake System Check

• Regularly check the brake levers for proper tension and responsiveness.
• Inspect brake pads for wear and replace them if necessary.
• Ensure the disc brakes are clean and free of debris.

5. Troubleshooting

This section addresses common issues you might encounter with your electric motorcycle.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact EVERCROSS customer support.

6. Technical Specifications

Detailed specifications for the EVERCROSS 702/701 Electric Motorcycle:

Image: A comparison chart highlighting the advantages of the EVERCROSS 702/701 Electric Motorcycle's specifications against other models.

Image: Detailed view of the 2000W powerful brushless motor, highlighting its climbing ability, max speed, and max torque.

Image: Illustration of the front hydraulic shock absorption and rear spring shock absorber system for enhanced ride comfort.

7. Warranty and Support

Your EVERCROSS 702/701 Electric Motorcycle is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical support, spare parts, or warranty claims, please contact EVERCROSS customer service through the retailer where you purchased the product or visit the official EVERCROSS website for contact information.

When contacting support, please have your model number (702/701) and ASIN (B0F4JXJZGQ) ready for faster assistance.
