Cecotec Portable Air Compressor Mini Air Max User Manual

1. Introduction

Thank you for choosing the Cecotec Portable Air Compressor Mini Air Max. This compact electric air pump is designed for convenient inflation of bicycle, motorcycle, car, and scooter tires, as well as various sports balls. Its portable design and powerful performance make it an essential tool for maintaining optimal pressure. Please read this manual thoroughly before use to ensure safe and efficient operation.

2. Safety Instructions

• Always read and understand all instructions before operating the device.
• Keep the air compressor away from children and pets.
• Do not operate the device in wet conditions or near flammable liquids or gases.
• Ensure the correct pressure setting for the item being inflated to prevent over-inflation, which can cause damage or injury.
• Do not leave the device unattended during operation.
• Use only the provided charging cable and adapters.
• Avoid prolonged continuous operation to prevent overheating. Allow the device to cool down if it becomes hot.
• Store the device in a cool, dry place when not in use.

3. Product Overview

The Cecotec Mini Air Max is a compact and powerful portable air compressor. It features an LCD display for clear pressure readings and settings, intuitive control buttons, and a built-in flashlight for convenience in low-light conditions.

Image: The Cecotec Portable Air Compressor Mini Air Max shown with its included accessories: inflation hose, Schrader valve adapter, Presta valve adapter, ball needle, and USB charging cable.

Included Components:

• 1 x Cecotec Portable Air Compressor Mini Air Max
• 1 x Inflation Hose
• 1 x Schrader Valve Adapter
• 1 x Presta Valve Adapter
• 1 x Ball Needle
• 1 x USB Charging Cable

Image: A close-up view of the air compressor's LCD display, showing a pressure reading of 2.50 PSI and a battery level indicator. The control buttons are visible below the screen.

Controls:

• Power Button: Turns the device on/off.
• Mode Button: Cycles through different inflation modes (e.g., car, motorcycle, bicycle, ball) and pressure units (PSI, BAR).
• +/- Buttons: Adjusts the target pressure value.
• Start/Stop Button: Initiates or halts the inflation process.
• Flashlight Button: Activates the built-in LED flashlight.

Image: A person holding the Cecotec Mini Air Max, demonstrating its integrated flashlight feature by illuminating the valve of a scooter tire in a dimly lit environment.

4. Setup

4.1 Charging the Device

Before first use, fully charge the air compressor. Connect the provided USB charging cable to the device's charging port and to a suitable USB power adapter (not included). The battery indicator on the LCD display will show the charging status. A full charge ensures optimal performance and battery life.

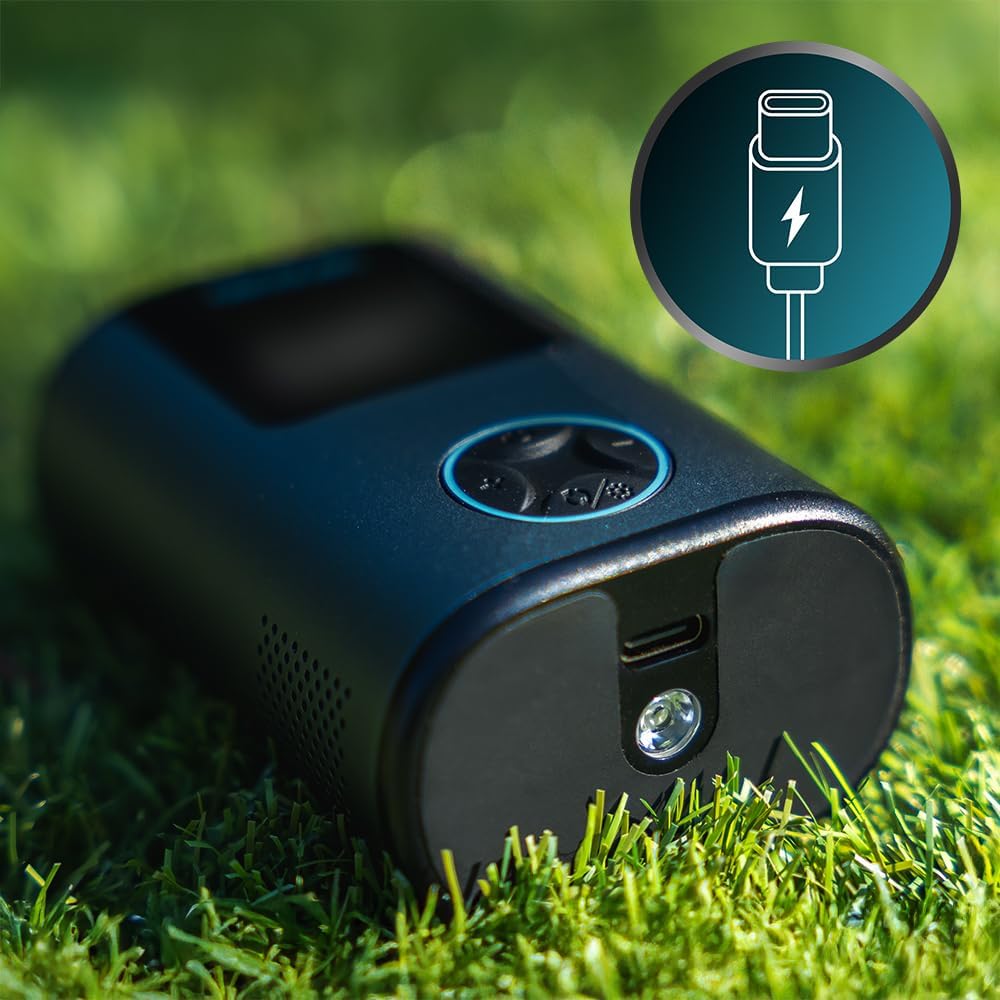

Image: A close-up view of the USB-C charging port located on the side of the Cecotec Mini Air Max, indicating where the charging cable should be connected.

4.2 Attaching the Inflation Hose and Adapters

Screw the inflation hose securely onto the air compressor's output port. Select the appropriate valve adapter for the item you wish to inflate (Schrader, Presta, or ball needle) and attach it to the other end of the inflation hose.

5. Operating Instructions

5.1 Powering On and Selecting Mode

1. Press and hold the Power button to turn on the device. The LCD display will illuminate.
2. Press the Mode button to cycle through the available inflation modes (e.g., car, motorcycle, bicycle, ball) and pressure units (PSI, BAR). Select the mode appropriate for your item.

5.2 Setting Target Pressure

Once the desired mode is selected, use the '+' and '-' buttons to adjust the target pressure. Refer to the manufacturer's recommended pressure for your item (usually found on the tire sidewall or product manual).

5.3 Connecting and Inflating

1. Connect the attached inflation hose with the correct adapter to the valve of the item you wish to inflate. Ensure a secure connection to prevent air leakage.
2. Press the Start/Stop button to begin inflation. The device will display the current pressure as it inflates.
3. The air compressor will automatically stop once the preset target pressure is reached.
4. Carefully disconnect the hose from the valve.

Image: The Cecotec Mini Air Max positioned next to a scooter tire, with the inflation hose securely connected to the tire valve, demonstrating the device in active use.

Image: A collage showcasing the versatility of the Cecotec Mini Air Max, with individual frames depicting it inflating a scooter tire, a basketball, and two different bicycle tires.

5.4 Powering Off

Press and hold the Power button to turn off the device when inflation is complete or when not in use.

6. Maintenance

6.1 Cleaning

Wipe the exterior of the air compressor with a soft, damp cloth. Do not use abrasive cleaners or immerse the device in water.

6.2 Storage

Store the air compressor and its accessories in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the device is fully charged before long-term storage to maintain battery health.

7. Troubleshooting

• Device does not turn on: Ensure the battery is charged. Connect to a power source and try again.
• Device not inflating: Check if the inflation hose and adapter are securely connected to both the compressor and the item's valve. Verify that the target pressure is set above the current pressure.
• Inaccurate pressure reading: Ensure the adapter is fully seated on the valve. If the issue persists, compare with a known accurate pressure gauge.
• Slow inflation: Check for leaks in the connection. Ensure the battery is sufficiently charged.
• Device overheats: Stop operation and allow the compressor to cool down for at least 15-20 minutes before resuming use. Avoid continuous operation for extended periods.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

Cecotec provides a commitment to product longevity, with EU spare part availability for a duration of 10 years from the date of purchase. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Cecotec customer service.

9.2 Customer Support

If you encounter any issues or have questions regarding your Cecotec Portable Air Compressor Mini Air Max, please contact Cecotec customer support through their official website or the contact information provided in your product packaging. Please have your model number (Mini Air max) and purchase details ready when contacting support.
