1. Important Safety Instructions
Please read and understand all instructions before assembling and using this product. Failure to follow these instructions may result in injury or product damage.
- Always follow the assembly instructions carefully to avoid injury.
- Do not operate the chair if the power adapter or electrical components are damaged.
- Keep the chair away from water and heat sources to prevent electrical hazards.
- Do not exceed the maximum weight capacity of 350 pounds (as indicated in product images). The provided product data incorrectly states 118.6 pounds.
- Ensure all connections are secure before use.
- Keep children and pets away from the moving parts of the chair.
2. Product Overview
The MCombo PR607 is an oversized dual motor power recliner chair designed for comfort and versatility. It features independent control of the backrest and footrest, a rocking function, LED ambient lighting, and convenient USB/Type-C charging ports.
Key Features:
- Dual Motor System: Allows independent adjustment of the backrest and footrest for infinite reclining positions (up to 155°).
- Rocker Recliner: Provides a smooth and stable rocking motion at a 30° angle, even when reclined.
- One-Touch Reset: A dedicated home button returns the chair to its original upright position in approximately 13 seconds.
- Integrated Charging: Dual USB and Type-C ports located on the armrest support charging for phones and tablets.
- LED Ambient Lighting: Under-chair LED lighting for enhanced relaxation.
- Comfortable Design: Features a 38.2-inch wide seat, 6.3-inch high-density cushion, and thick backrest/headrest support.
- Quality Materials: Constructed with CertiPUR-US certified foam, OEKO-TEX Standard 100 certified fabric, and FSC certified wood.
Product Dimensions:
Overall Dimensions: 42.9"D x 39.8"W x 40.2"H
Seat Length: 38.2 Inches
Seat Depth: 22.4 inches
Seat Height: 22.4 Inches
Seat Back Interior Height: 27.6 Inches
Chair Backrest Width: 43.3 Inches
Item Weight: 118.6 Pounds
Image: Detailed dimensions of the MCombo PR607 recliner chair, including TV viewing and lay-flat positions. Ideal height range is 5'1"-6'1" with a maximum capacity of 350 lbs.
Image: A person and a dog comfortably seated on the 38.2-inch extra wide seat of the MCombo PR607 recliner chair.
Image: Close-up of the OEKO-TEX Standard 100 certified fabric, highlighting its skin-friendly and breathable properties.
3. Setup and Assembly
The MCombo PR607 chair is designed for easy assembly, requiring no special tools. Assembly typically takes about 5 minutes for a novice.
Assembly Steps:
- Unpack all components: Base, Backrest, Manual, and Power adapter.
- Connect the backrest to the base by sliding it into the designated slots until it clicks securely into place.
- Connect the power adapter to the chair's power input port.
- Plug the power adapter into a suitable electrical outlet.
Image: Close-up view of the power adapter connection point on the MCombo PR607 recliner chair.
4. Operating Instructions
The MCombo PR607 chair offers intuitive controls for various functions.
Control Panel Functions:
Image: Close-up of the control panel on the MCombo PR607 recliner, showing buttons for recline, home, USB, and Type-C ports.
- Recline/Incline Buttons: Use the dedicated buttons to adjust the backrest and footrest independently. Press and hold to achieve your desired position.
- Home Button: Press the 'Home' button (often marked with a house icon) to smoothly return the chair to its original upright sitting position. This process takes approximately 13 seconds.
- USB & Type-C Ports: Located on the control panel, these ports allow you to charge your electronic devices while relaxing. Simply plug in your device's charging cable.
- LED Lighting: Activate the LED ambient lighting using the designated button on the control panel for added atmosphere.
Reclining and Rocking:
Image: Illustration showing the independent movement of the footrest and backrest on the MCombo PR607 recliner, allowing for infinite position adjustments.

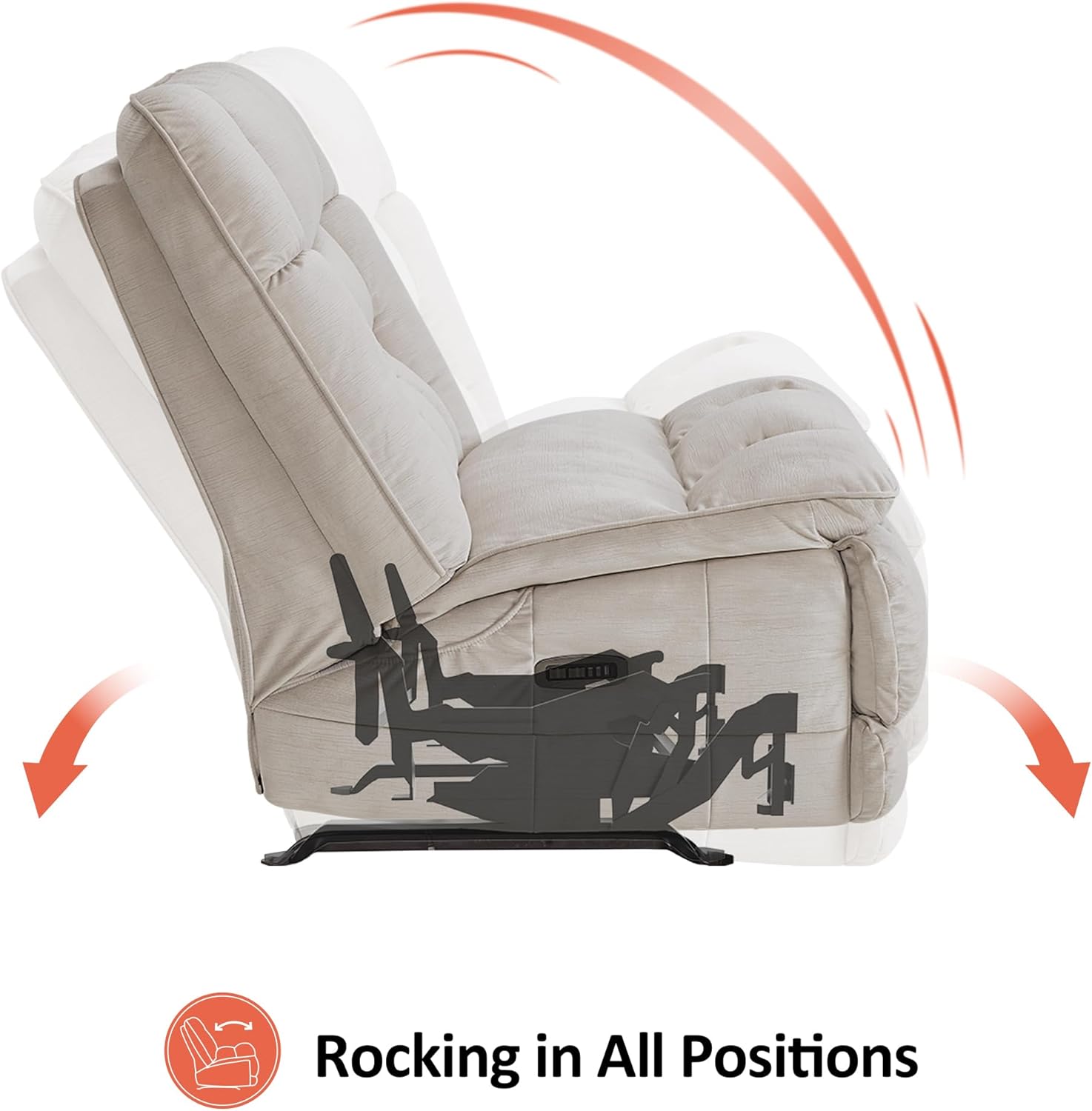

Image: Diagram illustrating the rocking motion of the MCombo PR607 recliner, indicating it can rock in all positions.
Image: The MCombo PR607 recliner chair with its blue LED ambient lighting activated, creating a relaxed atmosphere.
Video: Demonstrates the MCombo Oversized Dual Motor Armless Power Glider Recliner (PR607) in action, showcasing the adjustable footrest, backrest, one-touch home button, USB/Type-C charging ports, and LED lighting features.
5. Care and Maintenance
Proper care will extend the life and appearance of your MCombo recliner chair.
- Cleaning Fabric: For general cleaning, use a soft, damp cloth with mild soap. Blot spills immediately. Avoid harsh chemicals or abrasive cleaners.
- Vacuuming: Regularly vacuum the chair using a soft brush attachment to remove dust and debris.
- Moving the Chair: When moving the chair, lift it rather than dragging to prevent damage to the base and flooring.
- Electrical Components: Ensure the power cord and adapter are free from damage. Do not attempt to repair electrical components yourself. Contact qualified service personnel if issues arise.
6. Troubleshooting
If you encounter issues with your MCombo recliner, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not recline/incline | Power cord unplugged, power outlet not working, loose connection, damaged power adapter. | Check power cord connection to chair and wall outlet. Test outlet with another device. Ensure all internal connections are secure. If adapter is damaged, contact support. |
| Footrest or backrest moves unevenly | Obstruction in mechanism, loose components. | Inspect for any obstructions. Ensure all assembly bolts are tightened. |
| USB/Type-C ports not charging | Chair not powered, device cable faulty, device incompatible. | Ensure chair is powered on. Try a different charging cable or device. |
| Rocker function is stiff or noisy | Lack of lubrication, foreign object. | Inspect for foreign objects. Apply a silicone-based lubricant to moving parts if necessary (consult manufacturer for specific recommendations). |
If the problem persists after attempting these solutions, please contact MCombo customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Name | Oversized Dual Motor Armless Power Recliner Chair |
| Model Number | PR607 (6160-PR607) |
| Brand | MCombo |
| Color | Beige |
| Material | Textile (Fabric) |
| Frame Material | Wood |
| Product Dimensions (D x W x H) | 42.9" x 39.8" x 40.2" |
| Seat Length | 38.2 Inches |
| Seat Depth | 22.4 inches |
| Seat Height | 22.4 Inches |
| Item Weight | 118.6 Pounds |
| Max Weight Capacity | 350 lbs (as per product image) |
| Reclining Position Count | Infinite (up to 155° max recline) |
| Additional Features | Adjustable Backrest, Foot Rest, Power Recliner, Wide Seat, Rocker Function, LED Lighting, Dual USB & Type-C Ports |
| Assembly Required | Yes (Easy, no tools needed) |
| Indoor Outdoor Usage | Indoor |
8. Warranty and Support
Warranty Information:
This MCombo PR607 recliner chair comes with a 2-Year Limited Warranty covering the following components:
- Reclining Mechanism
- Electrical Parts
- Upholstery Material
- Cushions
- Wood and Metal Frame
Please retain your proof of purchase for warranty claims.
Customer Support:
For any questions, assistance, or warranty claims, please contact MCombo customer support. Refer to the contact information provided with your product packaging or visit the official MCombo website.
