Benass 12x12 Pop Up Canopy Instruction Manual

1. Introduction

Thank you for choosing the Benass 12x12 Pop Up Canopy. This manual provides essential instructions for the safe and efficient setup, operation, and maintenance of your canopy. Designed for ease of use, this heavy-duty canopy is suitable for parties, camping, events, and vendor use, offering ample space and reliable stability.

2. Safety Information

• Always secure the canopy with the provided sandbags, wind ropes, and ground nails to prevent overturning in windy conditions.
• Do not use the canopy in severe weather conditions, including heavy rain, strong winds, lightning, or snow.
• Keep all flame and heat sources away from the canopy fabric.
• Ensure proper ventilation when using heating or cooking appliances under the canopy.
• Supervise children around the canopy to prevent accidents.
• Regularly inspect the frame and fabric for any damage or wear before each use.

3. Package Contents

Verify that all components are present before assembly:

• Pop Up Canopy Frame (Alloy Steel)
• Canopy Top Fabric (White)
• Storage Bag with Wheels
• 4 Sandbags
• Wind Ropes
• Spiral Ground Nails

4. Setup Instructions

The Benass Pop Up Canopy is designed for easy, one-person setup. Follow these steps:

1. Step 1: Open the Canopy Frame. Place the folded frame in the desired location. Gently pull the legs outwards to begin expanding the frame.
2. Step 2: Secure the Canopy Top. Drape the canopy top fabric over the expanded frame. Secure it to the frame using the integrated Velcro straps at each corner and along the edges.
3. Step 3: Push the Central Button. From underneath the canopy, push the central lock mechanism upward until you hear a distinct "click." This locks the frame into its fully open position.
4. Step 4: Install Sandbags and Extend Height. Attach the four sandbags to the canopy legs. Fill them with sand or other heavy material for added stability. Adjust the height of the canopy legs by pressing the red button on each leg and extending them to your desired height (8.7', 9', or 9.32'). Ensure all legs are locked at the same height.
5. Step 5: Install Wind Ropes and Ground Nails. Attach the wind ropes to the canopy corners and stake them into the ground using the spiral ground nails. This provides additional stability, especially in light wind conditions.

5. Operating Instructions

5.1 Space and Dimensions

The 12x12 Benass Pop Up Canopy features a straight leg design, maximizing usable space. With overall dimensions of 12'L x 12'W x 9.32'H (adjustable heights of 8.7', 9', and 9.32'), it comfortably accommodates 10-12 people, along with tables and chairs, making it ideal for various outdoor activities.

5.2 Enhanced Stability Features

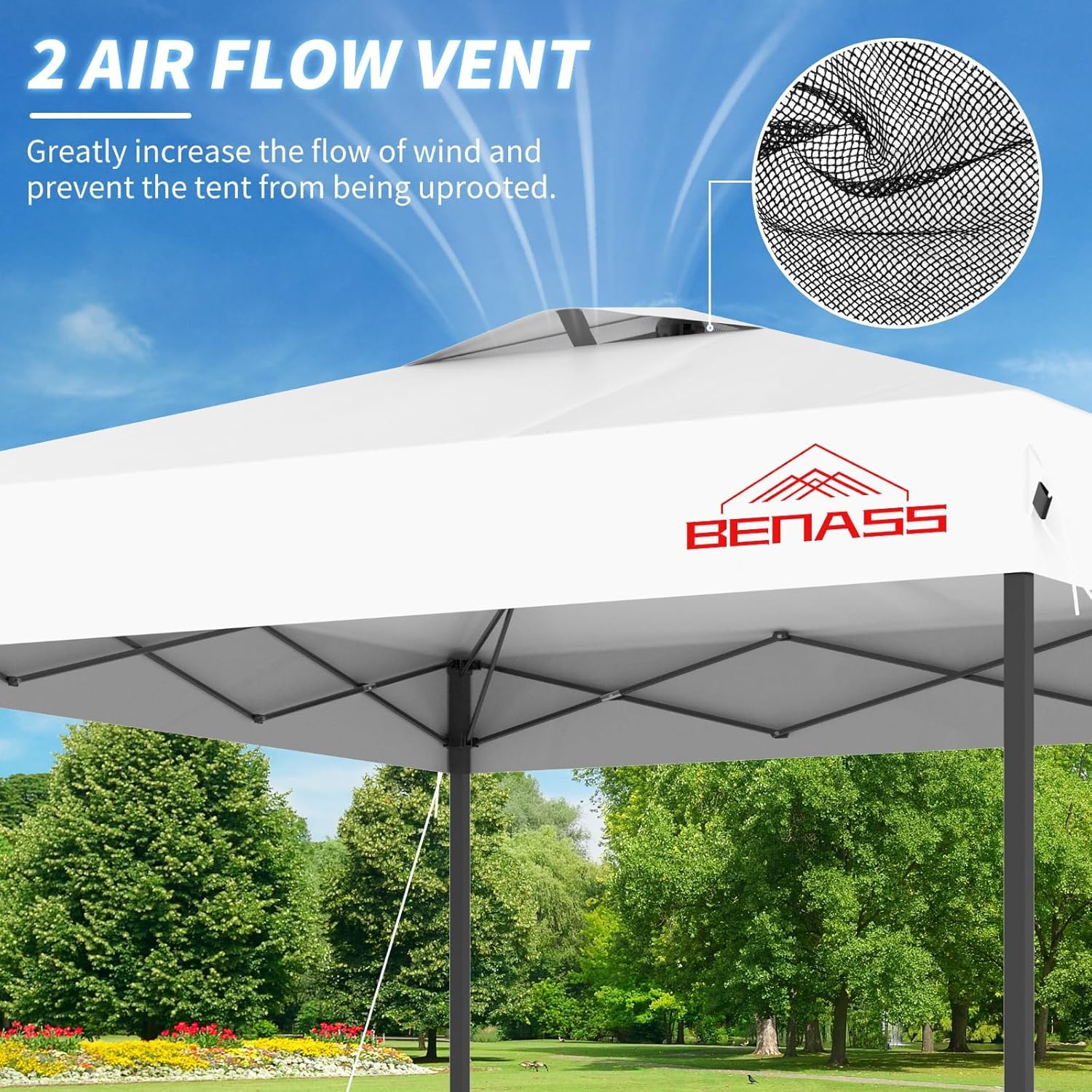

The canopy is equipped with two-way vents at the top to improve airflow and reduce wind resistance, preventing the tent from being uplifted. Always utilize the provided sandbags, wind ropes, and spiral ground nails to firmly anchor the canopy to the ground, especially in breezy conditions.

5.3 Versatile Use

This canopy is suitable for a wide range of outdoor applications, including:

• Outdoor parties and gatherings
• Camping trips
• Vendor booths or market stalls
• Leisure activities in your backyard or at the beach
• Temporary work sheds

5.4 Shade Adjustment

The canopy's height can be adjusted to provide optimal shade throughout the day. You can also tilt the canopy by adjusting two legs to a lower height than the other two, creating more angled shade as needed.

6. Maintenance

6.1 Cleaning

• Clean the canopy fabric with mild soap and water. Do not use harsh detergents or abrasive cleaners.
• Rinse thoroughly and allow the fabric to air dry completely before storing to prevent mildew.
• Wipe down the alloy steel frame with a damp cloth to remove dirt and debris.

6.2 Storage

The canopy comes with an upgraded storage bag featuring a top handle, two side handles, and wheels for convenient transport and storage. Ensure the canopy is completely dry before folding and placing it back into the storage bag to prevent mold and mildew growth. Store in a cool, dry place away from direct sunlight.

7. Troubleshooting

• Difficulty Expanding/Collapsing Frame: Ensure all locking mechanisms are disengaged before attempting to expand or collapse. Apply even pressure when expanding. If the frame sticks, gently wiggle the joints. Do not force the frame.
• Canopy Instability: Verify that all legs are fully extended and locked at the same height. Ensure sandbags are filled and attached, and wind ropes are securely staked. In strong winds, it is recommended to take down the canopy.
• Water Accumulation on Top: Ensure the canopy fabric is taut and properly secured to the frame. Adjust leg heights if necessary to create a slight slope for water runoff.
• Tears or Damage to Fabric: Small tears can often be repaired with a waterproof patch kit. For significant damage, consider purchasing a replacement top fabric. (Search ASIN: B0F8VDDJSY for replacement top canopy).

8. Specifications

9. Warranty and Support

Benass products are designed for durability and performance. While specific warranty details are not provided in this manual, many Benass products typically come with a one-year warranty covering manufacturing defects. Please retain your proof of purchase for any warranty claims.

For product support, replacement parts (e.g., sidewalls, search ASIN: B0F4DFS5QB), or further inquiries, please contact Benass customer service through the retailer where you purchased the product or visit the official Benass store online.

Benass Store: https://www.amazon.com/stores/BENASS/page/7EDAE849-45BA-4D33-9CB4-137590E24FE9
