1. Introduction
The VSITOO S1-N is a 15oz self-cleaning smart water bottle designed to provide clean and safe drinking water. It features AI-powered self-cleaning technology, real-time temperature monitoring, and durable stainless steel construction. This manual provides instructions for proper setup, operation, and maintenance of your water bottle.
2. Package Contents
Please verify that all items are present in your package:
- VSITOO S1-N 15oz Self-Cleaning Smart Water Bottle
- USB Magnetic Charging Cable
- User Manual
Image: The VSITOO S1-N water bottle, USB magnetic charging cable, and user manual as included in the package.
3. Product Overview
The VSITOO S1-N water bottle is constructed from 304 double-walled stainless steel, ensuring durability and temperature retention. The smart cap integrates the UV self-cleaning module, an LED display for temperature and battery, and a magnetic charging port. The bottle has a capacity of 15 ounces (approximately 450ml).
Image: A detailed diagram highlighting the key components and features of the VSITOO S1-N water bottle.
4. Setup
4.1. Initial Cleaning
Before first use, hand wash the bottle body with warm water and mild soap. Do not submerge the smart cap in water. Rinse thoroughly.
4.2. Charging the Bottle
The smart cap contains a built-in Lithium Ion battery. To charge:
- Locate the magnetic charging port on the top of the smart cap.
- Connect the provided USB magnetic charging cable to the port.
- Connect the other end of the USB cable to a compatible USB power source (e.g., wall adapter, computer USB port).
- The LED display will indicate charging status. A full charge can last up to 30 days.
Image: The magnetic charging cable connected to the smart cap of the water bottle.
4.3. Filling the Bottle
Twist the smart cap counter-clockwise to remove it. Fill the bottle with your desired liquid. Ensure not to overfill. Securely twist the cap back on clockwise until tight.
5. Operating Instructions
5.1. Waking Up the Display
Gently tap the top of the smart cap to activate the LED display. The display will show the current liquid temperature and battery level.
5.2. Temperature Monitoring
The LED display on the cap shows the real-time temperature of the liquid inside the bottle. The color of the ring around the display indicates the temperature range:
- Blue Ring: Temperature is below 35°C (95°F).
- Orange Ring: Temperature is between 35°C and 50°C (97°F - 122°F).
- Red Ring: Temperature is above 50°C (122°F).
Image: The smart cap displaying liquid temperature with color-coded alerts.
5.3. Activating Self-Cleaning
To manually activate the UV self-cleaning feature:
- Ensure the cap is securely tightened on the bottle.
- Long press the screen on the smart cap. The UV light will activate inside the bottle.
- The self-cleaning cycle will run for a short period.
The bottle also features AI-powered self-cleaning, which automatically activates based on usage patterns to maintain hygiene. A smart safety lock automatically pauses cleaning cycles if the bottle is tilted or the cap is removed, preventing direct exposure to the UV light.
Image: The smart cap with activated UV self-cleaning light.
5.4. Hydration Reminders
The smart water bottle tracker helps monitor water intake and can provide reminders to drink water. Refer to the display for reminder notifications.
6. Maintenance
6.1. Cleaning
The bottle body should be hand washed only. Do not place the bottle or cap in a dishwasher. Avoid submerging the smart cap in water to prevent damage to electronic components. The internal UV light provides self-cleaning for the bottle's interior.
6.2. Battery Care
To prolong battery life, charge the bottle regularly. Avoid fully depleting the battery frequently. Store the bottle in a cool, dry place when not in use for extended periods.
7. Troubleshooting
- Bottle not charging: Ensure the USB magnetic charging cable is securely connected to both the cap and a working USB power source. Check if the charging indicator on the cap is active.
- Self-cleaning not activating: Verify that the smart cap is tightly screwed onto the bottle. The safety mechanism prevents UV light activation if the cap is loose or removed. Ensure the battery has sufficient charge.
- Temperature display inaccurate: Make sure the cap is fully and correctly seated on the bottle. Allow a few moments for the sensor to stabilize.
- Water leakage: Check that the smart cap is tightly closed. Inspect the silicone gasket inside the cap for any damage or misalignment.
8. Specifications
| Brand | VSITOO |
| Model Name | S1-N |
| Capacity | 15 ounces (approx. 0.45 Liters) |
| Material | 304 Double-walled Stainless Steel |
| Color | Blue (for this variant) |
| Product Dimensions | 3.39"W x 10.87"H |
| Item Weight | 0.43 Kilograms (15.2 ounces) |
| Battery | 1 Lithium Ion battery (built-in) |
| Special Features | Double Wall, AI Self-Clean, Temperature Monitoring, Magnetic Charging |
| Product Care Instructions | Hand Wash Only |
Image: The bottle's double-wall insulation keeps drinks cold for up to 24 hours.

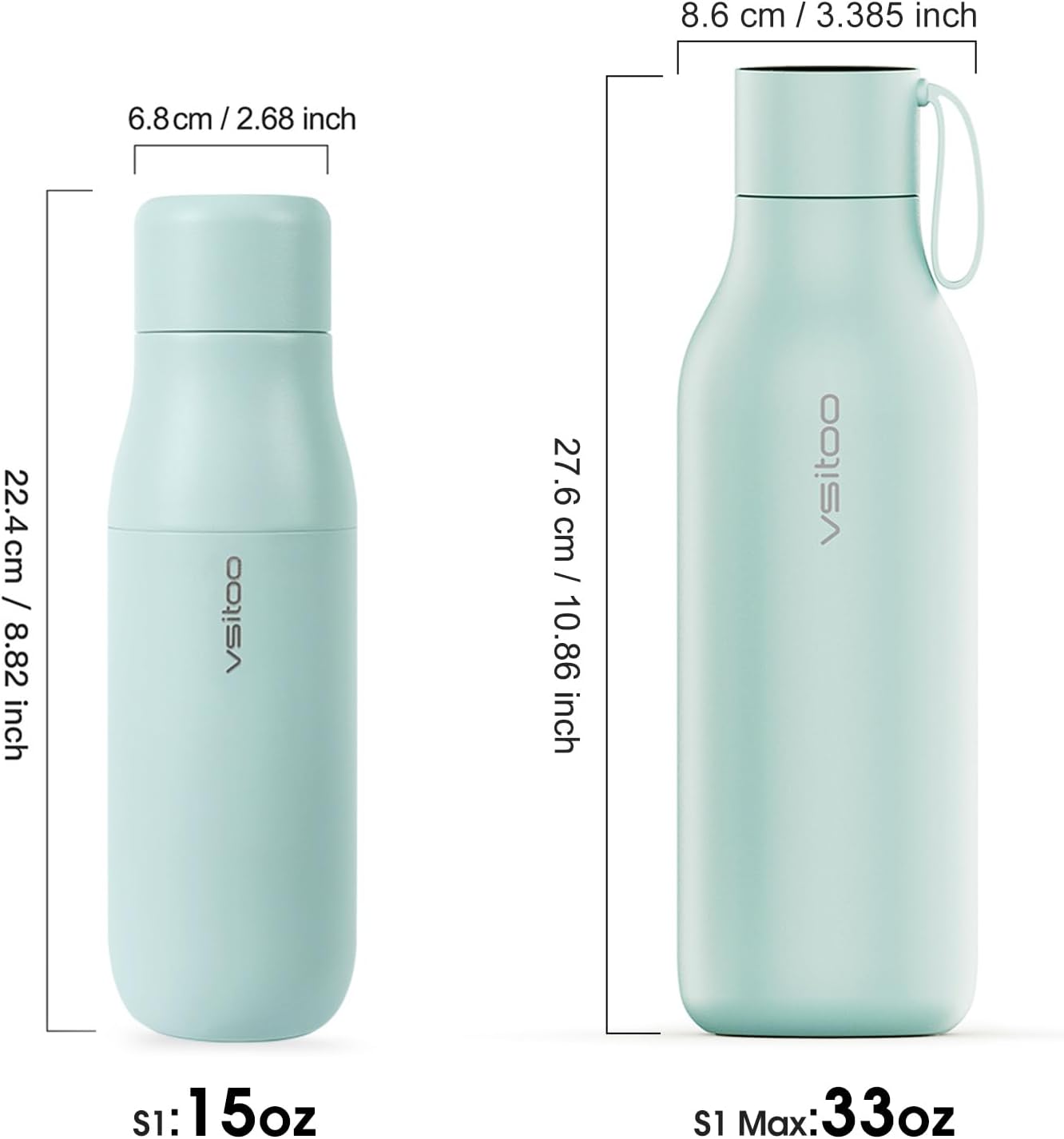

Image: Size comparison of the 15oz bottle.
9. Warranty and Support
For any product-related inquiries, technical support, or warranty claims, please contact VSITOO customer service through the retailer where the product was purchased. Please retain your proof of purchase for warranty validation.
