Introduction
This instruction manual provides detailed guidance for assembling and operating your CaDA Master C71004W Solar System Orrery building block set. This educational model allows you to construct a mechanical representation of the Earth, Moon, and Sun's movements, offering insights into astronomy and mechanical principles.
The set contains 865 precision-engineered building blocks designed for enthusiasts aged 14 and up. Please read all instructions carefully before beginning assembly.
Safety Information
WARNING: CHOKING HAZARD - Small parts. Not suitable for children under 3 years.
Always keep small parts away from young children. Ensure all components are securely connected during assembly and operation to prevent accidental detachment.
Package Contents
Before starting, verify that all components are present. Your CaDA Master C71004W Solar System Orrery set includes:
- 865 assorted building blocks
- Detailed instruction manual
- Specialized mechanical components (gears, axles, etc.)
Image: The CaDA Master C71004W Solar System Orrery set, showing the product box and the fully assembled model. This image illustrates the complete package contents and the final appearance of the orrery.
Setup and Assembly
Follow the step-by-step instructions provided in the included manual. Organize your blocks by type and color to facilitate the assembly process.
- Preparation: Clear a well-lit, flat workspace. Open all block bags and sort components.
- Base Construction: Begin by assembling the base structure as indicated in the manual. This forms the foundation for the mechanical system.
- Gear Mechanism Assembly: Carefully follow the diagrams to construct the intricate gear system that drives the planetary movements. Pay close attention to gear alignment.
- Planetary Bodies: Assemble the Sun, Earth, and Moon models using the designated blocks.
- Integration: Attach the planetary bodies to the gear mechanism, ensuring smooth rotation and revolution.
- Month Dial and Handle: Install the month dial and the operating handle.
Image: A side view of the assembled CaDA C71004W Solar System Orrery, showcasing the Sun, Earth, and Moon models, along with the intricate gear system that connects them.
Image: An angled view of the CaDA C71004W Solar System Orrery, clearly displaying the model number C71004W and the 865-piece count, emphasizing the complexity and detail of the set.
Image: Another angled perspective of the assembled orrery, with a clear view of the month dial and the indicator, which are key components for demonstrating time and planetary positions.
Operating Instructions
The CaDA Master C71004W Orrery is designed to simulate the movements of the Earth, Moon, and Sun. Operate the model using the integrated handle.
- Turning the Handle: Locate the handle on the side of the base. Gently turn the handle clockwise to initiate the movements of the Earth and Moon around the Sun.
- Earth's Rotation: One full rotation of the Earth model represents approximately one day.
- Earth's Revolution: Turning the handle approximately 365 times will complete one full revolution of the Earth around the Sun, simulating one year.
- Moon's Revolution: The Moon model will revolve around the Earth. Approximately 30 turns of the handle will complete one revolution of the Moon around the Earth, representing one month.
- Month Dial: Observe the indicator on the month dial. As the Earth revolves, the indicator will pass through the names of the months, demonstrating the passage of time relative to the Earth's position in its orbit.
Image: A visual guide illustrating the operational mechanics of the orrery. It shows that one turn of the knob equals one Earth rotation (1 day), 365 turns equal one Earth revolution (1 year), 30 turns equal one Moon revolution (1 month), and how the indicator moves across the month dial.
Image: An overhead view of the assembled orrery, providing a clear perspective of the Sun, Earth, Moon, and the circular month dial with its indicator, demonstrating the relative positions during operation.
Maintenance
To ensure the longevity and smooth operation of your Solar System Orrery, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to gently wipe dust from the model. Avoid using abrasive cleaners or solvents.
- Storage: Store the orrery in a cool, dry place away from direct sunlight and extreme temperatures to prevent material degradation.
- Handling: Always handle the model by its base. Avoid applying excessive force to the moving parts or planetary bodies.
- Loose Connections: Periodically check for any loose blocks or connections. Re-secure them firmly if found.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Planets not moving smoothly. | Gears misaligned or blocks not fully connected. | Check all gear connections and ensure blocks are firmly pressed together. Refer to assembly steps. |
| Handle is stiff or difficult to turn. | Friction in the gear system or a block obstructing movement. | Inspect the entire mechanism for any obstructions. Ensure no blocks are rubbing against each other. |
| Missing parts after unboxing. | Packaging error or small parts overlooked. | Carefully re-check all packaging materials. If parts are still missing, contact CaDA customer support. |
Specifications
- Model: CaDA Master C71004W
- Brand: CaDA
- Number of Pieces: 865
- Assembled Dimensions: Approximately 33 cm (L) x 19.4 cm (W) x 21 cm (H) (12.99 x 7.64 x 8.67 inches)
- Recommended Age: 14 years and up
- Material: Non-toxic, environmentally friendly ABS plastic
- Functionality: Mechanical simulation of Earth's rotation and revolution, Moon's revolution, and month indication.

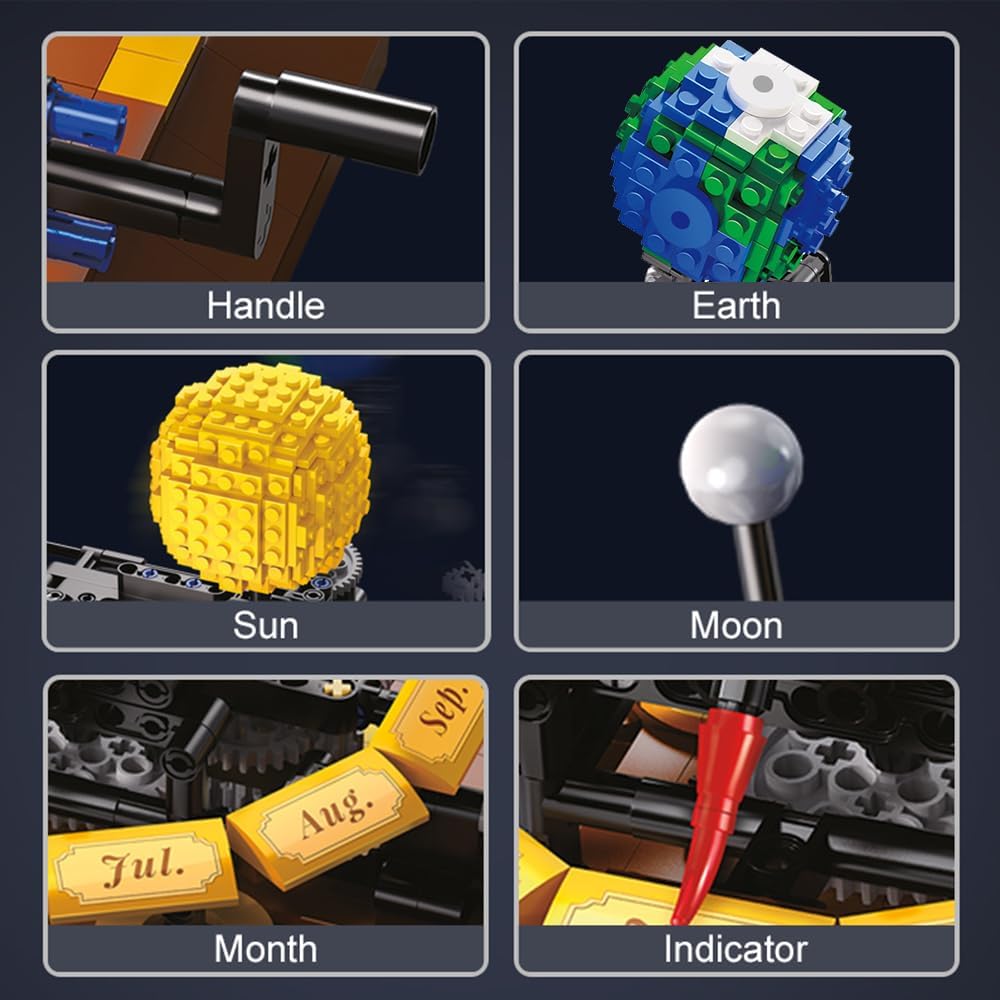

Image: Detailed close-ups of essential components of the orrery, including the handle, Earth model, Sun model, Moon model, month dial, and indicator. This helps in identifying parts during assembly and troubleshooting.
Image: A diagram illustrating the approximate dimensions of the assembled CaDA C71004W Solar System Orrery, showing its length (33cm), width (19.4cm), and height (21cm).
Warranty and Support
CaDA products are manufactured to high-quality standards. For any issues regarding missing parts, defective components, or assembly assistance, please contact CaDA customer support.
Please retain your purchase receipt as proof of purchase. Specific warranty terms may vary; refer to the official CaDA website or contact their support for detailed warranty information.
Customer Support: For assistance, please visit the official CaDA website or contact their customer service department. You can often find contact information on the product packaging or through the retailer where the product was purchased.
