Radioddity HD-1 IP67 Waterproof Walkie Talkie Instruction Manual

1. Introduction

Thank you for choosing the Radioddity HD-1 Walkie Talkie. This robust and versatile two-way radio is designed for reliable communication in various environments, from construction sites to outdoor adventures. Featuring IP67 waterproofing, dustproof capabilities, and a shock-resistant design, the HD-1 ensures durability and performance. This manual provides essential information for proper setup, operation, and maintenance of your device.

2. Package Contents

Upon opening your Radioddity HD-1 package, please verify that all the following items are included:

• 2 x Radioddity HD-1 Radiotelephones
• 2 x Rechargeable Li-ion Batteries (2400 mAh)
• 1 x Charging Dock
• 2 x Belt Clips
• 2 x Lanyards
• 1 x USB-C Charging Cable
• 1 x Power Adapter

Image: Radioddity HD-1 Walkie Talkie package contents, showing two yellow and black radios, two rechargeable batteries, a dual charging dock, a USB-C cable, a power adapter, two belt clips, and two lanyards.

3. Product Overview

3.1 Key Features

• IP67 Waterproof & Dustproof: Resists water immersion (30 minutes at 1 meter) and dust particles. Floats if dropped in water.
• Robust & Durable Design: Constructed from resistant PC+TPE material, designed to withstand drops and harsh conditions.
• License-Free PMR: 16 PMR channels and 159 CTCSS/DCS codes for private and secure communications.
• One-Key Group Call: Simplifies team communication.
• Long-Lasting Battery: 2400 mAh Li-ion battery provides 1-2 days of use and 4-5 days standby.
• Dual Charging Options: Recharge directly via USB-C or using the included charging dock.
• Vibrate Alert: Notifies you of incoming calls even in noisy environments.
• VOX Mode: Hands-free communication with 9 sensitivity levels.
• SOS Function: Emergency alert feature.

3.2 Components and Controls

Familiarize yourself with the main components and controls of your Radioddity HD-1 walkie talkie:

Image: Front view of the Radioddity HD-1 Walkie Talkie, highlighting the display, PTT button, menu, scan, call, and lamp buttons, and the speaker grille.

• Antenna: For transmitting and receiving signals.
• Power/Volume Knob: Turn clockwise to power on and increase volume; counter-clockwise to decrease volume and power off.
• Channel Selector Knob: Rotate to change channels.
• PTT (Push-to-Talk) Button: Press and hold to transmit, release to receive.
• Menu Button: Accesses the menu for settings adjustments.
• Up/Down Buttons: Navigate menu options and adjust values.
• Scan Button: Initiates channel scanning.
• Monitor Button: Temporarily disables squelch to listen for weak signals.
• Call Button: Sends a call tone to other radios.
• Lamp Button: Activates the LED torch.
• SOS Button: Activates the emergency alert.
• USB-C Port: For direct charging.
• Headset Jack: For connecting external audio accessories.

4. Setup

4.1 Battery Installation

1. Ensure the walkie talkie is powered off.
2. Locate the battery compartment cover on the back of the radio.
3. Slide the cover downwards and lift it off.
4. Insert the Li-ion battery pack, ensuring the contacts align correctly with the terminals inside the compartment.
5. Replace the battery cover and slide it upwards until it clicks into place.

4.2 Charging the Battery

Your Radioddity HD-1 offers two convenient charging methods:

1. Using the Charging Dock:
   • Connect the power adapter to the charging dock and plug it into a power outlet.
   • Place the walkie talkie (with battery installed) into the charging slot of the dock. Ensure proper contact.
   • The charging indicator light on the dock will illuminate (usually red) to show charging is in progress. It will turn green when fully charged.
2. Using the USB-C Port:
   • Open the rubber cover protecting the USB-C port on the side of the radio.
   • Connect the USB-C charging cable to the radio and a compatible USB power source (e.g., power adapter, computer USB port).
   • The battery icon on the radio's display will indicate charging status.

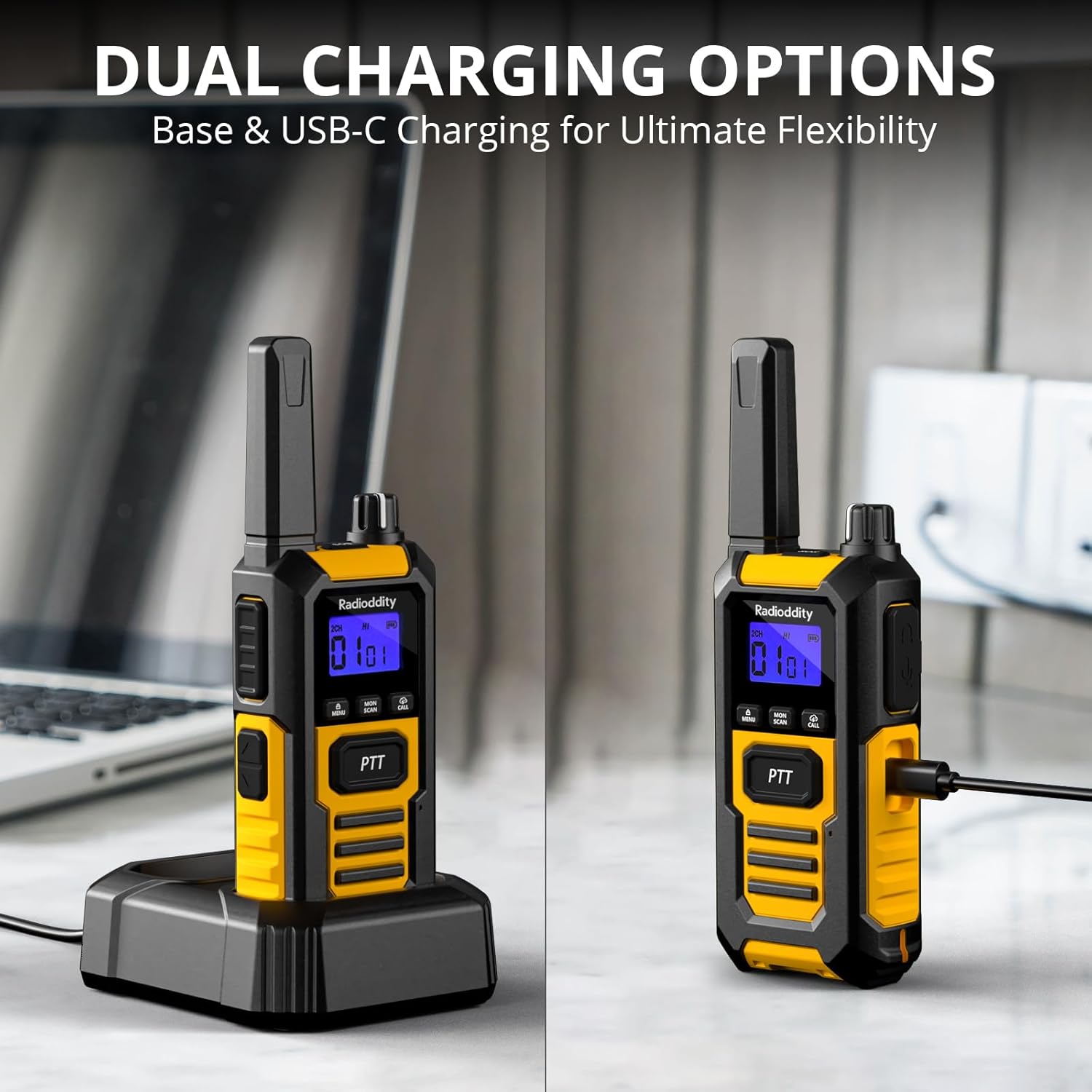

Image: The Radioddity HD-1 Walkie Talkie demonstrating its dual charging capabilities. One radio is placed in a charging dock, while another is shown connected directly via a USB-C cable.

5. Operating Instructions

5.1 Power On/Off and Volume Adjustment

• Power On: Rotate the Power/Volume knob clockwise until you hear a click and the display illuminates.
• Power Off: Rotate the Power/Volume knob counter-clockwise until you hear a click and the display turns off.
• Volume Adjustment: Once powered on, rotate the Power/Volume knob clockwise to increase volume or counter-clockwise to decrease it.

5.2 Channel Selection

To communicate with other walkie talkies, ensure all devices are set to the same channel and CTCSS/DCS code (if used).

• Rotate the Channel Selector knob to choose your desired channel (1-16).
• The selected channel number will be displayed on the screen.

5.3 Transmitting and Receiving (PTT)

• To transmit, press and hold the PTT button on the side of the radio. Speak clearly into the microphone.
• Release the PTT button to stop transmitting and return to receive mode.

5.4 VOX (Voice Operated Exchange)

VOX mode allows for hands-free transmission. When activated, the radio will automatically transmit when it detects your voice.

• Press the Menu button to enter the menu.
• Use the Up/Down buttons to navigate to the VOX setting.
• Press Menu again to select. Use Up/Down to choose a sensitivity level (1-9, with 9 being most sensitive).
• Press Menu to confirm and exit.

5.5 Call Tone

Send an audible alert to other radios on the same channel.

• Press the Call button to send a pre-set call tone.

5.6 Keypad Lock

Prevents accidental changes to settings.

• To lock the keypad, press and hold the Menu button until the lock icon appears on the display.
• To unlock, press and hold the Menu button again until the lock icon disappears.

5.7 Scan Function

Automatically scans active channels to find ongoing conversations.

• Press the Scan button to activate channel scanning. The radio will cycle through channels until an active one is found.
• To stop scanning, press the Scan button again.

5.8 LED Torch

The integrated LED torch provides illumination in low-light conditions.

• Press the Lamp button to turn the LED torch on.
• Press the Lamp button again to turn it off.

5.9 Emergency SOS

Activates an audible and visual emergency alert.

• Press and hold the SOS button (usually a dedicated orange button on the side) to activate the emergency alert. The radio will emit a loud siren and flash its LED.
• To deactivate, press any button or power cycle the radio.

Image: A Radioddity HD-1 Walkie Talkie with an illuminated red siren icon, indicating the active SOS emergency alert function.

5.10 Group Call

The one-key group call feature allows for quick communication with pre-defined groups.

Image: Multiple Radioddity HD-1 Walkie Talkies showing the one-key group call feature, with radio signals emanating from the devices.

6. Specifications

7. Durability and Resistance

The Radioddity HD-1 is built to endure challenging conditions, undergoing rigorous testing to ensure reliability.

7.1 IP67 Waterproof and Dustproof

The HD-1 is certified IP67, meaning it is fully protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. Its floating design prevents loss during water activities.

Image: Two Radioddity HD-1 Walkie Talkies partially submerged and floating in water, with water droplets around them, illustrating their IP67 waterproof and floating capabilities.

7.2 Shockproof and Drop-Resistant

The robust PC+TPE construction ensures the HD-1 can withstand impacts and drops from up to 2 meters, making it ideal for demanding environments.

Image: A Radioddity HD-1 Walkie Talkie standing upright on a rugged, rocky surface, with small rocks scattering around it, emphasizing its shockproof and durable construction.

8. Maintenance

• Cleaning: Use a soft, damp cloth to clean the radio's exterior. Do not use harsh chemicals or solvents.
• Battery Care: To maximize battery life, fully charge the battery before first use. Avoid overcharging or completely draining the battery frequently. Store the radio and battery in a cool, dry place when not in use for extended periods.
• Storage: Store the walkie talkie in a dry, dust-free environment away from extreme temperatures.
• Water Exposure: After exposure to water, ensure all ports are properly sealed and dry the radio thoroughly before charging or using.

9. Troubleshooting

10. Warranty and Support

Radioddity products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the warranty card included in your package or visit the official Radioddity website. Keep your purchase receipt as proof of purchase.
