BNSPLY 10x14 FT Outdoor Storage Shed Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your BNSPLY 10x14 FT Outdoor Storage Shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This shed is designed to provide spacious and secure outdoor storage for various items, featuring a reinforced metal structure, waterproof design, and effective ventilation.

2. Safety Information

Always prioritize safety during assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Two-Person Assembly: Assembly requires at least two adults. Do not attempt to assemble alone.
• Wear Protective Gear: Always wear work gloves and eye protection during assembly to prevent cuts and injuries.
• Level Foundation: Ensure the shed is installed on a completely flat and level surface. An uneven foundation can lead to structural instability and door misalignment.
• Secure Anchoring: Properly anchor the shed to the ground using the provided windproof ground stakes to prevent movement in strong winds.
• Clear Work Area: Keep the assembly area clear of children and pets.
• Electrical Safety: Do not install electrical wiring or appliances inside the shed unless done by a qualified professional and in compliance with local codes.
• Weight Capacity: Do not exceed the roof's weight capacity of 120 lbs/ft² or the overall weight capacity of 1225 pounds.

3. Package Contents

Your BNSPLY 10x14 FT Outdoor Storage Shed is shipped in three packages and includes the following components:

• Outdoor Storage Shed Panels (pre-cut and pre-drilled)
• Hardware (screws, nuts, bolts, washers)
• Screwdriver bit
• Wrenches
• Gloves
• Instruction Manual
• Reinforced windproof ground stakes
• Steel frame components

Each part is pre-numbered for easy identification during assembly. Please verify all parts are present before beginning.

Image: Illustration showing the shed's dimensions and indicating that it ships in 3 packages.

4. Setup and Assembly

Assembly of your BNSPLY storage shed is designed to be straightforward with pre-cut and pre-drilled panels. Follow the step-by-step instructions provided in the included manual for detailed guidance.

1. Site Preparation: Choose a flat, level area for installation. A concrete slab or a well-compacted gravel foundation is recommended for optimal stability and longevity.
2. Unpack and Organize: Carefully unpack all three boxes. Lay out and identify all numbered parts according to the parts list in the separate instruction manual.
3. Base Assembly: Assemble the base frame first, ensuring it is square and level.
4. Wall Panel Installation: Attach the wall panels to the base frame, following the numerical sequence. Ensure all screws are tightened securely but do not overtighten until the entire structure is aligned.
5. Roof Assembly: Construct the sloped gable roof structure. The design is intended to prevent leaks and snow accumulation.
6. Door Installation: Install the lockable hinged doors, including the side door. Ensure they operate smoothly and align correctly.
7. Final Securing: Once the shed is fully assembled and aligned, tighten all fasteners. Install the reinforced windproof ground stakes to secure the shed to its foundation.

Image: Close-up details of the shed's features, such as air vents, security door lock latch, anti-collision protection, smooth plastic protective shell, and stable base.

5. Operating Instructions

Your BNSPLY storage shed is designed for ease of use and security.

• Door Operation: The shed features lockable hinged doors for easy access. Ensure the doors are fully closed and latched when not in use to protect contents from weather and unauthorized access.
• Ventilation: The four integrated air vents facilitate airflow, helping to keep the interior dry and reduce condensation. Ensure these vents remain unobstructed for optimal performance.
• Storage Capacity: Utilize the spacious interior for storing gardening tools, bicycles, BBQ grills, trash bins, and other outdoor equipment. Consider adding shelving or organizers for improved internal organization.

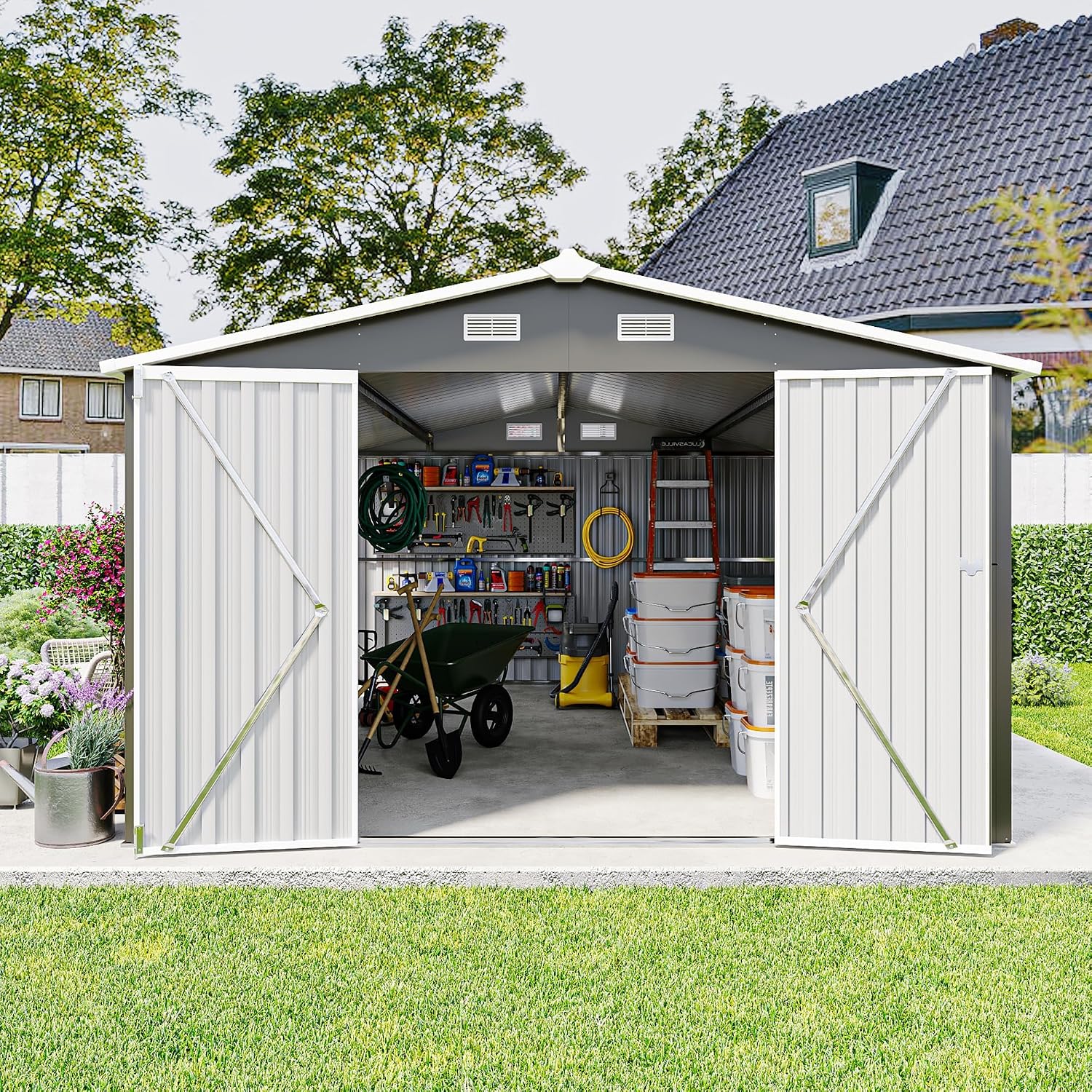

Image: The shed with its doors open, revealing a spacious interior filled with garden tools, a wheelbarrow, and storage containers.

Image: An illustration highlighting the shed's versatility for use as a pet room, storage room, garbage room, or equipment room.

6. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your storage shed.

• Cleaning: Clean the exterior surfaces periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the paint coating.
• Roof Inspection: Regularly check the sloped roof for any debris, leaves, or snow accumulation, especially after heavy weather. Clear any blockages to ensure proper water runoff.
• Ventilation Check: Ensure the four air vents are clear of obstructions to maintain proper airflow and prevent moisture buildup inside the shed.
• Door and Latch Maintenance: Lubricate door hinges and latches annually to ensure smooth operation. Check for any signs of rust or wear and address them promptly.
• Fastener Check: Periodically inspect all screws and bolts to ensure they remain tight. Retighten if necessary.

Image: The shed exterior during rainfall, illustrating its waterproof sloping roof and heat dissipation vents.

7. Troubleshooting

If you encounter any issues with your storage shed, refer to the following common solutions:

• Water Leakage:
  • Ensure the shed is on a level foundation. Uneven ground can cause panels to misalign, creating gaps.
  • Check all roof panels and seams for proper overlap and sealing.
  • Verify that all fasteners are securely tightened.
• Difficulty Opening/Closing Doors:
  • Confirm the shed's base is level. An unlevel base can cause door frames to warp.
  • Check door hinges for obstructions or damage. Lubricate if necessary.
  • Ensure no items inside the shed are blocking the door's path.
• Condensation Inside Shed:
  • Ensure all four air vents are clear and unobstructed to allow for proper air circulation.
  • Avoid storing wet items inside the shed without allowing them to dry first.

8. Specifications

9. Warranty and Support

BNSPLY stands behind the quality of its products. Your 10x14 FT Outdoor Storage Shed comes with a 12-month warranty.

Additionally, we offer a 30-day return or replacement policy from the date of purchase. If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact our customer support team. We are dedicated to resolving your concerns promptly.

Customer Support: For assistance, please refer to the contact information provided on your purchase receipt or visit the BNSPLY official website.
