1. Introduction
Thank you for choosing the roomfitters Modern Sleeper Sofa Bed. This manual provides essential information for the safe assembly, proper use, maintenance, and troubleshooting of your new furniture. Please read these instructions carefully before assembly and retain them for future reference.
2. Safety Information
- Always assemble the product on a soft, clean surface to prevent scratches.
- Ensure all parts are securely fastened before use. Periodically check and re-tighten all connections.
- Do not stand or jump on the sofa bed.
- Keep small parts and packaging materials away from children to prevent choking hazards.
- Use only the provided hardware and tools for assembly.
- If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.
3. Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. If any items are missing or damaged, please contact roomfitters customer service.
- Sofa Bed Frame Components
- Seat Cushion(s)
- Back Cushion(s)
- Legs
- Hardware Pack (screws, washers, Allen wrench)
- Assembly Guide (this document)
Figure 3.1: Overview of the roomfitters Modern Sleeper Sofa Bed.
4. Setup and Assembly Instructions
Assembly is required for this product. It is recommended that two adults assemble the sofa bed. Please follow these steps carefully:
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to avoid damage.
- Attach Legs: Locate the pre-drilled holes on the bottom of the sofa bed frame. Align each leg with its corresponding hole and secure it using the provided screws and Allen wrench. Ensure all legs are tightened firmly.
- Position Frame: With the legs attached, carefully turn the sofa bed frame upright.
- Place Cushions: Position the seat cushion(s) onto the frame. Then, place the back cushion(s) against the backrest.
- Final Check: Verify that all components are securely attached and the sofa bed is stable before use.
Figure 4.1: Angled view of the assembled sofa bed, showing the general structure.
Figure 4.2: Side view highlighting the square armrest design.
5. Operating Instructions
The roomfitters Modern Sleeper Sofa Bed is designed for versatile use as both a comfortable seating option and a compact sleeping surface.
5.1. As a Sofa/Daybed
The primary configuration provides a spacious and comfortable seating area. The plush chenille cushions offer a soft and supportive experience for lounging or sitting. The design allows for flexible use in various room types, including living rooms, guest rooms, or lounge areas.
Figure 5.1: Front view of the sofa bed in its standard configuration.
5.2. As a Sleeper Bed
This unit functions as a sleeper bed by providing an extended, flat surface suitable for napping or accommodating guests. No complex conversion mechanism is involved; the design inherently offers a comfortable sleeping area. Simply remove the back cushions if desired to maximize the sleeping surface.

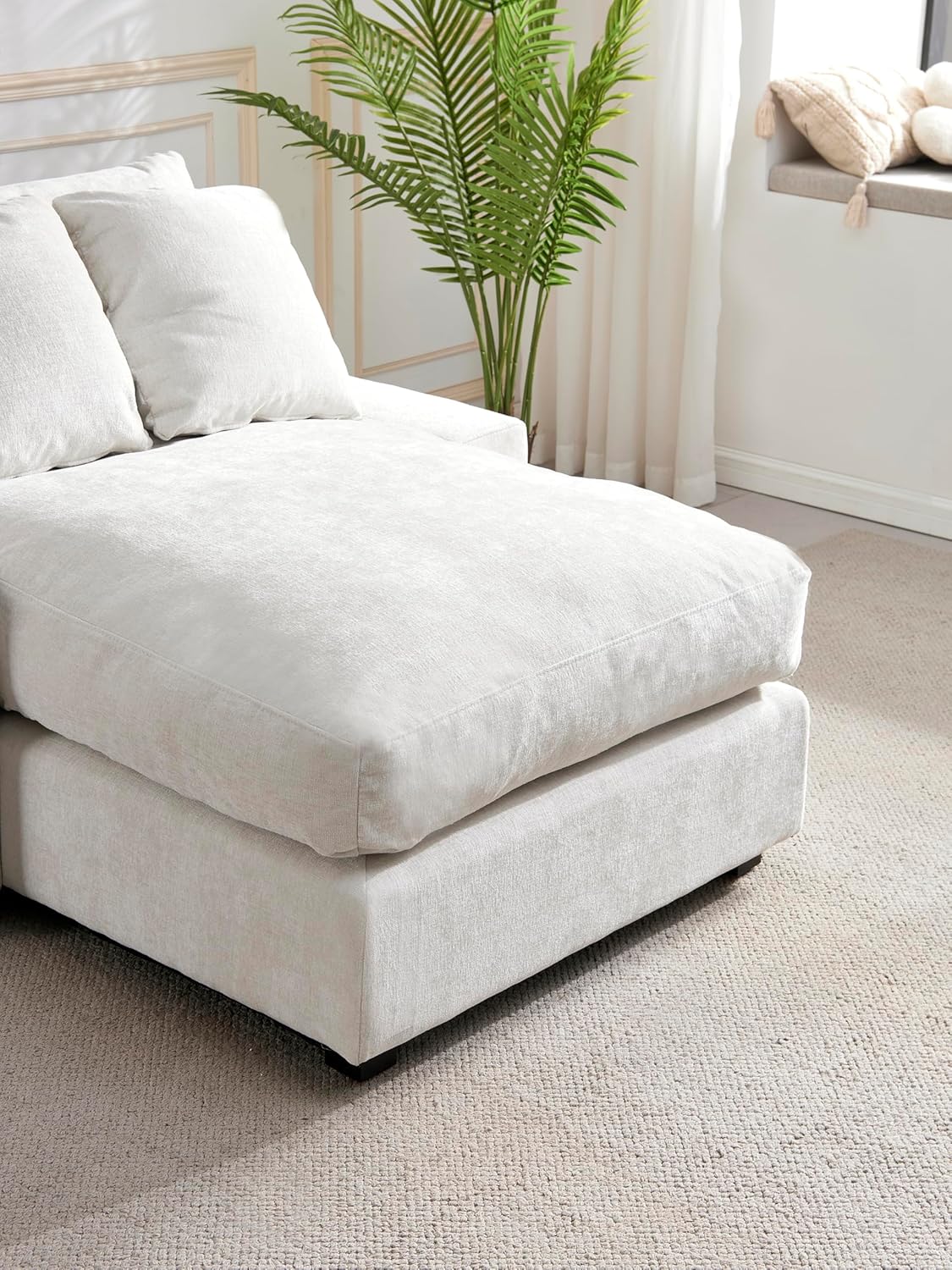

Figure 5.2: Top-down view illustrating the plush cushions suitable for seating or sleeping.
6. Maintenance and Care
Proper care will extend the life and appearance of your roomfitters Modern Sleeper Sofa Bed.
- Cleaning: For general cleaning, wipe the chenille fabric with a dry cloth. For spills or stains, gently wipe with a damp cloth. Avoid harsh chemicals or abrasive cleaners, as these may damage the fabric.
- Cushion Care: Fluff and rotate cushions regularly to maintain their shape and even out wear. The back cushions are removable for easier adjustment and cleaning.
- Frame Care: Periodically check all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability.
- Placement: Avoid placing the sofa bed in direct sunlight or near heat sources, which can cause fading or material degradation.
Figure 6.1: Close-up of the chenille fabric, illustrating its texture and appearance.
7. Troubleshooting
If you encounter any issues with your sofa bed, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Sofa bed feels unstable or wobbly. | Loose leg attachments or frame connections. | Check and re-tighten all screws and bolts, especially those connecting the legs to the frame. Ensure the sofa is on a level surface. |
| Cushions appear flattened or uneven. | Lack of regular fluffing or rotation. | Fluff and rotate cushions regularly to redistribute filling and maintain shape. |
| Fabric appears stained or dirty. | Spills or accumulated dirt. | Wipe with a dry cloth for dust. For stains, gently wipe with a damp cloth. Avoid rubbing aggressively. |
If the problem persists or is not listed here, please contact roomfitters customer support for assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | roomfitters |
| Model Number | B0F48929QX |
| Assembly Required | Yes |
| Seat Height | 19 Inches |
| Product Dimensions (D x W x H) | 48.8"D x 55"W x 19"H |
| Item Weight | 79.2 Pounds |
| Color | Beige |
| Material | Chenille |
| Arm Style | Track |
| Seating Capacity | 2 |
| Indoor/Outdoor Usage | Indoor |
| Included Components | Assembly Guide, Installation Tool |
| Product Care Instructions | Wipe Clean with Dry Cloth, Wipe with Damp Cloth |
| UPC | 700704976877 |
9. Warranty and Support
roomfitters stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official roomfitters website. For any questions, missing parts, or assistance with assembly or operation, please contact roomfitters customer support:
- Website: Visit the roomfitters Store on Amazon
- Contact: Refer to your purchase documentation for direct contact information.
