Introduction
Thank you for choosing the Poedagar Automatic Mechanical Watch. This manual provides essential information for the proper setup, operation, and maintenance of your new timepiece. Please read it carefully to ensure optimal performance and longevity of your watch.
Product Features
- Automatic Mechanical Movement: Powers with the movement of your wrist, requiring no battery.
- Stainless Steel Construction: High-quality stainless steel case and band for durability and a refined appearance.
- Multifunctional Dial: Features Roman numerals, date, day, and month displays.
- 3ATM Water Resistance: Suitable for daily life, such as splashes or rain, but not for swimming or diving.
- Adjustable Band: Includes a free stainless steel band adjustment tool for a customized fit.
Image: The watch dial showcasing its month, week, and day displays, along with the visible mechanical skeleton tourbillon.
Setup Instructions
1. Initial Winding
As an automatic mechanical watch, it requires initial winding if it has stopped. To wind the watch, gently whirl the crown (the knob on the side) clockwise for 15 to 20 complete revolutions. Do not pull the crown out during this process. This will provide sufficient power to start the movement.
2. Adjusting Time and Date
- Time Adjustment: Pull the crown out to the outermost position. Rotate the crown to set the hour and minute hands to the correct time. Push the crown back in to its normal position.
- Date/Day/Month Adjustment: Pull the crown out to the middle position. Rotate the crown to adjust the date, day, and month displays. Some models may have additional push-buttons for specific adjustments. Refer to the watch face for specific indicators. Push the crown back in to its normal position once set.

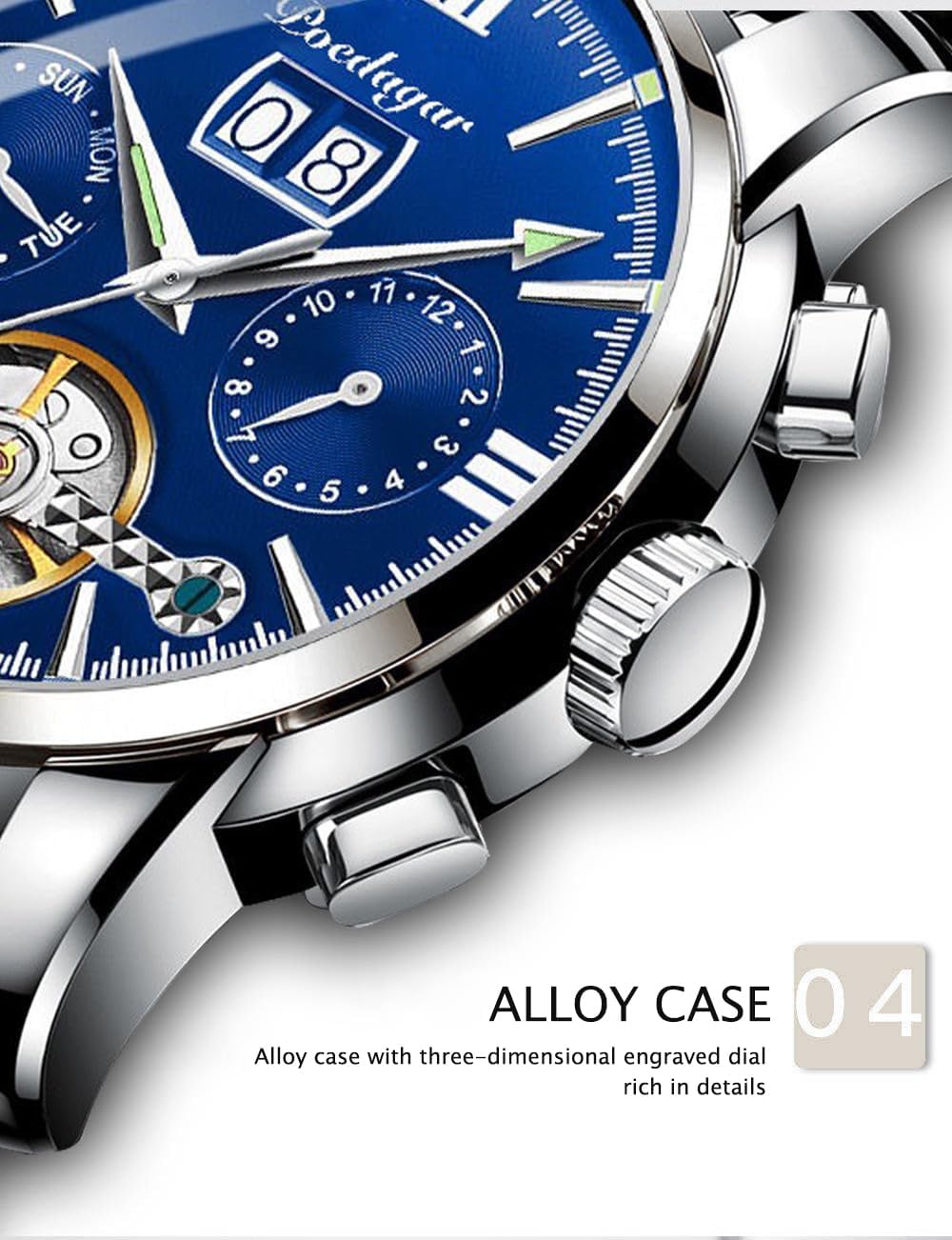

Image: A detailed view of the watch's crown and adjustment buttons, used for setting time and calendar functions.
3. Adjusting Band Length
Your watch comes with a stainless steel band adjustment tool. Use this tool to remove or add links to the band for a comfortable fit around your wrist. Instructions for using the tool are typically included with the tool itself. Ensure the clasp closes securely after adjustment.
Operating Your Watch
Automatic Movement
The watch is powered by an automatic mechanical movement. This means it winds itself through the natural motion of your wrist while you wear it. If the watch is not worn for an extended period, it may stop. In such cases, manually wind it as described in the "Initial Winding" section to restart it.
Water Resistance (3ATM)
This watch is rated for 3ATM (30 meters) water resistance. This means it is suitable for daily use and can withstand splashes, rain, or brief immersion in water. However, it is not suitable for bathing, showering, swimming, diving, or any activities involving prolonged water exposure or high-pressure water. Avoid operating the crown or push-buttons when the watch is wet.
Care and Maintenance
- Cleaning: Wipe the watch regularly with a soft, dry cloth to remove dust and smudges. For the stainless steel band, a slightly damp cloth can be used, followed by immediate drying.
- Avoid Magnets: Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, certain electronic devices) as magnetism can affect the accuracy of the mechanical movement.
- Temperature Extremes: Avoid exposing the watch to extreme temperatures, both hot and cold, as this can impact its performance and materials.
- Impact: Protect the watch from strong impacts or drops, which can damage the delicate internal mechanisms.
- Storage: When not wearing the watch, store it in a cool, dry place, preferably in its original box or a watch case to protect it from dust and scratches.
Image: The transparent case back revealing the intricate mechanical movement of the watch.
Troubleshooting Guide
- Watch has stopped: If the watch has stopped, it likely needs to be wound. Manually wind the watch by rotating the crown clockwise 15-20 times. Ensure you are wearing the watch regularly for the automatic movement to function.
- Watch is running inaccurately: Ensure the watch has been sufficiently wound. Keep the watch away from strong magnetic fields. If the issue persists, professional servicing may be required.
- Date/Day/Month not changing: Manually adjust the calendar functions using the crown in its middle position. Ensure adjustments are not made between 9 PM and 3 AM, as this can interfere with the automatic date change mechanism.
Product Specifications
| Feature | Specification |
|---|---|
| Brand | Poedagar |
| Model Number | 8051-4 |
| Movement | Automatic Mechanical |
| Case Material | Stainless Steel |
| Case Shape | Round |
| Case Thickness | 13mm |
| Dial Diameter | 40mm |
| Display Type | Analog |
| Band Material Type | Stainless Steel |
| Band Width | 20mm |
| Band Length | 24cm |
| Clasp Type | Push Button Hidden Clasp |
| Water Resistance Depth | 3Bar (30M Life Waterproof) |
| Weight | 150g |
Image: A visual representation of the watch alongside its detailed technical specifications.
Warranty Information
The Poedagar Automatic Mechanical Watch Model 8051-4 comes with a Lifetime Warranty. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for any warranty claims. For specific terms and conditions, please refer to the official Poedagar website or contact customer support.
Customer Support
For further assistance, questions, or support regarding your Poedagar watch, please visit the official Poedagar store or contact their customer service department.
