Drhomeam 0.6L Dust Bin User Manual

Introduction

This manual provides instructions for the proper installation, operation, and maintenance of your Drhomeam 0.6L Dust Bin, designed as a replacement or spare part for the Greenote GSC50 Cordless Vacuum Cleaner. This dust bin is engineered for efficient collection of dirt and debris, contributing to the optimal performance of your vacuum cleaner.

Image: The Drhomeam 0.6L Dust Bin, showing its transparent body and grey connection mechanism with a red release button.

Setup and Installation

1. Preparation: Ensure your Greenote GSC50 Cordless Vacuum Cleaner is powered off and disconnected from any charging source before attempting installation.
2. Remove Old Dust Bin (if applicable): Locate the release button or latch on your vacuum cleaner that secures the existing dust bin. Press or unlatch it and carefully remove the old bin.
3. Align New Dust Bin: Take the Drhomeam 0.6L Dust Bin. Align the connection point of the new dust bin with the corresponding slot on the main body of the Greenote GSC50 vacuum cleaner.
4. Secure Installation: Gently push the dust bin into place until you hear a click, indicating it is securely latched. Ensure there are no gaps between the bin and the vacuum cleaner body to maintain proper suction.

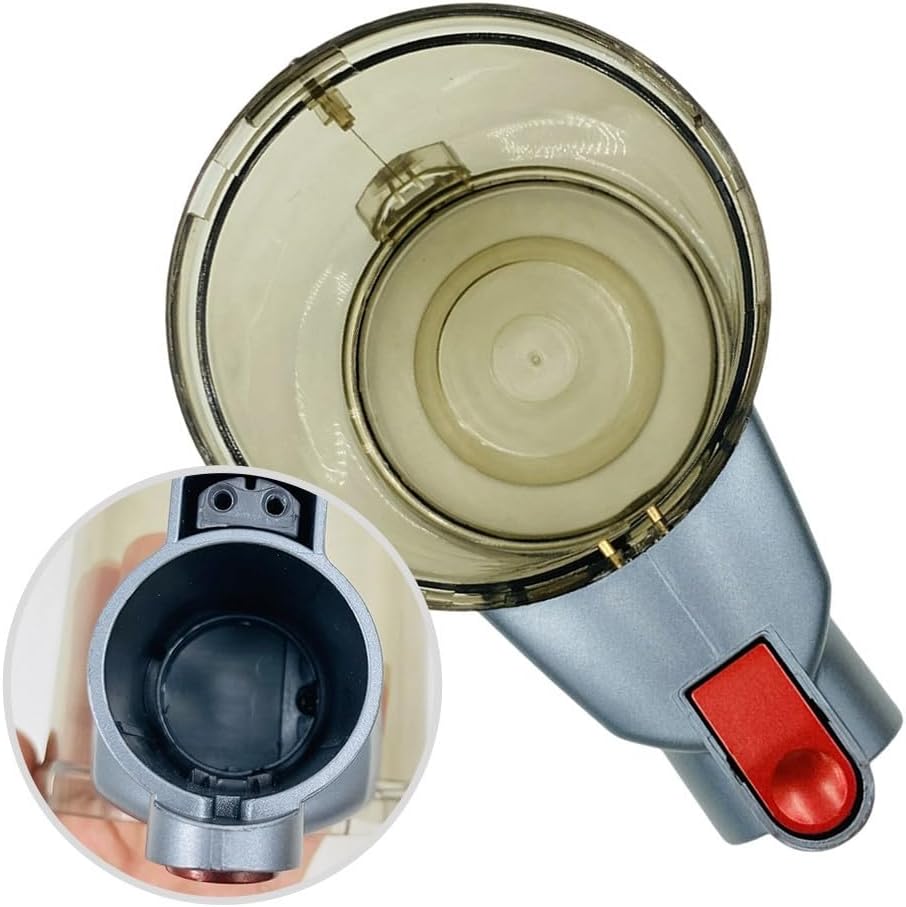

Image: Top view of the dust bin, highlighting the internal structure and the connection interface for the vacuum cleaner.

Operating Instructions

Once installed, the Drhomeam 0.6L Dust Bin operates seamlessly with your Greenote GSC50 Cordless Vacuum Cleaner. Its primary function is to collect dirt, dust, and debris during vacuuming.

• Collection Capacity: The dust bin has a capacity of 0.6 liters, designed to hold a significant amount of debris before requiring emptying.
• Efficient Collection: The design ensures efficient collection, preventing small particles from entering the vacuum motor and prolonging the lifespan of your cleaning device.
• Monitoring Fill Level: The transparent material of the dust bin allows you to easily monitor the fill level, indicating when it needs to be emptied.

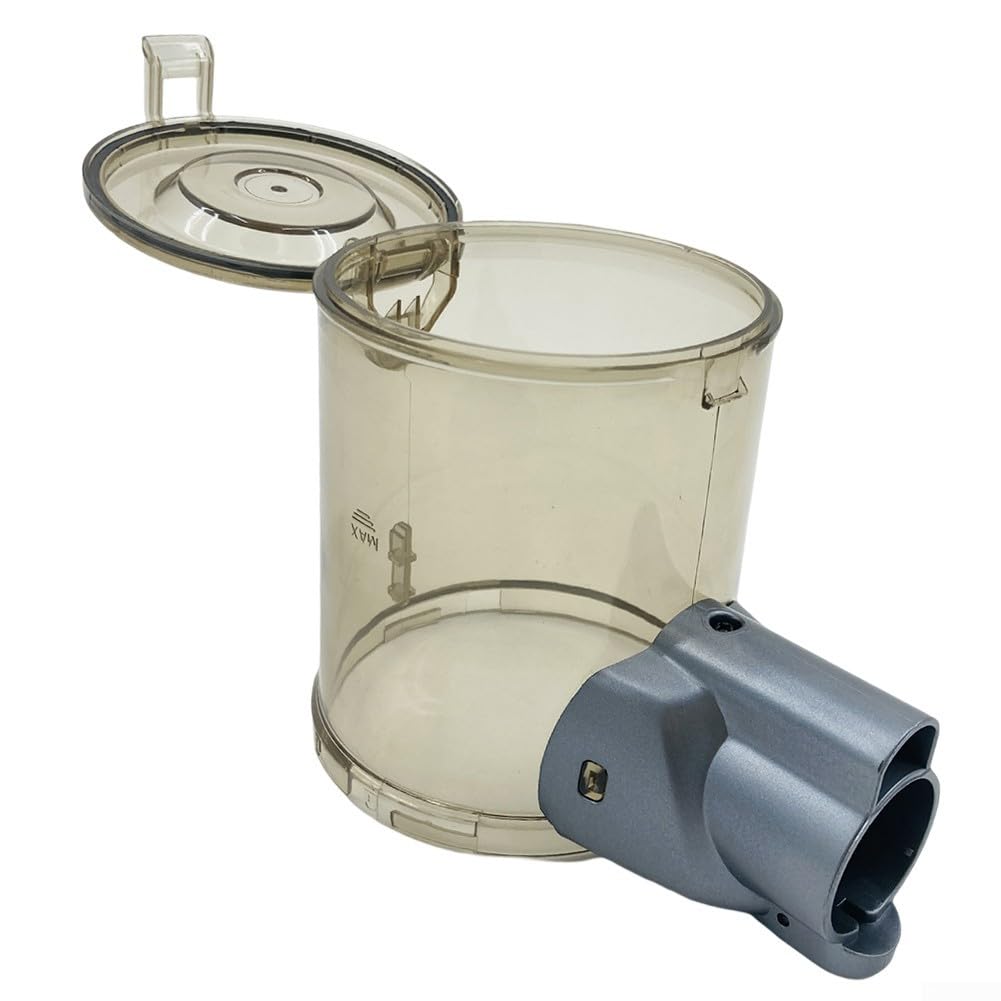

Image: The dust bin with its lid open, illustrating the internal volume and 'MAX' fill line.

Maintenance

Regular maintenance of the dust bin is crucial for maintaining the performance and longevity of your vacuum cleaner.

Emptying the Dust Bin

1. Detach Bin: Press the release button on the vacuum cleaner to detach the dust bin.
2. Open Front Cover: Locate the innovative proof front cover or latch on the dust bin. Open it to access the collected debris.
3. Dispose of Contents: Carefully empty the contents of the dust bin into a trash receptacle. The design minimizes the release of dust back into the environment during this process.
4. Close Cover: Securely close the front cover until it clicks into place.
5. Reattach Bin: Reattach the dust bin to the vacuum cleaner as described in the Setup section.

Image: A detailed view of the dust bin's front cover, which opens for emptying collected debris.

Image: A close-up of the latch mechanism on the dust bin, ensuring a secure closure.

Cleaning the Dust Bin

• Rinse: The dust bin can be rinsed with water to remove fine dust and residue. Ensure all components are completely dry before reassembling and reattaching to the vacuum cleaner.
• Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals, as these may damage the plastic material.
• Filter Maintenance: If your vacuum cleaner uses a separate filter within or near the dust bin, refer to your Greenote GSC50 manual for specific filter cleaning or replacement instructions.

Troubleshooting

• Reduced Suction: If you experience reduced suction, first check if the dust bin is full and needs emptying. Also, ensure the dust bin is correctly installed and securely latched to the vacuum cleaner, with no gaps. Check for any blockages in the bin's intake or outlet.
• Dust Leakage: If dust is leaking from the bin, verify that the front cover is securely closed and that the bin is properly seated on the vacuum cleaner. Inspect the seals for any damage or wear.
• Difficulty Detaching/Attaching: Ensure you are pressing the correct release button on the vacuum cleaner. Do not force the bin; if it's stuck, re-check alignment.

Specifications

Warranty and Support

For information regarding warranty coverage or technical support for your Drhomeam 0.6L Dust Bin, please refer to the documentation provided with your original purchase or contact the retailer where the product was acquired. Keep your purchase receipt as proof of purchase.

For specific inquiries related to the Greenote GSC50 Cordless Vacuum Cleaner itself, please consult the official Greenote user manual or their customer support channels.
