ELEMARA XB-1038 2-Seater Ride-On Car Instruction Manual

Introduction

Thank you for choosing the ELEMARA XB-1038 2-Seater Ride-On Car. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric vehicle. Please read this manual thoroughly before initial use and retain it for future reference.

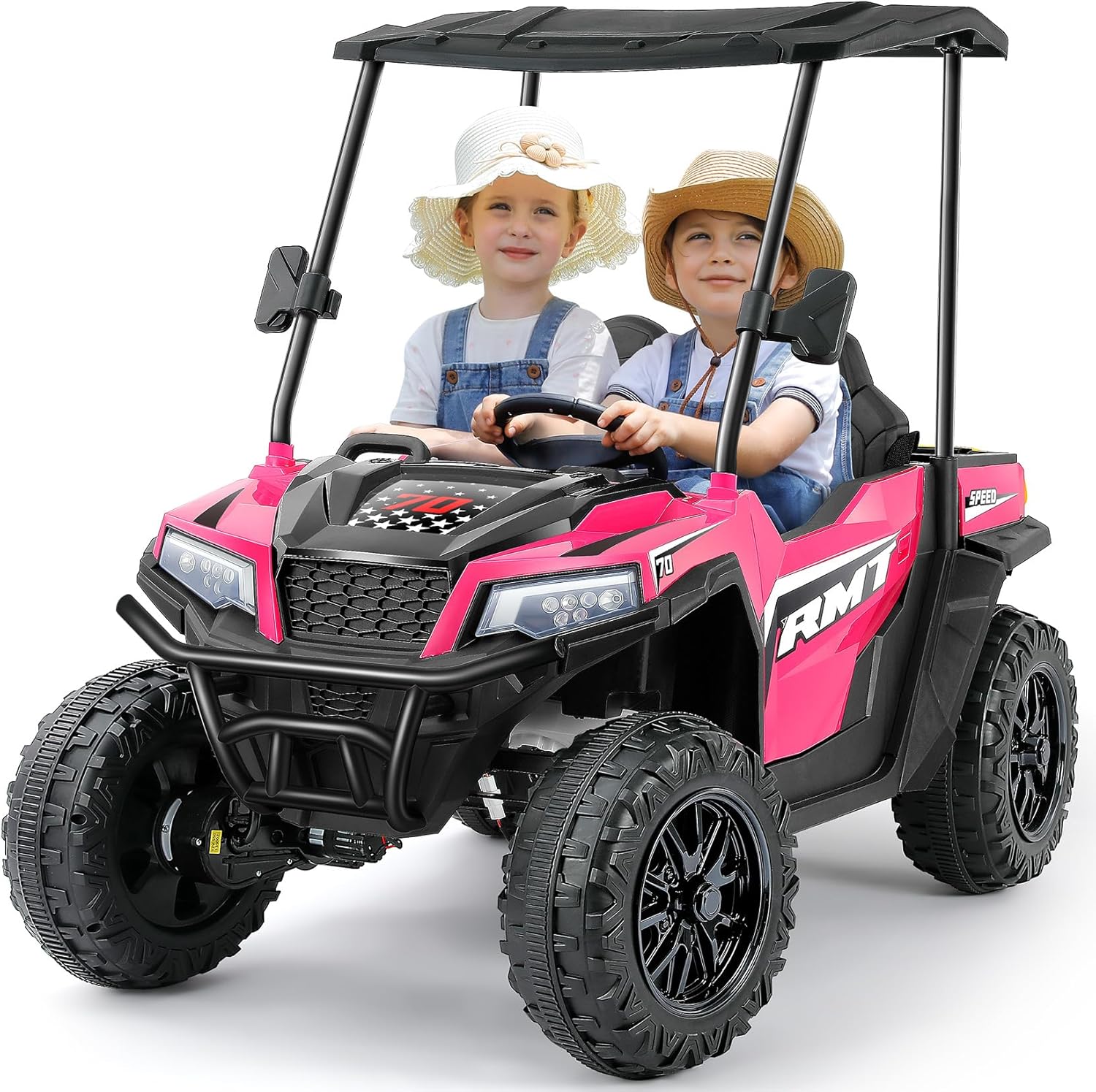

Image: The ELEMARA XB-1038 2-Seater Ride-On Car in pink, featuring two children seated inside, ready for use.

Important Safety Information

To ensure safe operation and prevent injury, please adhere to the following safety guidelines:

• Adult Supervision Required: This product must be assembled and operated under direct adult supervision.
• Age and Weight Limits: Suitable for children aged 36 months to 5 years. Do not exceed the maximum load capacity of 150 lbs (68 kg).
• Protective Gear: Always ensure children wear appropriate safety gear, such as helmets and knee pads, when operating the vehicle.
• Operating Environment: Use the vehicle on flat, dry surfaces away from traffic, swimming pools, or other hazards. Avoid steep inclines or rough terrain.
• Battery Safety: Keep the battery away from naked flames or direct heat sources. Do not attempt to modify the battery or charging system.
• Electrical Safety: Ensure all electrical connections are secure before operation. Do not expose electrical components to water.
• Maintenance: Regularly inspect the vehicle for loose parts, damaged wiring, or worn components. Address any issues before allowing operation.

What's in the Box

Upon opening the package, verify that all components are present:

• 1 x ELEMARA 2-Seater Ride-On Car (main body and unassembled parts)
• 1 x Instruction Manual (this document)
• 1 x Shovel accessory
• 1 x Sun Shade canopy
• 1 x Remote Control
• 1 x Charger
• 1 x 12V Battery (pre-installed or separate)

Image: A grid displaying various replaceable parts such as speed switches, charger, power button, steering column, control panel, motors (left and right), battery, LED strip, and wiring harness. These components are essential for assembly and maintenance.

Setup and Assembly

Assembly requires adult supervision and basic tools (not included, typically a screwdriver). Follow these general steps:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out. Check against the "What's in the Box" list.
2. Install Wheels: Attach the wheels to the axles, ensuring they are securely fastened with the provided washers and nuts.
3. Connect Battery: Locate the battery compartment, typically under the seat. Connect the battery terminals (red to red, black to black). Ensure connections are firm.
4. Install Steering Wheel: Attach the steering wheel to the steering column, connecting any electrical wires for horn or music functions if applicable.
5. Attach Seats: Secure the seats to the vehicle chassis. Ensure they are properly aligned and locked into place.
6. Mount Sun Shade: Install the sun shade canopy onto the designated posts on the vehicle frame.
7. Attach Accessories: Secure the shovel accessory to its storage location.
8. Initial Charge: Before first use, fully charge the battery for 8-12 hours. Refer to the Charging section for details.

Operating Instructions

Powering On/Off

• To turn on the vehicle, press the main power button, usually located on the dashboard.
• To turn off, press and hold the power button until the vehicle shuts down.

Driving Modes

The ELEMARA XB-1038 offers dual driving modes:

Image: Demonstrates the two operational modes: a child driving the car using manual steering, and an adult controlling the car via remote control, highlighting the versatility for different age groups and safety preferences.

1. Manual Steering (Child Operated)

• Ensure the vehicle is powered on.
• The child can press the foot pedal to accelerate and turn the steering wheel to change direction.
• Release the foot pedal to brake.

2. Remote Control Operation (Adult Operated)

• The remote control allows an adult to override child operation for safety.
• Pairing Remote: Follow instructions in the remote control's specific manual for pairing. Typically involves holding a button on the remote while turning on the car.
• Use the joystick or directional buttons on the remote to control forward/backward movement and steering.
• The remote also features speed selection and an emergency stop button.

Speed Settings

The vehicle features multiple speed settings (e.g., Low, Medium, High) which can usually be selected via a switch on the dashboard or the remote control. The "Soft Start" feature ensures smooth acceleration.

Image: A graph demonstrating the vehicle's soft start functionality, showing a gradual increase in speed from 0 to low (2.5 mph), medium (3.1 mph), and high (4.5 mph) settings, ensuring a smooth and safe acceleration experience.

Charging the Battery

Image: Displays key battery information, including a charging time of 8-12 hours, a play time of 1.5 hours, and a visual reminder for low battery status, crucial for managing vehicle usage.

• Connect the charger to the charging port on the vehicle.
• Plug the charger into a standard wall outlet.
• The charging indicator light on the charger will typically change color when charging is complete.
• Charge time is approximately 8-12 hours for a full charge. Do not overcharge.
• Average play time on a full charge is approximately 1.5 hours.
• The vehicle features a low battery reminder system.

Additional Features

• Music and Bluetooth: The vehicle may include a multimedia player with pre-loaded music and Bluetooth connectivity. Refer to the dashboard controls for operation.
• Storage Box: Utilize the rear storage box for carrying small items or the included shovel.
• Sun Shade: The integrated sun shade provides protection during outdoor play.
• Powerful Engines & Dual Spring Suspension: The vehicle is equipped with 4*75W powerful engines and dual spring suspension for a comfortable ride.

Image: Illustrates the vehicle's robust features, including four 75W powerful engines for strong performance and dual spring suspension for enhanced comfort and stability on various terrains.

Maintenance

Regular maintenance ensures the longevity and safe operation of your ride-on car.

• Cleaning: Wipe the vehicle with a damp cloth. Do not use abrasive cleaners or spray water directly onto electrical components.
• Battery Care:
  • Always recharge the battery after each use.
  • If storing for extended periods, charge the battery fully every 30 days to maintain its life.
  • Do not allow the battery to completely discharge.
• Inspection: Periodically check all screws, nuts, and bolts for tightness. Inspect wheels, steering, and electrical connections for wear or damage.
• Storage: Store the vehicle in a dry, cool place away from direct sunlight and moisture.

Troubleshooting

Specifications

Image: A detailed diagram illustrating the key dimensions of the ELEMARA XB-1038 ride-on car, including length (51.2"), width (28.3"), height (42.9"), wheel diameter (12.4"), and wheel width (4.72").

Warranty and Support

Specific warranty details are typically provided with your purchase documentation or on the manufacturer's official website. For technical support, replacement parts, or warranty claims, please refer to the contact information provided in your purchase receipt or visit the ELEMARA official website.

Please note that the provided product data does not contain explicit warranty terms or direct support contact information. Always consult the documentation included with your product for the most accurate and up-to-date information.
