diymore ESP32-S3 DevKitC-1 N16R8

diymore ESP32-S3 DevKitC-1 N16R8 Module User Manual

Model: ESP32-S3 DevKitC-1 N16R8 | Brand: diymore

1. Introduction

This manual provides essential information for the setup, operation, and maintenance of your diymore ESP32-S3 DevKitC-1 N16R8 development module. This module is designed for various IoT applications, featuring a high-performance dual-core processor, integrated Wi-Fi, and Bluetooth 5.0 connectivity. Please read these instructions carefully before use to ensure proper functionality and to maximize the module's potential.

diymore ESP32-S3 DevKitC-1 N16R8 Module

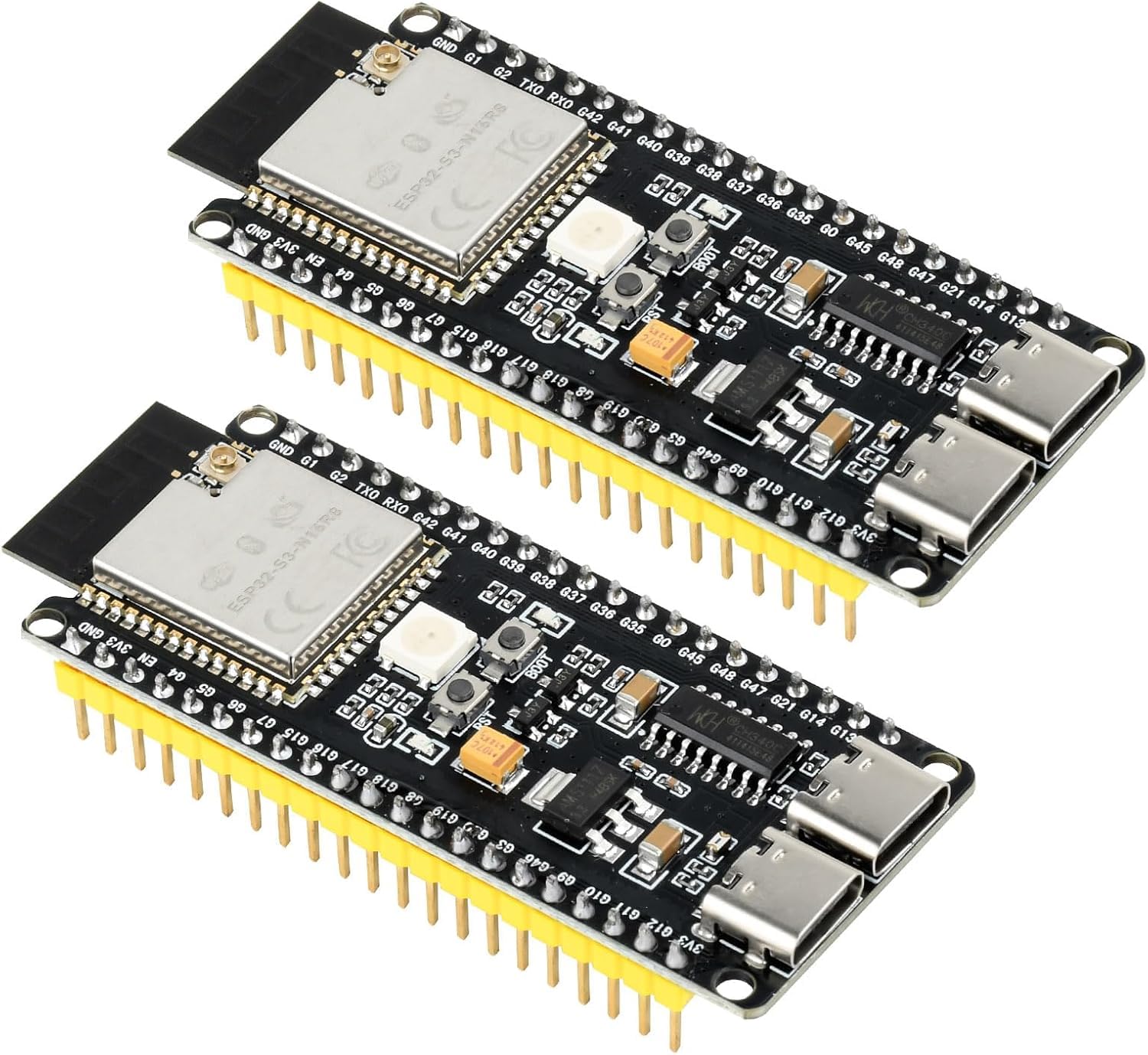

Figure 1: diymore ESP32-S3 DevKitC-1 N16R8 Module. This image shows a general view of the development board with its components and pin headers.

2. Product Overview

2.1 Key Features

  • High-Performance Dual-Core Processor: Integrated Xtensa 32-bit LX7 dual-core processor for powerful computing and low power consumption.
  • Dual-Mode Wi-Fi and Bluetooth Support: Supports Wi-Fi 802.11 b/g/n and Bluetooth 5.0 (LE) with Bluetooth Mesh capabilities.
  • Enhanced Design: Upgraded features and additional external antenna interfaces compared to other ESP32-S3 development boards.
  • Comprehensive Wi-Fi Functions: Supports WMM, A-MPDU, A-MSDU, and instant block confirmation for improved multitasking efficiency.
  • Large Storage Capacity: Integrates 8MB RAM and 16MB Flash memory for complex application development.

2.2 Component Identification

Refer to the diagrams below for an overview of the main components and their locations on the ESP32-S3 DevKitC-1 N16R8 module, along with its pinout configuration.

ESP32-S3 DevKitC-1 N16R8 Module Hardware Introduction
Figure 2: Hardware Introduction. This image displays the ESP32-S3-WROOM-1-N16R8 Module, RST button, BOOT button, PWR light, TX light, RX light, USB to serial port chip CH343p, ESP32-S3 Direct Type-C USB & OTG, and USB to serial port Type-C USB.
ESP32-S3 DevKitC-1 N16R8 Module Pinout Diagram
Figure 3: Pinout Diagram. This diagram illustrates the GPIO pin assignments, power supply pins (3.3V, 5Vin, GND), and other interface pins for the ESP32-S3 module.

3. Setup

3.1 Initial Connection

  1. Connect the ESP32-S3 module to your computer using a USB-C cable. The module features two USB-C ports; one for direct USB and OTG, and another for the serial port chip.
  2. Ensure that the necessary drivers for the USB to serial port chip (CH343p) are installed on your computer. These drivers are typically available from the chip manufacturer's website or common development board driver packages.
  3. Verify that the power LED (PWR light) on the module illuminates, indicating successful power supply.

3.2 Antenna Configuration

The ESP32-S3 module supports both an onboard antenna and an external antenna. By default, the onboard antenna is active with a gain of 2dB.

ESP32-S3 DevKitC-1 N16R8 Module Antenna Selection
Figure 4: Antenna Location. This image shows the locations for the onboard antenna (Location 1) and the external antenna connector (Location 2). To use an external antenna, a DIY soldering modification is required to switch from the onboard antenna to the external connector.

If you intend to use an external antenna, a soldering modification is required to switch the antenna path. This typically involves desoldering a small component or bridging a solder pad. Consult advanced documentation or community resources for detailed instructions on this modification, as it requires precision soldering skills.

3.3 Development Environment

To program the ESP32-S3 module, you will need a suitable development environment. Popular options include:

  • Espressif IoT Development Framework (ESP-IDF): The official development framework for Espressif chips, offering comprehensive tools and libraries.
  • Arduino IDE: A user-friendly environment with extensive community support and libraries for ESP32 boards.
  • PlatformIO: An open-source ecosystem for IoT development, compatible with various IDEs.

Install the chosen development environment and configure it for ESP32-S3 boards according to the respective documentation.

4. Operating Instructions

4.1 Flashing Firmware

  1. Prepare your code in the chosen development environment.
  2. Connect the ESP32-S3 module to your computer via USB-C.
  3. Select the correct serial port for the module in your IDE.
  4. Press and hold the BOOT button, then press and release the RST button. Continue holding the BOOT button until the flashing process begins. This puts the module into download mode.
  5. Initiate the upload/flash process from your development environment.
  6. Once flashing is complete, release the BOOT button and press the RST button to restart the module and run the new firmware.

4.2 Wi-Fi and Bluetooth Usage

The ESP32-S3 module supports Wi-Fi and Bluetooth 5.0 (LE). These functionalities are controlled programmatically through your firmware. Refer to the ESP-IDF or Arduino libraries for specific functions and examples related to Wi-Fi connectivity, Bluetooth communication, and Bluetooth Mesh networking.

  • Wi-Fi: Use standard Wi-Fi libraries to connect to access points, create soft APs, or implement Wi-Fi Direct.
  • Bluetooth: Utilize Bluetooth Low Energy (BLE) libraries for device communication, advertising, and scanning.

5. Maintenance

The diymore ESP32-S3 module is a robust electronic component, but proper care ensures its longevity and reliable performance.

  • Storage: Store the module in a dry, anti-static environment when not in use.
  • Handling: Avoid touching the electronic components directly to prevent electrostatic discharge. Use anti-static precautions.
  • Cleaning: If necessary, gently clean the board with a soft, dry brush or compressed air. Do not use liquids or abrasive materials.
  • Power Supply: Ensure a stable 5V power supply when operating the module. Over-voltage can damage the components.

6. Troubleshooting

6.1 Common Issues and Solutions

  • Module not recognized by computer:
    • Ensure USB-C cable is fully inserted and functional.
    • Verify that the CH343p serial port drivers are correctly installed.
    • Try a different USB port or computer.
  • Firmware flashing fails:
    • Confirm the module is in download mode (BOOT button held, RST pressed and released).
    • Check that the correct serial port is selected in your IDE.
    • Ensure your development environment is properly configured for ESP32-S3.
    • Verify power supply stability.
  • Poor Wi-Fi/Bluetooth signal with external antenna:
    • Confirm that the necessary soldering modification has been correctly performed to switch from the onboard antenna to the external antenna connector. Incorrect modification can lead to signal issues.
    • Ensure the external antenna is properly connected and functional.
  • Module not powering on:
    • Check USB-C cable and power source.
    • Inspect the board for any visible damage or short circuits.

7. Specifications

FeatureDetail
Branddiymore
Model NameESP32-S3
Model Number2PCS (referring to the product package quantity)
ProcessorXtensa 32-bit LX7 Dual-Core
Chipset TypeESP32-S3
RAM Memory Size8 MB
Storage Capacity (Flash)16 MB
Wireless ConnectivityWi-Fi 802.11 b/g/n, Bluetooth 5.0 (LE)
USB Ports1 (Total, Type-C)
Compatible DevicesSmartphone, PC, Camera (general compatibility for development)
ESP32-S3 DevKitC-1 N16R8 Module Dimensions
Figure 5: Module Dimensions. This image shows the physical dimensions of the ESP32-S3 DevKitC-1 N16R8 module, including its length (63mm), width (18mm), and USB-C port spacing (20mm, 28mm).

8. Warranty and Support

For warranty information and technical support, please refer to the official diymore website or contact their customer service directly. Product return policies are typically governed by the retailer's terms and conditions, which for this product include a 30-day refund/replacement period. Information regarding spare parts availability and guaranteed software updates is not provided.

You can visit the diymore store for more information: diymore Official Store

© 2023 diymore. All rights reserved.
