WKNYSYK Cylinder Head & Cover Assembly Instruction Manual

1. Product Overview

The WKNYSYK Cylinder Head & Cover Assembly is a critical component designed for specific CF Moto and Goes powersports vehicles. This assembly is engineered to optimize engine performance and ensure reliable operation.

• Optimized Performance: Designed to enhance power and stability, contributing to a smooth ride.
• Efficient Cooling: Optimizes engine cooling performance to prevent overheating.
• Durable Construction: Manufactured from wear-resistant materials for long-term use and reduced replacement frequency.
• Weight Optimization: Component weight is optimized to minimize burden on overall vehicle performance.

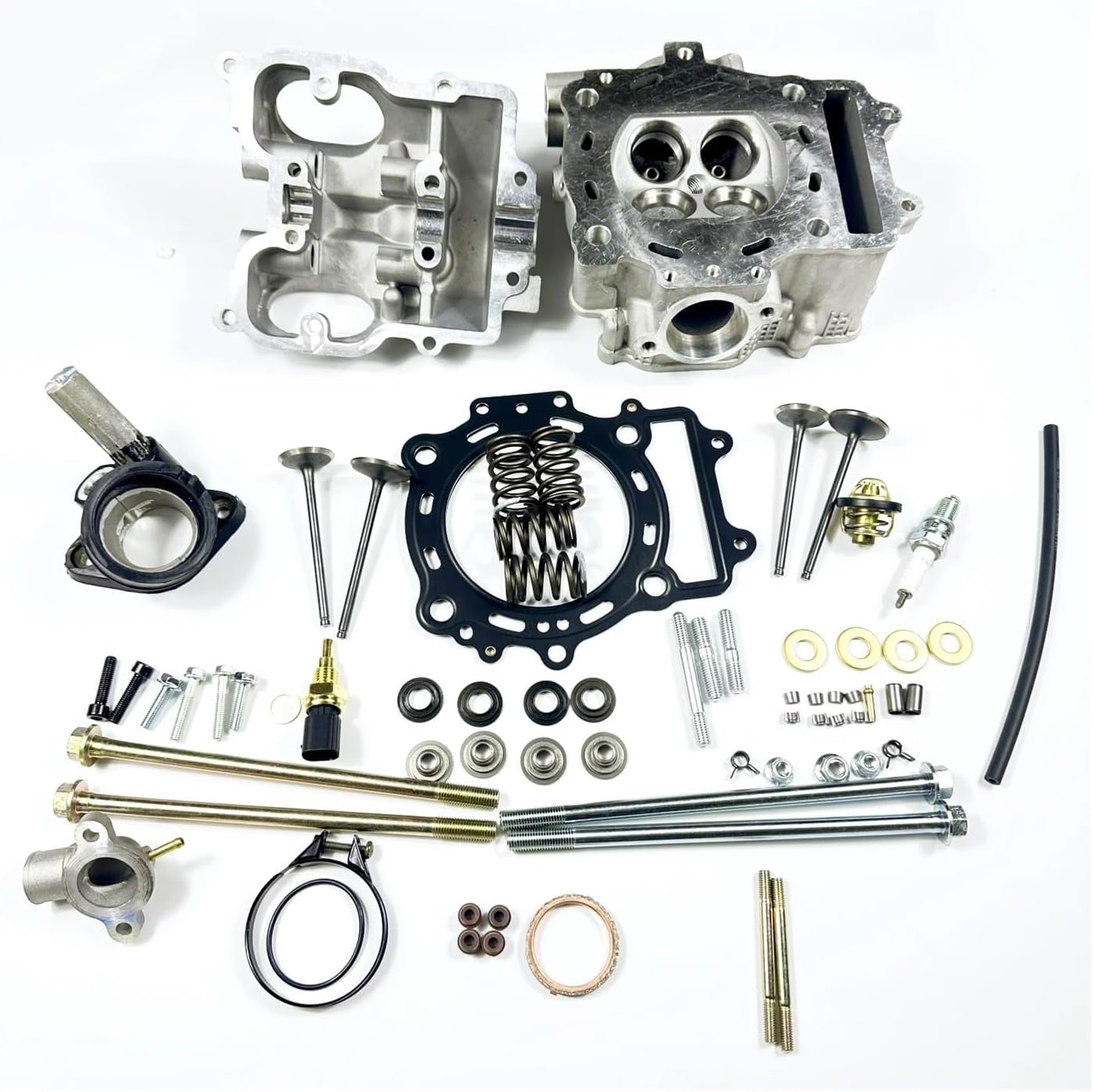

Image 1.1: WKNYSYK Cylinder Head and Cover Assembly components. This image displays all components included in the WKNYSYK Cylinder Head and Cover Assembly kit. It features the cylinder head, cylinder cover, various valves, springs, gaskets, bolts, and other essential hardware required for installation.

2. Compatibility

This Cylinder Head & Cover Assembly is compatible with the following vehicle models and years. Please verify your vehicle's make, model, and year before installation to ensure proper fitment.

• Goes: 625i, 625i Max
• CF Moto X6 (CFORCE 600): 2010-2012 (LWB & SWB), 2013-2014 (CFORCE 600 LWB)
• CF Moto UFORCE 600 (CF600-5): 2011-2015
• CF Moto ZFORCE 600 (CF600-3): 2012-2015
• CF Moto ZFORCE 600 (CF600-6): 2013-2016
• Engine Models: 196S-B(X6) (2010-2016), 196S-C (2011-2017)
• ATV Models: CF625-C (2011-2016)
• UTV Models: CF600-5 (2011-2015)
• SSV Models: CF600-3 (2016), CF625-3 (2012-2016), CF625-6 (2012-2016)

3. Setup and Installation

Installation of a cylinder head and cover assembly requires mechanical expertise and specialized tools. While the design aims for straightforward installation, it is highly recommended that this procedure be performed by a qualified professional mechanic to ensure correct assembly, proper engine timing, and optimal performance. Incorrect installation can lead to severe engine damage.

General Installation Considerations:

• Safety First: Always disconnect the battery and allow the engine to cool completely before beginning work. Wear appropriate personal protective equipment.
• Refer to Service Manual: Consult your vehicle's specific service manual for detailed, step-by-step instructions, torque specifications, and critical procedures such as valve timing and gasket replacement.
• Cleanliness: Ensure all mating surfaces are thoroughly cleaned and free of old gasket material, oil, or debris.
• Gaskets and Seals: Use new gaskets and seals as provided or recommended by the manufacturer to prevent leaks.
• Torque Specifications: Adhere strictly to the manufacturer's torque specifications for all bolts to prevent warping or damage.
• Fluid Management: Be prepared to drain and refill engine coolant and oil as required by the installation process.

4. Operating Principles

The cylinder head and cover assembly is integral to the internal combustion engine's operation. It houses critical components such as the intake and exhaust valves, valve springs, and camshafts (not included in this assembly but interacts with it). The cylinder head forms the top seal of the combustion chamber, allowing for the controlled intake of air-fuel mixture and expulsion of exhaust gases. The cover protects these components and contains the engine's lubrication system for the valvetrain.

Proper functioning of this assembly ensures:

• Optimal Compression: Maintains the necessary compression for efficient combustion.
• Precise Valve Timing: Facilitates accurate opening and closing of valves for gas exchange.
• Effective Sealing: Prevents leakage of combustion gases, oil, and coolant.

5. Maintenance

Regular maintenance of your engine, including components within the cylinder head and cover assembly, is crucial for longevity and performance.

• Regular Inspections: Periodically inspect for any signs of oil leaks, coolant leaks, or unusual noises emanating from the cylinder head area.
• Fluid Levels: Ensure engine oil and coolant levels are maintained at recommended specifications. Low fluid levels can lead to overheating and damage.
• Cooling System Check: Verify the cooling system is functioning correctly, including the radiator, hoses, and thermostat, to prevent engine overheating.
• Spark Plug Condition: Inspect and replace spark plugs according to your vehicle's service schedule.
• Valve Clearance (if applicable): If your engine design requires it, ensure valve clearances are checked and adjusted by a professional as per the vehicle's service manual.

6. Troubleshooting

If you experience issues after installation or during normal operation, consider the following common troubleshooting steps. For complex issues, professional diagnosis is recommended.

• Overheating: Check coolant levels, radiator function, thermostat, and ensure no air pockets are trapped in the cooling system.
• Loss of Power/Misfires: Could indicate issues with valve sealing, spark plugs, or incorrect engine timing. Verify proper installation and component integrity.
• Oil Leaks: Inspect gaskets and seals around the cylinder head and cover. Ensure all bolts are torqued to specification.
• Unusual Engine Noises: May suggest issues with valve train components, incorrect clearances, or improper assembly.

7. Specifications

8. Warranty and Support

For information regarding product warranty, please refer to the official warranty policy provided by WKNYSYK or the retailer from whom the product was purchased. For technical support or inquiries, please contact the seller or manufacturer directly through their official channels.
