Hoteche 3-in-1 Electric Multi-Functional Sharpener (Model P801802A) Instruction Manual

Introduction

The Hoteche 3-in-1 Electric Multi-Functional Sharpener is designed to efficiently sharpen various tools, including drill bits, knives, scissors, chisels, and plane blades. With a 65W motor and a maximum speed of 4800 RPM, it provides quick and precise sharpening to maintain the peak performance and extend the lifespan of your tools. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting.

Important Safety Instructions

To reduce the risk of injury, always follow these basic safety precautions when using this electric sharpener:

• Read all instructions: Familiarize yourself with the sharpener's operation and safety guidelines before use.
• Wear eye protection: Always wear safety goggles or glasses with side shields to protect against flying debris.
• Keep work area clean: Cluttered areas invite accidents. Ensure your workspace is well-lit.
• Avoid dangerous environments: Do not use the sharpener in damp or wet locations, or expose it to rain. Keep the work area well-ventilated.
• Keep children away: Do not allow children or untrained persons to operate the sharpener. Store idle tools out of reach of children.
• Secure the sharpener: Ensure the sharpener is stable on a flat, secure surface during operation to prevent movement.
• Use the right tool: Do not force the sharpener or attachments to do a job for which they were not designed.
• Unplug when not in use: Always unplug the sharpener from the power source before making adjustments, changing accessories, or storing it.
• Maintain tools with care: Keep sharpening wheels clean and sharp for best and safest performance. Follow instructions for lubricating and changing accessories.
• Check for damaged parts: Before use, check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect its operation. If damaged, have the sharpener serviced by a qualified repair person.
• Do not overreach: Maintain proper footing and balance at all times.
• Avoid accidental starting: Ensure the switch is in the OFF position before plugging in.
• Never leave tool running unattended: Turn power off. Do not leave the tool until it comes to a complete stop.

Product Overview and Components

The Hoteche 3-in-1 Electric Multi-Functional Sharpener is designed for versatility and ease of use. It features a compact design with dedicated modules for different tool types.

Image: Detailed display of the Hoteche 3-in-1 Electric Multi-Functional Sharpener, highlighting its one-click storage design, 180-grit grinding wheel, 3-in-1 design, ABS engineering plastic construction, and anti-slip foot pads.

Key Components:

• Main Unit: The core electric motor and grinding wheel housing.
• Drill Bit Sharpening Module: Designed for sharpening drill bits from 3mm to 13mm in diameter.
• Knife & Scissor Sharpening Module: For sharpening blades from 6mm to 51mm wide.
• Chisel & Plane Sharpening Module: Features an adjustable angle from 15° to 50° for precise sharpening.
• 180-Grit Grinding Wheel: Provides efficient sharpening for various tools.
• On/Off Switch: For controlling power to the unit.
• Anti-Slip Foot Pads: Ensures stability during operation.

Setup

Before operating the sharpener, ensure it is properly set up:

1. Unpack the Unit: Carefully remove all components from the packaging.
2. Placement: Place the main sharpener unit on a stable, flat, and dry surface. Ensure there is adequate space around the unit for safe operation and ventilation.
3. Module Attachment: Select the appropriate sharpening module for the tool you intend to sharpen. Align the module with the corresponding slot on the main unit and firmly attach it. The modules are designed for easy attachment and removal.
4. Power Connection: Ensure the ON/OFF switch is in the OFF position. Plug the power cord into a standard 110-120V AC outlet.

Operating Instructions

Always wear appropriate safety gear, including eye protection, before operating the sharpener.

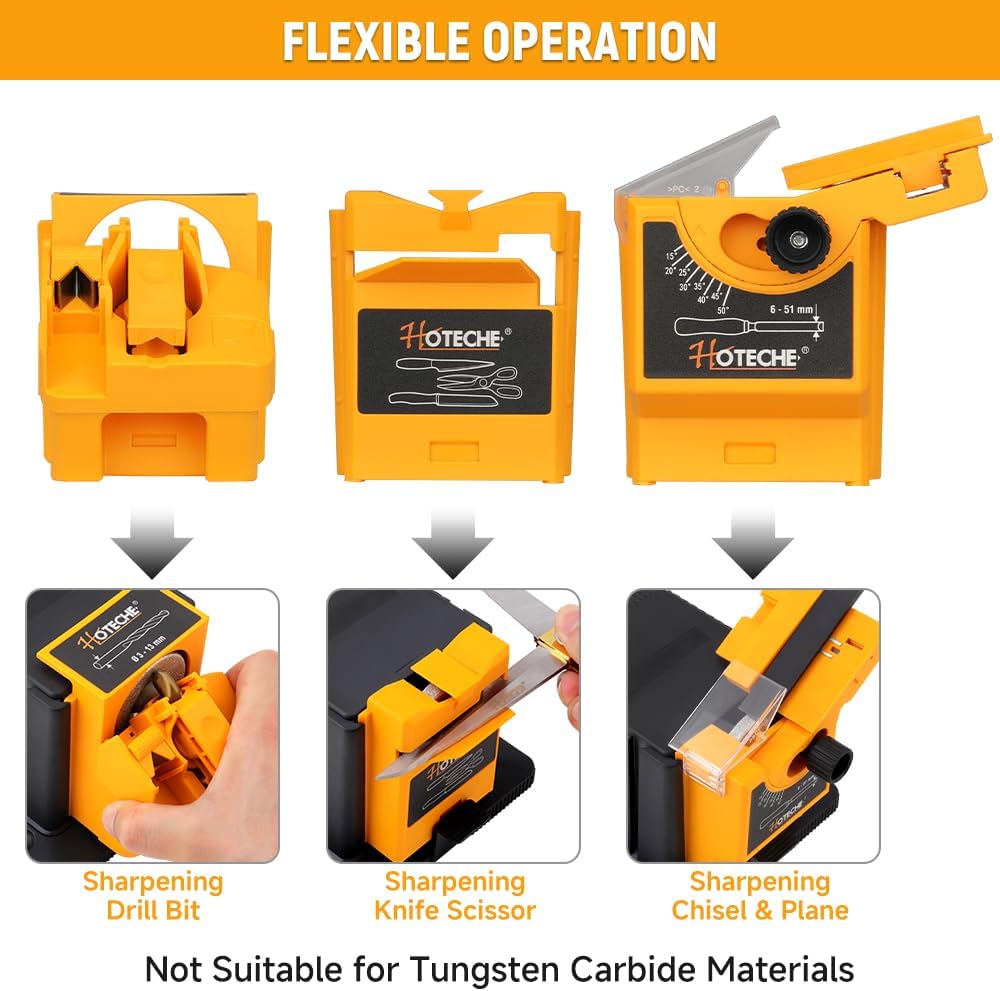

1. Sharpening Drill Bits (3mm - 13mm)

1. Attach the drill bit sharpening module to the main unit.
2. Turn on the sharpener using the ON/OFF switch.
3. Select the correct size hole on the module that matches your drill bit diameter (3mm to 13mm).
4. Insert the drill bit into the chosen hole, ensuring it is firmly seated. Gently push and rotate the drill bit against the grinding wheel for a few seconds.
5. Remove the drill bit and check for sharpness. Repeat if necessary, ensuring even sharpening on both sides of the bit.

Image: A user demonstrating the sharpening of a drill bit using the dedicated module on the Hoteche 3-in-1 Electric Multi-Functional Sharpener.

2. Sharpening Knives and Scissors (6mm - 51mm)

1. Attach the knife and scissor sharpening module.
2. Turn on the sharpener.
3. For knives, gently draw the blade through the designated slot, applying light, even pressure. Repeat several times on each side until desired sharpness is achieved.
4. For scissors, open the scissors and place one blade into the appropriate slot. Draw the blade through, maintaining a consistent angle. Repeat for the other blade.

Image: A comparison showing the efficiency of electric sharpening with the Hoteche unit versus manual sharpening, featuring a knife being sharpened.

3. Sharpening Chisels and Plane Blades (Adjustable 15° - 50°)

1. Attach the chisel and plane sharpening module.
2. Adjust the angle setting on the module to match the desired sharpening angle for your chisel or plane blade (15° to 50°).
3. Turn on the sharpener.
4. Insert the chisel or plane blade into the module, ensuring it rests flat against the guide. Gently push the blade against the grinding wheel, moving it back and forth evenly.
5. Continue until a sharp edge is achieved.

Image: A user sharpening a chisel and a drill bit, showcasing the versatility of the Hoteche 3-in-1 Electric Multi-Functional Sharpener for different tools.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your sharpener.

• Cleaning: After each use, unplug the sharpener and use a soft brush or cloth to remove any metal dust or debris from the sharpening modules and the grinding wheel. Do not use water or abrasive cleaners.
• Grinding Wheel Inspection: Periodically inspect the 180-grit grinding wheel for wear. If the wheel appears worn or damaged, it should be replaced to maintain sharpening effectiveness.
• Storage: Store the sharpener and its modules in a clean, dry place, away from direct sunlight and extreme temperatures. The one-click storage design allows for compact storage of the modules.

Troubleshooting

Specifications

Image: The Hoteche 3-in-1 Electric Multi-Functional Sharpener displaying its physical dimensions and weight.

Warranty and Support

For warranty information, technical support, or to purchase replacement parts, please refer to the contact information provided with your product packaging or visit the official Hoteche website. Keep your purchase receipt as proof of purchase for any warranty claims.
