iO HVAC Controls EZ-BD 12-inch Adjustable Pressure Relief Damper

1. Introduction and Overview

The iO HVAC Controls EZ-BD is a constant pressure regulating bypass damper designed for use in forced air zoning systems. Its primary function is to relieve excess static pressure within the ductwork. Featuring a compact design, the EZ-BD offers straightforward installation and maintains near 100% accuracy in pressure regulation. This bypass damper can be installed in any orientation (vertically or horizontally) and is a cost-effective solution for managing static pressure in HVAC systems.

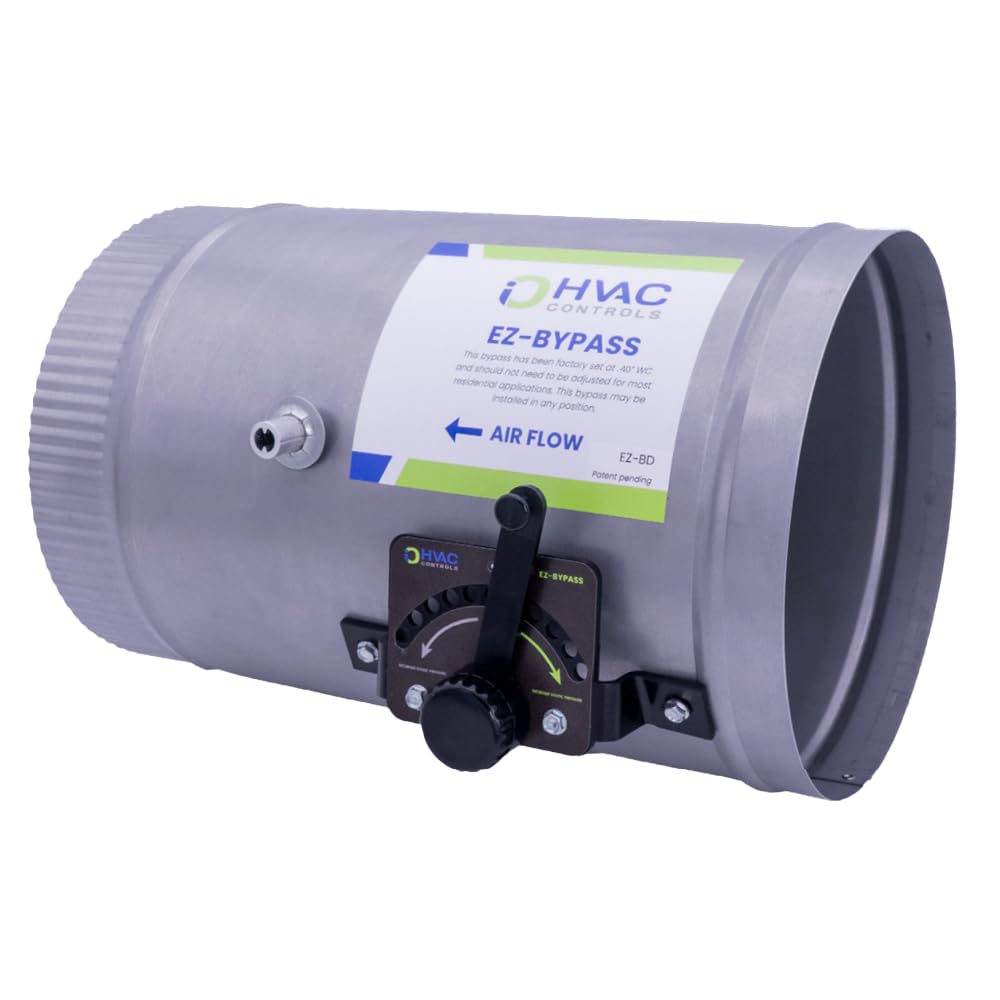

Figure 1: iO HVAC Controls EZ-BD 12-inch Adjustable Pressure Relief Damper. This image displays the cylindrical damper unit with its integrated adjustment mechanism and product labeling indicating 'AIR FLOW' direction and 'EZ-BYPASS' settings.

2. Safety Information

• Always disconnect power to the HVAC system before attempting installation or maintenance.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, during installation.
• Ensure all connections are secure to prevent air leaks and maintain system efficiency.
• Consult a qualified HVAC professional if you are unsure about any installation or operational procedures.

3. Product Features

• Constant pressure regulating bypass damper.
• Relieves excess static pressure in forced air zoning systems.
• Compact design for easy installation.
• Near 100% accuracy in pressure regulation.
• Can be installed vertically or horizontally.
• No external regulator or weighted arm required.
• Features a gasketed blade for improved sealing.
• Manufactured in the USA.
• Backed by a 5-Year Warranty.

4. Setup and Installation

The EZ-BD damper is designed for straightforward installation. It can be integrated into your ductwork system in either a vertical or horizontal orientation without affecting its performance. The unit does not require an external regulator or weighted arm, simplifying the setup process.

1. Select Location: Choose a suitable location in the bypass ductwork where the damper can effectively relieve static pressure.
2. Orient Damper: The EZ-BD can be installed in any position. Ensure the 'AIR FLOW' arrow on the damper's label aligns with the direction of air movement in the bypass duct.
3. Secure Connections: Connect the damper to the existing ductwork using appropriate methods (e.g., sheet metal screws, duct sealant, clamps) to ensure a secure and airtight fit.
4. Initial Setting: The bypass damper is factory-set at 0.40 inches Water Column (WC). For most residential applications, no further adjustment should be necessary.

5. Operation

The EZ-BD operates as a constant pressure regulating device. When static pressure in the main ductwork exceeds the set point, the damper blade automatically opens to divert excess air through the bypass duct, thereby maintaining a consistent pressure level within the system. This prevents issues such as excessive noise, reduced airflow to certain zones, and strain on the HVAC equipment.

Adjustment (if necessary): While factory-set for most residential uses, the damper's pressure relief setting can be adjusted. Locate the adjustment knob and lever mechanism on the side of the damper (refer to Figure 1). Turning the knob or moving the lever will modify the spring tension, which in turn changes the pressure at which the damper opens. Adjustments should be made incrementally and verified with a static pressure gauge to achieve the desired system performance.

6. Maintenance

The iO HVAC Controls EZ-BD damper is designed for minimal maintenance. Periodically inspect the damper for any signs of wear, damage, or obstruction. Ensure the damper blade moves freely and the gasket remains intact for optimal sealing. Clean any dust or debris that may accumulate around the moving parts to ensure smooth operation.

7. Troubleshooting

If you experience issues with your HVAC system that you suspect are related to the bypass damper, consider the following:

• Excessive Noise: Check for obstructions in the bypass duct or around the damper blade. Ensure the damper is securely installed and not vibrating.
• Incorrect Static Pressure: Verify the damper's adjustment setting. If the system static pressure is consistently too high or too low, a minor adjustment may be required. Use a static pressure gauge for accurate readings.
• Air Leakage: Inspect all duct connections for proper sealing. Ensure the damper's gasketed blade is intact and functioning correctly.

For persistent issues, it is recommended to consult a qualified HVAC technician.

8. Specifications

9. Warranty and Support

The iO HVAC Controls EZ-BD 12-inch Adjustable Pressure Relief Damper comes with a 5-Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service.

For warranty claims, technical support, or replacement parts (e.g., EZ-BD-SPRING), please contact iO HVAC Controls customer service. Refer to the official iO HVAC Controls website or product packaging for the most current contact information.
