Balay 3TS3107BD Washing Machine User Manual
Model: 3TS3107BD
1. Introduction
This manual provides essential information for the safe and efficient operation of your Balay 3TS3107BD free-standing washing machine. Please read these instructions carefully before using the appliance for the first time and keep them for future reference.
The Balay 3TS3107BD is a 10 kg capacity washing machine designed for household use. It features an A energy efficiency rating, an intuitive LED display, and specialized programs such as the Ironing Program and Super Quick 15/30 min cycles. Its ExtraSilence Inverter Motor ensures quiet operation.
2. Safety Instructions
- Electrical Safety: Ensure the appliance is properly earthed. Do not use extension cords or multi-plug adapters. Disconnect from power before cleaning or maintenance.
- Water Connection: Connect the appliance to the water supply using new hose sets. Do not reuse old hose sets.
- Child Safety: Keep children away from the appliance during operation. Packaging materials can be dangerous for children.
- Installation: The appliance must be installed on a firm, level surface. Remove all transport bolts before use to prevent damage and excessive vibration.
- Usage: Do not wash items that are soiled with flammable substances. Do not open the door forcefully during a cycle.
3. Setup and Installation
Unpacking and Contents
Carefully unpack your washing machine. The box should contain the following items:
- 1 x Balay Washing Machine
- Power cable
- Drain hose
- Fill hose
Positioning the Appliance
Place the washing machine on a stable, level floor. Adjust the feet to ensure the appliance is perfectly balanced. This is crucial to prevent excessive vibration during operation, especially during the spin cycle.
Figure 3.1: Front view of the Balay washing machine with approximate dimensions (85 cm height, 60 cm width).
Figure 3.2: Side view of the Balay washing machine, illustrating depth and other measurements for installation.
Removing Transport Bolts
Before first use, it is mandatory to remove all transport bolts located at the rear of the machine. Failure to do so will cause severe vibration and damage to the appliance. Refer to the quick installation guide for detailed instructions on removing these bolts.
Water and Electrical Connections
Connect the fill hose to a cold water tap and the drain hose to a suitable drain. Plug the power cable into a grounded electrical outlet. Ensure all connections are secure and leak-free.
4. Operating Instructions
Control Panel Overview
The Balay 3TS3107BD features a touch control panel and an LED display for easy program selection and monitoring.
Figure 4.1: The control panel, featuring the program selection dial and LED display for cycle information.
Loading Laundry
Open the door and load your laundry, ensuring not to exceed the 10 kg capacity. Close the door firmly.
Adding Detergent
Add the appropriate amount of detergent and fabric softener to the dispenser drawers. Refer to your detergent packaging for dosage recommendations.
Program Selection
Turn the program dial to select your desired wash cycle. The LED display will show estimated time and other relevant information.
- Standard Programs: Cotton, Eco, Wool, Delicate wash.
- Ironing Program: This special program reduces wrinkles in your clothes, simplifying the ironing process.
Figure 4.2: The Ironing Program helps reduce creases, making clothes easier to iron.
- Quick Programs: For busy days, choose between the 15-minute or 30-minute super quick programs to wash lightly soiled items efficiently.
Figure 4.3: Quick programs allow for washing in as little as 15 minutes.
Special Features
- Pause + Load Function: If you forget an item, use the Pause + Load function to add it during the initial stages of the wash cycle.
Figure 4.4: The Pause + Load feature allows you to add forgotten items to the wash.
- VarioSoft Drum: The patented VarioSoft drum design ensures gentle washing, reducing friction and protecting your garments.
Figure 4.5: The VarioSoft drum is designed to care for your clothes during washing.
- ExtraSilence Inverter Motor: This motor technology provides a quieter and more efficient washing experience.
Figure 4.6: The ExtraSilence motor ensures quiet operation, minimizing disturbance.
Starting and Ending a Cycle
Press the Start/Pause button to begin the selected program. The LED display will count down the remaining time. Once the cycle is complete, the machine will signal the end of the cycle.
5. Maintenance
Cleaning the Detergent Dispenser
Regularly clean the detergent dispenser drawer to prevent residue buildup. Remove the drawer and rinse it under running water.
Cleaning the Drum
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) periodically to clean the drum and remove any odors.
Cleaning the Drain Filter
The drain filter should be cleaned regularly to ensure proper drainage and prevent blockages. Access the filter through the small door at the bottom front of the machine.

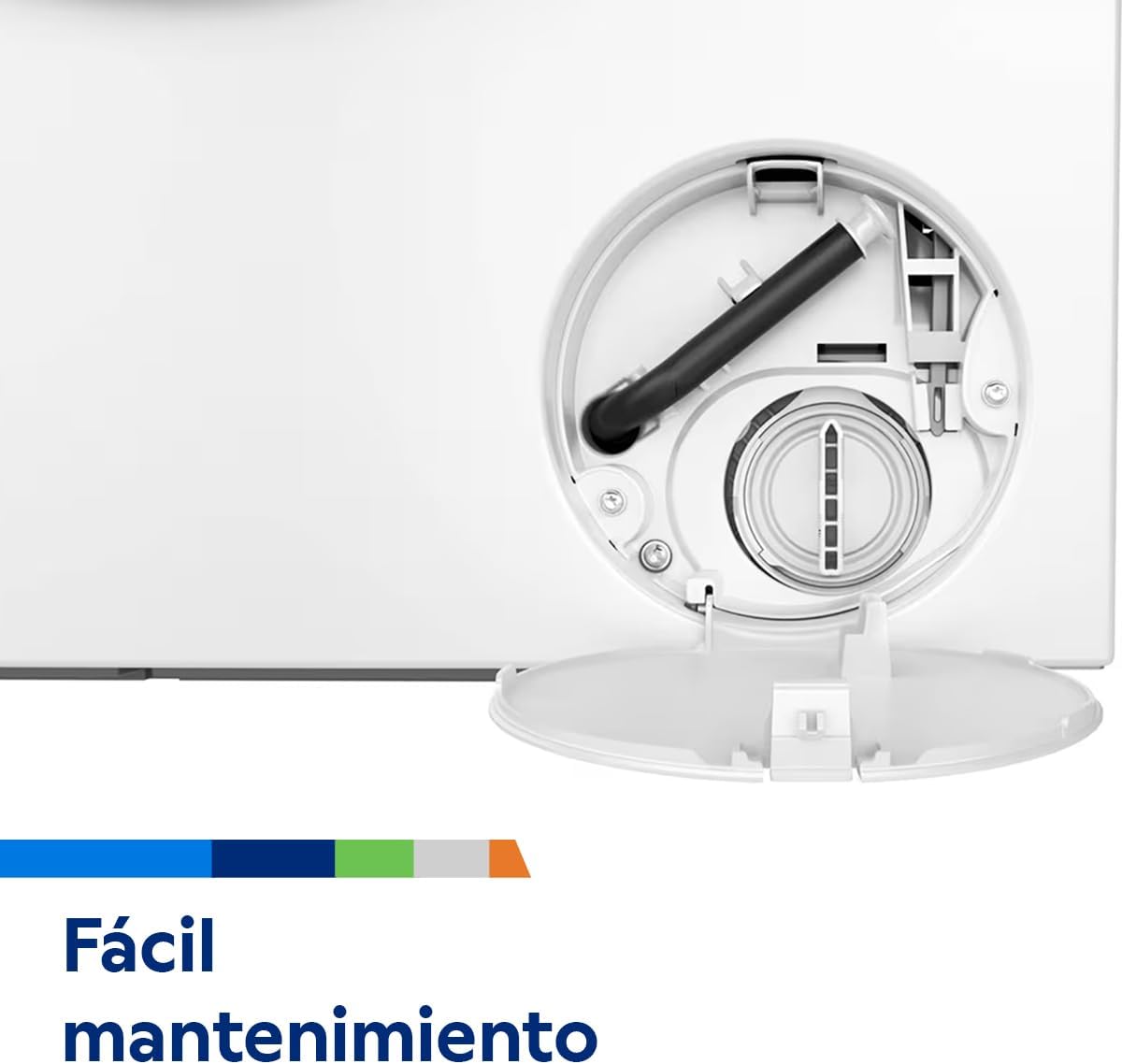

Figure 5.1: The drain filter is easily accessible for routine cleaning.
Exterior Cleaning
Wipe the exterior of the washing machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
6. Troubleshooting
Before contacting customer service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Washing machine does not start | No power supply; Door not closed properly; Program not selected. | Check power plug and fuse; Ensure door is securely latched; Select a program and press Start. |
| Excessive vibration during spin cycle | Transport bolts not removed; Appliance not level; Uneven load. | Ensure all transport bolts are removed. Adjust leveling feet; Redistribute laundry inside the drum. |
| Water not draining | Drain hose kinked or blocked; Drain filter blocked. | Check and clear drain hose; Clean the drain filter (refer to Maintenance section). |
| Water leakage | Hose connections loose; Detergent dispenser overflowing. | Tighten hose connections; Do not overfill detergent dispenser. |
The washing machine is equipped with anti-vibration panels to minimize noise and movement. If vibration persists after checking the above, consult the full manual or contact customer support.

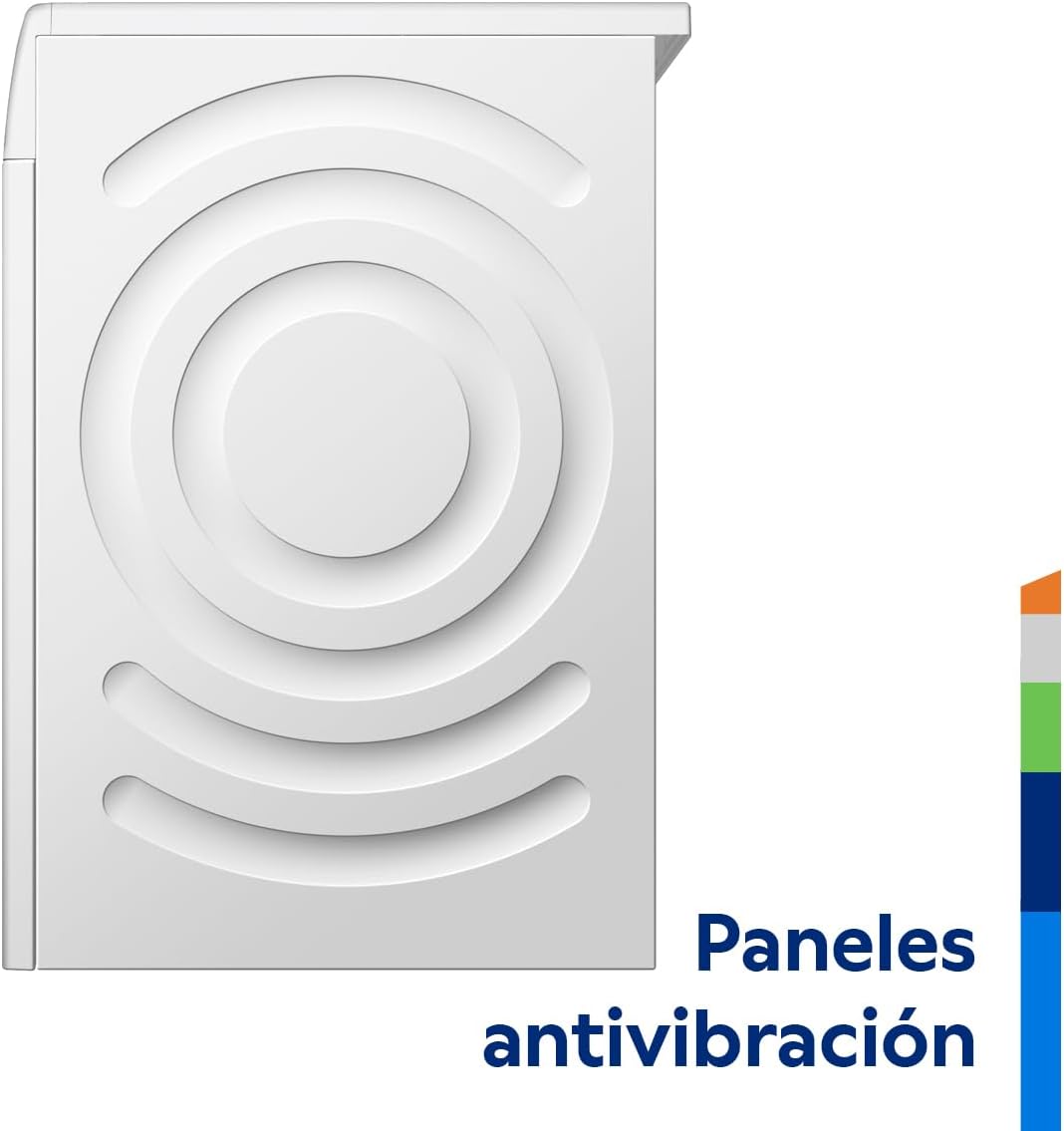

Figure 6.1: Anti-vibration panels contribute to stable and quiet operation.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Balay |
| Model Number | 3TS3107BD |
| Capacity | 10 Kilograms |
| Product Dimensions (H x W x D) | 84.5 x 59.8 x 58.8 cm |
| Product Weight | 72.8 Kilograms |
| Energy Efficiency Class | A |
| Noise Level (Wash) | 48-51 dB(A) |
| Noise Level (Spin) | 71-73 dB(A) |
| Control Type | Touch |
| Material | Stainless Steel (Drum) |
| Loading Type | Front Load |
| Special Features | High efficiency, Vibration reduction, End of cycle signal, Remaining time display |

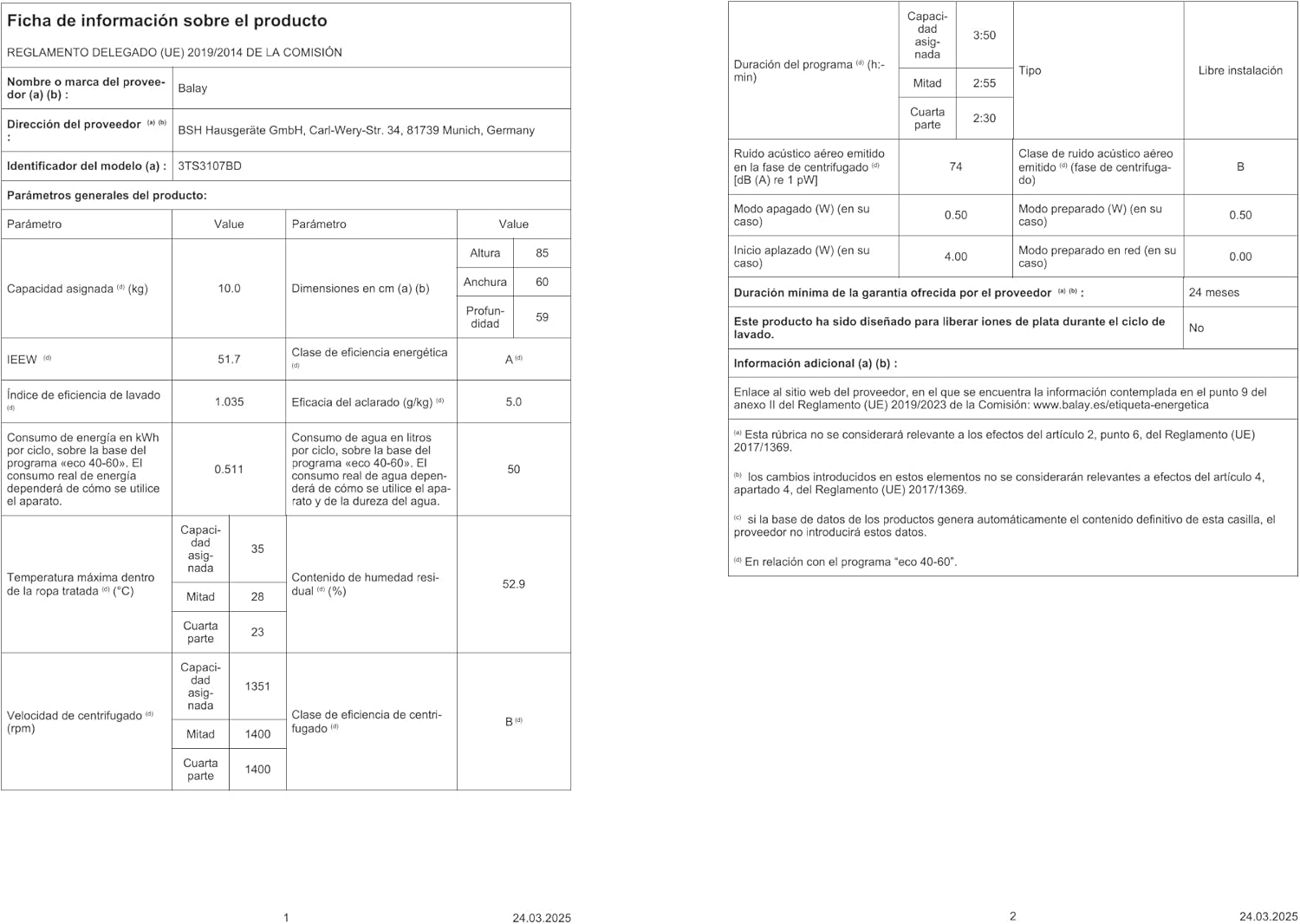

Figure 7.1: Energy label for model 3TS3107BD, detailing energy consumption and performance metrics.
Figure 7.2: Product information sheet with comprehensive technical data and regulatory details.
8. Warranty and Support
Warranty Information
Your Balay washing machine comes with a standard manufacturer's warranty. Additionally, the ExtraSilence Inverter Motor is covered by a 10-year warranty.
Spare Parts Availability
Balay ensures the availability of spare parts for up to 15 years, providing long-term support for your appliance.
Figure 8.1: Balay provides spare parts for 15 years to extend the life of your appliance.
Customer Support
For any questions, technical assistance, or warranty claims, please contact Balay customer service. Support is available 24 hours a day, 7 days a week.
Figure 8.2: Balay offers 24/7 customer support for your convenience.
You can find more information and contact details on the official Balay website or through their Amazon Brand Store.
