LENSGO SMOKE GO Portable Fog Machine User Manual

1. Introduction

This manual provides comprehensive instructions for the safe and effective use of your LENSGO SMOKE GO Portable Fog Machine. Please read this manual thoroughly before operation and retain it for future reference. The LENSGO SMOKE GO is a compact, handheld fog machine designed for various applications including photography, film production, events, and special effects.

2. Product Overview and Package Contents

The LENSGO SMOKE GO Portable Fog Machine is a versatile device for creating atmospheric effects. Ensure all components listed below are present in your package.

Image: The LENSGO SMOKE GO Portable Fog Machine in operation, demonstrating its compact size and smoke output.

Package Contents:

• Smoke Machine x 1
• Storage Bag x 1
• Charging Cable x 1
• 60ML Fog Machine Fluid x 1
• Infrared Remote Control x 1
• High Pressure Nozzle x 1
• Hard Straight Tube x 1
• Silicone Hose x 1
• Bends (Tube Connectors) x 3
• Liquid Smoke Filter x 1

Image: A visual representation of the LENSGO SMOKE GO fog machine and all its accessories, including tubes, nozzles, remote, fluid, and charging cable.

3. Setup

3.1 Filling the Fog Fluid Tank

1. Ensure silicone plugs are securely in place before beginning the refueling process.
2. Push the lock button to "open" and carefully lift the fog fluid tank from the main unit.
3. Invert the oil tank. Locate and open the bottom silicone plug.
4. Refill the tank with LENSGO fog fluid. After filling, securely tighten the silicone plug.
5. Reinsert the tank into the main unit, ensuring it clicks into place.

Image: Detailed visual instructions for opening the tank, accessing the fill port, and refilling the fog fluid.

Important Warning: Before initial use, ensure the machine's fog liquid compartment is filled. Do not operate the machine dry without fog liquid. For the first use after filling, allow 3-5 minutes for the liquid to prime before starting operation.

3.2 Port Management

• When using the device, keep both port ① and port ② open simultaneously.
• When not in use, immediately cover port ② with its silicone stopper.
• For long-term storage, both ports must be sealed, and any remaining liquid should be drained to prevent blockages and maintain performance.

4. Operating Instructions

4.1 Powering On/Off

To power on the device, slide the ON/OFF switch to the 'ON' position. To power off, slide the switch to 'OFF'.

Image: A detailed view of the SMOKE GO's side panel, showing the ON/OFF switch and LED indicators for easy operation.

4.2 Generating Smoke

Once powered on and primed, double-click the main button to activate smoke output. The device features various smoke modes for different effects:

• Portrait Mode: Ideal for subtle, artistic effects in photography.
• Dry Ice Effect: Creates a dense, low-lying fog similar to dry ice.
• Cinematic Mist: Produces a fine, atmospheric mist for film and video.
• Incense Mode: Generates a continuous, steady stream of smoke.
• Manual Control: Allows for direct control over smoke intensity and duration.

Image: Visual examples demonstrating the versatility of the LENSGO SMOKE GO in producing various smoke effects for different creative needs.

4.3 Using the Remote Control

The included infrared remote control allows you to adjust smoke output from a distance of up to 10 meters. This is useful for hands-free operation during shoots or events.

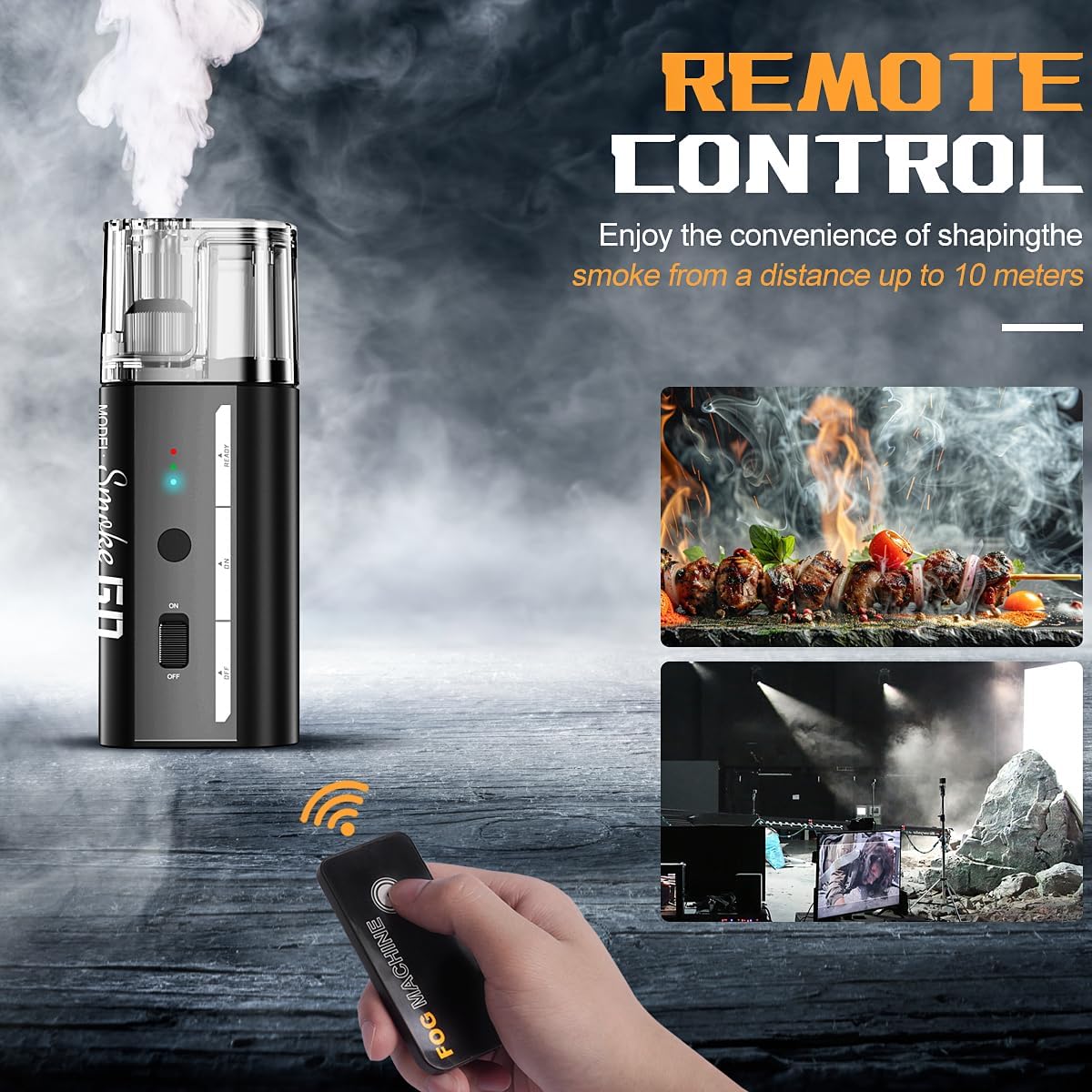

Image: The LENSGO SMOKE GO fog machine positioned next to its infrared remote control, highlighting the convenience of remote operation for various applications.

5. Maintenance

5.1 Cleaning

The fog fluid can leave a thin layer on surfaces. It cleans up easily with soap and water. Wipe down the unit regularly to keep it clean. Do not immerse the unit in water.

5.2 Storage

Before storing, ensure both ports are sealed with their silicone stoppers. Drain any remaining liquid from the tank to prevent blockages and maintain optimal performance for future use.

5.3 Preventing Blockages

Regularly draining the tank and ensuring proper sealing during storage helps prevent fluid residue from drying and causing internal blockages.

6. Troubleshooting

• No Smoke Output: Ensure the tank is filled with fog fluid and has been allowed to prime for 3-5 minutes (especially on first use). Check that both ports ① and ② are open during operation. Verify the device is charged.
• Fluid Leaks or "Spitting Juice": This can occur. It is highly recommended to use one of the included attachments (e.g., high pressure nozzle, tubes) to help contain or direct the output and minimize fluid residue on surrounding surfaces.
• Device Not Charging: Ensure the charging cable is securely connected to both the device and a power source. If the issue persists, contact customer support.
• Reduced Smoke Volume: Check the fluid level. Ensure the device is clean and free of blockages. Follow storage guidelines to prevent residue buildup.

7. Specifications

Image: A summary of the LENSGO SMOKE GO's technical specifications, including size, power, battery life, and tank capacity.

8. Safety and Certifications

The LENSGO SMOKE GO fog machine is designed with safety in mind and holds the following international certifications:

• CE Certified
• ROHS Compliant
• MSDS Certified (Material Safety Data Sheet)
• Aerospace-grade heat-resistant materials with dry burn protection.
• Safe formula for humans and clothing.

Image: Display of safety certifications and documents for the LENSGO SMOKE GO fog machine, ensuring compliance with international standards.

General Safety Warnings:

• Do not disassemble or modify the device.
• Do not short-circuit.
• Do not dispose of in fire.
• Do not expose to high temperatures.
• CHOKING HAZARD: Small parts. Keep out of reach of children under 3 years.

9. Warranty and Support

LENSGO is committed to providing excellent customer service and product support.

• Quick Reply: Customer inquiries receive a reply within 24 hours.
• Return Policy: 60-day worry-free return period.
• Replacement: 12-month replacement available for manufacturing defects.
• Technical Support: Lifetime after-sales consultation and technical support.

Image: An overview of LENSGO's customer service commitments, including response times, return policy, replacement period, and technical support availability.

Contact Information:

• Website: www.lensgo.net
• Service Hotline: 00-86-755 89894123
• Email: COMPLIANCE.EU@OUTLOOK.COM
