Azkoeesy Modern Kitchen Cabinet with Extendable Dining Table

1. Introduction

Thank you for choosing the Azkoeesy Modern Kitchen Cabinet with Extendable Dining Table. This versatile furniture piece is designed to enhance your kitchen and dining area with its contemporary style and practical features. It includes ample storage with drawers, doors, open compartments, a built-in spice rack, and a convenient extendable dining table. Please read this manual carefully before assembly and use to ensure safe and proper operation.

Safety Information

• Always assemble the product on a soft, clean surface to prevent scratches.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not overload drawers, shelves, or the extendable table. The maximum load capacity is 100 kg.
• Keep small parts and packaging materials away from children.
• Use appropriate tools for assembly. Do not use power tools unless specified, as over-tightening can damage components.

2. Package Contents

Your Azkoeesy Kitchen Cabinet is delivered in 5 separate packages. Please verify that all components and hardware are present before beginning assembly. Refer to the included parts list (not provided in this document) for detailed inventory.

Package Dimensions and Weights:

• Package 1: 97.16 x 78.11 x 13.21 cm, 26.25 kg
• Package 2: 161.29 x 55.88 x 13.34 cm, 20.25 kg
• Package 3: 97.79 x 51.56 x 18.42 cm, 30.9 kg
• Package 4: 149.86 x 57.15 x 13.97 cm, 28.5 kg
• Package 5: 131.57 x 52.07 x 19.05 cm, 28.75 kg

3. Setup and Assembly

Assembly requires two people. Follow the step-by-step instructions provided in the separate assembly guide included with your product. The following image illustrates the overall dimensions and key components of the assembled unit.

Figure 3.1: Overall dimensions and component breakdown. The main cabinet measures 150cm (width) x 90cm (depth) x 90cm (height). The extendable table measures 80cm (width) x 76cm (depth) x 75cm (height) when extended. Internal shelf dimensions and drawer heights are also detailed.

Key Assembly Points:

• Identify all parts and hardware according to the assembly diagram.
• Assemble the main cabinet frame first, ensuring all panels are correctly oriented.
• Install the drawers and door hinges as per the instructions.
• Attach the spice rack to the designated side of the cabinet.
• Integrate the extendable dining table mechanism, ensuring smooth operation of the sliding rails and wheels.
• Place the marble countertops securely on both the main cabinet and the extendable table.

4. Operating Instructions

This kitchen cabinet offers versatile functionality for daily use.

Using the Extendable Dining Table:

The integrated dining table can be easily extended or retracted as needed. To extend, gently pull the hidden handle on the side of the table. The table will slide out smoothly on its high-quality silent rails and wheels. To retract, push the table back into its compartment until it is fully nested under the main cabinet.

Figure 4.1: The extendable dining table in use, demonstrating its practical telescopic function. It features silent sliding rails and two silent wheels for smooth operation, along with a hidden handle for easy access.

Storage Compartments:

• Drawers: The three spacious drawers provide enclosed storage for cutlery, utensils, or other kitchen essentials.
• Doors: The three cabinet doors open to reveal adjustable shelves, ideal for larger items like pots, pans, or small appliances.
• Open Storage: The open shelves are perfect for displaying decorative items, cookbooks, or frequently accessed kitchen tools.
• Spice Rack: The integrated spice rack on the side of the cabinet allows for organized and easy access to your spices.

Figure 4.2: The kitchen cabinet showcasing its storage capabilities, including drawers, open shelves, and the integrated spice rack.

5. Maintenance and Care

Proper care will ensure the longevity and appearance of your Azkoeesy Kitchen Cabinet.

• Cleaning the Marble Top: Wipe the marble surface with a soft, damp cloth and a mild, non-abrasive cleaner. Avoid acidic cleaners, harsh chemicals, or abrasive pads, as these can damage the marble. Wipe spills immediately.
• Cleaning Wood and Metal Surfaces: Use a soft, dry or slightly damp cloth to wipe down wood and metal components. Avoid excessive moisture.
• General Care: Avoid placing hot items directly on the marble or wood surfaces without protection. Do not use the cabinet as a cutting surface.
• Hinge Adjustment: Over time, cabinet doors may become misaligned. Refer to the troubleshooting section for hinge adjustment instructions.

6. Troubleshooting

This section addresses common issues you might encounter.

Door Misalignment:

If cabinet doors are not aligned properly, you can adjust the hinges. Most hinges have three adjustment screws:

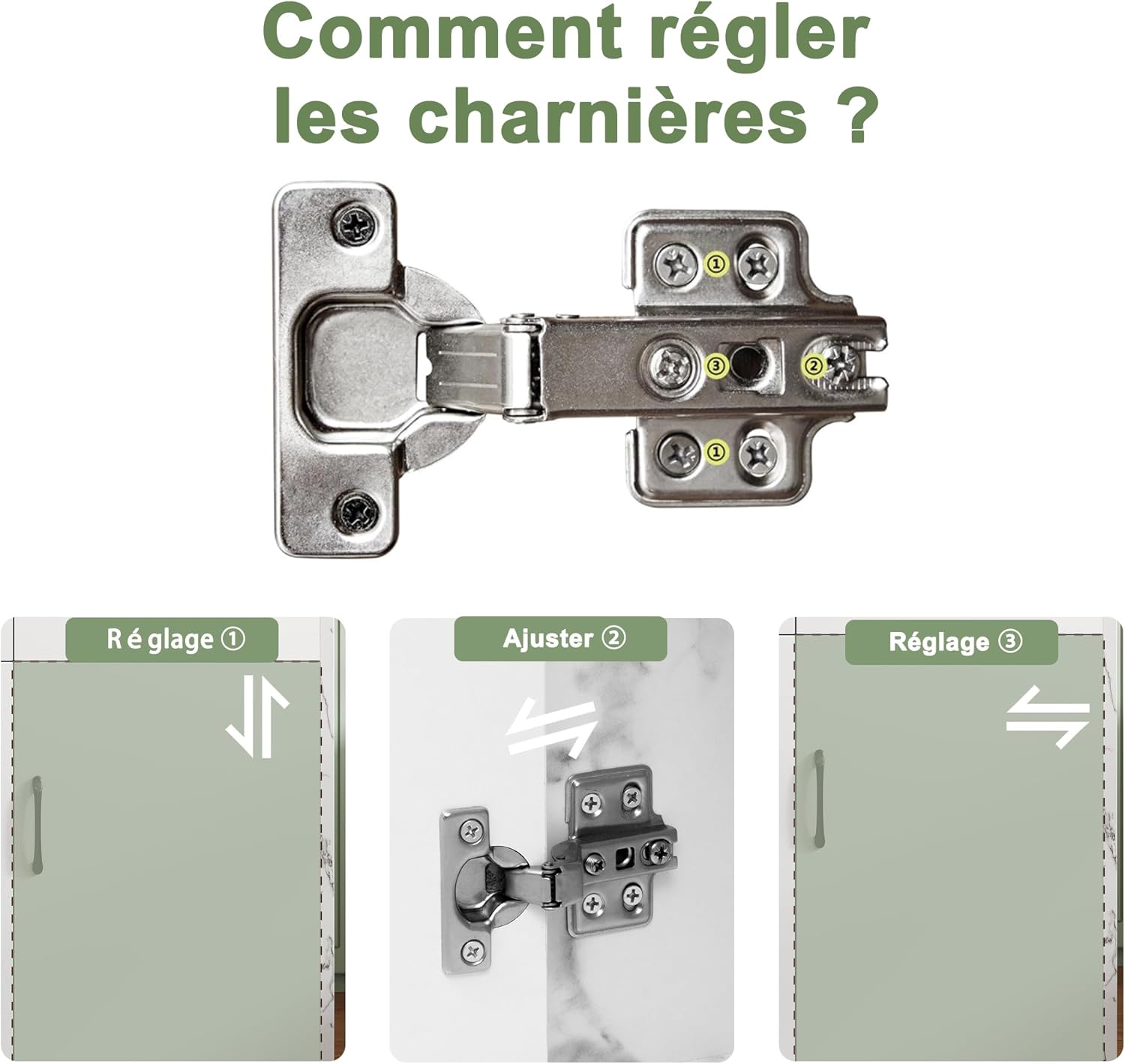

Figure 6.1: Hinge adjustment points. Screw 1 adjusts the door vertically, Screw 2 adjusts the door horizontally (side-to-side), and Screw 3 adjusts the door's depth (in and out).

• Vertical Adjustment (1): Loosen the screws marked '1' slightly, adjust the door up or down, then re-tighten.
• Horizontal Adjustment (2): Turn the screw marked '2' to move the door left or right.
• Depth Adjustment (3): Turn the screw marked '3' to move the door closer to or further from the cabinet frame.

Extendable Table Not Sliding Smoothly:

• Check for any obstructions in the sliding mechanism or wheels.
• Ensure the rails are clean and free of debris.
• If necessary, apply a silicone-based lubricant to the sliding rails (avoid oil-based lubricants on wood).

7. Specifications

8. Warranty and Support

Azkoeesy products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact your retailer.

Customer Support:

If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact Azkoeesy customer support through your purchase platform or the contact information provided in your product packaging.

Please have your model number (N635P2533245678W) and purchase date ready when contacting support.
