NVIYAM Electric Milk Frother Model MIFOR0402 User Manual

1. Introduction

This manual provides detailed instructions for the safe and efficient operation of your NVIYAM Electric Milk Frother, Model MIFOR0402. Please read all instructions carefully before first use and retain this manual for future reference.

Figure 1: NVIYAM Electric Milk Frother. This image displays the main unit of the electric milk frother alongside a cup of frothed coffee, illustrating its primary function.

2. Product Overview and Components

The NVIYAM Electric Milk Frother is a versatile 4-in-1 appliance designed for preparing various milk-based beverages. It features a durable stainless steel body and intuitive controls.

Key Features:

• 4-in-1 Functionality: Hot milk froth, heated milk, cold froth, and pure frothing.
• Large Capacity: 430 ml maximum capacity for heating, 160 ml for frothing.
• Automatic Shut-off: Enhances safety by preventing overheating and accidental overflows.
• Quiet Operation: Designed for minimal noise during use.
• Easy to Clean: Features a non-stick coating and removable base.
• Durable Construction: Made from high-quality 304 stainless steel.

Figure 2: Product Features. This image illustrates the key features of the milk frother, including magnetic suspension foam, heating capability, hot and cold options, 304 stainless steel body, 100% frothing, and long service life.

3. Setup

1. Unpacking: Carefully remove the milk frother and all accessories from the packaging.
2. Initial Cleaning: Before first use, clean the inside of the frother and the whisk with a damp cloth. Do not immerse the base unit in water.
3. Placement: Place the frother on a stable, flat, heat-resistant surface, away from water sources and direct heat.
4. Power Connection: Ensure the power cord is securely plugged into a grounded electrical outlet.

4. Operating Instructions

The frother offers four distinct modes, easily selected with a single touch.

Capacity Guidelines:

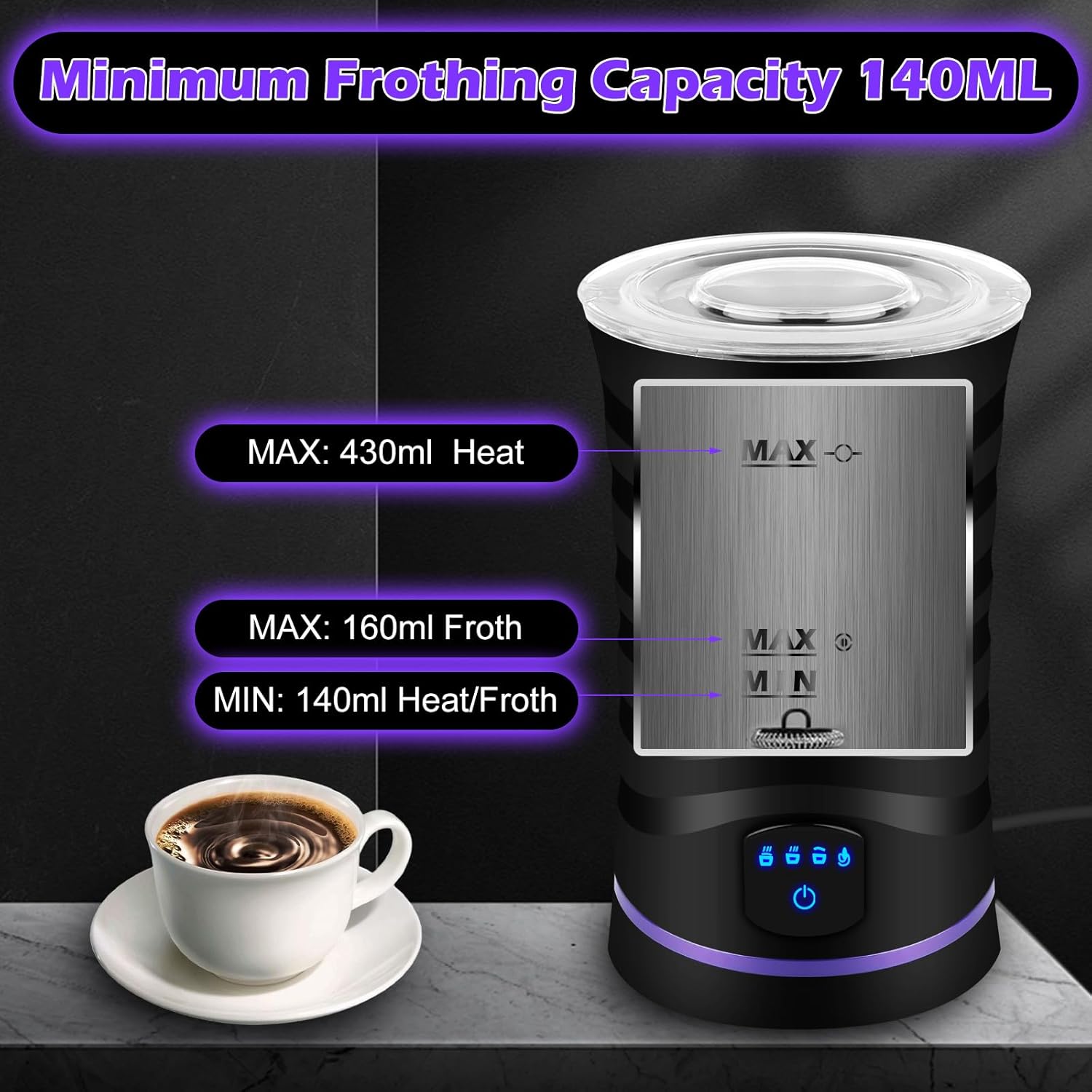

Figure 3: Capacity Markings. This image shows the internal markings for maximum heating capacity (MAX: 430ml Heat), maximum frothing capacity (MAX: 160ml Froth), and minimum capacity for both (MIN: 140ml Heat/Froth).

• Maximum for Heating (without frothing): 430 ml
• Maximum for Frothing (hot or cold): 160 ml
• Minimum for Heating/Frothing: 140 ml

Always adhere to the MIN and MAX fill lines indicated inside the frother to prevent overflow or insufficient frothing.

Operating Modes:

Figure 4: 4 Modes and One-Touch Control. This image displays the frother with examples of beverages corresponding to its four functions: hot milk froth (latte), heated milk (hot coffee), pure frothing (espresso), and cold froth (iced coffee).

1. Add Milk: Pour the desired amount of milk into the frother, ensuring it is between the MIN and MAX fill lines for your chosen function.
2. Select Mode: Press the power button once to cycle through the available modes. The indicator lights will illuminate to show the selected function:
   • Hot Milk Froth: For lattes and cappuccinos.
   • Heated Milk: For hot chocolate or warming milk without froth.
   • Cold Froth: For iced coffee creations.
   • Pure Frothing: For light and airy froth.
3. Start Operation: Once the desired mode is selected, the frother will begin operation automatically.
4. Automatic Shut-off: The frother will automatically stop when the process is complete and the optimal temperature is reached.
5. Serve: Carefully pour the frothed or heated milk into your beverage.

Figure 5: Pouring Frothed Milk. This image demonstrates the process of pouring frothed milk from the frother into a glass, ready for consumption.

5. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your frother.

1. Unplug: Always unplug the frother from the power outlet before cleaning.
2. Cool Down: Allow the frother to cool completely before cleaning.
3. Clean Interior: The interior of the frother has a non-stick coating and can be rinsed directly with water. Use a soft sponge or cloth and mild detergent if necessary. Avoid abrasive cleaners or scouring pads.
4. Clean Exterior: Wipe the exterior of the frother with a damp cloth. Do not immerse the base unit or the entire frother in water.
5. Whisk: Remove the whisk and rinse it under running water.
6. Dry: Ensure all parts are thoroughly dry before reassembling or storing the frother.

Figure 6: Cleaning the Frother. This image demonstrates the ease of cleaning the frother's interior by rinsing it under a faucet, highlighting its non-stick coating. It also shows incorrect cleaning methods like dishwashing or immersing the base.

6. Safety Instructions

• Read all instructions before use.
• Do not immerse the electrical base or power cord in water or other liquids.
• Keep out of reach of children.
• Do not operate the appliance with a damaged cord or plug.
• Do not use outdoors.
• Always ensure the lid is properly closed during operation.
• The frother features an automatic shut-off function to prevent overheating. If the frother stops unexpectedly, allow it to cool down before attempting to use it again.
• Use only milk in the frother. Do not use other food items or liquids.

7. Troubleshooting

8. Specifications

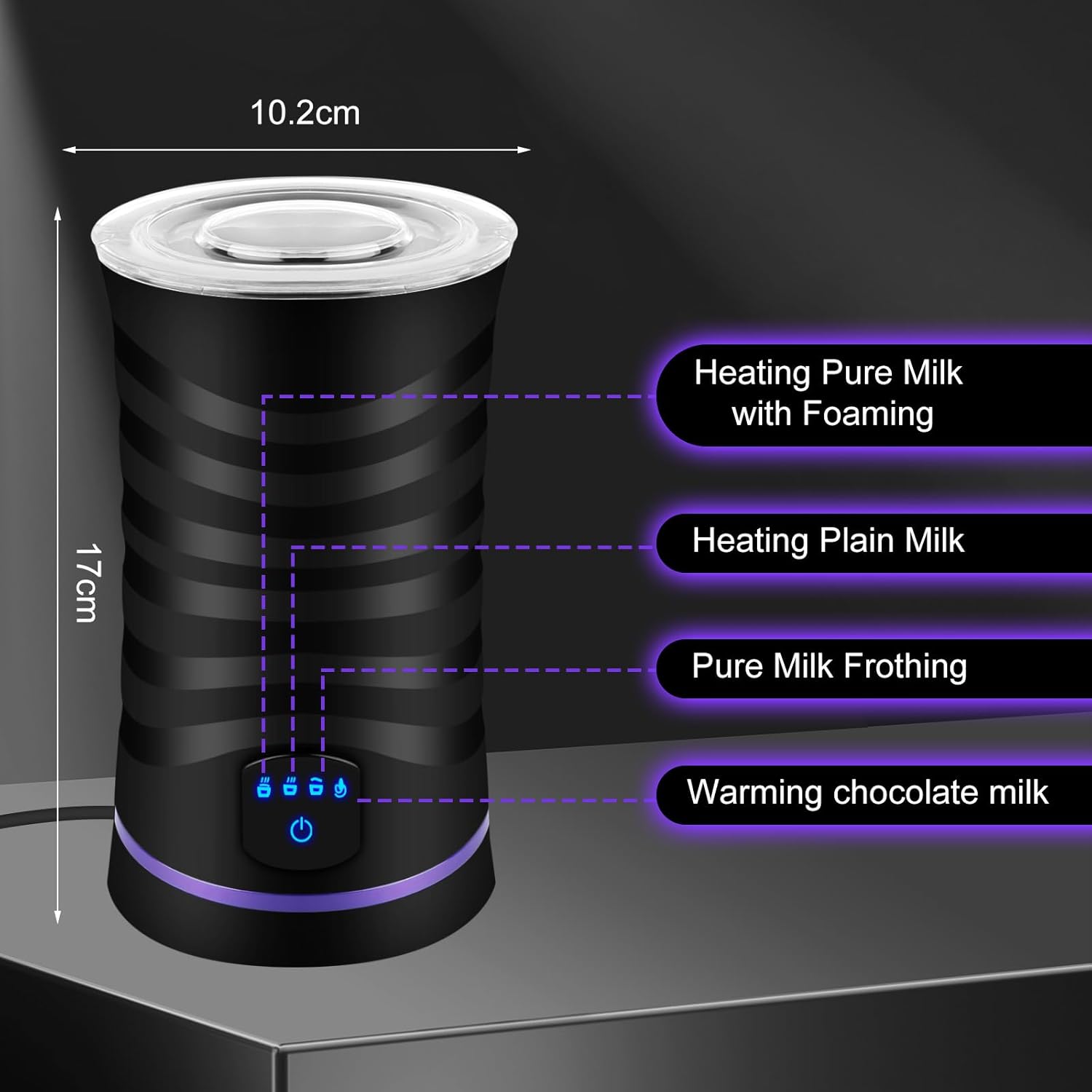

Figure 7: Product Dimensions. This image provides the key dimensions of the milk frother: 17 cm in height and 10.2 cm in diameter.

• Brand: NVIYAM
• Model Number: MIFOR0402
• Color: Black
• Material: Stainless Steel (304)
• Capacity: 430 ml (heating), 160 ml (frothing)
• Item Weight: 770 g
• Dimensions (approx.): 17 cm (Height) x 10.2 cm (Diameter)
• Power Source: Electric Cord
• UPC: 797505227161
• Country of Origin: China

9. Warranty and Support

Information regarding product warranty and customer support is not available in the provided product details. Please refer to your purchase documentation or contact the retailer for specific warranty terms and support options.
