1. Product Overview
The ANRAN G3 is a 4G LTE outdoor security camera designed for areas without Wi-Fi access. It features a pre-installed SIM card for immediate 4G connectivity, a solar panel for continuous power, and a high-capacity battery. This camera offers 2K ultra-high-definition video, advanced PIR human body heat detection, color night vision, and two-way audio communication. It is built to withstand outdoor conditions with an IP66 waterproof rating.
Image 1.1: The ANRAN G3 4G LTE Outdoor Solar Security Camera with its solar panel.
2. Package Contents
Please check the package contents upon arrival to ensure all items are present and undamaged.
- ANRAN G3 4G LTE Camera
- Solar Panel
- Mounting Bracket and Screws
- USB Charging Cable
- Pre-installed SIM Card
- 32GB Micro SD Card (pre-installed)
- User Manual
Image 2.1: All components included in the ANRAN G3 camera package.
3. Setup Guide
3.1 Initial Charging
Before first use, fully charge the camera's internal battery using the provided USB cable and a 5V/2A power adapter (not included). The charging indicator light will turn solid blue when fully charged.
3.2 SIM Card and SD Card Installation
The 4G SIM card and 32GB Micro SD card are pre-installed and the slot is factory-sealed for optimal performance and weather protection. Do not attempt to open or replace the SIM card. The camera supports up to 128GB Micro SD cards if you wish to upgrade the storage (requires professional service to maintain waterproofing).
3.3 App Installation and Pairing
- Download the 'CloudEdge' app from your smartphone's app store (iOS or Android).
- Register for an account and log in.
- Follow the in-app instructions to add your ANRAN G3 camera. Ensure your phone has a strong 4G signal during the pairing process.
3.4 Mounting the Camera
The camera is designed for wall mounting. Choose a location with good 4G signal reception and ample direct sunlight for the solar panel. Use the provided mounting bracket and screws to securely attach the camera and solar panel.
Image 3.1: The ANRAN G3 camera and solar panel mounted on a tree, illustrating flexible placement without Wi-Fi.
Image 3.2: Examples of diverse locations where the ANRAN G3 camera can be installed due to its 4G connectivity and lack of Wi-Fi dependency.
4. Operating Instructions
4.1 Live View and Recording
Access the 'CloudEdge' app to view live 2K HD video streams from your camera. The camera automatically records events triggered by motion detection to the installed Micro SD card.
Image 4.1: Comparison of 2K HD image clarity during daytime and nighttime conditions.
4.2 Night Vision Modes
The ANRAN G3 offers three night vision modes:
- Color Night Vision: Provides full-color images in low-light conditions for enhanced detail.
- Smart Night Vision: The camera operates in black and white and switches to color night vision upon detecting motion.
- Black & White Night Vision: Traditional infrared night vision for clear monochrome images in complete darkness.
Image 4.2: An example of color night vision capturing a deer in low light, showing clear details up to 15 meters.
Image 4.3: Visual representation of the three available night vision modes for clarity in various lighting conditions.
4.3 PIR Motion Detection and Alerts
The integrated PIR sensor accurately detects human body heat movement, minimizing false alarms from animals or shadows. When motion is detected, you will receive instant alerts on your smartphone.
Image 4.4: Illustration of PIR motion detection focusing on a moving object, indicating precise detection.
Image 4.5: A smartphone screen displaying an instant alert notification for a person detected by the camera.
4.4 Two-Way Audio
Utilize the built-in microphone and speaker to communicate with visitors or deter intruders directly through the app.
4.5 Digital Zoom
The camera supports 4x digital zoom, allowing you to magnify details within the live view or recorded footage.
Image 4.6: Demonstration of 4x digital zoom, highlighting details such as an ear tag on a cow.
4.6 Remote Access and Multi-User Sharing
Access your camera feed remotely from anywhere using your smartphone. The app also supports multi-user sharing, allowing family members or trusted individuals to view the camera feed.
Image 4.7: A smartphone screen illustrating the multi-user sharing feature, allowing multiple family members to access the camera feed.
4.7 Voice Control
The ANRAN G3 camera is compatible with Alexa and Google Assistant, enabling convenient voice control for certain functions.
5. Maintenance
5.1 Power Management
The camera is powered by a high-capacity battery and continuously recharged by the solar panel. Ensure the solar panel is positioned to receive maximum direct sunlight throughout the day. Regularly clean the solar panel surface to remove dust or debris that may hinder charging efficiency.
Image 5.1: An internal view highlighting the camera's 6000mAh high-capacity battery.
Image 5.2: A visual comparison demonstrating the improved efficiency of the new 3W solar panel.
5.2 Weather Resistance
The camera has an IP66 waterproof rating, making it resistant to dust and strong jets of water. It is designed to operate reliably in various outdoor weather conditions, including rain, snow, and extreme temperatures.

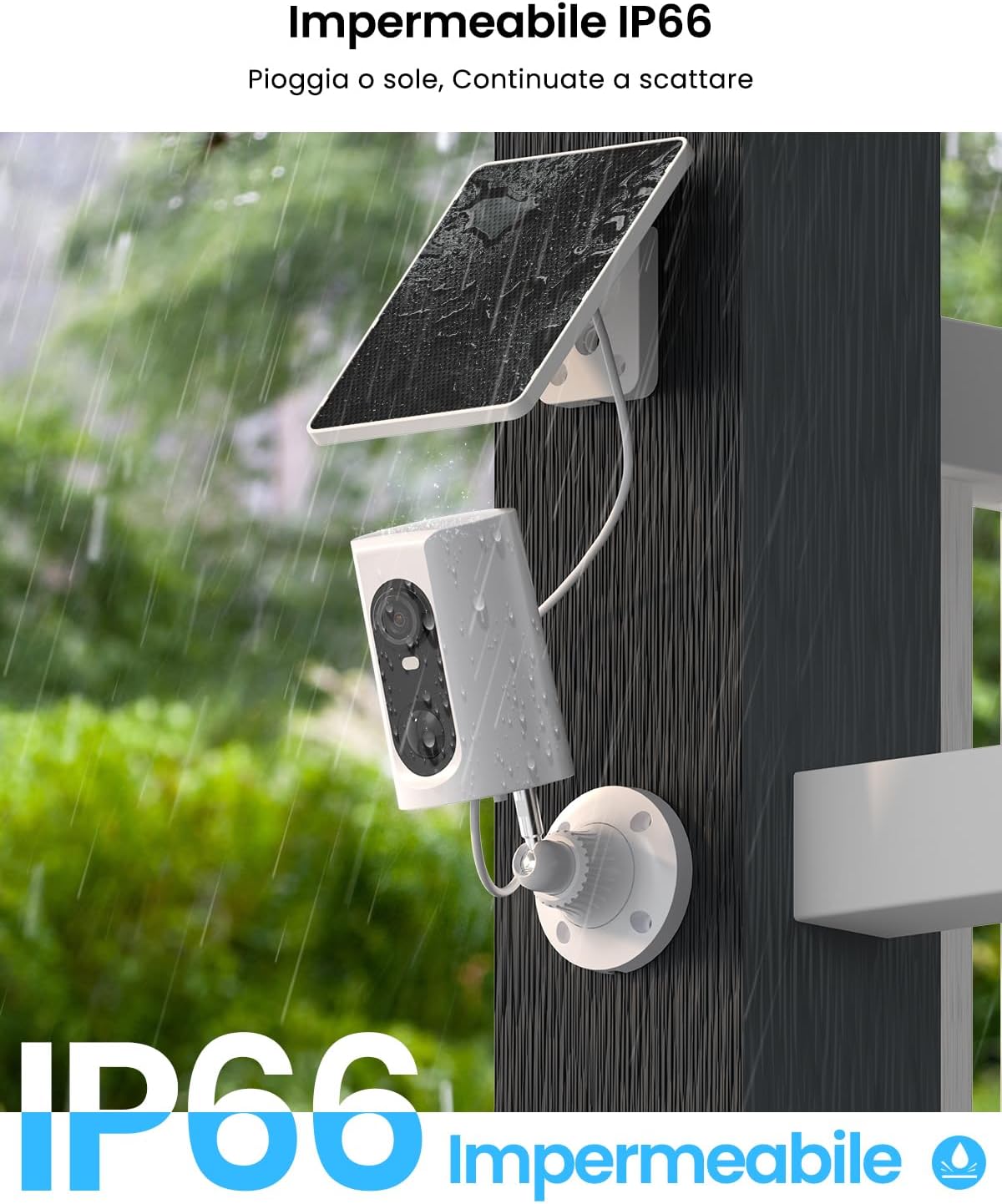

Image 5.3: The ANRAN G3 camera operating in rainy conditions, demonstrating its IP66 waterproof rating.
Image 5.4: Visual representation of the camera's IP66 rating, indicating protection against dust, snow, and high temperatures.
5.3 Storage Management
The camera comes with a 32GB Micro SD card for local storage. It supports up to 128GB. When the card is full, older recordings will be overwritten automatically. Regularly review and back up important footage as needed.
6. Troubleshooting
- Camera Not Connecting to 4G: Ensure the camera is in an area with good cellular signal. Check with your SIM card provider for coverage in the installation area. The SIM card is pre-installed and sealed; do not attempt to remove it.
- No Motion Detection Alerts: Verify that PIR detection is enabled in the 'CloudEdge' app settings. Adjust the sensitivity level if necessary. Ensure the camera lens is clean and unobstructed.
- Poor Image Quality: Clean the camera lens with a soft, dry cloth. Ensure there are no obstructions in the camera's field of view. Check the app for resolution settings.
- Battery Not Charging: Ensure the solar panel is clean and exposed to direct sunlight for several hours daily. Check the connection between the solar panel and the camera. If the battery is completely depleted, connect the camera to a USB power source for initial charging.
- Two-Way Audio Not Working: Check microphone and speaker permissions for the 'CloudEdge' app on your smartphone. Ensure the volume is turned up on your device.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | ANRAN |
| Model Name | G3 |
| Connectivity Technology | 4G LTE (Cellular) |
| Recommended Use | Outdoor Security |
| Special Features | Two-way audio, Local recording, HD Resolution, Motion sensor, Night vision |
| Indoor/Outdoor Use | Outdoor |
| Compatible Devices | Smartphone |
| Control Unit Type | CloudEdge App |
| Mounting Type | Wall Mount |
| Color | G3 White |
| Form Factor | Bullet |
| Material Type | Plastic |
| Water Resistance Level | Waterproof (IP66) |
| Alarm Type | Audio and Motion |
| Light Source Type | LED |
| Effective Still Image Resolution | 3 MP (2K) |
| Rear Webcam Resolution | 3 MP |
| Control Method | App |
| Video Capture Resolution | 3MP |
| Effective Video Resolution | 3.0 |
| Number of Channels | 1 |
| Video Encoding | H.264 |
| Video Capture Format | MP4 |
| Night Vision Range | 15 Meters |
| Night Vision Type | Color Night |
| Number of IR LEDs | 6 |
| Installed Flash Memory Size | 32 GB |
| Flash Memory Type | Micro SD |
| Max Supported Flash Memory Size | 128 GB |
| Number of Items | 1 |
| Included Components | Camera |
| Power Source | Solar Powered |
| Voltage | 12 Volt |
| Wattage | 5 Watts |
| Batteries Required | Yes |
| Viewing Angle | 120 Degrees |
| Focus Type | Auto Focus, Digital Focus |
| Zoom Type | Digital Zoom |
| Zoom Ratio | 4x |
| Optical Sensor Technology | PIR Motion Sensor |
| Item Dimensions | 10 x 2 x 2.7 cm |
8. Warranty and Support
ANRAN is committed to providing high-quality products and excellent customer service.
- Warranty: This product comes with a 2-year warranty from the date of purchase.
- Technical Support: Lifetime technical support is provided for all ANRAN products.
- Customer Service: For any questions or issues, please contact ANRAN customer service. All inquiries will receive a response within 24 hours.
For support, please visit the official ANRAN website or contact their customer service directly.
