POPETPOP Automatic Lawn Watering Timer (Model 092D05635AT) User Manual

Introduction

This manual provides instructions for the installation, operation, and maintenance of your POPETPOP Automatic Lawn Watering Timer. This device is designed to automate your garden irrigation, ensuring efficient water usage and healthy plant growth. Please read this manual thoroughly before use and retain it for future reference.

Safety Information

• Ensure all connections are secure to prevent leaks.
• Do not immerse the timer in water. It is designed to be weather-resistant, not submersible.
• Use only the specified battery type (not included).
• Keep out of reach of children.
• Do not attempt to disassemble or repair the unit yourself. Contact customer support for assistance.
• Protect the device from extreme temperatures.

Package Contents

• 1 x POPETPOP Automatic Lawn Watering Timer (Model 092D05635AT)
• User Manual (this document)

Product Overview

The POPETPOP Automatic Lawn Watering Timer is a versatile device for managing your garden's watering schedule. It features a digital display and intuitive controls for setting precise irrigation times.

Key Features:

• Intelligent timing function for automated watering.
• Durable ABS and electronic material construction for outdoor use.
• Suitable for various planting scenarios including gardens, balconies, and outdoor spaces.
• Compatible with drip irrigation and sprinkler systems.

Component Identification:

Refer to the images below for a visual guide to the timer's components and dimensions.

Image 1: Front view of the POPETPOP Automatic Lawn Watering Timer, showing its digital display, control buttons, and connection points. Dimensions are indicated as 10.5 cm (4.13 in) width, 8.5 cm (3.34 in) height, and 17 cm (6.68 in) length.

Image 2: Multiple views of the watering timer, including a top-down view with the clear protective cover removed, and an angled view showing the inlet and outlet connections. This illustrates the overall design and main components.

Setup

1. Install Batteries: Open the battery compartment (usually located on the back or side) and insert the required batteries (not included), ensuring correct polarity. Close the compartment securely.
2. Connect to Faucet: Screw the timer's inlet connector (the side with the larger threaded opening) onto your outdoor faucet or garden hose spigot. Hand-tighten firmly to prevent leaks.


   Image 3: A hand demonstrating the connection of the watering timer to a garden hose. The image highlights the threaded inlet connection point of the timer.

3. Connect to Hose/Irrigation System: Attach your garden hose or irrigation system's main line to the timer's outlet connector (the side with the smaller threaded opening). Ensure a tight seal.


   Image 4: The watering timer connected in-line with a garden hose leading to an oscillating sprinkler, illustrating its role as a "Watering System Controller."
4. Test Connection: Slowly turn on your faucet to check for any leaks. If leaks occur, tighten connections or check for damaged washers.

Operating Instructions

The POPETPOP Automatic Lawn Watering Timer allows you to set specific watering schedules. While specific button functions may vary slightly by model, the general programming steps are as follows:

1. Set Current Time: Locate the "SET TIME" or similar button. Use the arrow buttons (Up/Down or +/-) to adjust the current hour and minute. Confirm with "OK" or "SET".
2. Set Watering Start Time: Find the "START TIME" or "PROGRAM" setting. Adjust the desired start time for your watering cycle using the arrow buttons and confirm.
3. Set Watering Duration: Navigate to the "HOW LONG" or "DURATION" setting. Specify how many minutes or hours you want the water to run for each cycle.
4. Set Watering Frequency: Select the "HOW OFTEN" or "FREQUENCY" option. Choose how often the watering cycle should repeat (e.g., every 12 hours, every 24 hours, every 2 days, specific days of the week).
5. Activate Program: Ensure the timer is set to "AUTO" or "ON" mode for the programmed schedule to run automatically. There may also be a "MANUAL" or "INSTANT" option for immediate watering.

Image 5: The watering timer positioned next to a sprinkler actively watering a lawn, emphasizing its function for "Precise Water Control."

Image 6: The watering timer shown alongside a rotating sprinkler, illustrating its use as a "Garden Timer for Water" in an active irrigation setup.

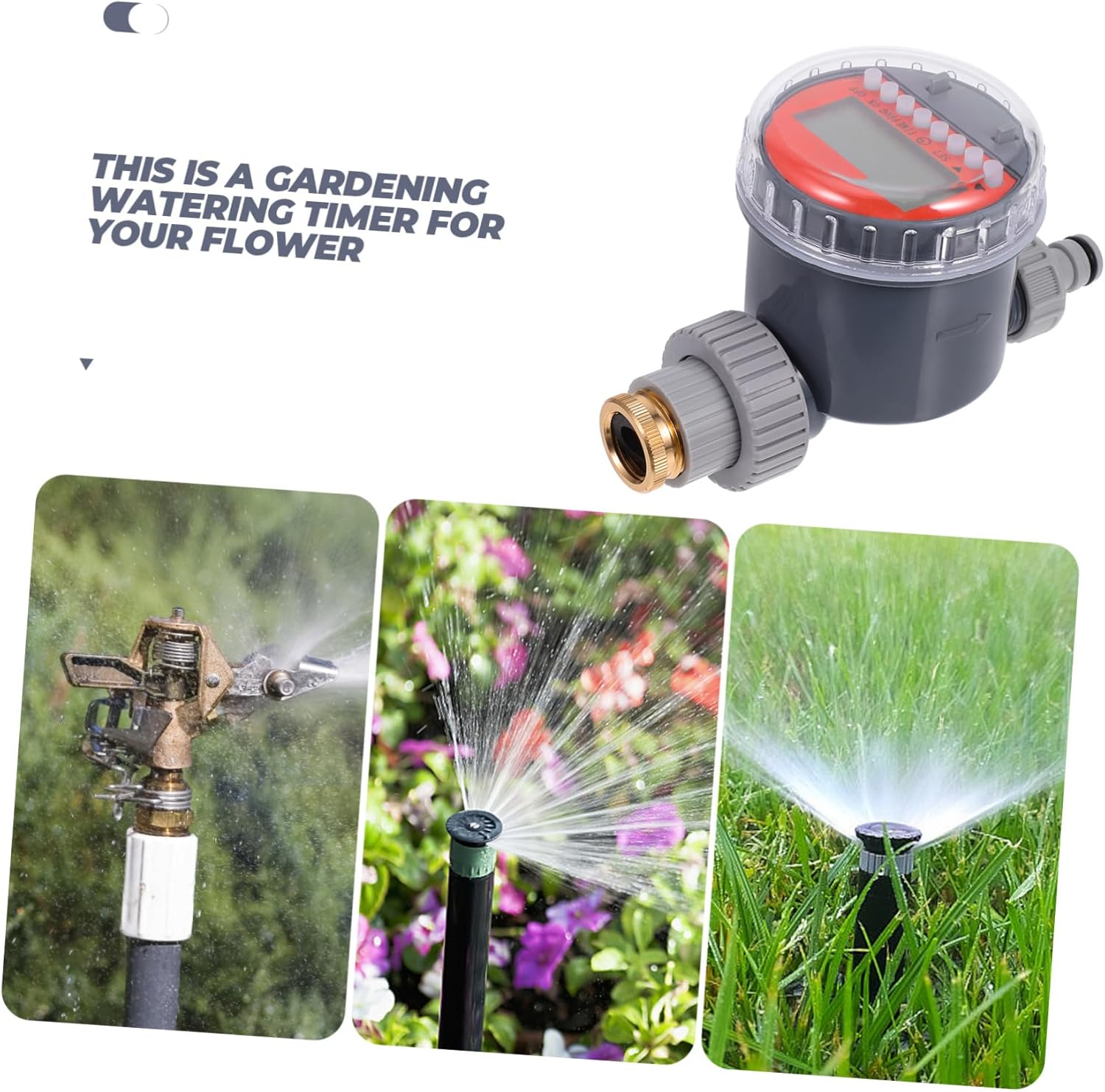

Image 7: The watering timer displayed with examples of different sprinkler types (impact, pop-up, and rotating), highlighting its versatility as a "Gardening Watering Timer for your Flower" or other plants.

Image 8: The watering timer connected to an impact sprinkler, demonstrating its application in a typical garden watering scenario.

Maintenance

• Battery Replacement: Replace batteries annually or when the low battery indicator appears on the display.
• Cleaning: Periodically clean the filter screen located at the inlet connection to prevent debris from entering the timer and irrigation system. Use a soft brush and water.
• Winterization: Before the first frost, disconnect the timer from the faucet and hose. Remove batteries. Store the timer indoors in a dry, protected area to prevent freezing damage.
• Leak Checks: Regularly inspect all connections for leaks and tighten as necessary.

Troubleshooting

Timer Not Watering:

• Check Batteries: Ensure batteries are fresh and correctly installed.
• Check Faucet: Confirm the faucet is fully open.
• Check Program: Verify that the watering schedule is correctly set and the timer is in "AUTO" mode.
• Water Pressure: Ensure adequate water pressure from your source.

Leaks:

• Tighten Connections: Ensure all threaded connections are hand-tight.
• Check Washers: Inspect rubber washers inside the connectors for damage or proper seating. Replace if necessary.

Inaccurate Timing:

• Reset Time: Re-set the current time and watering schedule.
• Battery Power: Low batteries can affect timing accuracy. Replace them.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the retailer's return policy or contact POPETPOP customer service through their official channels. Keep your purchase receipt as proof of purchase.
