Introduction
The XREXS Visual Timer with Color Progress Bar is an intuitive time management tool designed for both children and adults. It features a unique color-coded display that visually represents the passage of time, making it ideal for various activities such as studying, cooking, work tasks, and more. This manual provides comprehensive instructions for setup, operation, maintenance, and troubleshooting to ensure optimal use of your device.
Image: The XREXS Visual Timer, a compact device with a digital display at its center, surrounded by a vibrant, segmented color progress bar indicating time remaining. A red rotary knob is visible on the top right side.
Product Features
- Visual Color Progress Bar: A disappearing colored disk helps visualize time remaining, enhancing time comprehension.
- Easy Operation: Simple rotary knob for setting countdowns and a press function for countup.
- Adjustable Volume: Three levels of volume control (Mute, Quiet 70-80dB, Loud 80-90dB) for diverse environments.
- Rechargeable Battery: Built-in 800mAh Li-ion battery with Type-C charging, eliminating the need for disposable batteries.
- Brightness Levels: Two display brightness settings (High, Low) and an energy-saving mode.
- Versatile Placement: Features a strong magnetic back, a kickstand for standing, and bracket support for various surfaces.
- Wide Timing Range: Supports countup from 0 to 10 hours and countdown from 10 hours to 0.
Image: An adult and a child are seated at a table, with the XREXS Visual Timer prominently displayed. The image highlights the timer's 'Easy to Understand' feature, showing how the disappearing color disk indicates the passage of time.
Setup
1. Initial Charging
Before first use, fully charge the XREXS Visual Timer using the provided Type-C charging cable. Connect the cable to the Type-C port on the side of the timer and to a suitable USB power source. A low battery indicator will illuminate when the battery level is low, signaling the need for recharging.
Image: The XREXS Visual Timer is shown connected to a USB-C charging cable. The display indicates a charging alert icon, confirming the device is receiving power.
2. Placement Options
The timer offers multiple placement methods to suit your needs:
- Magnetic: Utilize the strong magnetic back to attach the timer to metallic surfaces like whiteboards or refrigerators.
- Standing: Deploy the integrated kickstand for stable placement on flat surfaces such as desks or countertops.
- Bracket Support: Use the bracket support for alternative standing angles or mounting options.

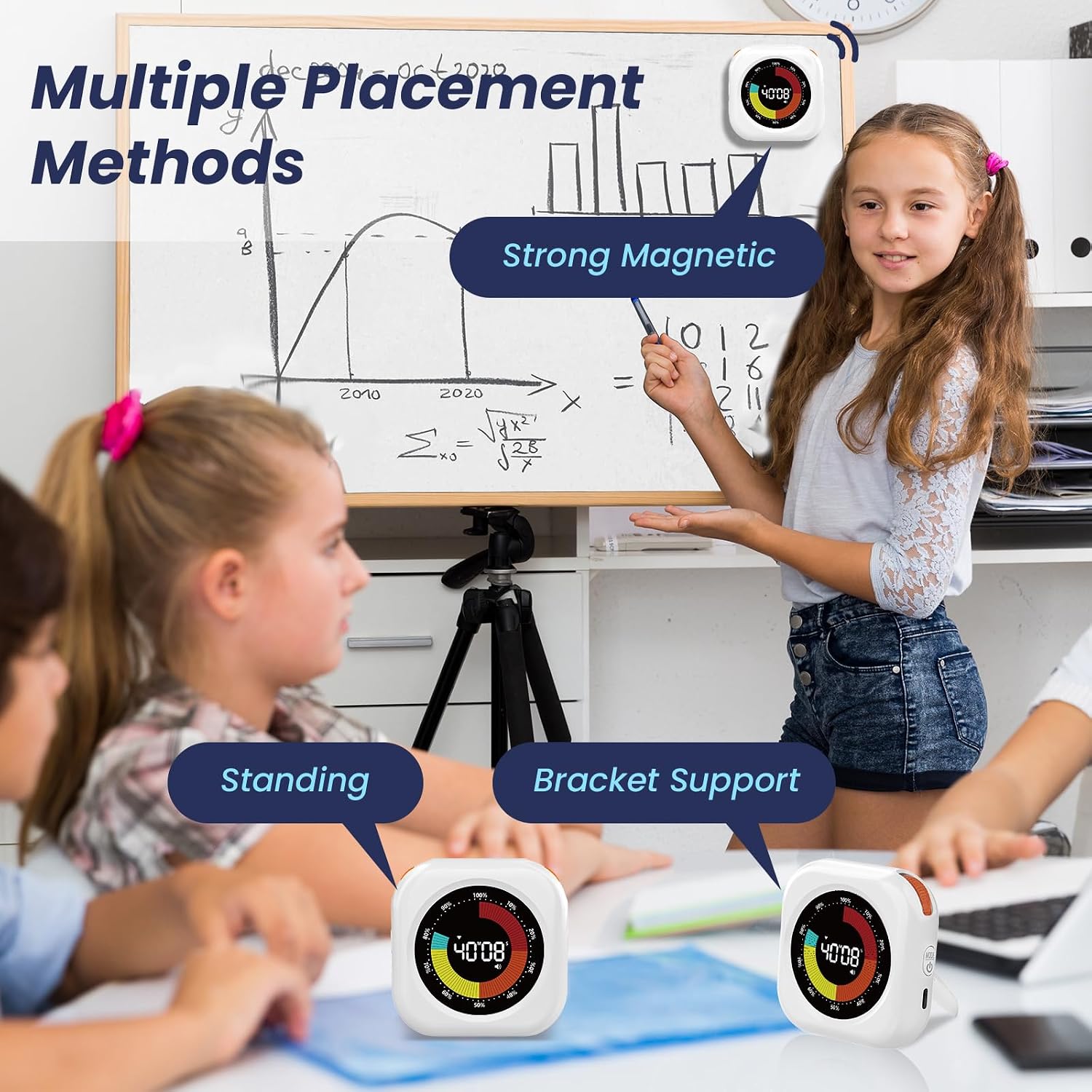

Image: Three XREXS Visual Timers are shown in different placement configurations: one magnetically attached to a whiteboard, one standing upright on a desk, and another using its bracket support, illustrating its versatile placement methods.
Operating Instructions
1. Power On/Off
Press and hold the 'MODE' button (located on the side with the power icon) for a few seconds to power the device on or off.
2. Setting Countdown Timer
To set a countdown, rotate the 'Wheel button' (the red knob on top) clockwise to increase the time and counter-clockwise to decrease it. The visual progress bar will adjust accordingly. Once the desired time is set, the countdown will begin automatically or by pressing the wheel button briefly (refer to specific model behavior if different).
Image: A split image demonstrating how to set the timer. The top half shows rotating the 'Wheel button' to set a countdown. The bottom half shows pressing the 'Wheel button' to initiate a countup, with the timer displaying '59:08'.
3. Setting Countup Timer
To use the countup function, ensure the timer is not in countdown mode. Press the 'Wheel button' briefly to start the countup. The timer will begin counting upwards from zero. Press the 'Wheel button' again to pause or stop the countup.
4. Adjusting Volume
The timer features three volume levels: Mute, Quiet (70-80dB), and Loud (80-90dB). Use the dedicated volume button or a combination of buttons (refer to device markings) to cycle through these settings. This allows for use in various environments, including noise-sensitive areas.
Image: Four panels showing the XREXS Visual Timer in different settings. The top panel shows children in a classroom with a timer set to 'Loud' volume. The bottom left shows a child with a timer set to 'Low' volume. The bottom right shows a child with a timer set to 'Mute'.
5. Adjusting Brightness
The display offers two brightness levels (High and Low) and an energy-saving mode. In energy-saving mode, the screen turns off during the timer operation and flashes when the timer finishes. Cycle through these options using the brightness control button or the 'MODE' button.
Image: Three visual representations of the XREXS Visual Timer's display modes: 'High light' showing a bright screen, 'Low light' showing a dimmer screen, and 'Power Saving Mode' showing a black screen, indicating the screen turns off to conserve energy.
Maintenance
Cleaning
To clean the timer, gently wipe the surface with a soft, dry, or slightly damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the device's finish or internal components.
Battery Care
To prolong the life of the built-in Li-ion battery, avoid fully discharging it frequently. Recharge the timer when the low battery indicator appears. Store the device in a cool, dry place when not in use for extended periods.
Troubleshooting
- Timer not turning on: Ensure the device is fully charged. Connect it to a Type-C charger and allow it to charge for at least 30 minutes before attempting to power it on again.
- Display is dim or off: Check the brightness settings. Cycle through the brightness modes (High, Low, Power Saving) to ensure it's not in power-saving mode or set to a low brightness.
- Alarm sound is not audible: Verify the volume settings. Ensure the timer is not set to 'Mute'. Adjust the volume to 'Quiet' or 'Loud'.
- Timer not responding to button presses: Try resetting the device by holding the 'MODE' button for an extended period (e.g., 10-15 seconds) or by fully discharging and then recharging the battery.
Specifications
| Feature | Detail |
|---|---|
| Brand | XREXS |
| Model Number | YGH-6224-01 |
| Part Number | 6224RGB |
| Manufacturer | Blueekin |
| Dimensions | 2.5 x 8 x 8 cm |
| Weight | 160 g (0.16 Kilograms) |
| Material | Kunststoff (Plastic) |
| Power Source | Rechargeable 800mAh Li-ion Battery, Type-C Charging |
| Timing Range | Countup: 0-10 hours, Countdown: 10-0 hours |
| Volume Adjustment | Mute, Quiet (70-80dB), Loud (80-90dB) |
| Brightness Adjustment | High, Low, Power Saving Mode |
Image: The XREXS Visual Timer is shown with its dimensions (3.17" height, 3.13" width, 1.08" depth) and icons representing its key features: Countdown/Countup, Strong Magnetic, 3 Level Brightness, and 3 Level Volume.
Warranty Information
Specific warranty details for the XREXS Visual Timer (Model YGH-6224-01) are typically provided at the point of purchase or can be found on the official XREXS or Blueekin manufacturer website. Please retain your proof of purchase for any warranty claims. For detailed terms and conditions, refer to the documentation included with your product or contact customer support.
Support
For further assistance, technical support, or inquiries regarding your XREXS Visual Timer, please contact the manufacturer or importer directly:
- Manufacturer: Shenzhen YuanGuangHao Electronics Co., Ltd.
- Manufacturer Email: 3130355310@qq.com
- Importer: Shen Zhen Shi Lan Hao Yu Ke Ji You Xian Gong Si
- Importer Email: Biumumtop@Outlook.com
- EU Representative: EC REP SERVICES SL
- EU Representative Email: ecrepservice@hotmail.com
Image: A product label detailing the manufacturer (Shenzhen YuanGuangHao Electronics Co., Ltd.), importer (Shen Zhen Shi Lan Hao Yu Ke Ji You Xian Gong Si), and EU representative (EC REP SERVICES SL), along with their respective addresses and email contacts.
