Introduction
Thank you for choosing the Best Choice Products 10ft 3-Tier Patio Umbrella. This manual provides essential information for the safe assembly, operation, and maintenance of your new patio umbrella. Please read all instructions carefully before use and retain this manual for future reference.
Image: The Best Choice Products 10ft 3-Tier Patio Umbrella in Sage Green, fully open, providing shade.
Product Features
- 3-Tier Vented Top: Designed with three overlapping canopies to promote airflow, allowing cool air to push out warm air and enhancing stability against wind.
- 24 Solar-Powered LED Lights: Integrated LED lights provide illumination for evening use, powered by a solar panel and capable of running for 6-7 hours continuously.
- High-DURABILITY Fabric: Each tier is constructed from high-quality polyester, offering protection from sun exposure.
- Convenient Design: Features a crank system for easy opening and closing, and a push-button tilt mechanism for adjustable shade throughout the day.
- Easy Setup: LED lights are pre-installed on the eight frame ribs. The umbrella pole consists of a simple 2-piece design for straightforward assembly.
Assembly Instructions
Follow these steps to assemble your patio umbrella:
- Unpack all components and verify against the included assembly guide.
- Connect the two pole pieces by screwing them together firmly.
- Insert the assembled pole into a suitable umbrella base (sold separately). Ensure the base is stable and heavy enough to support the umbrella.
- Locate the solar panel on top of the umbrella canopy. Ensure it is securely connected. If the lights are not working after initial charging, check the connection inside the pole near the solar panel.
Image: Diagram showing the overall dimensions of the umbrella: 10 feet diameter and 8 feet height, with the lower pole section measuring 3 feet 10 inches.
Operating Instructions
Opening and Closing the Umbrella
To open the umbrella, turn the crank handle clockwise until the canopy is fully extended. To close, turn the crank handle counter-clockwise until the canopy is fully retracted.

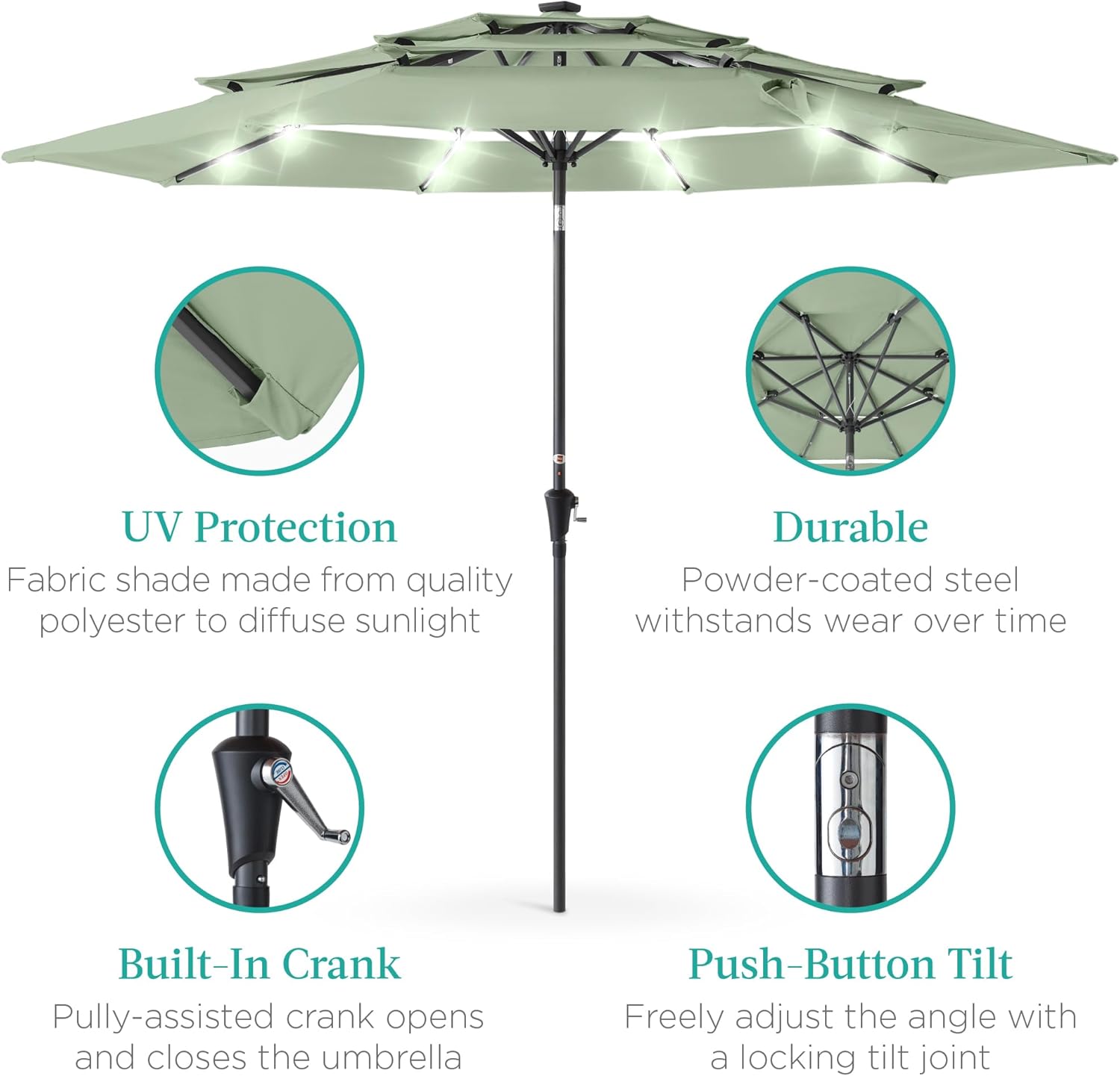

Image: Detailed view highlighting the built-in crank for opening/closing and the push-button tilt for angle adjustment.
Adjusting the Tilt
Press the push-button on the pole to release the tilt mechanism. Adjust the canopy to your desired angle to block the sun, then release the button to lock it in place.
Image: The patio umbrella shown tilted at approximately a 45-degree angle, demonstrating the "Built-in Pivot & Lock" feature to block sunlight.
Using the LED Lights
The umbrella features solar-powered LED lights. Ensure the solar panel on top of the canopy receives direct sunlight during the day to charge. The lights will automatically turn on at dusk or can be manually activated via a switch located near the crank handle.
Image: A patio umbrella with its solar-powered LED lights glowing, providing ambient light for an outdoor dining area at night. A separate image of the solar panel is also shown.
Maintenance
- Cleaning: Wipe the umbrella fabric and pole with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: When not in use for extended periods or during inclement weather (strong winds, heavy rain, snow), close the umbrella and secure it. Consider using an umbrella cover for added protection.
- Solar Panel: Keep the solar panel clean and free of debris to ensure optimal charging efficiency.
Safety Information
- Always close the umbrella during strong winds, heavy rain, or other severe weather conditions to prevent damage or injury.
- Ensure the umbrella base is adequately weighted and stable to prevent tipping.
- Keep children and pets away from the umbrella during opening and closing operations.
- Do not hang objects from the umbrella ribs or pole.
- This umbrella is not intended for use as a permanent shelter.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights not working. | Solar panel not charged or disconnected. | Ensure solar panel receives direct sunlight for several hours. Check the connection of the solar panel to the internal wiring, usually found by unscrewing the solar panel from the top of the umbrella. |
| Umbrella is unstable or tips over. | Inadequate base weight or strong winds. | Use a heavier umbrella base, or fill a water/sand-fillable base completely. Close the umbrella in windy conditions. |
| Crank mechanism is stiff. | Dirt or lack of lubrication. | Clean the mechanism and apply a silicone-based lubricant if necessary. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | 3-Tier Solar Patio Umbrella w/ LED Lights, Tilt Adjustment, Crank - 10ft |
| Model Number | SKY9759 |
| Overall Dimensions | 10 ft (Diameter) x 8 ft (Height) |
| Canopy Material | Polyester |
| Frame Material | Steel, Alloy Steel |
| Opening Mechanism | Crank Lift |
| Special Features | 24 Solar-Powered LED Lights, Tilt Adjustment, 3-Tier Vented Top |
| Item Weight | 17 Pounds |
| Color | Sage Green |
| Care Instructions | Wipe With Damp Cloth |
Image: An aerial view of the 10ft 3-Tier Patio Umbrella, showcasing its round shape and sage green color, with the 10-foot diameter indicated.
Product Video
Watch the official product video for a visual guide on the features and benefits of the Best Choice Products 10ft 3-Tier Patio Umbrella.
Video: An official Best Choice Products video showcasing the 10ft 3-Tier Solar Patio Umbrella with 24 LED Lights, demonstrating its various features and uses in an outdoor setting.
Warranty and Support
This product is manufactured by Best Choice Products. For support or warranty inquiries, please refer to the manufacturer's official website or contact their customer service. The standard return policy allows for a refund or replacement within 30 days of purchase.
Manufacturer: Best Choice Products
For further assistance, visit the Best Choice Products Store on Amazon.
