Quictent 20x20 Pole Party Tent Instruction Manual

1. Introduction

Thank you for choosing the Quictent 20x20 Pole Party Tent. This heavy-duty, fire-retardant canopy is designed for outdoor events such as parties, weddings, and gatherings, offering a spacious area suitable for approximately 30-50 people. This manual provides essential information for safe setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your tent.

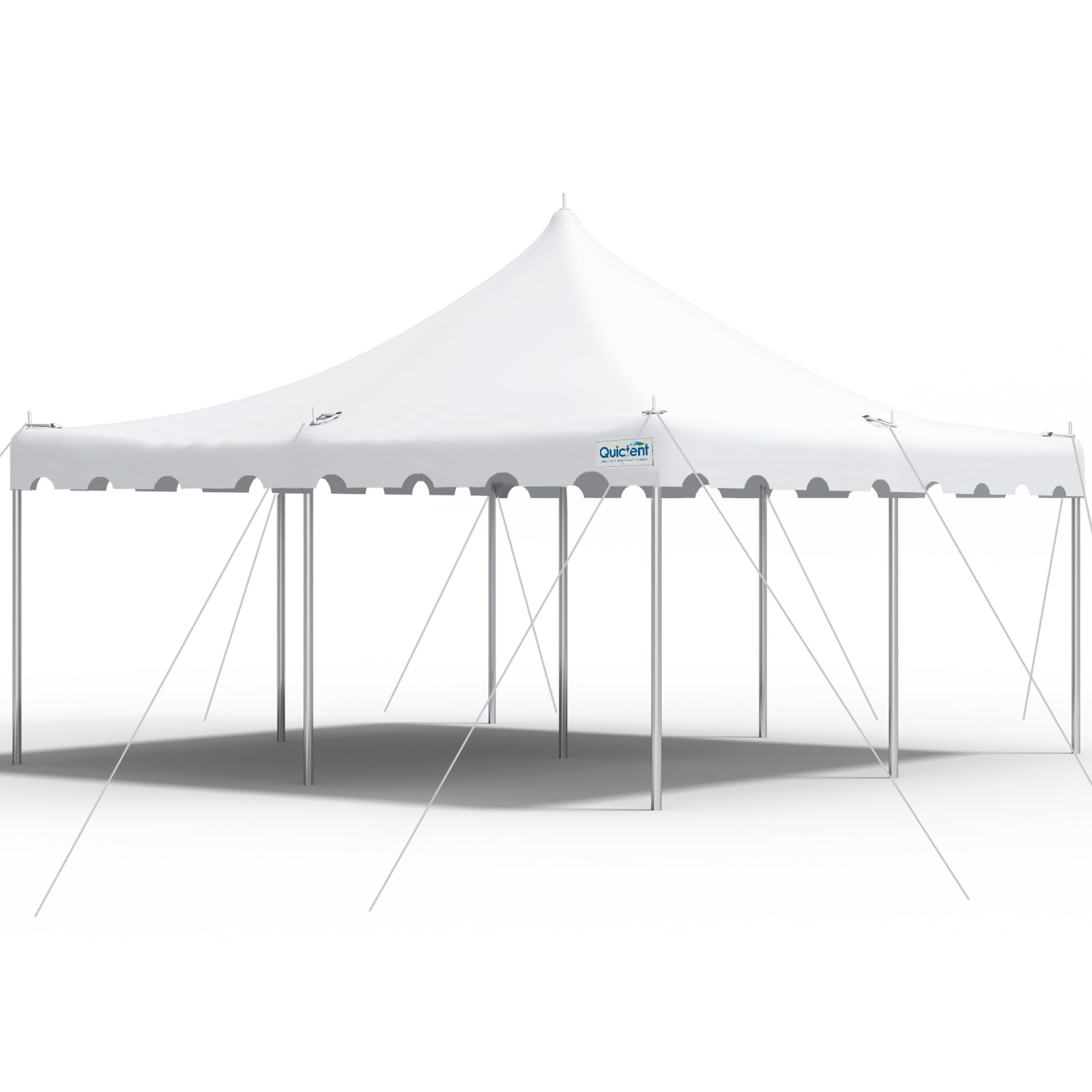

Image: The Quictent 20x20 Pole Party Tent, fully assembled and ready for an event.

2. Safety Information

• Fire Retardancy: The heavy-duty 500g PVC top cover meets Fire Retardant Standards CPAI-84 & NFPA 701. It is 100% waterproof and resistant to UV light. Always consult your local fire marshal for tent requirements BEFORE purchase and setup.
• Setup Surface: Pole tents are best suited for setup on GRASS or SOFT SURFACES. If utilizing on blacktop or asphalt, heavy-duty stakes and a stake driver for drilling into the ground are required. Alternatively, cement pods can be used for stability on uneven surfaces.
• Capacity: The tent can hold approximately 30-40 people for a banquet and 40-50 people for a party. Do not exceed the recommended capacity.
• Assembly: Setup and takedown require multiple people (4-6 people recommended for setup within an hour).
• Weather Conditions: While durable, this canopy is not designed for permanent installation or extreme weather conditions. Take down and store the tent between uses, especially during strong winds, heavy rain, or snow.

3. Package Contents

Your Quictent 20x20 Pole Party Tent comes packaged in two boxes and includes the following components:

• Heavy-duty 500g PVC top cover (100% waterproof, UV resistant, fire retardant)
• Galvanized steel poles:
  • Center pole: 2'' diameter, 1.5mm thick
  • Side wall poles: 1.5'' diameter, 1.2mm thick
• Connectors
• Ground pegs/stakes
• Ropes and elastic ropes
• 2 Oxford fabric storage bags

Image: Detail of the heavy-duty galvanized steel poles, highlighting their robust construction.

4. Setup Instructions

Setting up your Quictent pole tent is straightforward, but requires careful attention to detail and teamwork. It is recommended that 4-6 people assist with the setup process.

4.1 Prepare the Area and Lay Out the Tarp

• Choose a flat, soft surface like grass for optimal stability.
• Lay out a ground tarp to protect the tent top from dirt or tears.
• Unfold the tent top onto the ground tarp, ensuring it is squared and aligned for pole placement.

4.2 Assemble the Frame

• Connect the galvanized steel poles according to the diagram in your physical manual. Ensure all connections are secure.
• The center pole is 2'' diameter, 1.5mm thick, and side poles are 1.5'' diameter, 1.2mm thick.

4.3 Raise the Tent and Secure with Stakes

• With the tent top laid out, begin inserting the leg poles into the designated corner spaces on the tent top.
• Slowly stand up each corner, loosely tethering the ropes to the stakes. Ensure enough slack is left for final adjustments.
• Once the perimeter legs are up, build and push the center pole into place, ensuring it stands at a 90-degree angle.
• Walk the perimeter, tightening all ropes and ensuring all leg poles are at 90-degree angles for maximum stability.

Image: Detailed view of the tent's anchoring system, including ropes and stakes.

4.4 Attaching Side Walls (Optional)

• If your tent includes side walls, attach them using the provided bungee cords and Velcro straps.
• The side walls can be rolled up and secured with buckles for ventilation or zipped down for full enclosure.

5. Operating Instructions

• Event Use: This tent is ideal for various outdoor events, providing shade and protection from UV rays and light rain.
• Ventilation: Utilize the option to open one or both sides of the tent for ventilation, especially during warmer weather.
• Capacity: Comfortably accommodates 30-50 people depending on the setup (banquet vs. party).

Image: The tent in use for a lively outdoor party.

6. Maintenance

• Cleaning: The 500g PVC top cover is easy to clean. Use a soft cloth and mild soap with water to wipe down any dirt or stains. Avoid harsh chemicals that could damage the material.
• Storage: After each use, ensure the tent top, side walls, and all metal components are clean and completely dry before packing them into the provided Oxford fabric storage bags. Store in a cool, dry place to prevent mold, mildew, and rust.
• Inspection: Regularly inspect all poles, connectors, ropes, and stakes for any signs of wear, damage, or corrosion. Replace any damaged parts promptly to maintain the tent's structural integrity.

Image: Oxford fabric storage bags and waterproof material detail for easy maintenance.

7. Troubleshooting

• Tent not taut: Ensure the tent is squared during initial setup. Check that all ropes are tightened evenly and leg poles are standing at a 90-degree angle. Adjust stakes as needed.
• Water pooling on roof: Verify that the center pole is fully extended and properly positioned to create adequate tension and slope for water runoff.
• Instability in wind: Double-check that all stakes are fully driven into the ground and ropes are securely tied and taut. Consider additional anchoring methods in windy conditions.

8. Specifications

Image: Product dimensions and capacity layout for the 20x20ft tent.

9. Warranty & Support

• Lifetime Accessories: Coverage for connectors, pegs, ropes, elastic ropes, etc.
• 1-Year Coverage: For covers and poles.
• Lifetime Accessories for Natural Loss: For a few natural-loss poles.
• Lifetime 50% Parts Supply: Exceeds the normal 1-year coverage.

For customer support or to inquire about replacement parts, please contact Quictent directly. Refer to the contact information provided with your purchase or visit the official Quictent website.
