Ashfly 500X Handheld Digital Microscope User Manual

1. Introduction

This manual provides comprehensive instructions for the safe and effective use of your Ashfly 500X Handheld Digital Microscope. Please read this manual thoroughly before operating the device and retain it for future reference.

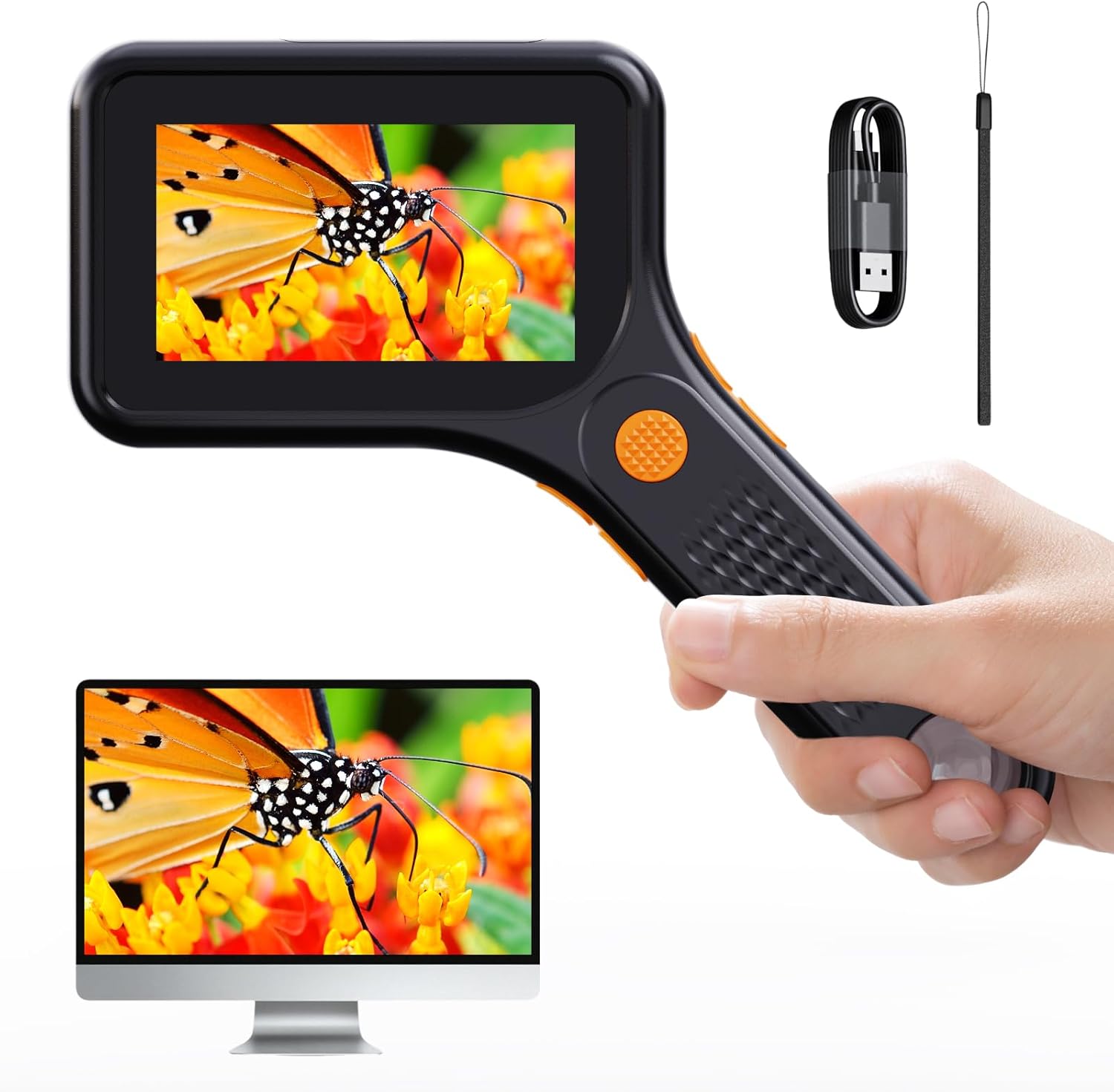

Figure 1: Ashfly 500X Handheld Digital Microscope. This image displays the microscope being held, with its integrated screen showing a magnified butterfly. A computer monitor below also shows the magnified image, illustrating PC compatibility.

2. Package Contents

Verify that all items listed below are present in your package:

• 1 x Ashfly Handheld Digital Microscope
• 1 x Type C Charging Cable
• 1 x User Manual
• 1 x Portable Strap

Figure 2: Package Contents. This image shows the Ashfly Digital Microscope, its retail box, a Type C charging cable, a portable strap, and the user manual, indicating all included accessories.

3. Specifications

Figure 3: Product Dimensions. This image illustrates the length and width of the microscope, providing a visual reference for its compact size.

Figure 4: Battery Performance. This diagram highlights the 2-hour charging time and approximately 2.5 hours of working time provided by the 900mAh battery.

4. Setup

4.1 Charging the Device

Before first use, fully charge the microscope. Connect the supplied Type C charging cable to the microscope's charging port and a compatible USB power source (e.g., computer USB port, USB wall adapter). The charging indicator will show the charging status.

4.2 Inserting a TF Card (Optional)

The microscope has internal storage for approximately 100 photos. For extended storage of photos and videos, insert a TF (microSD) card (up to 64GB, not included) into the designated slot. Ensure the card is inserted correctly to avoid damage.

5. Operating Instructions

5.1 Power On/Off

• To power on: Press and hold the power button until the screen illuminates.
• To power off: Press and hold the power button until the screen turns off.

5.2 Basic Observation

Place the microscope flat on the surface of the object you wish to observe. Ensure the object is stable. The microscope features a fixed magnification up to 500X. Avoid touching the lens with your hands during observation.

Figure 5: Optimal Imaging Distance. This image demonstrates the recommended 0.2-inch manual-focus imaging distance from the object for clear observation.

5.3 Adjusting LED Lights

The microscope is equipped with 8 adjustable LED lights to provide optimal illumination. Use the designated buttons (refer to device controls) to cycle through brightness levels (high, medium, low, off) to suit your observation needs and reduce glare.

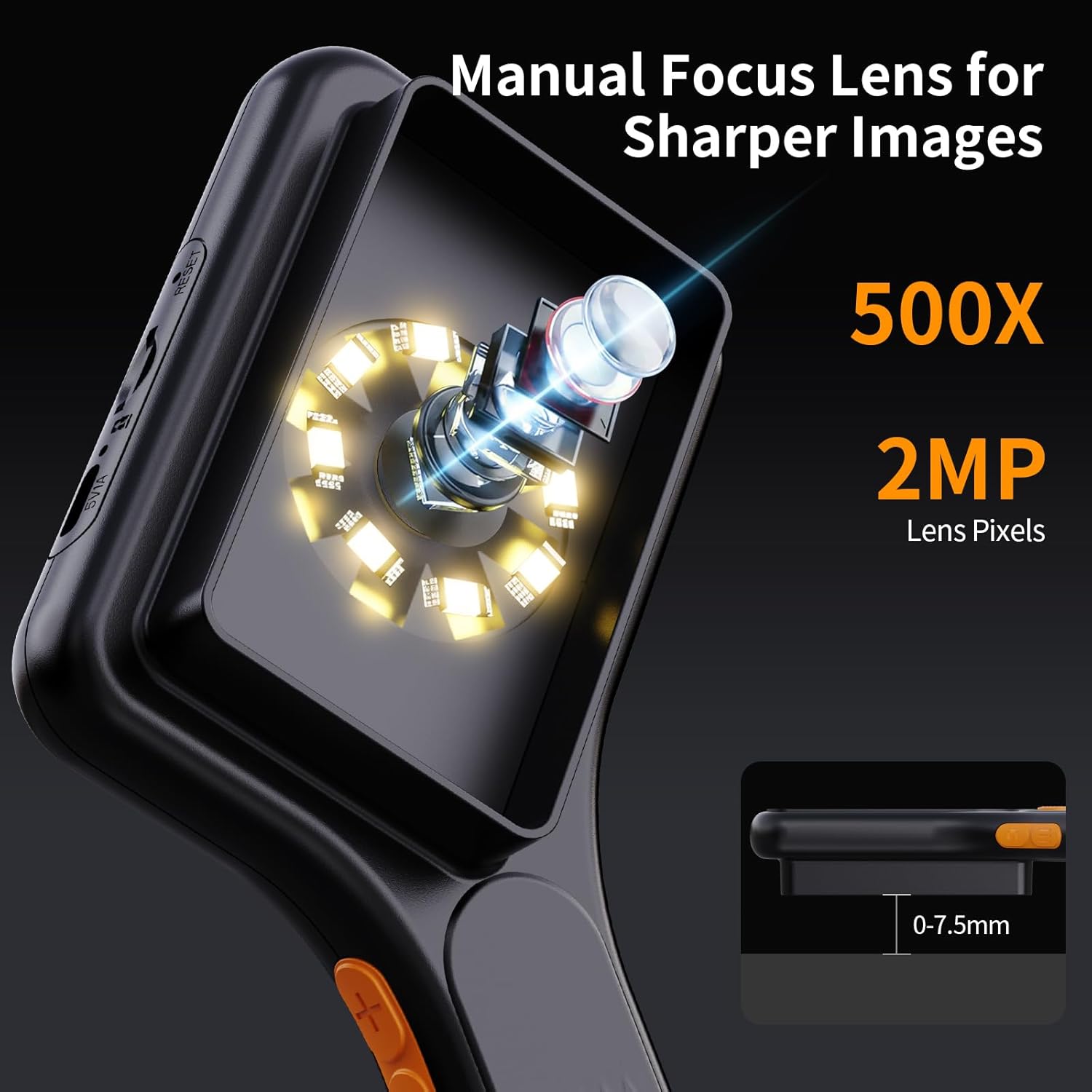

Figure 6: LED Illumination System. This image provides a detailed view of the microscope's lens and the surrounding 8 adjustable LED lights, crucial for illuminating specimens.

5.4 Capturing Photos and Videos

Use the dedicated capture button on the device to take photos or record videos. Images and videos will be saved to the internal storage or the inserted TF card.

5.5 PC Connection

To view magnified images on a larger screen or transfer files, connect the microscope to your computer using the Type C USB cable. The device is compatible with Windows Vista/XP/7/8/10/11 and MacOS X 11.0 or higher. It will be recognized as a webcam or removable storage device, allowing you to access live feed or saved media.

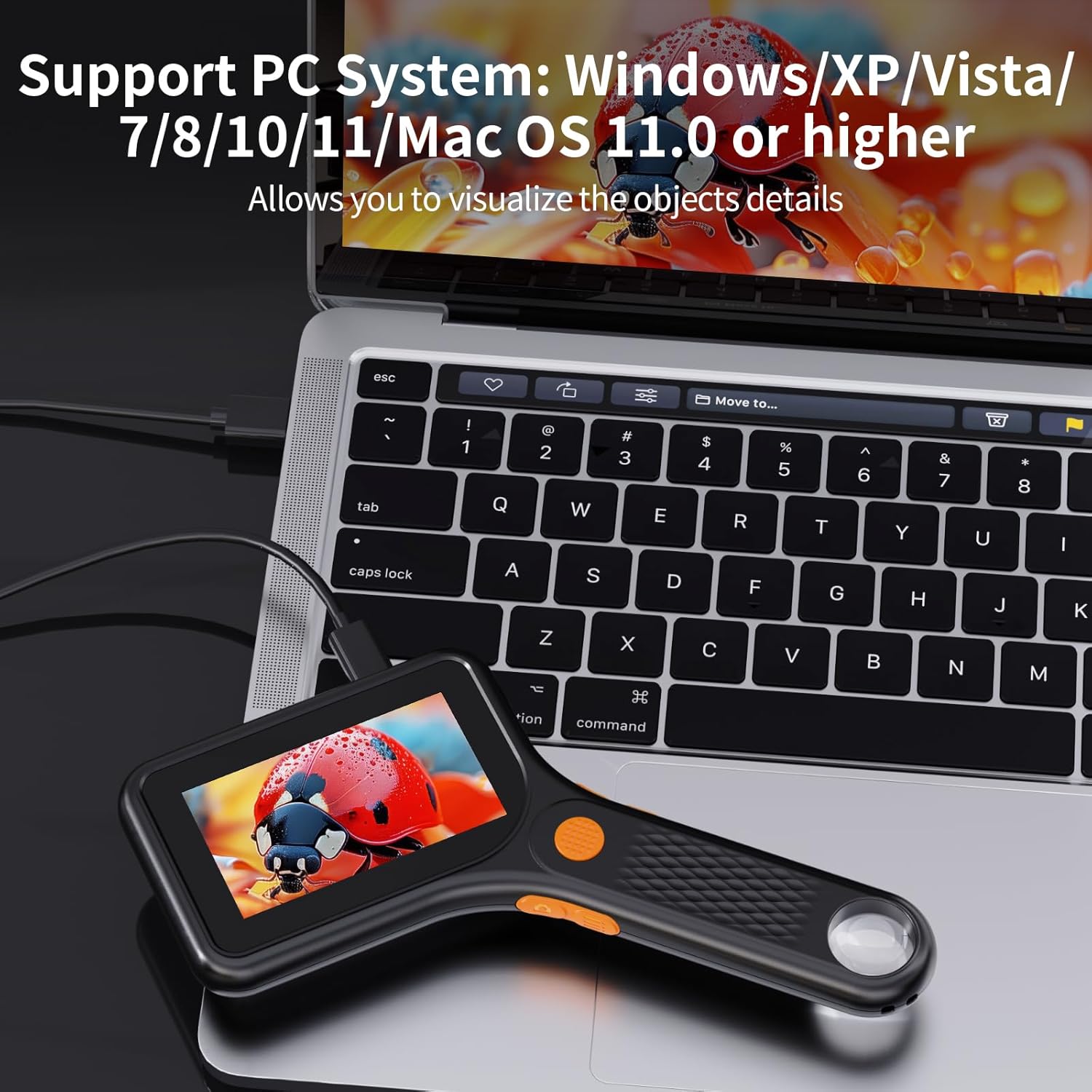

Figure 7: PC Connectivity. This image shows the microscope connected to a laptop via USB, demonstrating its capability to display magnified views on a larger computer screen.

Figure 8: Multi-Purpose Use. This image illustrates the microscope's versatility, showing its PC view capability, and examples of captured video (water droplets on a leaf) and photo (ladybug on a flower).

6. Application Scenarios

The Ashfly Handheld Digital Microscope is suitable for a wide range of applications, including but not limited to:

• Circuit Board Inspection: Examine circuit board damage, soldering, and repairs.
• Coin and Stamp Collection: Observe fine details on currency and philatelic items.
• Jewelry and Gemstone Appraisal: Inspect intricate designs and characteristics of precious items.
• Biological Observation: Study plant structures, insects, and other small organisms.
• Textile and Material Analysis: Examine fabric weaves and material integrity.
• Educational Purposes: Ideal for classroom use and fostering scientific curiosity.

Figure 9: Diverse Applications. This collage showcases the microscope's utility across various fields, from inspecting electronics and currency to observing natural specimens like plants and insects.

Figure 10: Circuit Board Inspection. This image demonstrates the microscope's use for detailed visual inspection of electronic circuit boards, useful for repair and analysis.

7. Maintenance

7.1 Cleaning the Lens and Screen

Gently wipe the lens and screen with a soft, lint-free cloth. For stubborn smudges, use a specialized lens cleaning solution. Avoid abrasive materials or harsh chemicals that could scratch the surfaces.

7.2 Storage

Store the microscope in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, ensure the battery is partially charged (around 50%) to prolong its lifespan.

8. Troubleshooting

9. Warranty and Support

Ashfly provides technical support for this product. For any issues not covered in this manual or for further assistance, please contact Ashfly customer service. Refer to your purchase documentation for specific warranty terms and contact information.

Warranty Description: Provide technical support.
