WKNYSYK Starter Gear Instruction Manual

1. Introduction

Thank you for choosing the WKNYSYK Starter Gear. This manual provides essential information for the proper installation, maintenance, and troubleshooting of your new starter gear. Please read this manual thoroughly before installation and keep it for future reference. Proper installation and maintenance are crucial for the optimal performance and longevity of the product.

2. Product Overview

The WKNYSYK Starter Gear is a critical component designed to engage with the engine's flywheel, initiating the engine's rotation during startup. This maintenance kit offers stable performance and high reliability, ensuring a smooth starting experience for your vehicle.

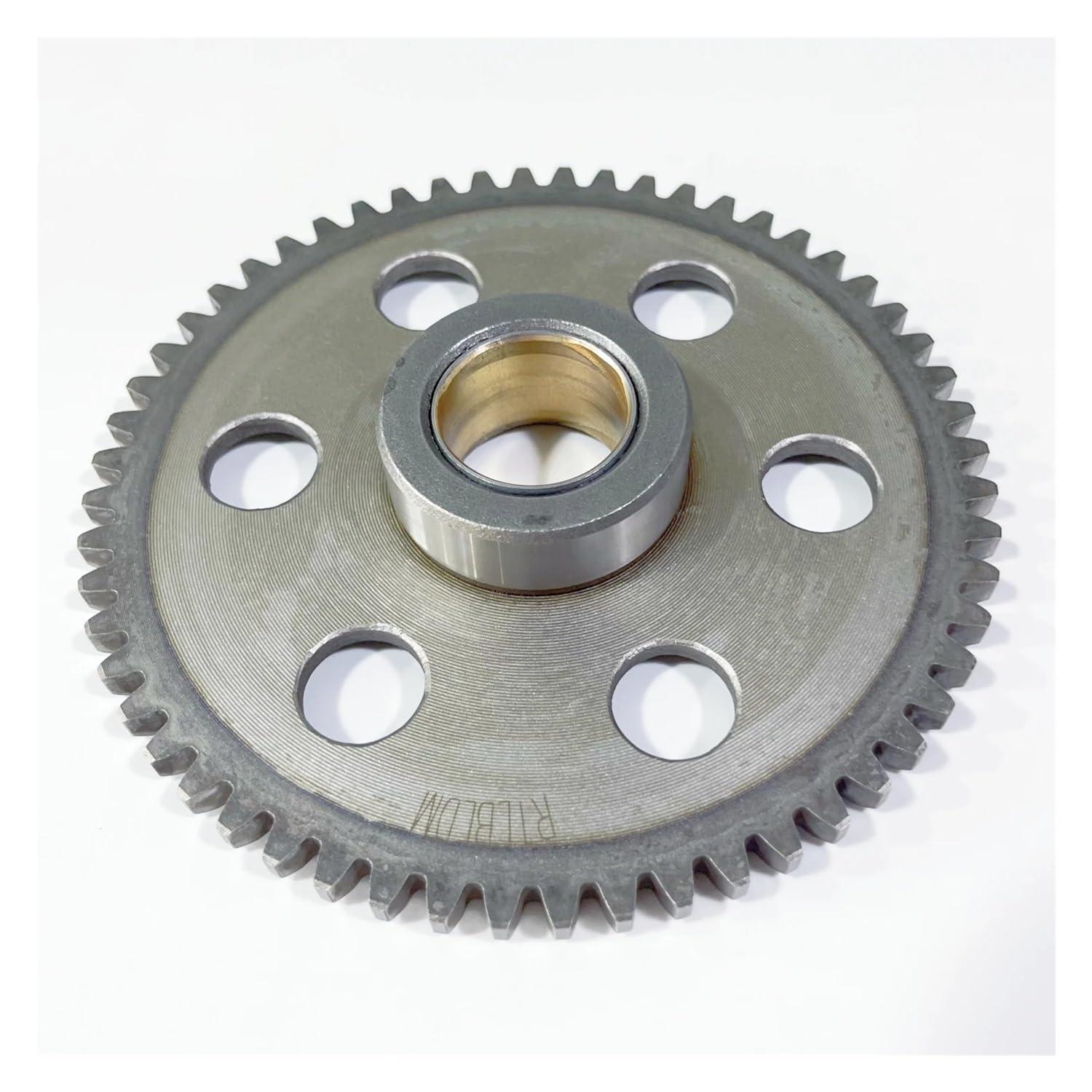

Image 1: WKNYSYK Starter Gear. This image displays the starter gear component, typically made of metal, designed for engine engagement.

Key Features:

• Stable Performance: Engineered for consistent and reliable operation.
• High Reliability: Built to strict control standards for dependable use.
• Direct Replacement: Designed for easy installation as a direct replacement for existing components.

3. Compatibility

This WKNYSYK Starter Gear is designed for specific ATV and engine models. Please verify compatibility with your vehicle before installation.

Known Compatible Models:

• Jianshe 250 ATV Mountain JS250 250-3-5
• Loncin 250-F LX250
• Baja Bashan 250 Rato
• Kayo 171FMM Engine

Important: Always compare the pictures, models, and part numbers carefully with your existing component to ensure correct fitment before ordering or attempting installation. Slight variations in vehicle models or production years may affect compatibility.

4. Setup and Installation

Installation of a starter gear requires mechanical aptitude. If you are not confident in your ability to perform this installation, it is recommended to seek assistance from a qualified mechanic.

Safety Precautions:

• Always disconnect the vehicle's battery (negative terminal first) before beginning any electrical work.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Ensure the vehicle is stable and secured on a level surface before working underneath it.
• Allow the engine to cool completely before working on it.

General Installation Steps (Consult your vehicle's service manual for specific instructions):

1. Locate the existing starter motor assembly on your vehicle.
2. Carefully disconnect any electrical wiring connected to the starter motor.
3. Remove the mounting bolts securing the starter motor to the engine or transmission housing.
4. Extract the old starter motor assembly.
5. If replacing only the starter gear within the starter motor, disassemble the starter motor according to its specific service manual.
6. Install the new WKNYSYK Starter Gear, ensuring all components are correctly seated and aligned.
7. Reassemble the starter motor (if applicable) and mount it back onto the vehicle, securing all bolts to the manufacturer's specified torque.
8. Reconnect all electrical wiring, ensuring secure and clean connections.
9. Reconnect the vehicle's battery (positive terminal first, then negative).
10. Test the starter operation to ensure proper function.

This product is designed for a simple and relatively easy installation process, allowing it to directly replace existing tensioner assemblies without the need for complex tools or professional skills, provided the user has basic mechanical knowledge.

5. Maintenance

Regular inspection and basic maintenance can extend the life of your starter gear and ensure reliable engine starting.

Maintenance Tips:

• Inspect Electrical Connections: Periodically check all electrical connections to the starter motor for corrosion or looseness. Clean and tighten as necessary.
• Check for Wear: During other engine maintenance, visually inspect the starter gear for signs of excessive wear, chipped teeth, or damage.
• Keep Clean: Ensure the area around the starter motor is free from excessive dirt, oil, or debris.
• Battery Health: A healthy battery is crucial for starter operation. Ensure your vehicle's battery is properly charged and maintained.

6. Troubleshooting

If you experience issues with your starter, consider the following common troubleshooting steps:

Common Issues and Solutions:

• Engine Does Not Crank or Cranks Slowly:
  • Check battery charge and terminals. Ensure they are clean and tight.
  • Inspect starter motor wiring for loose or corroded connections.
  • Listen for a clicking sound from the starter solenoid; if present, the solenoid or starter motor may be faulty.
• Starter Engages but Engine Does Not Start:
  • This often indicates an issue with the engine itself (fuel, spark, compression) rather than the starter gear.
  • Ensure the starter gear is fully engaging with the flywheel.
• Grinding Noise During Starting:
  • Could indicate worn or damaged teeth on the starter gear or flywheel.
  • Ensure the starter motor is properly aligned and mounted.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified mechanic or the vehicle's service manual for further diagnosis.

7. Specifications

8. Warranty and Support

For specific warranty information regarding your WKNYSYK Starter Gear, please refer to the purchase documentation or contact the seller directly. Warranty terms typically cover manufacturing defects.

If you require technical assistance or have questions not covered in this manual, please contact the WKNYSYK customer support or the retailer from whom you purchased the product. When contacting support, please have your product model number (WKNYSYK123) and purchase details readily available.
