1. Important Safety Information
Please read this manual carefully before installation and use. Keep these instructions for future reference.
- Electrical Safety: Always turn off the main power supply at the circuit breaker before installing, cleaning, or servicing the fixture. Consult a qualified electrician if you are unsure about wiring.
- Installation: Ensure the mounting surface can support the weight of the fixture. All wiring connections must be in accordance with local electrical codes.
- Handling: Handle the fixture with care to avoid damage to the acrylic lampshade or electrical components.
- Environment: This fixture is designed for indoor use only. Do not expose to moisture or extreme temperatures.
2. Package Contents
Verify that all components are present and undamaged upon opening the package.
- Pendant Light Fixture (1 unit)
- Installation Accessories (screws, wire connectors, mounting bracket) (1 set)
3. Product Overview
The UWYTGF 19-inch Dark Tricolor Light LED Chandelier is a modern minimalist suspension lighting fixture designed for various indoor spaces such as living rooms, bedrooms, dining rooms, and offices. It features a durable hardware lamp body and an acrylic lampshade for even light distribution.
Figure 3.1: The UWYTGF 19-inch Dark Tricolor Light LED Chandelier, showcasing its sleek, circular design and dark finish. The integrated LED light source provides uniform illumination.
The fixture's design incorporates modern geometric elements, offering a blend of design ingenuity and flexibility. The dark color scheme provides a unique sense of fashion, making it simple yet versatile and aesthetically pleasing.
Figure 3.2: The UWYTGF LED Chandelier integrated into a modern living room setting, demonstrating its aesthetic appeal and ability to enhance the room's ambiance.
The hardware lamp body is processed through various craftsmanship techniques, including stamping, pickling, and polishing, ensuring durability. The acrylic lampshade is designed for even light transmission without glare, contributing to an elegant appearance and extended lifespan.

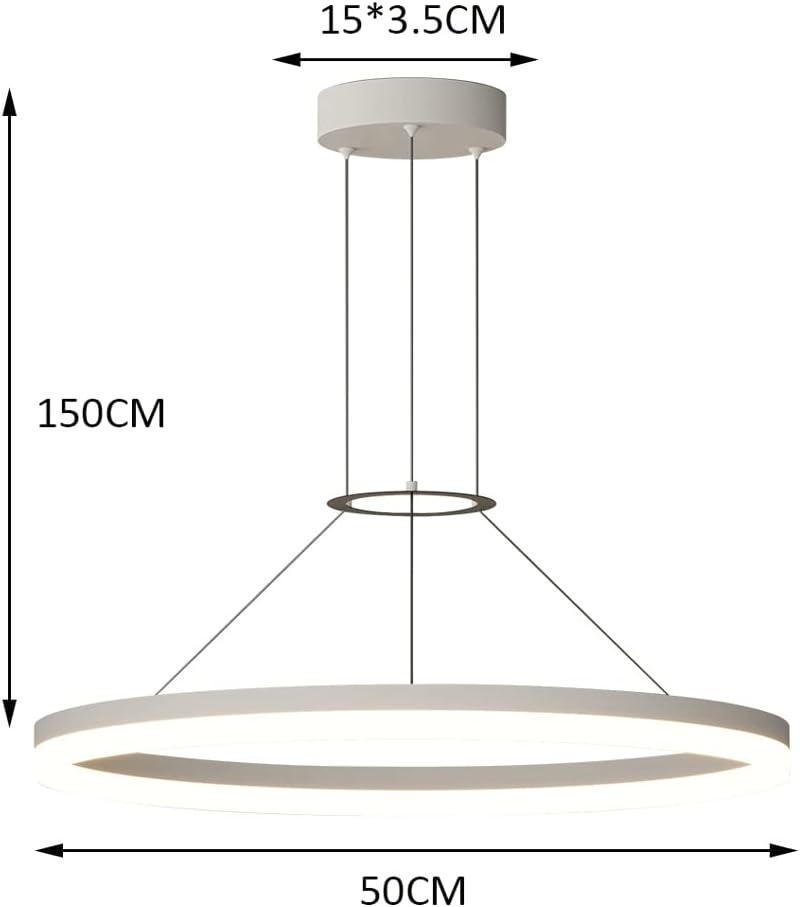

Figure 3.3: Dimensional diagram of the UWYTGF LED Chandelier. The lamp body diameter is 50cm (approximately 19.7 inches), the ceiling plate measures 15x3.5cm, and the adjustable height is up to 1.5 meters.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | UWYTGF |
| Model | B0F2ZYXRVB |
| Color | Dark |
| Light Type | Tricolor Light (3000K/4500K/6000K) |
| Lamp Body Diameter | 50 cm (approx. 19.7 inches) |
| Ceiling Plate Size | 15 x 3.5 cm |
| Adjustable Height | Up to 1.5 meters |
| Voltage | 110-220V |
| Light Source Power | 32W |
| Average Service Life | 20,000 hours |
| Irradiation Area | 5㎡ - 20㎡ |
5. Setup Instructions
Professional installation is recommended. Ensure all safety precautions are followed.
- Turn Off Power: Locate the circuit breaker controlling the light fixture's circuit and turn off the power. Verify power is off using a voltage tester.
- Prepare Mounting Surface: Ensure the ceiling junction box is securely mounted and capable of supporting the fixture's weight.
- Install Mounting Bracket: Attach the provided mounting bracket to the junction box using the supplied screws.
- Adjust Height: Determine the desired hanging height for the chandelier. Adjust the suspension cables accordingly.
- Wire Connections: Connect the fixture's wires to the corresponding household wires (live, neutral, ground) using appropriate wire connectors. Ensure all connections are secure.
- Secure Fixture: Carefully lift the chandelier and attach it to the mounting bracket, ensuring it is securely fastened.
- Restore Power: Once installation is complete and all connections are checked, restore power at the circuit breaker.
6. Operating Instructions
This UWYTGF chandelier features a Tricolor Light function, allowing you to switch between three distinct color temperatures.
- Tricolor Light Mode: The fixture offers three color temperature settings: 3000K (Warm White), 4500K (Neutral White), and 6000K (Cool White).
- Switching Modes: To cycle through the color temperatures, simply toggle your standard wall light switch OFF and then ON again within a short period (typically 1-2 seconds). Each toggle will advance to the next color temperature.
- Memory Function: The fixture may retain the last selected color temperature when turned off for an extended period, but this can vary.
7. Maintenance
Regular maintenance will help preserve the appearance and functionality of your chandelier.
- Cleaning: Ensure the power is off before cleaning. Use a soft, dry, or slightly damp cloth to wipe the fixture. Avoid abrasive cleaners, solvents, or polishes, as they may damage the finish or acrylic.
- Inspection: Periodically check for any loose connections or signs of wear. If any issues are found, turn off the power and consult a qualified technician.
- LED Light Source: The integrated LED light source is designed for long life and is not user-replaceable.
8. Troubleshooting
If you encounter any issues with your chandelier, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Loose wiring connection Faulty wall switch | Check circuit breaker and wall switch. Ensure all wire connections are secure. Test the wall switch if possible. |
| Light flickers | Loose wiring Incompatible dimmer switch (if applicable) | Turn off power and check all wiring connections. Ensure a compatible LED dimmer is used if a dimmer is installed. |
| Incorrect color temperature | Not cycled through modes correctly | Toggle the wall switch OFF/ON to cycle through the Tricolor Light modes until the desired color is reached. |
If the problem persists after attempting these solutions, please contact customer support.
9. Warranty and Support
This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the product packaging or contact the seller directly. If you require technical assistance or have questions regarding installation or operation, please reach out to UWYTGF customer support.
