1. Product Overview
The North Edge AK is a multi-function Bluetooth smart watch designed for various activities. It features a durable build, LED backlight, and connectivity to your smartphone for enhanced functionality.

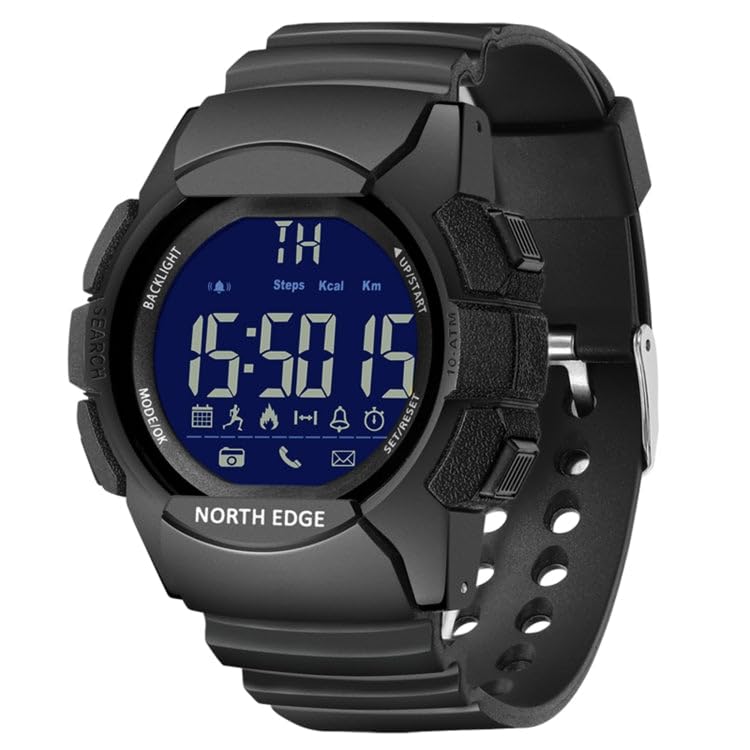

Image 1.1: Front view of the North Edge AK Smart Watch displaying time and various icons on a blue background.

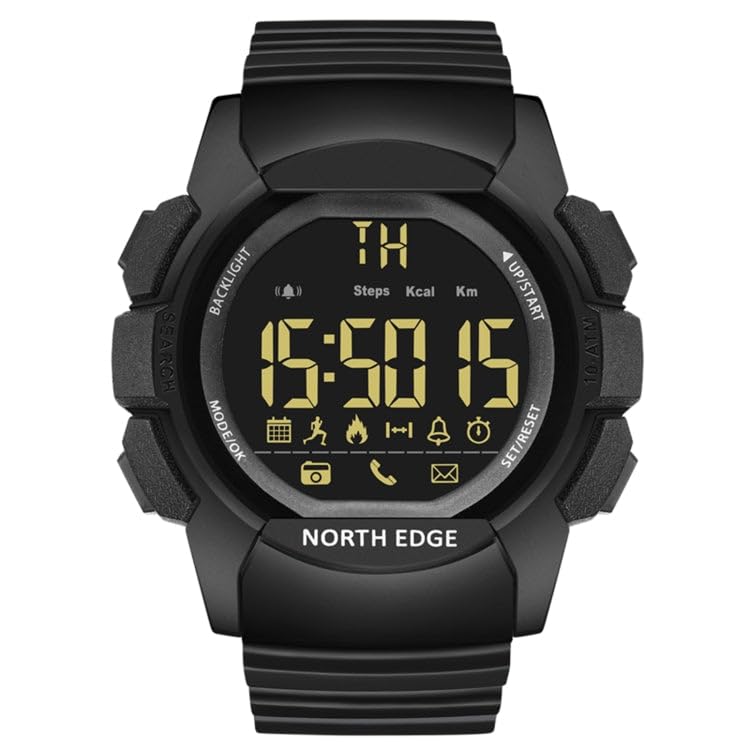

Image 1.2: Front view of the North Edge AK Smart Watch displaying time and various icons on a yellow background.
Key features include 100m waterproofing, LED backlight, Bluetooth 4.0 connectivity, and a long standby time of up to 33 months on a single CR2432 battery.
2. Setup and Initial Use
2.1 Battery Installation
The North Edge AK Smart Watch uses a CR2432 battery. Ensure the battery is correctly installed with the positive (+) side facing up. Refer to the back of the watch for battery compartment access.

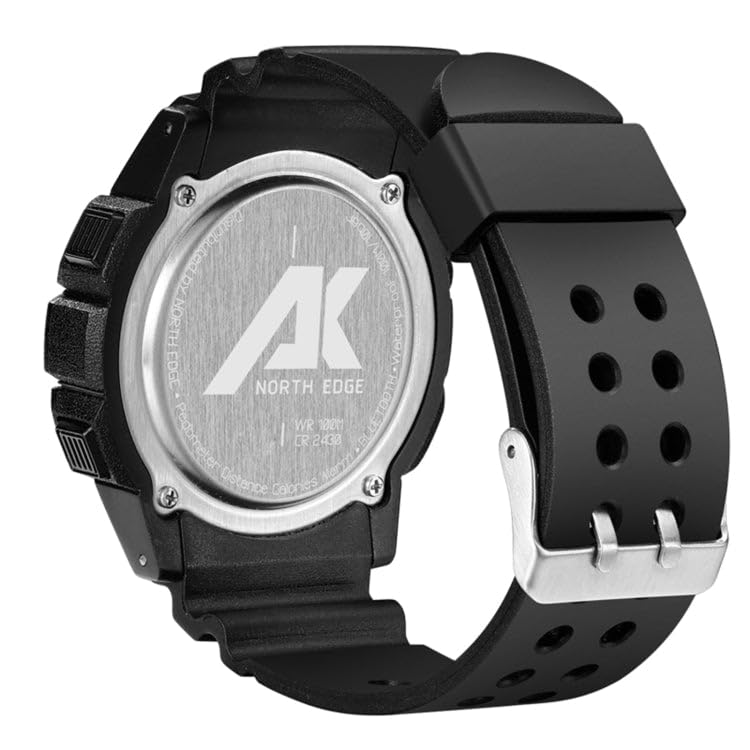

Image 2.1: Rear view of the North Edge AK Smart Watch, showing the engraved model name, water resistance rating, and battery type (CR2432).
2.2 Smartphone App and Bluetooth Pairing
To utilize the smart features of your North Edge AK watch, download the official North Edge application from your smartphone's app store. The watch is compatible with Android 4.4 and above, and iOS 8.0 and above systems.
- Ensure Bluetooth is enabled on your smartphone.
- Open the North Edge application and follow the on-screen instructions to pair your watch.
- The watch uses Bluetooth 4.0 for connection.

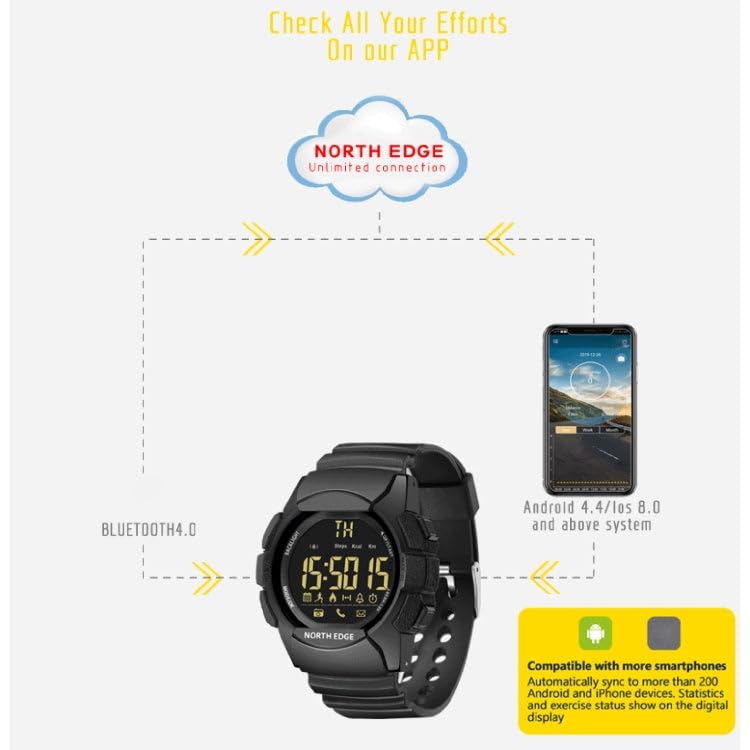

Image 2.2: Diagram illustrating the Bluetooth 4.0 connection between the North Edge AK Smart Watch and compatible smartphones (Android 4.4+/iOS 8.0+).
Once paired, the watch will automatically sync time and date with your phone, and you can manage various settings and view statistics through the app.
3. Operating Instructions
3.1 Button Functions
The watch features several buttons for navigation and function control:
- BACKLIGHT: Activates the LED backlight for visibility in low light conditions.
- SEARCH: Used for specific search functions within modes or settings.
- MODE/OK: Cycles through different watch modes (e.g., time, pedometer, stopwatch) and confirms selections.
- UP/START: Navigates upwards in menus or starts functions like the stopwatch.
- SET/RESET: Enters settings mode or resets values (e.g., stopwatch).
3.2 Smart Functions
The North Edge AK Smart Watch offers a range of smart features accessible via the watch and the paired smartphone app:
- Pedometer: Tracks your steps throughout the day.
- Distance: Calculates the distance covered based on your steps.
- Calories: Estimates calories burned during activity.
- Stopwatch: For timing events.
- Time Alarm: Set alarms directly from the watch or app.
- Call Reminder: Notifies you of incoming calls when connected to your phone.
- Message Notification: Displays alerts for incoming messages.
- Camera Control: Remotely control your smartphone's camera.

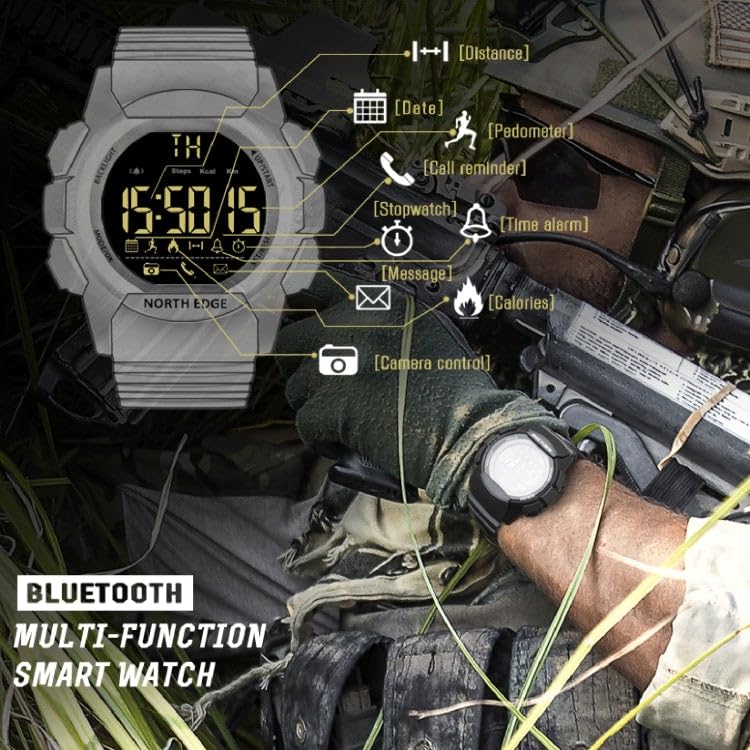

Image 3.1: The North Edge AK Smart Watch highlighting its multi-functional capabilities, including date, distance, pedometer, call reminder, stopwatch, message, calories, and camera control.
4. Maintenance and Care
4.1 Water Resistance
The North Edge AK Smart Watch is waterproof up to 100 meters (10 BAR). This makes it suitable for swimming and snorkeling, but not for scuba diving. Do not operate buttons underwater to maintain water resistance.
Image 4.1: The North Edge AK Smart Watch worn on a wrist, emphasizing its 100-meter waterproof capability.
Image 4.2: The North Edge AK Smart Watch highlighting its 100M/10BAR waterproof rating and tempered glass display.
4.2 Battery Life and Replacement
The watch boasts a super long standby mode of up to 33 months on a single CR2432 battery. When the battery needs replacement, refer to section 2.1 for guidance on accessing the battery compartment.
Image 4.3: The North Edge AK Smart Watch on a wrist, illustrating its impressive 33-month battery standby time.
4.3 Cleaning and Storage
- Clean the watch regularly with a soft, damp cloth. Avoid harsh chemicals or abrasive materials.
- Store the watch in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
- The display is made of tempered glass; avoid dropping or subjecting it to strong impacts.
5. Troubleshooting
- Watch not turning on: Check if the CR2432 battery is installed correctly and has sufficient charge. Replace the battery if necessary.
- Bluetooth connectivity issues:
- Ensure Bluetooth is enabled on your smartphone and the watch is within range.
- Restart both your watch and smartphone.
- Try unpairing and re-pairing the watch through the North Edge app.
- Inaccurate step count/data: Ensure the watch is worn snugly on your wrist. Calibrate the pedometer through the app if available.
- Display not visible: Press the BACKLIGHT button to activate the LED backlight. If the display remains blank, the battery may be depleted.
6. Specifications
| Feature | Specification |
|---|---|
| Model Number | AK (TEST-SPORTS-UNIQ-1180) |
| Water Resistance | 100 meters (10 BAR) |
| Display Type | FSTN with LED Backlight |
| Bluetooth Version | 4.0 |
| Battery Type | CR2432 |
| Standby Time | Up to 33 months |
| Strap Material | TPU |
| Glass Material | Tempered Glass |
| Watch Dimensions (LxWxH) | 5 x 5 x 1.5 cm |
| Watch Weight | 64 g |
| Smartphone Compatibility | Android 4.4+ / iOS 8.0+ |
7. Support
For any queries, technical assistance, or support regarding your North Edge AK Smart Watch, please contact the seller directly through your purchase platform. They will be able to provide specific guidance and solutions.
