TaskStar 1.6" Electric Pruning Shears with Pole (Model PS044)

1. Introduction

Thank you for choosing the TaskStar 1.6" Electric Pruning Shears with Pole, Model PS044. This tool is designed for efficient and precise pruning of trees, shrubs, and plants. It offers versatile operation, functioning as both a handheld pruner and an extended pole pruner. Please read this manual thoroughly before use to ensure safe and optimal performance.

1.1 Safety Information

Always prioritize safety when operating power tools. Keep hands and fingers away from the blades. Wear appropriate personal protective equipment, including safety glasses and gloves. Ensure the work area is clear of bystanders and obstacles. Disconnect the battery before performing any maintenance or adjustments.

2. Package Contents

Verify that all items listed below are included in your package:

• 1 x TaskStar Electric Pruning Shears
• 1 x Telescopic Pole
• 2 x 4.0Ah Rechargeable Batteries
• 1 x Fast Charger
• 1 x SK5 Replacement Blade
• 1 x Shoulder Strap
• 1 x Hexagonal Screwdriver
• 1 x Hexagon Wrench
• 1 x Storage Case
• 1 x Glove
• 1 x Instruction Manual (this document)

3. Setup

3.1 Charging the Batteries

Before first use, fully charge both 4.0Ah Lithium-Ion batteries. Connect the fast charger to a power outlet and insert the battery. The charger indicator light will show the charging status. A full charge typically takes approximately 2 hours per battery.

3.2 Assembling the Pole Pruner

1. Ensure the electric pruning shears are powered off and the battery is removed.
2. Align the base of the pruning shears with the connector on the telescopic pole.
3. Securely attach the shears to the pole using the provided locking mechanism.
4. Adjust the pole length by releasing the quick-release clamps, extending the pole to the desired length (from 4.9ft to 9ft), and then securely re-engaging the clamps.
5. Attach the shoulder strap to the designated points on the pole for comfortable operation and weight distribution.

4. Operating Instructions

4.1 Handheld Mode

For lower branches and shrubs, use the pruning shears in handheld mode. Insert a charged battery, activate the safety switch, and press the trigger to operate the blades. The 1.6-inch cutting capacity allows for efficient trimming of various branch sizes.

4.2 Pole Mode

For high branches, attach the shears to the telescopic pole. Extend the pole to reach branches up to 9 feet. The 180° rotating head provides flexibility for precise cuts from the ground. Use the shoulder strap to reduce fatigue during extended use.

4.3 Cutting Capacity and Blade Performance

The shears are designed to cut branches up to 1.6 inches (40mm) in diameter. The SK5 steel blades ensure clean and precise cuts. Avoid attempting to cut branches exceeding this diameter to prevent damage to the tool and ensure user safety.

4.4 LED Display

The integrated LED display provides real-time information on battery levels and the total number of cuts performed. Monitor the battery level to ensure uninterrupted operation and recharge as needed.

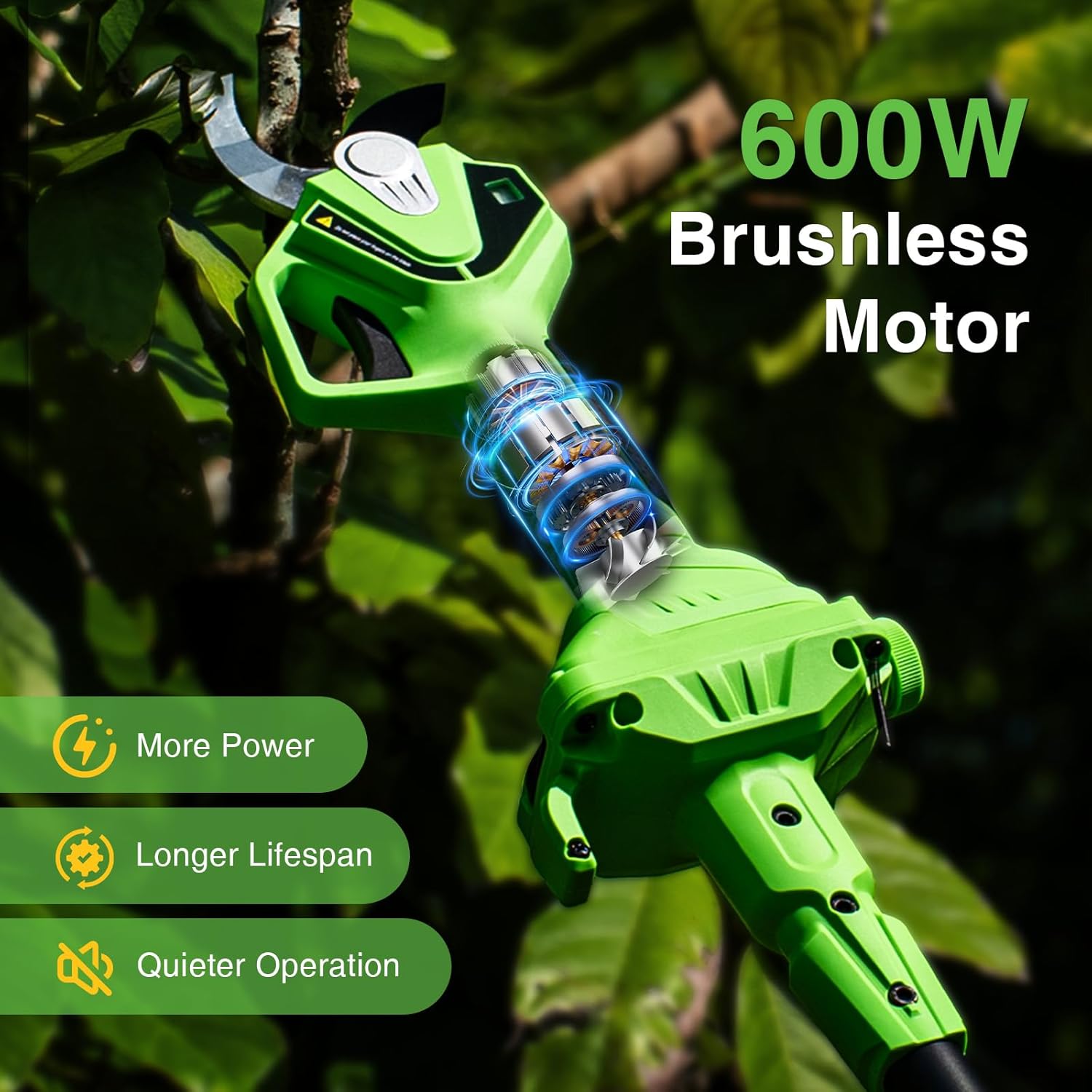

4.5 Brushless Motor

The tool is equipped with a brushless motor, which offers consistent power delivery, operates at a cooler temperature, and has an extended lifespan compared to brushed motors. This design also contributes to quieter operation and reduced maintenance requirements.

4.6 Operational Video

5. Maintenance

5.1 Blade Care

The SK5 steel blades are designed for durability and sharpness. To maintain optimal cutting performance, regularly clean the blades after use to remove sap and debris. A spare SK5 blade is included for replacement when the primary blade shows signs of wear or dullness. Refer to the included hexagonal screwdriver and wrench for blade replacement.

5.2 Cleaning and Storage

After each use, ensure the tool is powered off and the battery is removed. Clean the blades and housing with a damp cloth. Store the pruning shears and all accessories in the provided storage case in a dry, secure location, away from children and moisture.

6. Troubleshooting

If you encounter issues with your TaskStar Electric Pruning Shears, refer to the following common solutions:

• Tool not powering on: Ensure the battery is fully charged and correctly inserted. Check the safety switch is disengaged.
• Blades not cutting effectively: Inspect the blades for damage or excessive debris. Clean the blades or replace them with the spare SK5 blade if necessary.
• Reduced runtime: Ensure batteries are fully charged before use. Battery performance can decrease in extremely cold temperatures.

For issues not resolved by these steps, please contact TaskStar customer support.

7. Specifications

8. Warranty and Support

TaskStar products are manufactured to high-quality standards. For information regarding warranty coverage, product support, or to purchase replacement parts, please refer to the contact information provided with your purchase or visit the official TaskStar website. Keep your purchase receipt as proof of purchase for warranty claims.
