1. Introduction
Thank you for choosing the DABBSSON 3000L Solar Generator. This portable power station is designed to provide reliable and efficient power for various applications, from home backup to outdoor adventures. Featuring a 3072Wh semi-solid LiFePO4 battery and a 3000W AC output (P-Boost up to 3600W), it offers extended runtime and versatile charging options. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting.
Image: The DABBSSON 3000L Solar Generator, a compact and powerful portable energy solution.
2. Safety Instructions
Please read and understand all safety instructions before operating the DABBSSON 3000L. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Do not disassemble, repair, or modify the unit.
- Keep the unit away from heat sources, direct sunlight, and flammable materials.
- Do not expose the unit to water or excessive humidity.
- Ensure proper ventilation during use to prevent overheating.
- Keep out of reach of children and pets.
- Use only original or certified charging cables and accessories.
- In case of fire, use a dry powder fire extinguisher. Do not use water.
3. Product Components and Overview
3.1 What's Included
The package includes the following items:
- 1 × Dabbsson 3000L portable power station
- 1 × AC charging cable
- 1 × Car charging cable
- 1 × User manual
Image: Contents of the DABBSSON 3000L package, including the power station, AC cable, car cable, and user manual.
3.2 Product Diagram and Ports
Familiarize yourself with the various ports and controls on your DABBSSON 3000L:
Image: Detailed diagram illustrating the front and rear panels of the DABBSSON 3000L, highlighting all input and output ports and control buttons.
| No. | Feature | Description |
|---|---|---|
| 1 | USB-C 100W Output Port | High-power USB-C output for fast charging compatible devices. |
| 2 | DC Power Button/IoT | Activates DC output and IoT connectivity. |
| 3 | Car Cigarette Lighter | 12V car port output. |
| 4 | DC5521 Output Port | Standard DC output port. |
| 5 | USB-C 30W Output Port | Standard USB-C output. |
| 6 | AC Output Port TT-30 | Dedicated TT-30 outlet for RV charging. |
| 7 | LCD Screen | Displays battery status, input/output power, and error indicators. |
| 8 | Light On/Off | Controls the built-in LED light. |
| 9 | LED | Built-in LED light for illumination. |
| 10 | Main Power Button | Turns the unit on/off. |
| 11 | USB-A Output Port | Standard USB-A output ports. |
| 12 | AC Output Port (x6) | Standard AC outlets for various appliances. |
| 13 | AC On/Off | Activates/deactivates AC output. |
| 14 | Solar/Car Charging Input Port | Input for solar panels or car charger. |
| 15 | AC Charging Input Port | Input for AC wall charging. |
4. Setup
4.1 Initial Charging
Before first use, fully charge the DABBSSON 3000L. Connect the provided AC charging cable to the AC Charging Input Port (15) and plug it into a wall outlet. The LCD screen (7) will indicate charging status. It takes approximately 1.5 hours to charge to 80% using AC input.

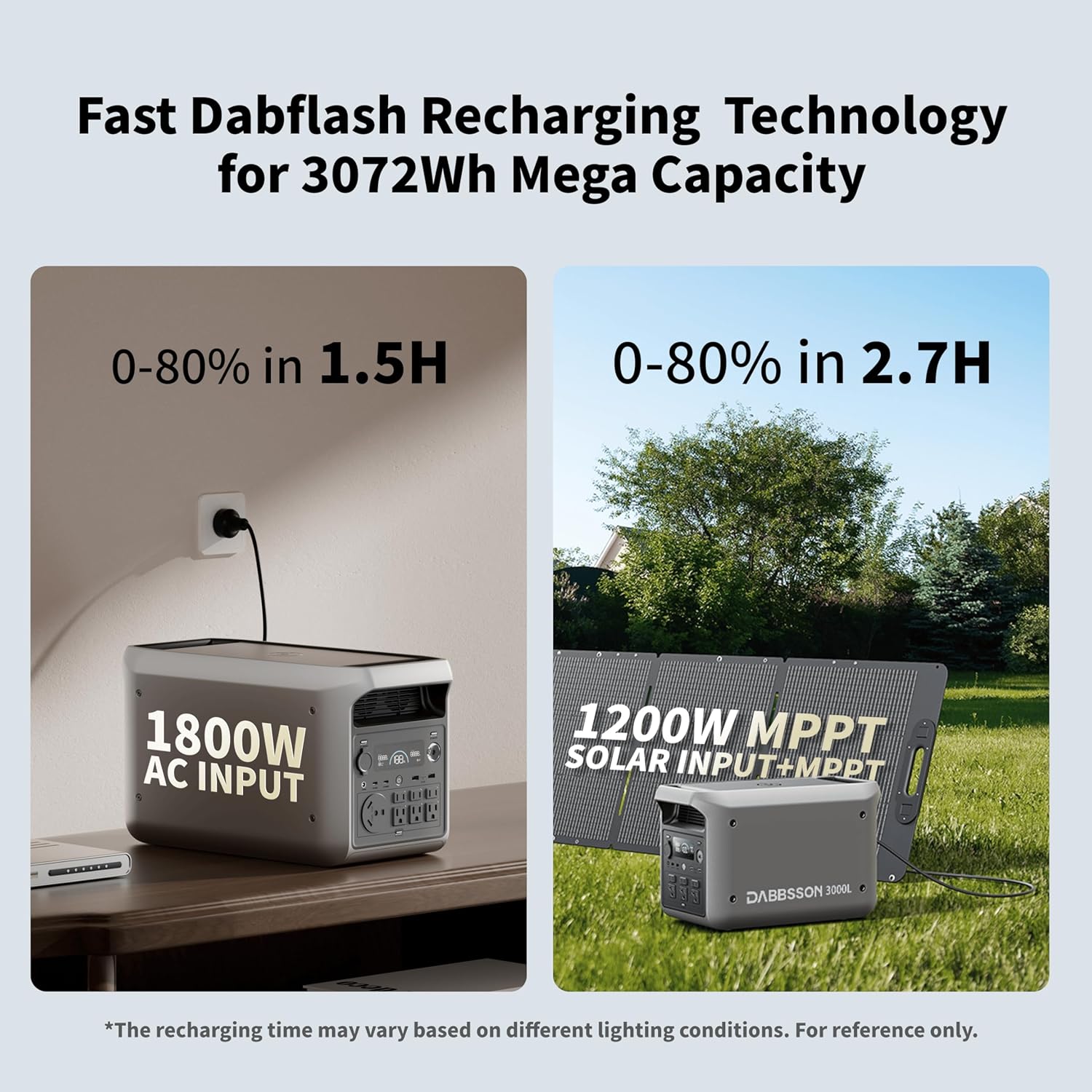

Image: The DABBSSON 3000L being recharged using its 1800W AC input, demonstrating its fast charging capability.
4.2 Connecting Devices
To power your devices, simply plug them into the appropriate output ports (AC, USB-A, USB-C, DC5521, Car Port, TT-30). Ensure the power station is turned on and the specific output group (AC/DC) is activated via its respective button.
5. Operating Instructions
5.1 Turning On/Off
Press and hold the Main Power Button (10) for a few seconds to turn the unit on or off. The LCD screen (7) will illuminate.
5.2 Using AC Outputs
After turning on the unit, press the AC On/Off button (13) to activate the AC outlets (12) and the TT-30 port (6). The LCD screen will show the AC output status. The DABBSSON 3000L provides 3000W rated output, with P-Boost technology supporting up to 3600W for power-hungry appliances.
Image: The DABBSSON 3000L powering various household and outdoor devices, demonstrating its 3000W output and Power-Boost capability up to 3600W.
5.3 Using DC and USB Outputs
Press the DC Power Button/IoT (2) to activate the DC5521 (4), Car Cigarette Lighter (3), USB-C (1, 5), and USB-A (11) ports. These ports are ideal for charging smaller electronics like phones, tablets, and laptops.
5.4 Charging the Power Station
The DABBSSON 3000L can be recharged via multiple methods:
- AC Wall Outlet: Connect the AC charging cable to the AC Charging Input Port (15). Max 1800W input.
- Solar Panels: Connect compatible solar panels (up to 1200W MPPT supported) to the Solar/Car Charging Input Port (14).
- Car Charger: Use the provided car charging cable to connect to your vehicle's 12V outlet via the Solar/Car Charging Input Port (14).
- Dual Charging: Combine AC and solar input for even faster recharging. The unit prioritizes solar input (PV-Priority Charging) to maximize renewable energy use.
Image: Visual representation of the three primary charging methods: AC wall charging, solar panel charging, and car charging.
5.5 Smart App Control
Download the Dabbsson App to monitor power status, adjust AC charging speed, schedule off-peak charging, and control other features via Wi-Fi or Bluetooth. This allows for seamless management of your power station from your smartphone.
Image: A hand holding a smartphone displaying the Dabbsson app interface, demonstrating remote control and monitoring capabilities for the power station within a smart home environment.
5.6 Built-in LED Light
The DABBSSON 3000L features a built-in LED light (9) for emergencies or low-light conditions. Press the Light On/Off button (8) to cycle through different modes: Soft, Bright, and SOS.
Image: The DABBSSON 3000L's built-in LED light providing illumination at a campsite, highlighting its utility for night or emergency situations.
6. Maintenance
6.1 Battery Care (Semi-Solid LiFePO4)
The DABBSSON 3000L uses advanced semi-solid LiFePO4 cells, offering over 4000 charge cycles and a lifespan of 10+ years. To maximize battery life:
- Avoid extreme temperatures. Store the unit in a cool, dry place.
- For long-term storage, discharge the battery to about 50% and recharge it to 50% every 3-6 months.
- Do not fully deplete the battery frequently.
Image: An internal view of the DABBSSON 3000L, showcasing its semi-solid LiFePO4 battery cells, emphasizing its 10-year lifespan and 4000+ charge cycles.
6.2 Cleaning
Wipe the exterior of the unit with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure all ports are free of dust and debris.
7. Troubleshooting
If you encounter issues with your DABBSSON 3000L, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | Battery is fully discharged. | Connect to AC power and charge for at least 15 minutes. |
| AC output not working | AC output not activated. Overload protection triggered. | Press the AC On/Off button. Reduce connected load; restart the unit. |
| Slow charging | Using a low-power charging source. High ambient temperature. | Ensure 1800W AC input is used. Move to a cooler environment. |
| Unit overheating | Poor ventilation. Excessive load. | Ensure vents are clear. Reduce connected load. Allow unit to cool. |
For persistent issues, please contact Dabbsson customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Dabbsson |
| Model Name | 3000L |
| Wattage | 3000 watts (Rated), 3600 watts (P-Boost) |
| Fuel Type | Electric |
| Power Source | Battery Powered/Solar Powered |
| Item Weight | 59.5 Pounds |
| Voltage | 120 Volts |
| Product Dimensions | 19.1"L x 9.57"W x 11.6"H |
| Battery Type | Semi-Solid LiFePO4 |
| Battery Capacity | 3072Wh |
| AC Input | 1800W Max |
| Solar Input | 1200W Max (MPPT) |
| AC Outlets | 6 × AC outlets, 1 × TT-30 |
| USB-C Output | 2 × (100W & 30W) |
| USB-A Output | 2 × |
| Car Port | 1 × |
| DC5521 | 1 × |
| Special Features | Digital Display, Overload Protection, Short Circuit Protection, USB Port, Smart App Control, Built-in LED Light |
9. Warranty and Support
The DABBSSON 3000L comes with an industry-leading 5-year warranty (3 years standard + 2-year extended). For any questions, technical assistance, or warranty claims, please contact Dabbsson customer service. Our team is available to provide support and ensure your satisfaction.
You can find contact information and further resources on the official Dabbsson website or through your purchase platform.
Image: A map illustrating Dabbsson's widespread sales and worldwide customer service network, emphasizing easy access to local technical support.
