SISIGAD 12-Inch Electric Scooter

1. Safety Information

Read this manual carefully before operating the electric scooter. Failure to follow instructions can lead to serious injury or property damage. Always wear a helmet and appropriate safety gear.

• Weight Limit: Do not exceed the maximum load of 100 kg (220 lbs).
• Age Recommendation: Suitable for adults and teenagers.
• Visibility: Use automatic headlights at night and ensure warning taillights are functional during braking.
• Braking: Familiarize yourself with the dual braking system (EABS and disc brake) for effective stopping.
• Road Conditions: Exercise caution on uneven or wet surfaces. The 12-inch pneumatic tires provide shock absorption, but safe riding practices are essential.
• Local Regulations: Always comply with local laws and regulations regarding electric scooter use.

2. Product Overview

The SISIGAD HY-C10 electric scooter is designed for urban commuting and short-distance travel, featuring a powerful motor, long-range battery, and convenient foldable design.

Image 2.1: Overview of the SISIGAD HY-C10 Electric Scooter with key components labeled, including the twist speed handle, handlebar, brake, front tube, folding handle, light, built-in battery, charging port, 12-inch pneumatic tire, and rear cargo basket.

Key Features:

• Motor: 300W rated motor, 400W peak motor.
• Battery: 36V 7.8Ah Lithium Battery.
• Speed: Maximum speed of 25 km/h.
• Range: Up to 32 km on a single charge.
• Braking System: Dual braking system (EABS and disc brake).
• Tires: 12-inch pneumatic tires for shock absorption.
• Display: LCD screen for battery status.
• Portability: Foldable design and removable rear basket.

3. Setup

3.1 Unfolding the Scooter

1. Place the scooter on a flat surface.
2. Locate the folding mechanism on the main frame (near the base of the front tube).
3. Release the locking mechanism and carefully lift the front tube until it clicks into place, securing the handlebar.
4. Ensure all locking mechanisms are fully engaged before use.

3.2 Attaching the Rear Basket

The scooter comes with a detachable rear basket for convenience.

1. Align the basket's mounting points with the corresponding slots on the rear frame of the scooter.
2. Secure the basket using the provided fasteners. Ensure it is firmly attached before placing items inside.

Image 3.1: This image illustrates the scooter's foldable design for compact storage, the detachable rear basket, the dual braking system for safety, and the clear battery display on the handlebar.

4. Operating Instructions

4.1 Powering On/Off

• To Power On: Press and hold the power button on the handlebar until the LCD screen illuminates.
• To Power Off: Press and hold the power button again until the LCD screen turns off.

4.2 Riding the Scooter

1. Place one foot on the deck and push off with the other foot to gain initial momentum.
2. Once moving, gently press the twist speed handle (throttle) to engage the motor.
3. Maintain balance and keep both hands on the handlebar.
4. Adjust speed using the twist speed handle.

4.3 Braking

The scooter is equipped with a dual braking system for responsive stopping.

• To slow down or stop, gently squeeze the brake levers on the handlebar.
• The EABS (Electronic Anti-lock Braking System) and disc brake work together to provide efficient and safe braking.
• Warning taillights will flash during braking to alert others.

4.4 LCD Display

The LCD screen provides essential information during operation.

• Battery Level: Clearly displays the current battery charge. Monitor this to ensure timely recharging.
• Other indicators may include speed, mode, or distance, depending on the model's specific features.

5. Charging

Ensure the scooter is powered off before charging.

1. Locate the charging port on the scooter (refer to Image 2.1).
2. Connect the charger to the charging port.
3. Plug the charger into a standard power outlet.
4. The charging indicator on the charger will typically show red during charging and turn green when fully charged.
5. Charging time is approximately 6 hours for a full charge.
6. Do not overcharge the battery. Disconnect the charger once charging is complete.

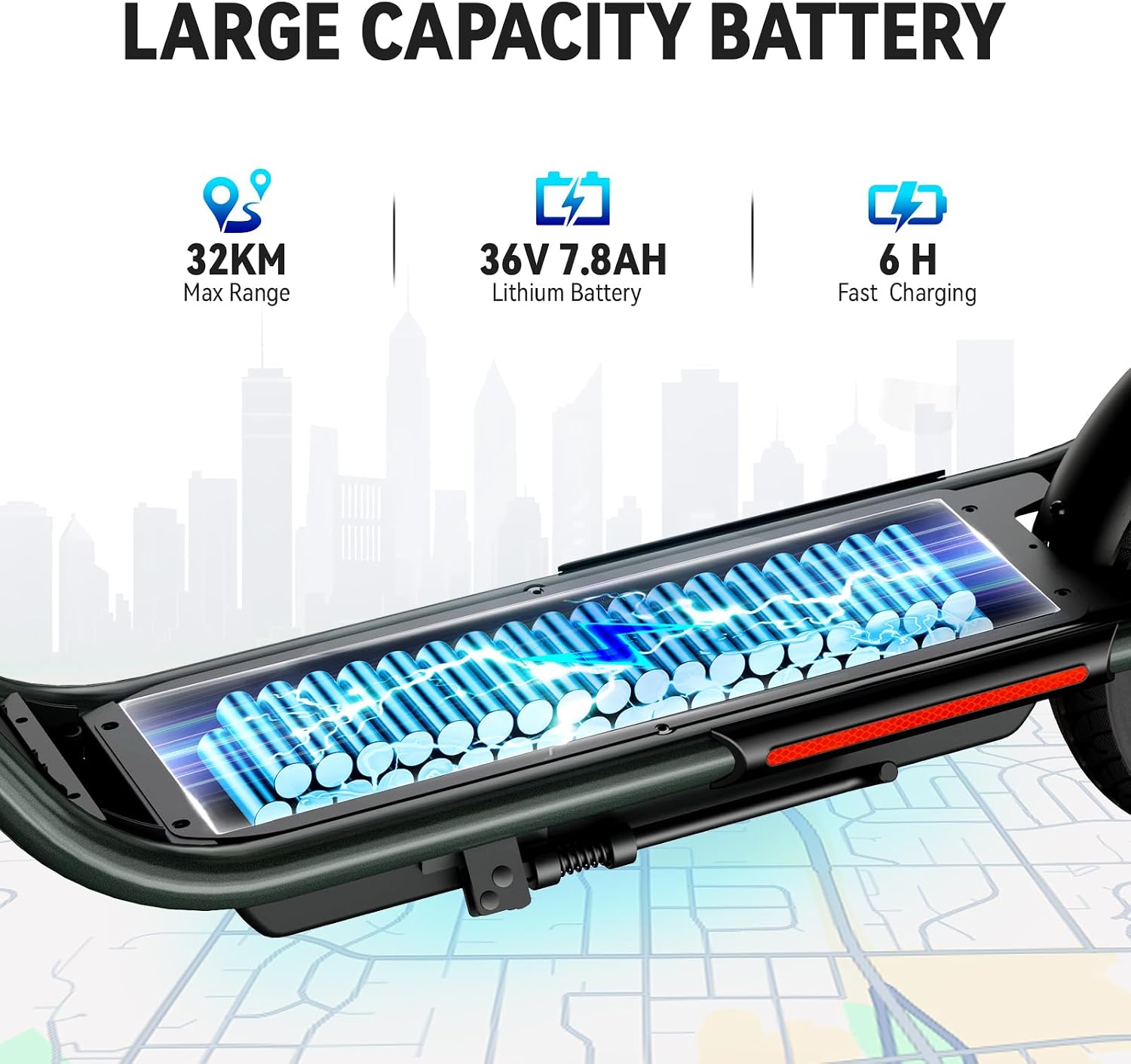

Image 5.1: This image highlights the scooter's large capacity 36V 7.8AH Lithium Battery, providing a maximum range of 32 km and supporting fast charging within 6 hours.

6. Maintenance

6.1 Cleaning

• Wipe the scooter with a damp cloth. Do not use high-pressure water or corrosive cleaning agents.
• Ensure the charging port cover is securely closed to prevent water ingress.

6.2 Tire Pressure

• Regularly check the pressure of the 12-inch pneumatic tires. Maintain recommended pressure for optimal performance and safety.

6.3 General Care

• Store the scooter in a dry, cool place when not in use.
• Avoid prolonged exposure to direct sunlight or extreme temperatures.
• Periodically check all screws and fasteners to ensure they are tight.

7. Troubleshooting

This section addresses common issues you might encounter.

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

Detailed technical specifications for the SISIGAD HY-C10 Electric Scooter.

Image 8.1: This image illustrates the scooter's powerful 300W rated motor, capable of reaching a maximum speed of 25 km/h and climbing slopes up to 15 degrees.

9. Warranty and Support

The SISIGAD HY-C10 Electric Scooter holds strict UL certification, ensuring safety and quality.

• For any questions, concerns, or technical support, please contact SISIGAD customer service.
• Customer service is available to respond within 24 hours.
• Refer to your purchase documentation for specific warranty terms and conditions.
