LESU Aoue Zx490 1/14 Remote Control Hydraulic Excavator Kit Model Instruction Manual

1. Introduction

This manual provides essential information for the assembly, operation, and maintenance of your LESU Aoue Zx490 1/14 Scale Remote Control Hydraulic Excavator Kit Model. This is a high-quality, hobby-grade kit designed for enthusiasts, featuring a metal body and advanced hydraulic system. Please read these instructions thoroughly before beginning assembly or operation to ensure proper function and safety.

The model is supplied as an unassembled and unpainted kit, requiring careful construction and finishing. It includes a motor, servo, ESC, hydraulic system, and light system. Additional components such as a remote controller, receiver, battery, sound system, charger, and hydraulic oil are required and not included in this package.

2. Safety Information

Operating remote control models requires attention to safety. Adhere to the following guidelines:

• This product is recommended for individuals 21 years and up due to its complexity and hobby-grade nature.
• Always operate the model in a safe, open area, away from people, pets, and obstacles.
• Ensure all connections are secure and components are correctly installed before operation.
• Use only recommended batteries and charging equipment. Incorrect use can lead to fire or injury.
• Keep hands and loose clothing away from moving parts, especially the tracks and hydraulic arm.
• Do not modify the hydraulic system or electrical components unless you are a qualified technician.
• Store the model and its components in a dry, safe place, out of reach of children.

3. Package Contents

Included Components:

• 1/14 RC Hydraulic Excavator Model Kit (unassembled, unpainted)
• Drive Motor (Brushless)
• Pump Motor (Brushless)
• Rotary Motor (Brushed)
• Servo
• ESC (Electronic Speed Controller)
• Hydraulic System (pre-assembled components)
• Light System (LED operational lights, warning lamps, GPS indicator lights)

Components Not Included (Required for Operation):

• Remote Controller and Receiver
• Battery (1 D battery required for certain functions, main power battery not specified but typically LiPo for RC models)
• Sound System
• Charger
• Hydraulic Oil

4. Setup and Assembly

The LESU Aoue Zx490 is a kit model, requiring assembly. Follow the detailed assembly instructions provided separately with your kit. Key features to note during assembly include:

• Modular Architecture: The design facilitates disassembly and reassembly.
• CNC-Machined Components: Many parts, including the aluminum alloy excavator arm and counterweight, are precision CNC-machined.
• Metal Construction: Approximately 90% of the machine's composition is metallic, with 80% of the fixed oil circuit system utilizing brass materials.
• Hydraulic System: Features a 6-channel directional control valve and 3 hydraulic cylinders. An additional 3-way directional control valve is reserved for future expansion.
• Illumination System: Integrates 7 LED operational lights, 3 warning lamps, and 2 GPS indicator lights.
• Access Panels: Nine openable access panels are incorporated throughout the chassis for maintenance and component access.

Image 1: Front-side view of the LESU Aoue Zx490 kit, showing its unassembled and unpainted state.

Image 2: Front-angle view of the LESU Aoue Zx490 kit, highlighting its metal construction.

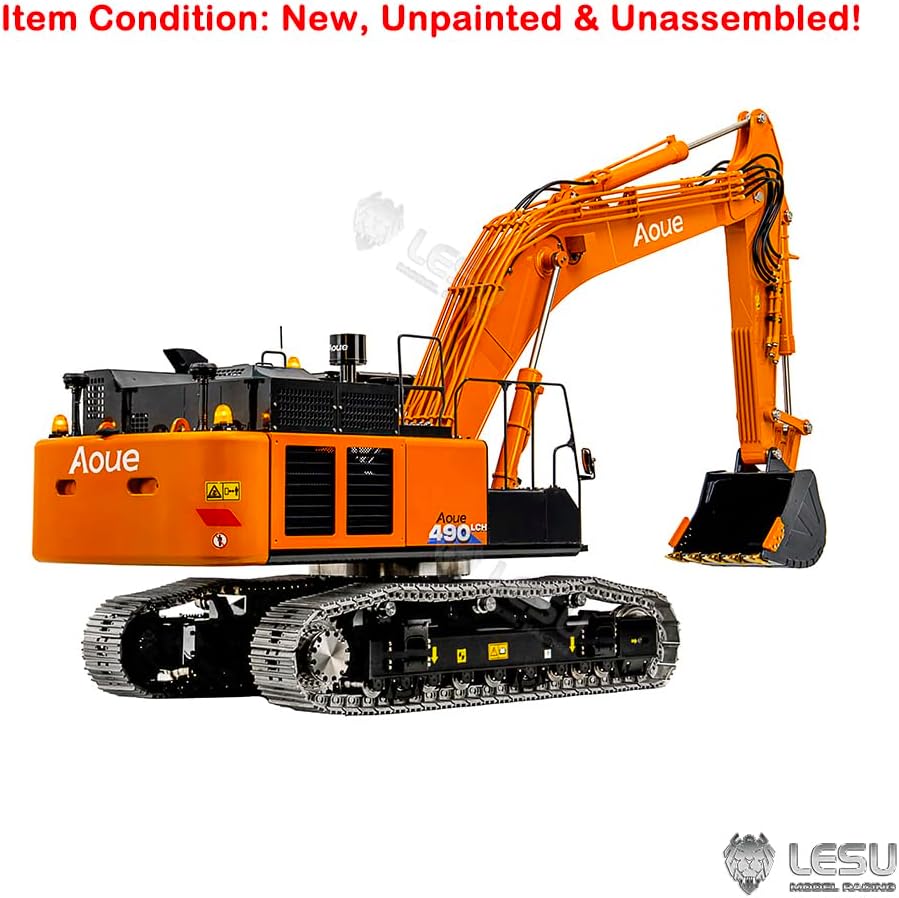

Image 3: Rear-side view of the LESU Aoue Zx490 kit, showing the counterweight and track details.

Image 4: Close-up of the excavator's cabin and tracks, demonstrating the detailed metalwork and protective grating.

Image 5: Interior view of the excavator cabin, featuring a display that provides operational data such as voltage, temperature, and current.

Image 6: An open access panel on the excavator's side, providing a view of the internal hydraulic and electronic components, including gauges and wiring.

Image 7: Top-down view of the excavator with several access panels open, illustrating the organized layout of internal components and wiring.

5. Operating Instructions

Once assembled and all necessary external components (remote controller, receiver, battery, hydraulic oil) are connected, you can begin operating your hydraulic excavator. Refer to your remote controller's manual for specific control assignments.

• Power On: Connect the main battery and power on the remote controller, then the excavator.
• Hydraulic System: The precision-engineered hydraulic system ensures fluid and coordinated motion of the excavator arm. Use the corresponding channels on your remote to control the boom, stick, and bucket.
• Driving: Control the tracks for forward, backward, and turning movements. The traveling drive wheel speed is 25r/min.
• Slewing: The upper structure of the excavator can rotate at a slewing speed of 12 r/min.
• Lights: Activate the integrated LED operational lights, warning lamps, and GPS indicator lights as needed.

6. Maintenance

Regular maintenance is crucial for the longevity and performance of your hydraulic excavator model.

• Hydraulic Oil: Regularly check and replenish hydraulic oil levels. Use only recommended hydraulic oil for RC models.
• Cleaning: Keep the model clean, especially the tracks and hydraulic cylinders, to prevent debris from affecting performance.
• Inspections: Periodically inspect all screws, connections, and moving parts for looseness or wear. Tighten or replace as necessary.
• Lubrication: Lubricate moving metal parts as recommended in the detailed assembly manual.
• Storage: Store the model in a clean, dry environment when not in use.

7. Troubleshooting

If you encounter issues with your excavator model, consider the following common troubleshooting steps:

• No Power: Check battery connections, ensure the battery is charged, and verify all power switches are in the ON position.
• No Response from Controls: Ensure the remote controller is powered on, batteries are fresh, and it is properly bound to the receiver. Check all servo and ESC connections.
• Weak Hydraulic Movement: Check hydraulic oil levels. Ensure there are no leaks in the hydraulic lines. Verify the pump motor is functioning correctly.
• Unusual Noises: Inspect for loose parts, obstructions in moving mechanisms, or signs of wear on gears or motors.
• Damage Out of Box: If the item arrives damaged, contact customer support immediately for a free replacement part.

8. Specifications

9. Warranty and Support

wheelfun is committed to providing quality products and support. For any inquiries or assistance, please refer to the following:

• Damage Upon Arrival: If your item is damaged out of the box, please contact customer service. A free replacement part can be provided.
• Technical Support: A professional after-sales team and technical maintenance team are available. Technicians can provide guidance in English through video or text for repairs and troubleshooting.
• Returns: The product typically has a 30-day return policy for refund or replacement. Please check your purchase details for specific terms.
• Contact: For further assistance, please visit the wheelfun Store on Amazon or contact their customer service directly.
