LESU 1/14 RC Hydraulic Excavator Model Aoue Zx490 User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your LESU 1/14 RC Hydraulic Excavator Model Aoue Zx490. This high-grade, metal remote-controlled excavator features a precision-engineered hydraulic system, 6-channel valve control, and a comprehensive lighting system, designed for hobby enthusiasts. Please read this manual thoroughly before operating the model.

Figure 1: Overview of the LESU 1/14 RC Hydraulic Excavator Model Aoue Zx490.

2. Safety Guidelines

• Always operate the model in a safe, open area, away from people, pets, and obstacles.
• Ensure all components are securely fastened before operation.
• Keep hands and loose clothing away from moving parts, especially the tracks and hydraulic arm.
• Do not operate the model near water or in wet conditions unless specifically designed for such environments.
• Use only recommended batteries and chargers. Improper use can lead to fire or injury.
• This product is recommended for users aged 21 years and up due to its complexity and hobby-grade nature.

3. Package Contents

3.1 Included Components

The following items are included with your LESU 1/14 RC Hydraulic Excavator Model:

• 1/14 RC Hydraulic Excavator Model (Aoue Zx490)
• Drive Motor (Brushless)
• Pump Motor (Brushless)
• Rotary Motor (Brushed)
• Servo
• Electronic Speed Controller (ESC)
• Hydraulic System (pre-installed)
• Light System (pre-installed)

3.2 Items Not Included (Required for Operation)

The following items are essential for operating the excavator and must be purchased separately:

• Remote Controller and Receiver
• Battery (suitable for RC hydraulic models)
• Sound System (optional, for enhanced realism)
• Battery Charger
• Hydraulic Oil

4. Setup and Initial Preparation

1. Unpacking and Inspection: Carefully remove all components from the packaging. Inspect the excavator for any signs of damage during transit.
2. Battery Installation: Install a fully charged battery into the designated compartment. Ensure correct polarity. Refer to your battery and charger manuals for proper charging procedures.
3. Remote Control Setup: Install batteries into your remote controller. Bind the receiver (purchased separately) to your remote controller according to the instructions provided with your specific remote control system.
4. Hydraulic Oil Filling: Fill the hydraulic reservoir with appropriate hydraulic oil. Ensure the system is bled of air bubbles for optimal performance. Consult a qualified technician if unsure.
5. Initial Power-On: Connect the battery to the excavator's power system. Turn on the remote controller first, then the excavator.
6. Function Test: Carefully test all functions (track movement, arm articulation, bucket movement, rotation, lights) at low speeds to ensure proper operation and responsiveness.

Figure 2: View of the internal hydraulic system accessible via an open panel.

5. Operating Instructions

The LESU Aoue Zx490 excavator is controlled via a 6-channel directional control valve system, allowing for precise and independent movement of various functions.

5.1 Basic Controls (Refer to your remote controller manual for specific stick assignments)

• Track Movement: Control forward, backward, and turning movements of the tracks.
• Arm Articulation: Operate the main boom, stick (dipper arm), and bucket cylinders for digging and lifting actions.
• Rotation (Slewing): Rotate the excavator's upper structure 360 degrees.
• Auxiliary Functions: Control lights and any other installed accessories.

5.2 Hydraulic System Operation

The hydraulic system provides realistic and powerful movements. Operate controls smoothly to avoid sudden jerks and potential damage. The 6-channel valve allows for simultaneous control of multiple hydraulic functions.

Figure 3: Detailed view of the hydraulic cylinders on the excavator arm.

5.3 Lighting System

The excavator is equipped with a comprehensive illumination system, including 7 LED operational lights, 3 warning lamps, and 2 GPS indicator lights. These can typically be controlled via a dedicated channel on your remote controller.

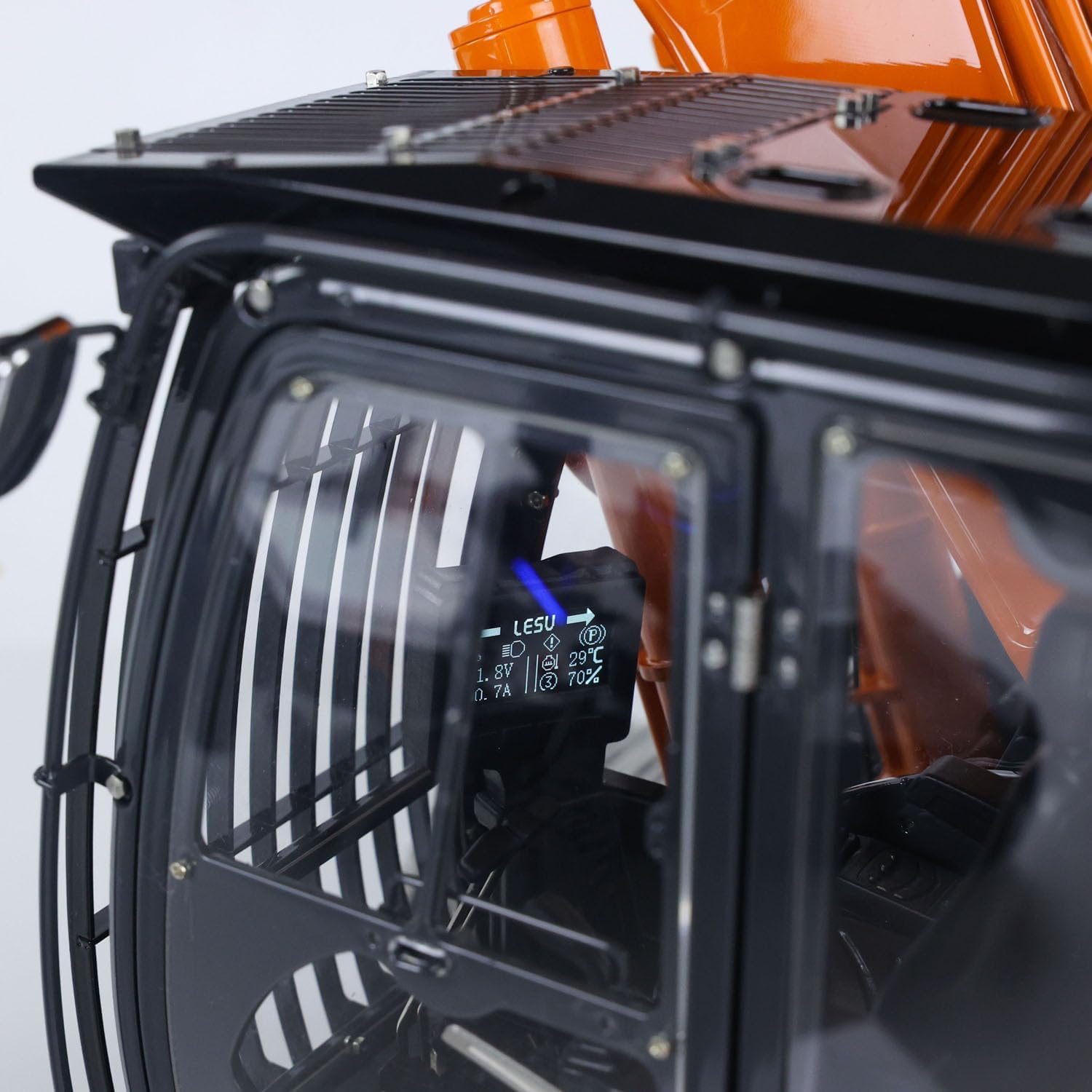

Figure 4: Interior view of the cab, showing the display with operational data.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your LESU Aoue Zx490 excavator.

• Cleaning: After each use, clean the model to remove dirt, dust, and debris. Pay special attention to the tracks, gears, and hydraulic cylinders. Use a soft brush and compressed air.
• Hydraulic System Check: Regularly inspect hydraulic lines and connections for leaks. Check the hydraulic oil level and top up as necessary. Replace oil periodically according to usage.
• Lubrication: Lubricate moving parts, such as pivot points and track components, with appropriate RC-grade lubricant.
• Fastener Check: Periodically check all screws and bolts for tightness. The modular architecture allows for easy disassembly and reassembly for detailed inspection.
• Electrical Connections: Ensure all electrical connections are secure and free from corrosion.
• Access Panels: Utilize the 9 openable access panels for convenient inspection and maintenance of internal components.

7. Troubleshooting

If you encounter issues with your excavator, refer to the following common troubleshooting steps:

• Model Not Responding:
  • Check if the battery is fully charged and properly connected.
  • Ensure the remote controller is powered on and correctly bound to the receiver.
  • Verify all electrical connections within the model are secure.
• Weak or Erratic Hydraulic Movement:
  • Check the hydraulic oil level and refill if low.
  • Inspect for air bubbles in the hydraulic system; bleed if necessary.
  • Look for any visible leaks in hydraulic lines or cylinders.
  • Ensure the pump motor is functioning correctly.
• Tracks Not Moving Properly:
  • Check for obstructions in the tracks or drive sprockets.
  • Ensure the track motors are connected and functioning.
  • Inspect tracks for damage or excessive wear.
• Lights Not Working:
  • Verify the light system's power connection.
  • Check the remote control channel assigned to lights.
  • Inspect individual LED connections.

For persistent issues, contact the manufacturer or an authorized service center.

8. Specifications

Detailed technical specifications for the LESU 1/14 RC Hydraulic Excavator Model Aoue Zx490:

Figure 5: Technical drawing illustrating key dimensions of the excavator.

9. Warranty and Support

For warranty information, technical support, or service inquiries regarding your LESU 1/14 RC Hydraulic Excavator Model Aoue Zx490, please contact the seller, Wheelfun RC Hobby, directly.

You can visit the Wheelfun Store on Amazon for more information or to contact their customer service.

Optional protection plans are available for purchase separately. Please refer to the details provided at the time of purchase for these plans.
