Redroad W15 Wet Dry Vacuum Cleaner User Manual

Introduction

This manual provides detailed instructions for the safe and efficient operation and maintenance of your Redroad W15 Wet Dry Vacuum Cleaner. Please read this manual thoroughly before first use and retain it for future reference.

Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

• Read all instructions before using this appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or filters in place.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use an appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C (265°F) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

Product Components

The Redroad W15 Wet Dry Vacuum Cleaner comes with the following components:

Image: The Redroad W15 Wet Dry Vacuum Cleaner main unit, charging base, cleaning brush, two roller brushes, two filters, and power adapter are included in the package.

• Main Vacuum Unit
• Charging Base
• Cleaning Brush
• Roller Brush (x2)
• Filter (x2)
• Power Adapter

Setup Guide

1. Unpacking: Carefully remove all components from the packaging.
2. Assembly: Attach the handle to the main vacuum body until it clicks into place.
3. Charging: Place the vacuum cleaner on the charging base. Connect the power adapter to the charging base and plug it into a wall outlet. Ensure the vacuum is fully charged before first use. The LED display will indicate charging status.

   Image: The Redroad W15 vacuum on its charging base, illustrating the fast charging and one-touch self-cleaning functions.
4. Fill Clean Water Tank: Press the clean water tank release button and remove the tank. Fill the tank with clean water (and a suitable cleaning solution if desired, following solution manufacturer's instructions). Do not exceed the MAX fill line. Reattach the tank securely.

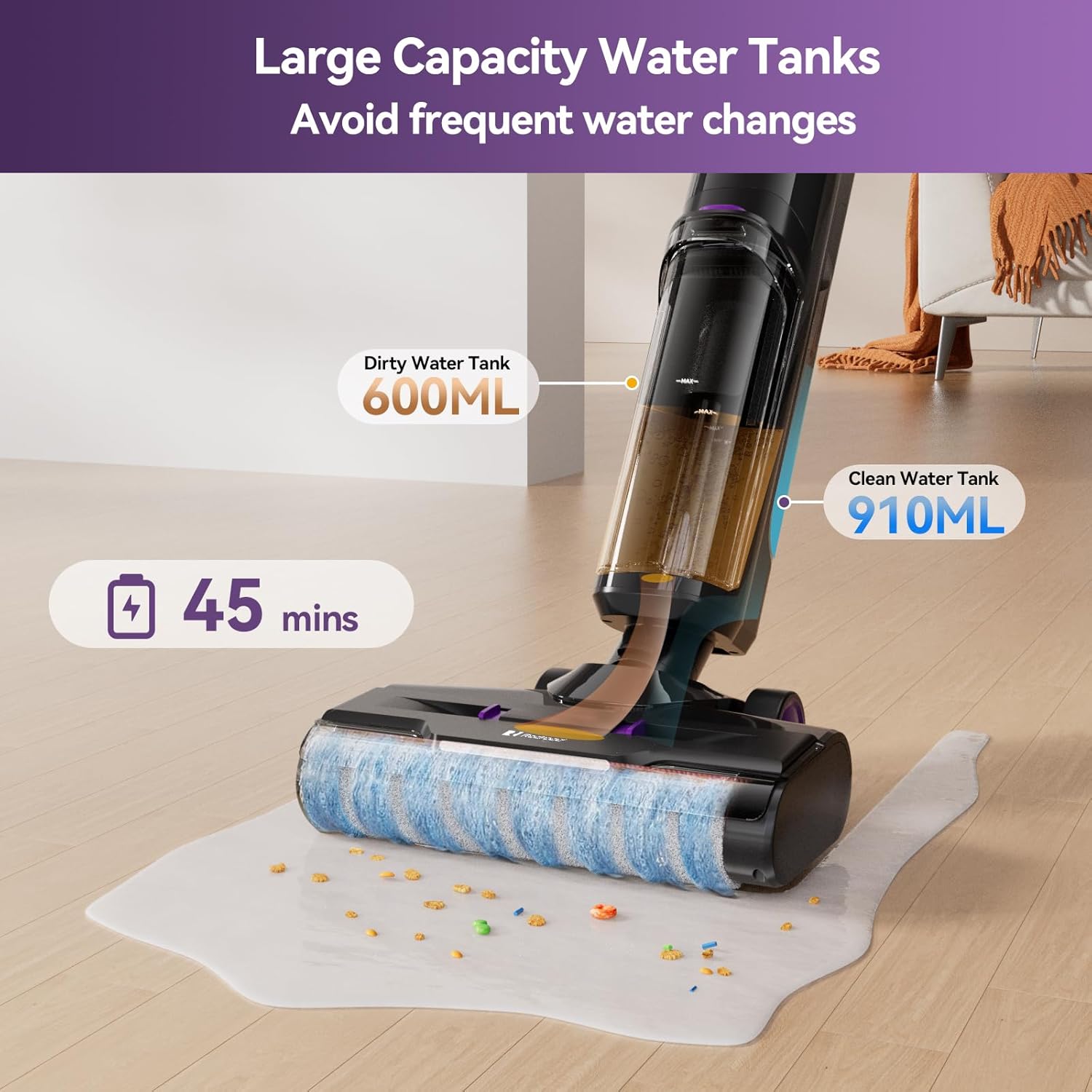

   Image: A close-up of the Redroad W15 vacuum highlighting the 910ml clean water tank and 600ml dirty water tank, indicating their large capacities.

Operating Instructions

Powering On and Mode Selection

Press the power button to turn on the vacuum cleaner. The LED display will activate, showing battery life and current cleaning mode. The Redroad W15 offers three adjustable cleaning modes:

• Standard Mode: For daily cleaning tasks.
• Turbo Boost Mode: For stubborn stains and heavy messes.
• Water Absorption Mode: For picking up liquid spills.

Switch between modes using the mode selection button on the handle. The vacuum also features voice guidance for effortless operation.

Image: The Redroad W15's LED display and voice assistant feature, showing battery life and cleaning modes, with visual examples of its cleaning capabilities on various messes.

Cleaning Process

Guide the vacuum cleaner across the floor. The self-propelled design assists in movement, reducing physical effort. The 150° swivel design allows for natural arm motion and maintains constant ground pressure for effective cleaning.

Image: The Redroad W15 vacuum cleaner showcasing its 150-degree flexibility, allowing it to conform to arm swing, reduce hardware damage, enhance stability, and maintain ground contact pressure during cleaning.

The vacuum is designed for efficient edge cleaning, reaching within 0.2 inches of walls and corners.

Image: The Redroad W15 vacuum cleaner effectively cleaning crevices and wall edges, including corners and under cabinet doors, with its less than 0.2-inch edge cleaning capability.

The Redroad W15 is suitable for various hard floor surfaces including hardwood, tile, stone, and laminate.

Maintenance

Self-Cleaning Function

After each use, place the vacuum cleaner on its charging base and activate the one-touch self-cleaning function. This automatically cleans the roller brush and internal tubing, ensuring the device is fresh for the next use.

Image: The Redroad W15 vacuum on its charging base, illustrating the fast charging and one-touch self-cleaning functions.

Emptying the Dirty Water Tank

Regularly empty the dirty water tank after each cleaning session to prevent odors and maintain hygiene. Press the release button to remove the tank, dispose of the contents, rinse the tank, and reattach it securely.

Image: A user demonstrating the removal of the dirty water tank from the Redroad W15 vacuum cleaner for emptying.

Filter Cleaning

The high-efficiency HEPA filter cartridge can be washed with water to intercept dust and restore filtration effectiveness. Ensure the filter is completely dry before reinserting it into the vacuum cleaner.

Image: A demonstration of washing the high-efficiency HEPA filter cartridge under running water to maintain its effectiveness.

Troubleshooting

If you encounter issues with your Redroad W15 Wet Dry Vacuum Cleaner, please refer to the following common solutions:

If the problem persists after attempting these solutions, please contact customer support.

Specifications

Warranty and Support

The Redroad W15 Wet Dry Vacuum Cleaner comes with a 2-year limited warranty. For warranty claims, technical support, or any inquiries, please contact Redroad customer service.

Manufacturer Contact Information: after-sales@redroadglobal.com

Please retain your proof of purchase for warranty purposes.
