Introduction
Thank you for choosing the Lindby Danika Dimmable Pendant Lamp. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
Image: The Lindby Danika Dimmable Pendant Lamp featuring three black metal cage shades, suspended above a dining table, providing ambient lighting.
Safety Instructions
Always observe the following safety precautions to prevent injury or damage:
- Electrical Installation: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Power Disconnection: Always disconnect the main power supply at the circuit breaker before attempting any installation, maintenance, or bulb replacement.
- Voltage: Ensure the supply voltage matches the lamp's requirements (230V).
- Bulb Type: Use only E27 LED bulbs as specified. Do not exceed the maximum wattage of 15W per bulb.
- Indoor Use Only: This lamp is designed for indoor use (IP20 protection class) and is not water-resistant. Do not install in damp or wet locations.
- Handling: Handle the lamp with care. Avoid dropping or subjecting it to strong impacts.
- Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
For detailed safety information, please refer to the official safety document: Safety Information (PDF).
Package Contents
Carefully unpack the box and ensure all components are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact customer support.
- 1 x Lindby Danika Pendant Lamp fixture (including ceiling bar, cables, and 3 lamp shades)
- Mounting hardware (screws, wall plugs)
- Instruction Manual
Note: Light bulbs are NOT included and must be purchased separately.
Specifications
| Brand | Lindby |
| Model Name | Danika |
| Model Number | 10030660 |
| Material | Metal |
| Color | Black |
| Dimensions (L x W x H) | 105 cm x 23.5 cm x 20.5 cm (fixture only) |
| Max. Suspension Length | Approx. 150 cm (adjustable) |
| Weight | 2.27 kg |
| Number of Lights | 3 |
| Bulb Socket | E27 |
| Recommended Bulb Type | LED, max. 15W per bulb |
| Operating Voltage | 230V AC |
| Protection Class | I |
| IP Rating | IP20 (Indoor use only, not water resistant) |
| Style | Modern |
| Dimmable | Yes (requires dimmable bulbs and compatible dimmer switch, not included) |
Image: Technical diagram illustrating the dimensions of the Lindby Danika pendant lamp, including the 85 cm ceiling bar length, 150 cm maximum suspension, and 12 cm shade diameter.
Setup and Installation
WARNING: Installation must be carried out by a qualified electrician. Ensure the main power supply is switched off at the circuit breaker before commencing any work.
- Preparation: Turn off the electricity at the main fuse box or circuit breaker. Clear the work area and gather all necessary tools (screwdriver, wire strippers, drill, etc.).
- Marking and Drilling: Hold the ceiling bar (PT07) against the ceiling at the desired installation point. Mark the positions for the mounting holes. Drill holes suitable for the provided wall plugs.
- Mounting the Ceiling Bar: Insert the wall plugs into the drilled holes. Secure the ceiling bar to the ceiling using the provided screws.
- Electrical Connection: Connect the lamp's electrical wires to the household wiring. Ensure correct polarity (Live, Neutral, Earth). Use appropriate terminal blocks if necessary. Double-check all connections for security.
- Adjusting Suspension Length: The suspension cables for each lamp can be adjusted. Carefully feed the cables through the ceiling bar to achieve the desired height for each shade. Secure the cables once adjusted.
- Installing Bulbs: Screw E27 LED bulbs (max 15W each, not included) into the lamp holders.
- Final Check: Ensure all connections are secure and the lamp is firmly mounted. Restore power at the circuit breaker.

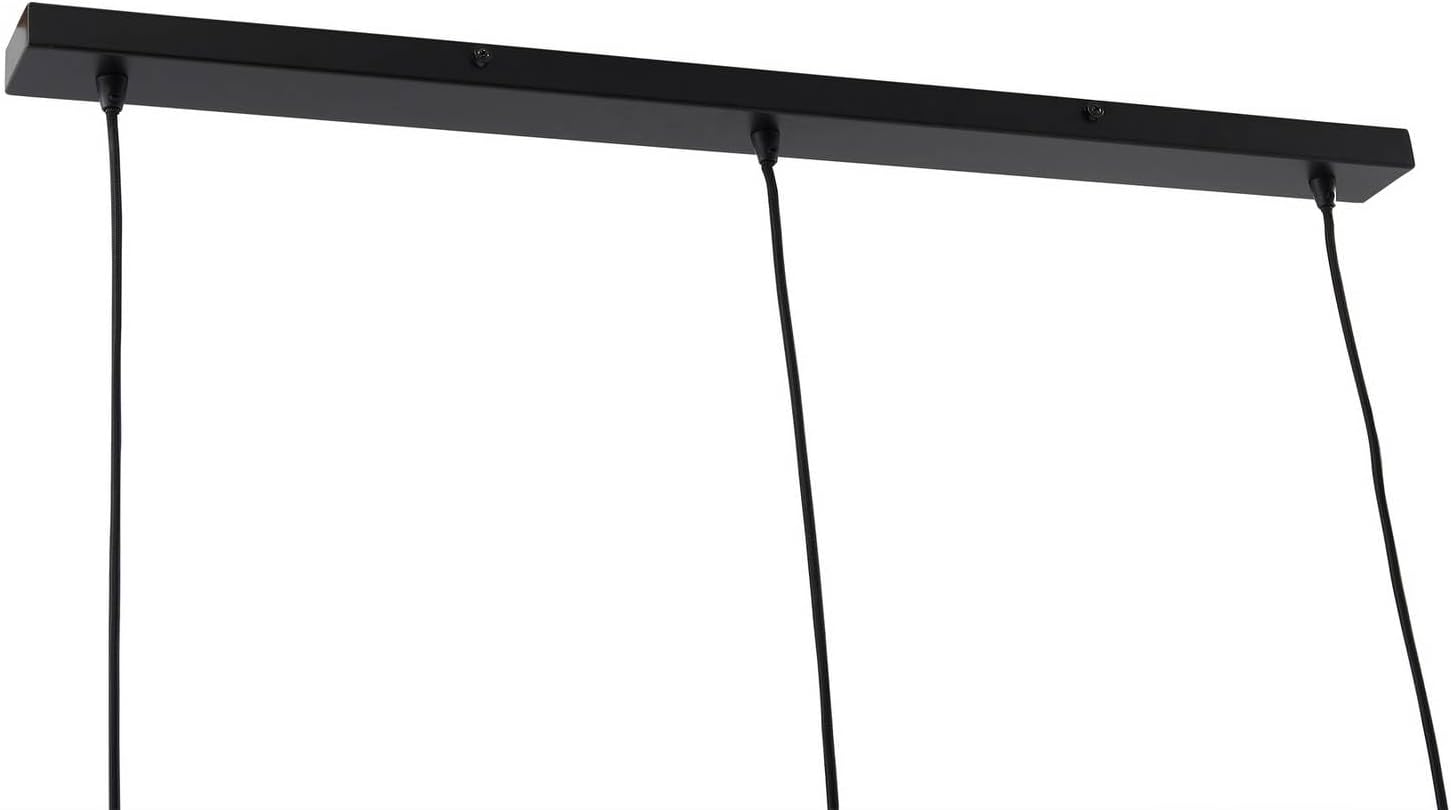

Image: A detailed view of the black metal ceiling bar component of the Lindby Danika pendant lamp, showing the mounting points and cable entries.

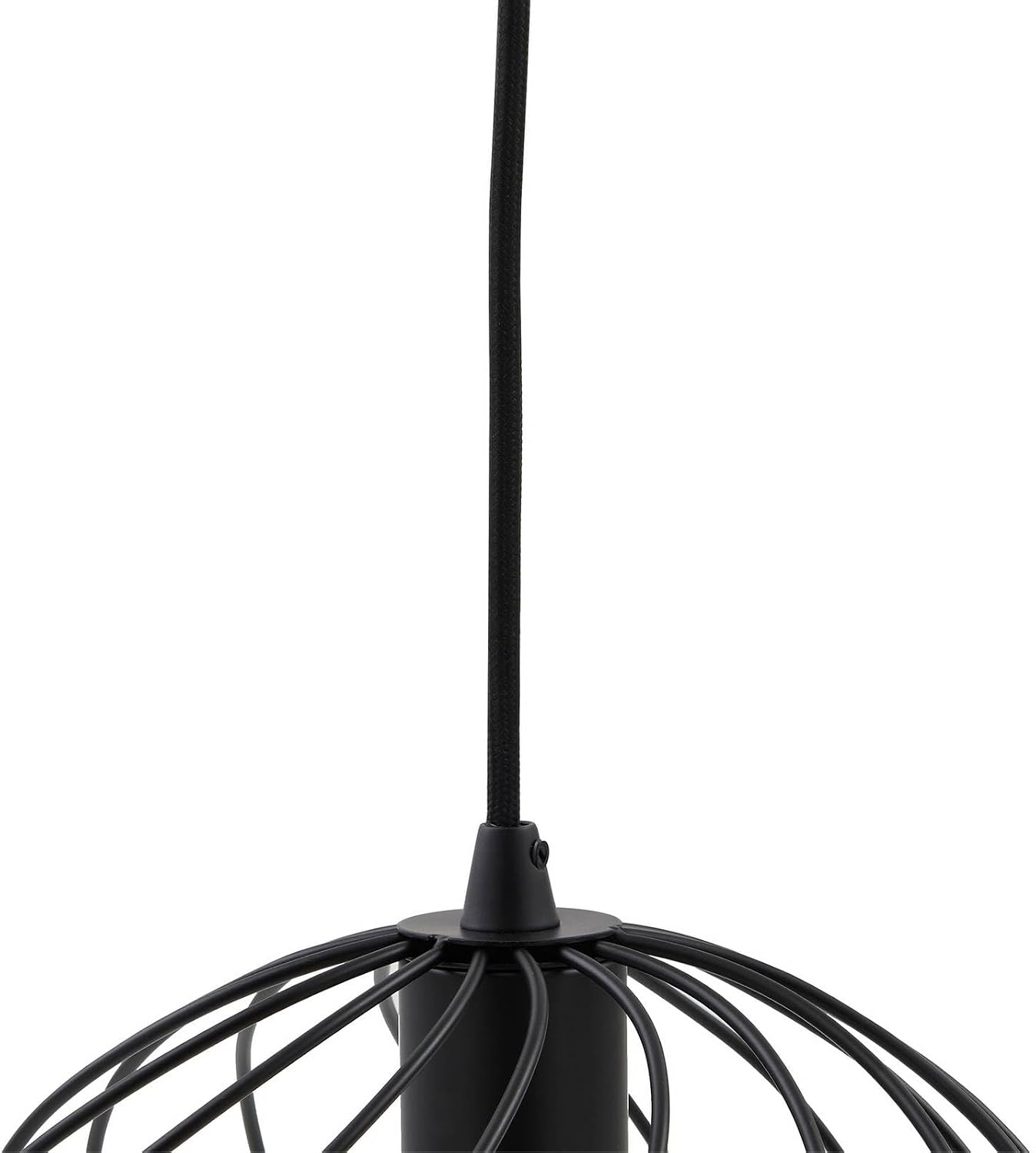

Image: A close-up showing the black textile cable entering the top of one of the Lindby Danika lamp's metal cage shades, highlighting the connection point.
Operating Instructions
The Lindby Danika Pendant Lamp is designed for simple operation.
- Turning On/Off: Operate the lamp using your standard wall light switch.
- Dimming Function: If you have installed dimmable E27 LED bulbs and a compatible dimmer switch in your electrical circuit, you can adjust the light intensity using the dimmer switch.
- Bulb Replacement: Before replacing a bulb, ensure the power supply to the lamp is switched off at the circuit breaker. Allow the old bulb to cool down completely. Unscrew the old bulb and screw in a new E27 LED bulb (max 15W).
Image: A close-up view of an E27 LED bulb positioned within the intricate black metal cage design of the Lindby Danika pendant lamp shade.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your lamp.
- Cleaning: Disconnect power before cleaning. Use a soft, dry, lint-free cloth to wipe the metal surfaces and shades. Do not use liquid cleaners, abrasive materials, or chemical solvents, as these can damage the finish.
- Inspection: Periodically check the lamp for any signs of wear, loose connections, or damage. If any issues are found, disconnect power and consult a qualified electrician.
- Bulb Replacement: Replace bulbs as needed following the instructions in the 'Operating Instructions' section.
Troubleshooting
If you encounter issues with your Lindby Danika Pendant Lamp, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up | No power supply Faulty bulb Loose wiring connection | Check circuit breaker and wall switch. Replace bulb with a new, working E27 LED bulb. Ensure power is off, then check all wiring connections. Consult an electrician if unsure. |
| Light flickers | Loose bulb Incompatible dimmer switch/bulb Unstable power supply | Tighten the bulb securely. Ensure both bulbs and dimmer are compatible for dimming. Replace if necessary. Consult an electrician to check household wiring. |
| Dimming function not working | Non-dimmable bulbs Incompatible dimmer switch Faulty dimmer switch | Install dimmable E27 LED bulbs. Ensure the dimmer switch is compatible with LED bulbs. Replace the dimmer switch. |
If the problem persists after attempting these solutions, please contact customer support or a qualified electrician.
Warranty and Support
Lindby products are manufactured to high-quality standards. This product is covered by the standard warranty provided by the seller, Lampenwelt.
- Return Policy: You may be eligible for a refund or replacement within 14 days of purchase, subject to the seller's return policy.
- Customer Service: For any questions regarding the product, installation, or warranty claims, please contact the seller, Lampenwelt, directly.
You can find the seller's profile and contact information here: Lampenwelt Seller Profile.
