1. Introduction
This manual provides instructions for the safe and effective use of your SLLEA AC Adapter, model PRDMCA-25515-432. This adapter is designed to provide consistent and efficient power to compatible electronic devices, including the CONTEC CMS-VESD Visual Digital Stethoscope.
2. Important Safety Information
Please read all safety warnings before using this product.
- Do not open or modify the power supply, power cord, or power cable. Unauthorized modifications can lead to electric shock or fire.
- Keep children away from high voltage power sources.
- Use this product only under professional electrician's guidance if you are unsure about electrical safety.
- Any abuse or improper use will void the product warranty.
- Ensure the total wattage of the connected device does not exceed the maximum wattage specified on the adapter's label.
- For optimal performance and to prevent overheating, it is recommended to de-rate the adapter by 10%-20% when in continuous use.
3. Product Overview
The SLLEA AC Adapter is engineered for durability and reliable performance, featuring multiple protection mechanisms to safeguard your devices.
Key Features:
- Input Voltage: AC 100-240V, 50-60Hz, suitable for worldwide use.
- Plug Type: US prong.
- Robust Construction: Crafted from premium materials for durability and resistance to wear and tear.
- Streamlined Power Supply: Delivers consistent and efficient power for swift and effective device charging.
- Comprehensive Device Protection: Integrated safety features protect against overcurrent, overvoltage, and overheating.
- Compatibility: This is a replacement adapter, tested to work with models specified in the product title, such as the CONTEC CMS-VESD Visual Digital Stethoscope.

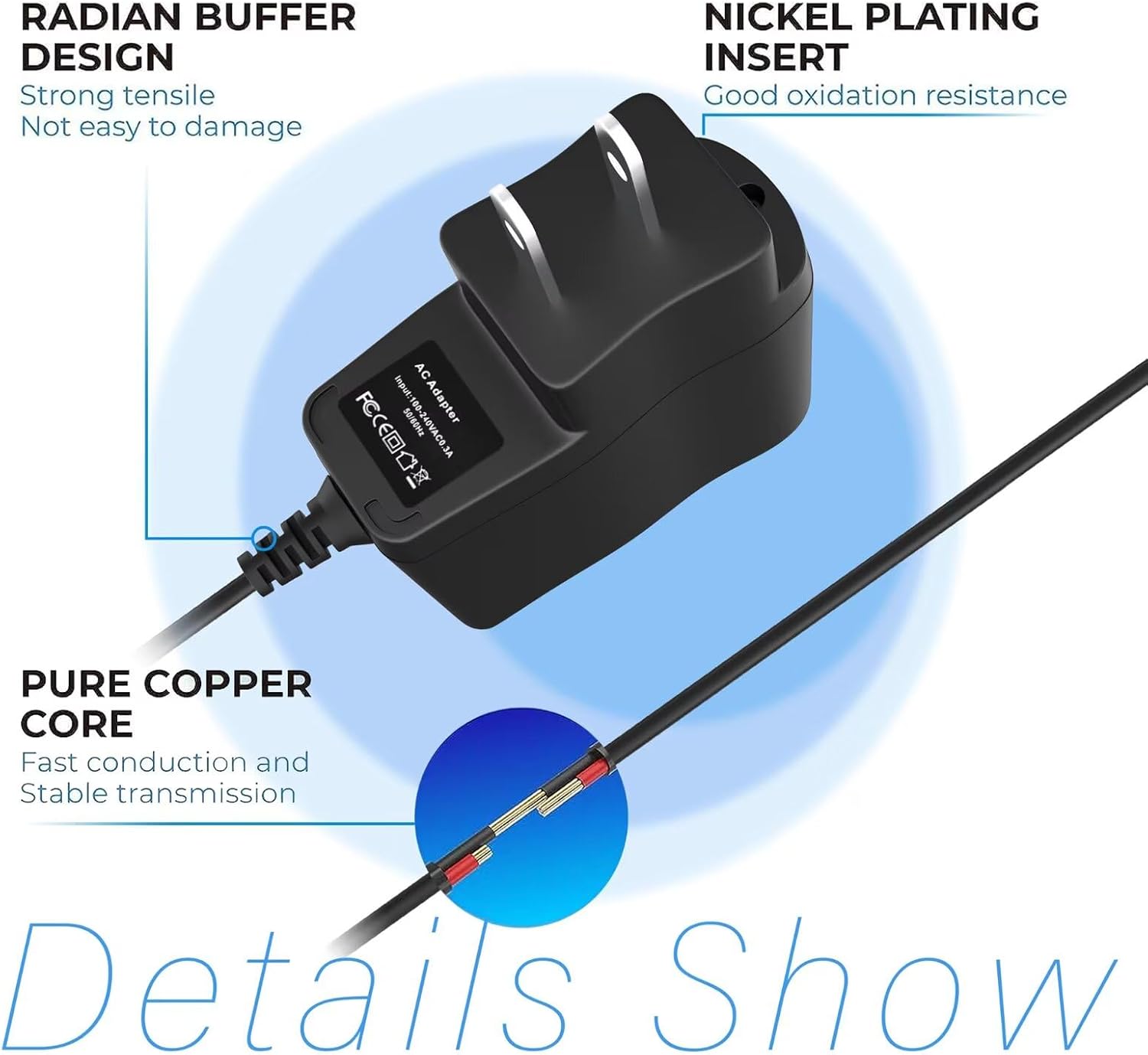

Image 3.1: Internal components and cable construction of the SLLEA AC Adapter, highlighting the radian buffer design, nickel plating insert, and pure copper core for stable transmission.
Image 3.2: Visual representation of the adapter's characteristics, including high quality soft wire, toxic-free and safe materials, efficient and stable performance, high fire harmless rating, non-toxic, and high durability.
Image 3.3: Illustration of the adapter's multiple protection design, including over-load, over-charge, over-voltage, and over-current protection, ensuring device safety.
4. Setup Instructions
- Identify Device Requirements: Before connecting, confirm the voltage, current, and plug type required by your electronic device.
- Verify Adapter Compatibility: Ensure the SLLEA AC Adapter's specifications (Input Voltage: AC 100-240V, Output Voltage/Current as per adapter label, US prong) match your device's requirements.
- Connect to Device: Insert the adapter's output connector securely into your device's power input port.
- Connect to Power Outlet: Plug the adapter's US prong into a standard AC 100-240V wall outlet.
5. Operating Instructions
Once properly connected, the SLLEA AC Adapter will automatically begin supplying power to your device. No further action is typically required for operation.
- Monitor your device to ensure it is receiving power or charging correctly.
- Unplug the adapter from the wall outlet and your device when not in use or when the device is fully charged to conserve energy and prolong product life.
6. Maintenance
- Cleaning: Keep the adapter clean and dry. Use a soft, dry cloth to wipe off any dust or dirt. Do not use liquid cleaners.
- Storage: Store the adapter in a cool, dry place away from direct sunlight and extreme temperatures.
- Inspection: Periodically inspect the adapter, cable, and connectors for any signs of damage, such as frayed wires, cracks, or bent prongs. Discontinue use immediately if any damage is found.
7. Troubleshooting
Common Issues and Solutions:
- No Power to Device:
- Ensure the adapter is securely plugged into both the wall outlet and the device.
- Check if the wall outlet is functional by plugging in another device.
- Verify that the adapter's specifications (voltage, current) are compatible with your device.
- Inspect the adapter and cable for any visible damage.
- Adapter Overheating:
- Ensure the adapter is used in a well-ventilated area and not covered.
- Confirm that the connected device's wattage does not exceed the adapter's maximum capacity. Consider de-rating as suggested in the safety information.
- If overheating persists, discontinue use and contact support.
- Device Not Charging Properly:
- Ensure all connections are firm.
- Check if the device's charging port is clean and free of debris.
- Verify that the adapter is the correct type for your device.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | SLLEA |
| Model Number | PRDMCA-25515-432 |
| Input Voltage | AC 100-240V |
| Input Frequency | 50-60Hz |
| Plug Type | US Prong |
| Product Dimensions | 4 x 3 x 2 inches |
| Color | Black |
| Connector Type | Jack |
| Compatible Devices | CONTEC CMS-VESD Visual Digital Stethoscope, Tablets, and other compatible electronics |
| Manufacturer | DONGGUAN RONG HANG ELECTRONIC TECHNOLOGY CO LTD |
Image 8.1: Dimensions of the SLLEA AC Adapter, showing measurements of 1 inch, 1.64 inches, and 2.25 inches for various parts of the unit.
9. Warranty and Support
This SLLEA AC Adapter is covered by a standard limited warranty. Please note that any abuse or improper use of the product will void this warranty.
For technical support, warranty claims, or further assistance, please contact SLLEA customer service through their official channels or the retailer from whom the product was purchased.
