Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your PRIOS Maikel LED Outdoor Wall Light. Please read these instructions carefully before installation and retain them for future reference.
The PRIOS Maikel is a modern, black aluminum outdoor wall light designed to provide powerful and aesthetic illumination with fixed LEDs. It features an IP65 protection rating, making it suitable for outdoor use, and is energy-efficient.
Safety Instructions
WARNING: Electrical installation should only be performed by a qualified electrician.
- Ensure the main power supply is switched off before commencing any installation or maintenance work.
- This product is designed for outdoor use with an IP65 rating, protecting against dust and low-pressure water jets.
- Do not modify the product in any way. Unauthorized modifications may void the warranty and pose safety risks.
- Keep packaging materials away from children.
- The light source of this luminaire is not replaceable; when the light source reaches its end of life, the entire luminaire shall be replaced.
Package Contents
Verify that all components are present before installation.
- 1 x PRIOS Maikel LED Outdoor Wall Light (with integrated LED light source)
- Mounting hardware (screws, wall plugs)
- Instruction Manual (this document)
Setup and Installation
Follow these steps for proper installation. Ensure all safety instructions are observed.
- Turn off power: Before starting, switch off the main power supply at the circuit breaker to prevent electrical shock.
- Choose mounting location: Select a suitable outdoor wall surface for installation. Consider the desired light distribution and accessibility for wiring.
- Mark drilling points: Use the mounting bracket of the luminaire as a template to mark the drilling points on the wall.
- Drill holes: Drill holes at the marked positions using an appropriate drill bit for your wall material. Insert wall plugs if necessary.
- Secure mounting bracket: Attach the mounting bracket securely to the wall using the provided screws.
- Electrical connection: Connect the luminaire's electrical wires to your main power supply wires. Ensure correct polarity (Live, Neutral, Earth). This step must be performed by a qualified electrician.
The luminaire operates on 230 Volts AC.
- Mount the luminaire: Attach the PRIOS Maikel LED Outdoor Wall Light to the secured mounting bracket. Ensure it is firmly in place.
- Adjust angle: The light features an adjustable bracket. Loosen the side screws slightly to adjust the angle of the light beam, then tighten them to secure the position.
Image: The PRIOS Maikel LED Outdoor Wall Light installed on an exterior wall, demonstrating its illumination.
- Restore power: Once installation is complete and all connections are secure, restore power at the circuit breaker.
- Test functionality: Turn on the light switch to verify the luminaire is functioning correctly.
Image: Close-up view of the PRIOS Maikel LED Outdoor Wall Light, highlighting the integrated LED array and the adjustable mounting bracket.
Image: Diagram illustrating the dimensions of the PRIOS Maikel LED Outdoor Wall Light, with a width of 10.8 cm and a height of 11.4 cm.
Operating Instructions
The PRIOS Maikel LED Outdoor Wall Light is designed for simple operation. Once correctly installed and connected to a power source, it will illuminate when the connected light switch is activated.
- Switching On/Off: Use the wall switch connected to the luminaire to turn the light on or off.
- Adjusting Light Angle: If needed, the light's angle can be adjusted after installation by loosening the side screws on the bracket, repositioning the light, and then tightening the screws firmly.
Maintenance
The PRIOS Maikel LED Outdoor Wall Light requires minimal maintenance.
- Cleaning: To clean the luminaire, ensure the power is off. Use a soft, damp cloth to wipe the surface. Do not use abrasive cleaners or solvents, as these can damage the finish.
- Inspection: Periodically inspect the luminaire and its wiring for any signs of damage or wear. If any damage is observed, disconnect power immediately and consult a qualified electrician.
- Light Source: The integrated LED light source is not user-replaceable. If the LEDs fail, the entire luminaire must be replaced.
Troubleshooting
If you encounter issues with your PRIOS Maikel LED Outdoor Wall Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply; Loose wiring; Faulty switch; Integrated LED failure | Check circuit breaker and wall switch. Ensure all wiring connections are secure (consult electrician). If LEDs are confirmed faulty, the unit needs replacement. |
| Light flickers | Unstable power supply; Loose wiring | Check power supply stability. Verify wiring connections are secure (consult electrician). |
| Water inside the luminaire | Improper installation; Damaged seal | Immediately disconnect power. Inspect installation for proper sealing. If seals are damaged, the unit may need replacement. |
| Light is dim | Dirt or debris on the lens; Aging LEDs | Clean the lens with a soft, damp cloth. If LEDs are aging, replacement of the unit may be necessary. |
Specifications
| Brand | PRIOS |
| Model Number | 10017752 |
| Material | Aluminium, Plastic |
| Color | Black |
| Dimensions (L x W x H) | 2.8 x 10.8 x 11.4 cm |
| Weight | 220 g |
| Light Source | Integrated LED |
| Power | 20 Watts |
| Luminous Flux | 1620 lm |
| Color Temperature | 3000 Kelvin |
| Voltage | 230 Volts (AC) |
| Protection Rating | IP65 |
| Protection Class | I |
| Energy Efficiency Class | F |
| Usage | Outdoor |
For detailed energy information, refer to the EU energy label:

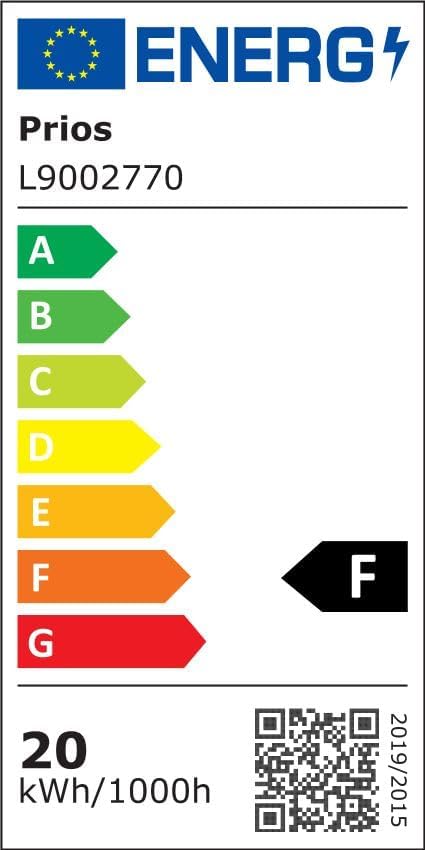

Image: EU Energy Label for the PRIOS Maikel LED Outdoor Wall Light, indicating an energy efficiency class of F and consumption of 20 kWh per 1000 hours.
Further information can be found on the EPREL database: https://eprel.ec.europa.eu/qr/748217
Warranty and Support
PRIOS products are manufactured to high-quality standards. For any questions regarding the product, installation, or warranty claims, please contact your retailer or the manufacturer directly.
The manufacturer, PRIOS, is committed to customer satisfaction.
Disposal
This product should not be disposed of with household waste. It must be taken to an appropriate collection point for the recycling of electrical and electronic equipment. Contact your local authority for information on disposal and recycling.
