Introduction
This manual provides essential information for the safe and proper assembly, operation, and maintenance of your FunXplore Wooden Kids Sandbox with Lid and Picnic Table. This 2-in-1 design allows children to transition seamlessly from sand play to snack time at the attached picnic table. It features an adjustable canopy for sun protection and a bottomless design with a non-woven sand screen for drainage. Designed for children aged 2-8 years, this product is built from durable fir wood with eco-friendly water-based stains.
Safety Information
Please read and understand all safety warnings before assembly and use. Adult supervision is required at all times when children are using the sandbox. Ensure the product is placed on a level surface to prevent tipping. Regularly inspect all components for wear or damage. Do not allow children to climb on the canopy structure. Keep small parts away from young children during assembly to prevent choking hazards.
- Ensure all bolts and fasteners are securely tightened before use.
- Do not overload the picnic table; it is designed to hold up to 200 lbs.
- Monitor children during play to prevent ingestion of sand or small objects.
- The product is not sealed; consider additional weather protection for prolonged outdoor exposure.
Parts List
Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
| Part | Description | Quantity |
|---|---|---|
| Wooden Panels | For sandbox frame and picnic table | Various |
| Canopy Fabric | Adjustable roof for shade | 1 |
| Canopy Support Poles | Wooden poles for canopy structure | 2 |
| Non-Woven Sand Screen | Bottom liner for sand containment and drainage | 1 |
| Hardware Pack | Screws, bolts, nuts, and tools for assembly | 1 set |
Setup and Assembly
Assembly typically requires two adults. Follow the included step-by-step instructions carefully. Ensure all connections are secure before use.
- Unpack and Organize: Carefully unpack all components and lay them out on a clean, flat surface. Verify all parts against the parts list.
- Assemble Sandbox Frame: Connect the wooden side panels to form the sandbox base using the provided hardware. Ensure the corners are flush and secure.
- Install Sand Screen: Place the non-woven sand screen inside the assembled sandbox frame. While the screen contains sand, it does not attach directly to the frame, allowing for proper drainage.
- Assemble Picnic Table: Construct the picnic table and benches according to the diagram. Attach it to the sandbox frame using the designated hinges and bolts.
- Attach Canopy Support Poles: Securely fasten the two canopy support poles to the sandbox frame.
- Install Canopy: Drape and secure the canopy fabric onto the support poles. Ensure it is taut and properly aligned.
- Final Check: Double-check all screws, bolts, and connections to ensure they are tight and secure.
Figure 1: Key features including canopy adjustment and table configurations.
Figure 2: Various configurations and uses of the sandbox.
Operating Instructions
2-in-1 Sandbox and Picnic Table Functionality
The FunXplore sandbox is designed for versatile play and dining. Children can enjoy sand play within the designated sandpit area, while the attached picnic table provides a convenient space for snacks, crafts, or other activities.
Figure 3: The 2-in-1 design for play and dining.
Canopy Adjustment
The canopy offers adjustable height and tilt options to provide optimal shade and protection from sunlight or light rain. The canopy can be adjusted from 37.8 inches to 50.8 inches in height. It also features 360-degree rotation for flexible positioning.
- To adjust the canopy height, loosen the adjustment knobs on the support poles, slide the canopy to the desired height, and re-tighten the knobs.
- To tilt or rotate the canopy, gently adjust its position on the support poles.
Figure 4: Canopy in open and closed positions.
Folding the Picnic Table into a Lid
The picnic table can be folded down to act as a lid, covering the sandbox when not in use. This helps protect the sand from weather elements and debris. To fold the picnic table, remove the four side bolts that secure it in the open position. With the assistance of another adult, carefully fold the table inwards over the sandbox. Ensure the canopy is adjusted to allow for the table to fold completely.
Video 1: Demonstration of the sandbox and picnic table features, including the folding mechanism.
Maintenance
Regular maintenance will extend the life of your sandbox. The product is constructed from durable fir wood with eco-friendly water-based stains. However, it is important to note that the wood is not sealed for extreme weather conditions.
- Cleaning: Clean the wooden surfaces with a damp cloth and mild soap as needed. Avoid harsh chemicals.
- Wood Protection: While the wood is stained, applying an additional weather-resistant sealant annually is recommended to protect against prolonged exposure to sun, rain, and temperature fluctuations, especially in harsh climates.
- Hardware Check: Periodically check all screws, bolts, and connections for tightness. Re-tighten as necessary to ensure structural integrity.
- Sand Screen: The non-woven sand screen allows for water drainage. Ensure it remains free of large debris to maintain proper function.
- Canopy Care: Clean the canopy fabric with a damp cloth. If storing for extended periods, ensure the canopy is dry to prevent mildew.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Picnic table does not fold smoothly or completely. | Side bolts not fully removed; canopy obstruction; misaligned hinges. | Ensure all four side bolts are removed. Adjust canopy position. Check hinge alignment and lubricate if necessary. |
| Wood appears brittle or shows signs of wear after a few months. | Lack of additional weather protection; prolonged exposure to harsh elements. | Apply a weather-resistant sealant to the wood. Consider covering the sandbox during extreme weather or off-season. |
| Sand screen does not stay in place. | The screen is designed to be bottomless for drainage and does not attach to the frame. | This is normal operation. The screen is intended to contain sand while allowing water to pass through. |
| Canopy is difficult to adjust. | Adjustment knobs are too tight; mechanism is stiff. | Loosen adjustment knobs sufficiently. Apply a silicone-based lubricant to the sliding parts if needed. |
Specifications
- Product Dimensions: 76.4 x 47.2 x 51 inches
- Recommended Age: 3 years and up (suitable for 2-8 years)
- Material: Fir Wood with eco-friendly water-based stains
- Picnic Table Weight Capacity: 200 lbs
- Canopy Adjustment Range: 37.8" to 50.8" (height)
- Model Number: PD-1021
- Manufacturer: FunXplore

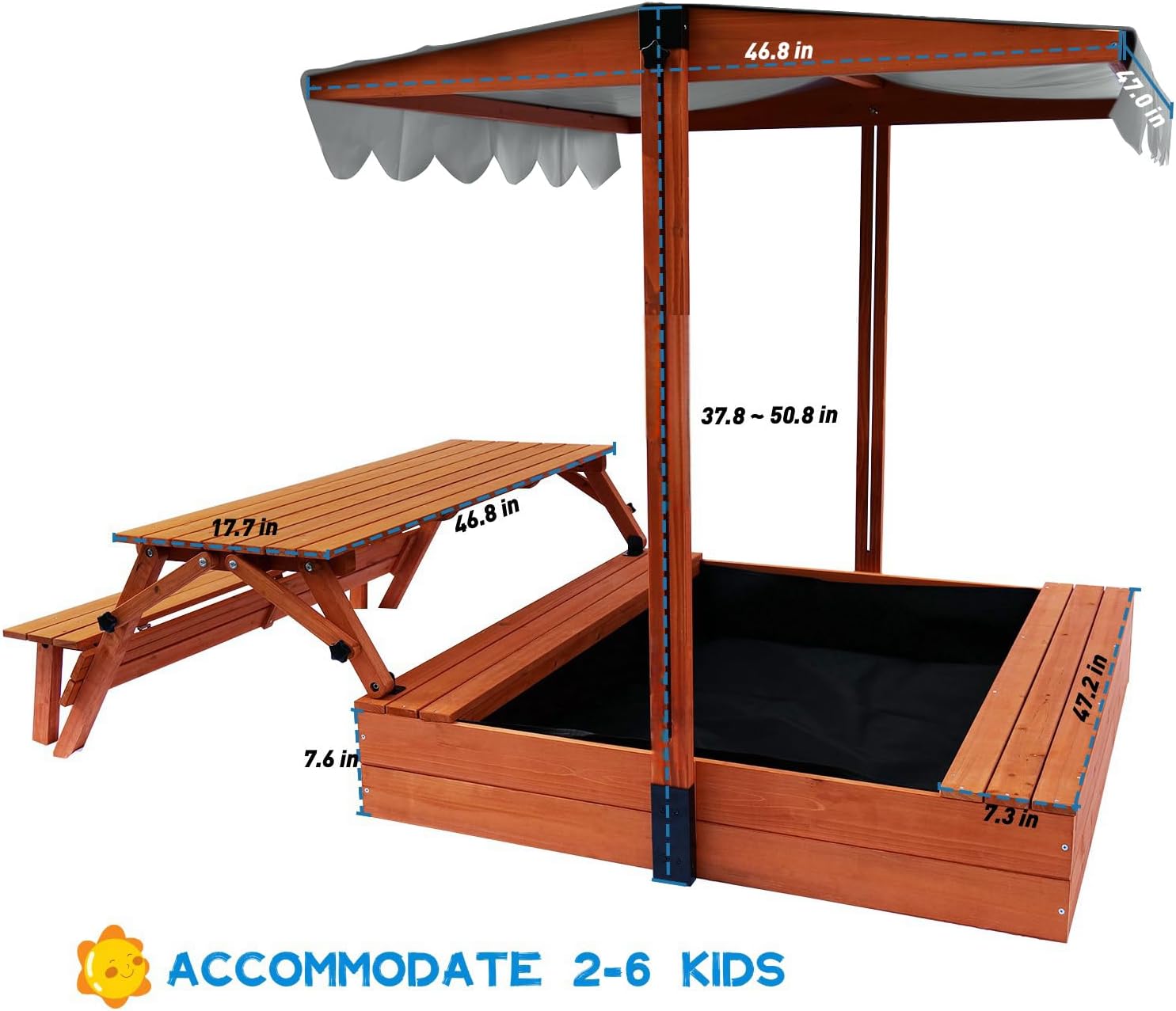

Figure 5: Product dimensions.
Warranty and Support
For warranty information or technical support, please contact FunXplore customer service. Keep your purchase receipt as proof of purchase. While specific warranty details are not provided in this manual, FunXplore is committed to customer satisfaction.
For further assistance, please visit the FunXplore Store on Amazon.
