1. Introduction
The TEXLIFT US-TXL88 is a full electric mini skid steer loader designed for various material handling and construction tasks. It features a robust design, powered by a reliable lead-acid battery, offering a cleaner and quieter alternative to traditional diesel machines. This manual provides essential information for safe and efficient operation, maintenance, and troubleshooting.

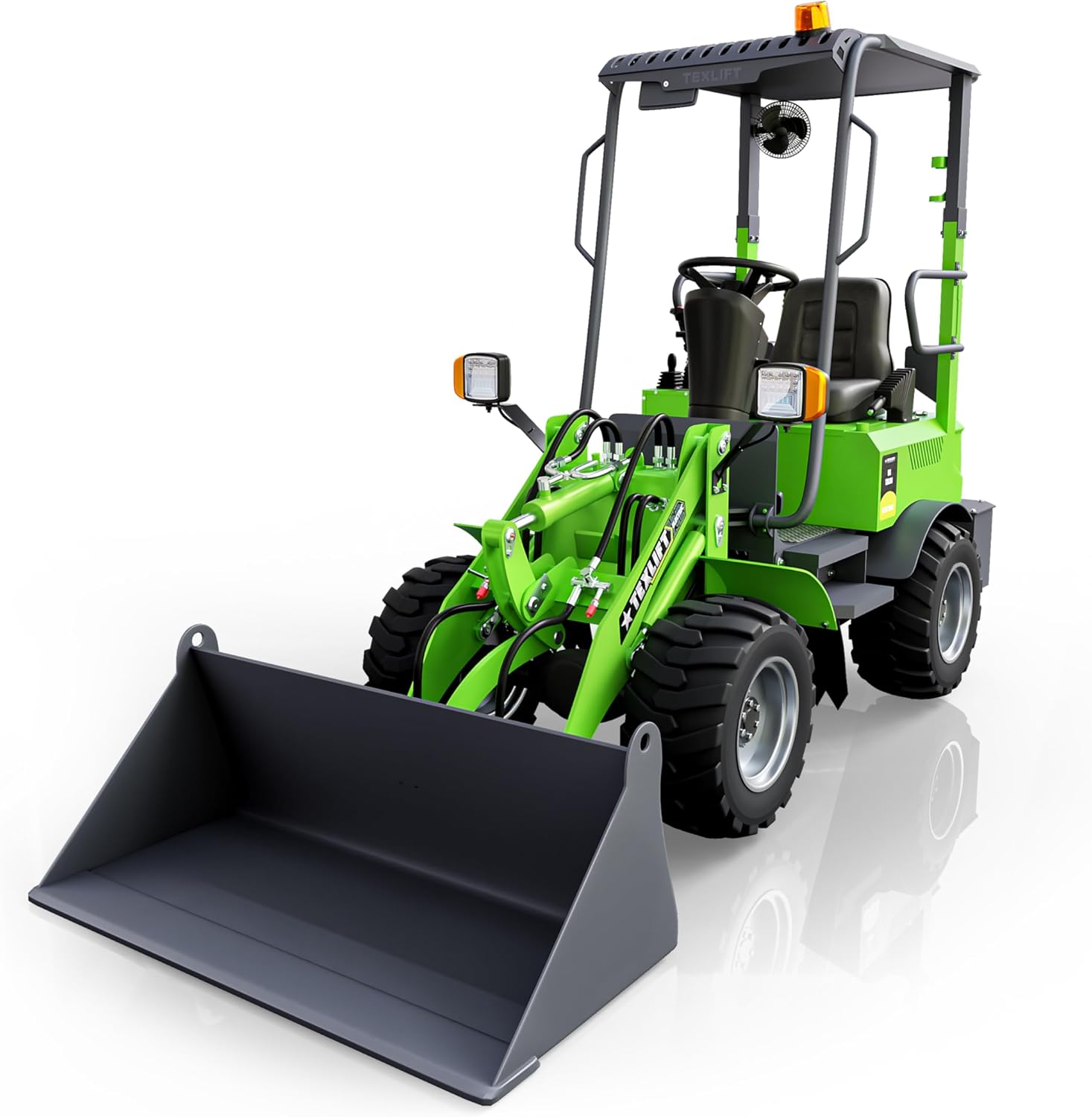

Image 1: TEXLIFT Full Electric Mini Skid Steer Loader (US-TXL88) with wide bucket.
Key Features:
- Loading Capacity: 880 lbs, designed for handling heavy loads.
- Full Electric Powertrain: Offers cleaner, quieter, and more efficient operation, suitable for environmentally sensitive areas.
- Lead Acid Battery: Provides reliable and cost-effective power.
- Wide Range of Attachments: Compatible with various attachments including small digger, pallet fork, 4-in-1 bucket, round bale clamp, and auger.
- Intuitive Controls: Easy-to-understand and logically laid out controls reduce operator error and improve safety.
2. Setup
2.1 Initial Inspection
Upon delivery, carefully inspect the loader for any signs of damage during transit. Ensure all components are present according to the packing list. Verify that all hydraulic lines and electrical connections are secure.
2.2 Battery Connection and Charging
The loader is powered by a lead-acid battery. Before first use, ensure the battery is fully charged. Connect the charger according to the manufacturer's instructions. Always ensure the main power switch is in the OFF position before connecting or disconnecting the battery.
2.3 Attaching Implements
The loader features a quick-change attachment system. To attach an implement:
- Position the loader in front of the desired attachment.
- Align the loader's attachment plate with the implement's mounting points.
- Engage the locking pins or levers to secure the attachment.
- Connect any necessary hydraulic lines, ensuring they are clean and free of debris.
Refer to the specific attachment's manual for detailed connection instructions.
Image 2: TEXLIFT Mini Skid Steer Loader demonstrating various compatible attachments.
3. Operating Instructions
3.1 Starting the Loader
Before starting, ensure the area around the loader is clear and all safety guards are in place. The loader features intuitive controls designed for ease of use.
- Engage the main power switch (if applicable).
- Insert the key into the ignition and turn to the ON position.
- Adjust the throttle as needed.
Video 1: Demonstration of starting and basic operation of the Full Electric Mini Skid Steer Wheel Loader.
3.2 Control Levers
The loader is operated using two main control levers (joysticks) and a foot pedal for auxiliary functions.
Image 3: Close-up of the TEXLIFT Mini Skid Steer Loader's control panel, showing joysticks, gauges, and switches.
- Left Joystick: Controls the lift and lower of the loader arm. Moving it forward lowers the arm, and pulling it backward raises the arm.
- Right Joystick: Controls the tilt of the bucket/attachment. Moving it forward tilts the bucket down (dump), and pulling it backward tilts it up (curl).
- Foot Pedals: Used for forward and reverse movement, and steering. Pressing both forward moves the loader forward; pressing both backward moves it in reverse. To turn, push one pedal forward and the other backward.
Video 2: Overview of the HY480D Mini Skid Steer Loader's controls and basic functions.
3.3 General Operation Tips
- Always operate the loader on stable, level ground when possible.
- Maintain a clear line of sight to your work area and surroundings.
- Avoid sudden movements or rapid changes in direction, especially with a loaded bucket.
- When traveling with a load, keep the bucket as low as possible to maintain stability.
Image 4: TEXLIFT Mini Skid Steer Loader operating an auger attachment in a field.
4. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your TEXLIFT Mini Skid Steer Loader.
4.1 Battery Care
- Regularly check battery charge levels and recharge as needed.
- Keep battery terminals clean and free of corrosion.
- Ensure proper ventilation during charging.
4.2 Hydraulic System
- Check hydraulic fluid levels regularly and top up with the recommended fluid.
- Inspect hydraulic hoses and connections for leaks or damage.
- Replace hydraulic filters according to the maintenance schedule.
4.3 General Inspection
- Inspect tracks for wear and proper tension.
- Check all fasteners for tightness.
- Keep the loader clean, especially around the engine and hydraulic components, to prevent debris buildup and ensure proper cooling.
5. Troubleshooting
This section provides general guidance for common issues. For complex problems, contact qualified service personnel.
5.1 Loader Not Starting
- Check the main power switch: Ensure it is in the ON position.
- Battery Charge: Verify the battery is fully charged.
- Ignition Key: Ensure the key is fully turned to the START position.
5.2 Reduced Performance
- Battery Level: A low battery charge can significantly impact performance.
- Hydraulic Fluid: Check hydraulic fluid levels and for any leaks.
- Overheating: Ensure the cooling fan is operating correctly and there is no obstruction to airflow.
Video 3: Detailed operation and maintenance insights for a Mini Skid Steer Loader, including engine and hydraulic system checks.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | TEXLIFT |
| Model Number | US-TXL88 |
| Color | Green |
| Product Dimensions | 128"L x 41"W x 82"H |
| Wheel Type | Pneumatic |
| Load Capacity | 880 Pounds |
| Item Weight | 2500 pounds |
| Power Source | Battery-powered (Lead Acid Battery) |
| Voltage | 60 Volts |
| Wattage | 9 KW |
| Maximum Power | 9 Kilowatts |
| Usage | Construction, Gardening, Farming, Agriculture, Road Making |

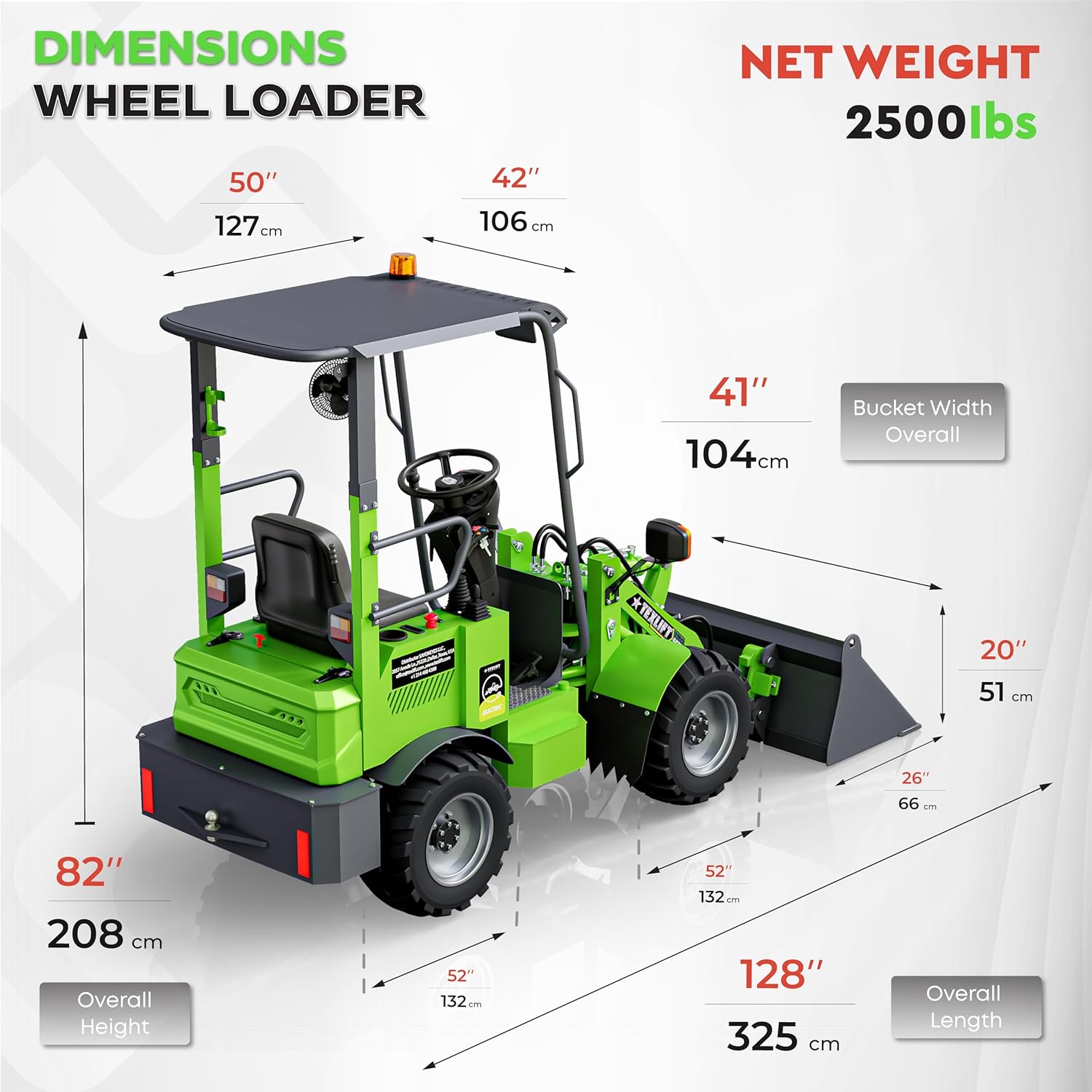

Image 5: Dimensional specifications of the TEXLIFT Mini Skid Steer Loader.
7. Attachments
The TEXLIFT US-TXL88 is designed for versatility, supporting a multi-option attachment system. This allows the machine to perform a wide range of tasks, reducing the need for additional specialized equipment.
Compatible Attachments:
- Small Digger
- Pallet Fork (920mm)
- Bucket (4-in-1)
- Round Bale Clamp
- Auger (250x1200mm)
Image 6: TEXLIFT Electric Wheel Loader showcasing its features, including multi-option attachments.
8. Safety Information
Always prioritize safety when operating the TEXLIFT Mini Skid Steer Loader. Failure to follow safety guidelines can result in serious injury or death.
- Read and understand the entire instruction manual before operating the machine.
- Wear appropriate personal protective equipment (PPE), including hard hat, safety glasses, and sturdy footwear.
- Never operate the loader under the influence of drugs or alcohol.
- Keep bystanders, especially children and pets, away from the operating area.
- Ensure the loader is on stable ground before raising or lowering the boom.
- Never exceed the stated load capacity of 880 lbs.
9. Warranty and Support
9.1 Warranty
The TEXLIFT US-TXL88 Full Electric Mini Skid Steer Loader comes with a 12-month warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.
9.2 Customer Support
For technical assistance, parts, or warranty inquiries, please contact TEXLIFT customer support. Refer to your purchase documentation for specific contact details.
