Zerodeko Front Suspension Arm Mounting Bolt Instruction Manual

1. Product Overview

The Zerodeko Front Suspension Arm Mounting Bolt is an automotive component designed for the repair and maintenance of vehicle suspension systems. Specifically, it addresses issues related to the lower control arm, contributing to the overall safety and stability of the vehicle.

Crafted from durable alloy material, this bolt is engineered for reliability and long-term performance. Its primary function is to secure the suspension control arm, ensuring proper vehicle handling and predictable response, especially in critical driving situations.

Figure 1.1: The Zerodeko Front Suspension Arm Mounting Bolt, showcasing its design and alloy construction.

2. Installation (Setup)

Installation of the Zerodeko Front Suspension Arm Mounting Bolt is designed to be a straightforward process. While professional installation is always recommended for critical automotive components, this bolt can be replaced by individuals with appropriate mechanical knowledge and tools.

2.1. Required Tools

• Appropriate wrench or socket set for existing bolts.
• Vehicle lift or jack stands for safe access.
• Wheel chocks.
• Safety glasses and gloves.

2.2. Installation Steps

1. Prepare the Vehicle: Safely lift the vehicle using a lift or jack stands. Ensure the vehicle is stable and secure. Engage the parking brake and use wheel chocks.
2. Locate the Control Arm: Identify the front lower control arm and the existing mounting bolt that requires replacement.
3. Remove Old Bolt: Carefully loosen and remove the old, potentially bent or damaged, suspension arm mounting bolt. Support the control arm if necessary to prevent sudden movement.
4. Insert New Bolt: Position the Zerodeko Front Suspension Arm Mounting Bolt into the designated mounting point on the control arm and vehicle frame.
5. Tighten Securely: Hand-tighten the bolt initially, then use the appropriate wrench or socket to tighten it to the manufacturer's specified torque settings for your vehicle model. Refer to your vehicle's service manual for exact torque specifications.
6. Verify Installation: Ensure the control arm is securely fastened and there is no excessive play.
7. Lower Vehicle: Safely lower the vehicle.

Figure 2.1: Illustrative image showing tools and components related to suspension repair, including the bolt.

Figure 2.2: A mechanic performing work on a vehicle, demonstrating the context of bolt installation in an engine bay area.

3. Function and Operation

The Zerodeko Front Suspension Arm Mounting Bolt serves as a critical fastener within the vehicle's suspension system. Its primary operational role is to securely attach the lower control arm to the vehicle's chassis or subframe. This secure connection is vital for:

• Maintaining Wheel Alignment: Proper alignment is crucial for steering precision, tire wear, and overall vehicle stability.
• Supporting Vehicle Weight: The control arm, secured by this bolt, bears a significant portion of the vehicle's weight and absorbs road impacts.
• Facilitating Suspension Movement: While securely fastened, the bolt allows the control arm to pivot, enabling the suspension to move vertically and absorb shocks effectively.
• Ensuring Safety: A properly functioning mounting bolt prevents unintended movement of the control arm, which could lead to loss of control or structural damage.

The robust alloy construction of the bolt ensures it can withstand the dynamic forces and stresses encountered during vehicle operation, contributing to a stable and safe driving experience.

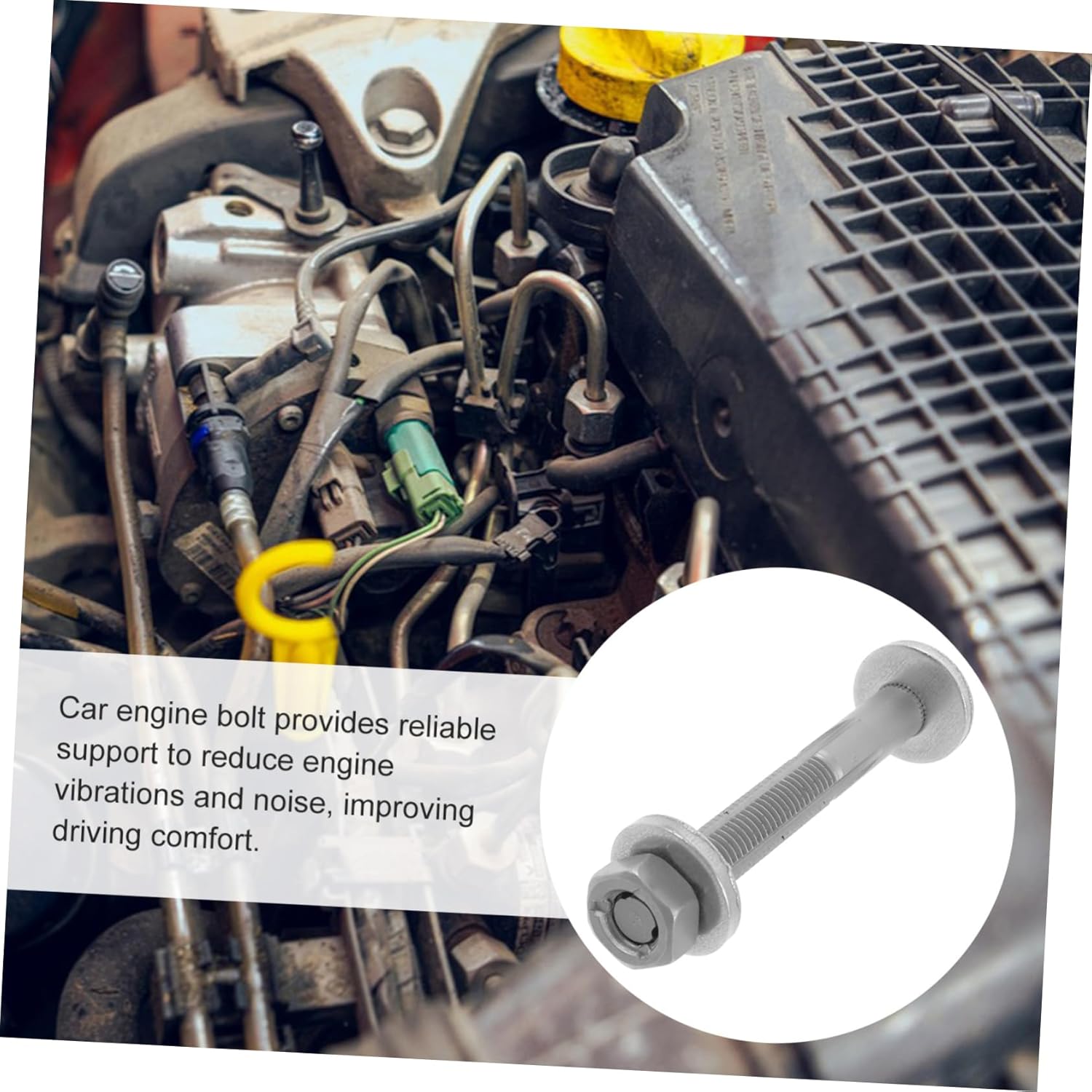

Figure 3.1: Illustrative image showing the context of an engine bolt, emphasizing its role in reducing vibrations and improving comfort.

4. Maintenance

Regular inspection of suspension components, including mounting bolts, is recommended to ensure continued vehicle safety and performance.

• Visual Inspection: Periodically check the bolt and surrounding components for signs of corrosion, damage, or looseness.
• Torque Check: If accessible, verify that the bolt remains tightened to the manufacturer's specified torque. Over time, vibrations can cause fasteners to loosen.
• Professional Assessment: During routine vehicle servicing, request that a qualified mechanic inspect the suspension system for wear and tear.

Promptly address any observed issues to prevent further damage to the suspension system or compromise vehicle safety.

5. Troubleshooting

If you experience issues related to your vehicle's suspension after installing or while using the Zerodeko Front Suspension Arm Mounting Bolt, consider the following troubleshooting steps:

• Unusual Noises: Clunking, rattling, or squeaking sounds from the suspension area may indicate a loose bolt, worn bushings, or other damaged components. Re-check the bolt's tightness and inspect surrounding parts.
• Poor Handling or Steering: If the vehicle pulls to one side, exhibits excessive play in the steering, or feels unstable, the suspension components, including the control arm and its mounting bolt, should be inspected for proper installation and integrity.
• Visible Damage: If the bolt appears bent, corroded, or otherwise damaged, it must be replaced immediately. A damaged bolt compromises the structural integrity of the suspension.
• Professional Diagnosis: For persistent or complex issues, consult a certified automotive technician. Suspension problems can affect vehicle safety and require expert diagnosis and repair.

6. Specifications

Figure 6.1: The Zerodeko Front Suspension Arm Mounting Bolt with indicated dimensions (13cm / 5.12in length, 3cm / 1.18in width).

7. Warranty and Support

Information regarding specific warranty terms or direct customer support for the Zerodeko Front Suspension Arm Mounting Bolt is not provided in the product details. For any inquiries or support needs, please refer to the retailer where the product was purchased or visit the official Zerodeko brand store for general information.

Zerodeko Store: Visit the Zerodeko Store on Amazon
