POXURIO 1200W Airless Paint Sprayer Instruction Manual

1. Important Safety Information

WARNING: Failure to follow these instructions may result in electric shock, fire, and/or serious injury. Always read and understand the entire manual before operating the paint sprayer.

• Always wear appropriate safety gear, including eye protection (safety glasses/goggles), respiratory protection (respirator mask), and protective clothing (gloves, long sleeves).
• Use in a well-ventilated area to prevent the accumulation of hazardous vapors.
• Keep away from heat sources, open flames, pilot lights, and any other ignition sources. Many paints and solvents are flammable.
• Do not spray near electrical components or outlets. Ensure all electrical connections are dry and secure.
• Always follow the paint and solvent manufacturer's instructions for proper handling, usage, maintenance, and disposal.
• Ensure the sprayer is properly grounded to prevent electric shock.
• Never point the spray gun at yourself or others. High-pressure spray can cause serious injury.
• Always relieve pressure from the system before cleaning, checking, or servicing any part of the sprayer.

2. Product Overview

The POXURIO 1200W Airless Paint Sprayer is designed for efficient and even application of various paints, suitable for both interior and exterior projects. Its powerful 1200W motor delivers a flow rate of 1.2L/min, making painting up to 5 times faster than traditional roller methods. The unit features an adjustable spray pressure up to 3300PSI and comes with a 515 nozzle for a delicate, professional finish. Its compact design and portable handle ensure ease of movement and storage.

Product Features:

• Powerful Motor: 1200W motor with 1.2L/min flow rate for fast painting.
• Two Use Methods: Direct nozzle and 12-inch extension pole for versatile spraying.
• Even Spraying: Adjustable pressure up to 3300PSI and 515 nozzle for professional results.
• Compact Design: Weighs only 16.5 lbs with a portable handle and 29.5 ft hose storage rack.
• Wide Application: Ideal for home interior/exterior, furniture, fences, decks, and garages.

Product Components:

Familiarize yourself with the main components of your POXURIO Airless Paint Sprayer:

Figure 1: Detailed view of the POXURIO Airless Paint Sprayer with numbered components.

1. 515 Spray Nozzle
2. Extension Pole
3. Spray Gun
4. Portable Handle
5. On/off Switch
6. Hose Storage Rack
7. Pressure Relief Valve
8. Pressure Regulating Valve
9. Outlet
10. Material Cup
11. Exhaust Pipe
12. Power Cord
13. Hose
14. Suction Hose

3. Setup and Initial Preparation

Before operating your paint sprayer, ensure all components are correctly assembled and the unit is prepared for use. This section guides you through the initial setup process.

Unboxing and Assembly:

1. Carefully remove all components from the packaging. Verify that all parts listed in the manual are present.
2. Place the main sprayer unit on a stable, level surface.
3. Connect the high-pressure hose to the sprayer's outlet (9) and securely tighten using the provided wrenches.
4. Attach the spray gun (3) to the other end of the high-pressure hose and tighten securely.
5. Connect the suction hose (14) to the material cup (10) inlet on the sprayer and ensure it is firmly attached.
6. Attach the return hose to the exhaust pipe (11) on the sprayer.
7. Ensure the 515 spray nozzle (1) is correctly installed on the spray gun.

Priming the Sprayer (Water Test):

Before using paint, it is crucial to prime the sprayer with water to ensure proper function and clear any manufacturing debris.

1. Place the suction hose (14) into a bucket of clean water.
2. Direct the return hose into a separate empty bucket.
3. Turn the pressure regulating valve (8) to the lowest setting.
4. Turn the on/off switch (5) to the "ON" position. The pump will start.
5. Allow the water to circulate through the system until a steady stream flows from the return hose into the empty bucket, indicating the system is primed and air-free.
6. Once primed, turn the on/off switch to "OFF".

4. Operating Instructions

Follow these steps for effective and safe paint application with your POXURIO Airless Paint Sprayer.

Preparing Paint:

• Ensure your paint is suitable for airless sprayers. This sprayer is designed for thinning-free operation with most standard paints.
• Stir the paint thoroughly. For best results, strain the paint through a mesh filter to remove any lumps or debris that could clog the nozzle.
• Place the suction hose (14) directly into the paint container.

Spraying Technique:

1. Turn the pressure regulating valve (8) to the desired pressure setting. Start with a lower setting and gradually increase until the desired spray pattern is achieved.
2. Hold the spray gun (3) perpendicular to the surface, approximately 10-12 inches away.
3. Maintain a consistent distance and speed while spraying to ensure an even coat. Overlap each pass by about 50% for uniform coverage.
4. Release the trigger at the end of each pass to avoid paint buildup.
5. For hard-to-reach areas or extended reach, utilize the 12-inch extension pole (2).

Figure 2: Proper technique for spraying a wall, maintaining consistent distance.

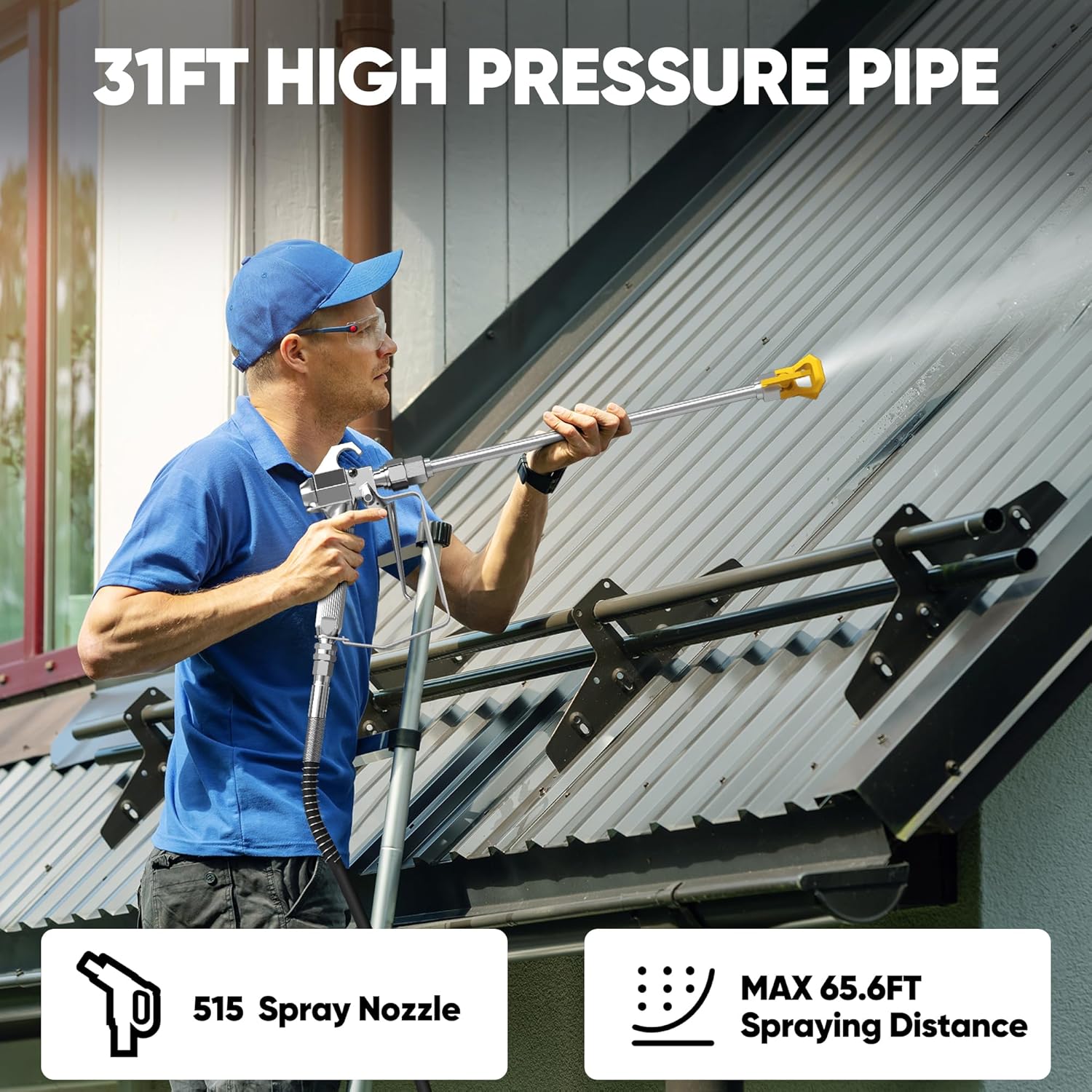

Figure 3: Utilizing the 11.8-inch extension rod for reaching higher areas.

Figure 4: The 515 spray nozzle provides a fine, even spray for a smooth finish.

5. Maintenance and Cleaning

Proper cleaning and maintenance are essential for the longevity and optimal performance of your paint sprayer. Always clean the unit immediately after each use.

Cleaning Procedure:

1. Relieve Pressure: Before disconnecting any hoses or components, ensure all pressure is relieved from the system. Turn off the unit, engage the spray gun safety lock, and then point the gun into a waste bucket and trigger it to release any remaining pressure.
2. Flush with Water/Solvent:
   • Remove the suction hose from the paint and place it into a bucket of clean water (for water-based paints) or appropriate cleaning solvent (for oil-based paints).
   • Direct the return hose into a separate waste bucket.
   • Turn the sprayer "ON" and allow the cleaning solution to circulate through the system until it runs clear from the return hose.
3. Clean Spray Gun and Nozzle:
   • Once the system is flushed, turn off the sprayer and relieve pressure.
   • Remove the spray nozzle and guard. Clean them thoroughly with a brush and appropriate cleaning solution.
   • Disassemble the spray gun as per the detailed instructions in your product manual (if applicable) and clean all internal components.
4. External Cleaning: Wipe down the exterior of the sprayer and hoses with a damp cloth to remove any paint residue.
5. Storage: Store the sprayer in a clean, dry place, protected from extreme temperatures. Ensure all hoses are properly coiled on the hose storage rack (6).

6. Troubleshooting Guide

If you encounter issues with your POXURIO Airless Paint Sprayer, refer to the common problems and solutions below. For persistent issues, contact customer support.

7. Technical Specifications

8. Warranty and Customer Support

POXURIO offers a 1-year warranty for this airless paint sprayer. If you encounter any problems during use or have questions regarding your product, please do not hesitate to contact POXURIO-US customer support.
