CLEVAST Bug Zapper Outdoor Indoor Instruction Manual

1. Introduction

Thank you for choosing the CLEVAST Bug Zapper. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your device. Please read these instructions thoroughly before use and retain them for future reference.

2. Safety Instructions

• Always unplug the device from the power outlet before cleaning, maintenance, or when not in use.
• Do not touch the internal high-voltage grid with hands or metal objects.
• Keep the device out of reach of children and pets.
• Do not use the device near flammable liquids or gases.
• Ensure the power cord is not damaged and is placed where it cannot be tripped over or damaged.
• This device is designed for both indoor and outdoor use, but it should be protected from direct rain and extreme weather conditions when used outdoors.
• Do not immerse the device in water or any other liquid.

3. Product Overview and Components

Familiarize yourself with the parts of your CLEVAST Bug Zapper.

Image 3.1: Exploded view of the CLEVAST Bug Zapper, illustrating its main components. These include the hanging hoop, ABS plastic outer casing, 18W UV light, 4000V voltage grid, LED bottom light, and a removable tray for insect collection.

• Hanging Hoop: For suspending the zapper.
• ABS Plastic Outer Casing: Durable and protective exterior.
• 18W UV Light: Attracts flying insects.
• 4000V Voltage Grid: Electrocutes attracted insects.
• LED Bottom Light: Provides ambient lighting.
• Removable Tray: Collects dead insects for easy disposal.

4. Setup

4.1 Placement

The CLEVAST Bug Zapper is suitable for both indoor and outdoor environments. Choose a location where insects are prevalent but away from direct human activity to avoid distraction from zapping sounds.

Image 4.1: The bug zapper positioned for outdoor use on a patio, suitable for yards, gardens, and farms.

Image 4.2: The bug zapper placed for indoor use, ideal for kitchens, bedrooms, and living rooms.

• For optimal performance, place the zapper 10-15 feet away from areas where people gather.
• Hang the device using the integrated hanging hoop or place it on a flat, stable surface.
• Ensure the chosen location is within reach of an electrical outlet, as the power cord length is approximately 7.87 feet. An outdoor-rated extension cord may be necessary for some outdoor placements.

4.2 Power Connection

Plug the power cord into a standard AC electrical outlet. Ensure the outlet is appropriate for outdoor use if the device is placed outside.

5. Operating Instructions

The CLEVAST Bug Zapper operates by attracting flying insects with its UV light and then eliminating them with a high-voltage grid.

Image 5.1: The bug zapper utilizing its 18W UVA bulb to attract insects, providing 360-degree coverage over approximately 1/2 acre. The 365nm UV light spectrum is highly effective for insect attraction.

Image 5.2: Close-up of the bug zapper's 4000V high-voltage grid in action, showing various insects like mosquitoes, gnats, Aedes, moths, wasps, and fruit flies being eliminated.

• Once plugged in, the UV light will illuminate, and the high-voltage grid will become active.
• The device operates continuously when powered. There is no separate on/off switch; operation is controlled by plugging/unplugging the unit.
• The 18W UVA bulb emits light at 365nm, which is highly effective at attracting a wide range of flying insects, including mosquitoes, gnats, moths, and wasps.
• Insects attracted to the light will fly into the 4000V electrified grid, resulting in their elimination.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your bug zapper. Always follow these steps carefully.

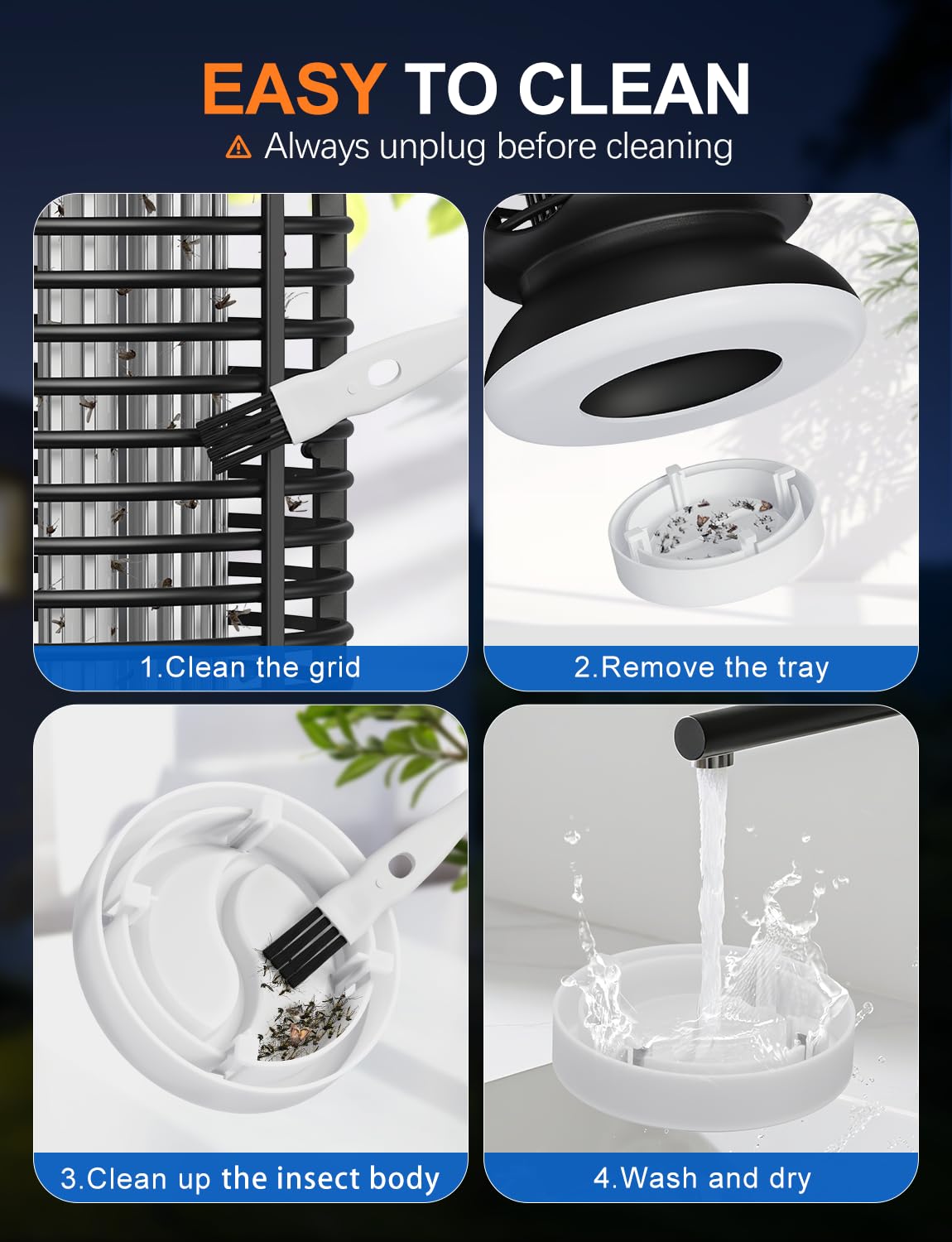

Image 6.1: A visual guide demonstrating the four steps for cleaning the bug zapper: 1. Cleaning the grid with a brush, 2. Removing the bottom tray, 3. Cleaning insect bodies from the tray, and 4. Washing and drying the tray.

1. Unplug Before Cleaning: Always disconnect the bug zapper from the power outlet before performing any cleaning or maintenance.
2. Clean the Grid: Use the provided brush or a similar non-metallic brush to gently remove any insect debris from the high-voltage grid.
3. Remove the Tray: Twist and pull the removable tray from the bottom of the unit.
4. Clean Up Insect Bodies: Dispose of the collected insect bodies from the tray.
5. Wash and Dry: Wash the removable tray with water and mild soap. Ensure it is completely dry before reattaching it to the unit. Do not wash the main unit with water.

7. Troubleshooting

If you encounter issues with your CLEVAST Bug Zapper, refer to the following common troubleshooting steps:

• Device Not Turning On:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check if the outlet itself is functional by plugging in another device.
  • Inspect the power cord for any visible damage. If damaged, discontinue use and contact support.
• Not Zapping Bugs Effectively:
  • Clean the high-voltage grid and the removable tray as per the maintenance instructions (Section 6). Accumulated debris can reduce effectiveness.
  • Relocate the zapper to an area with higher insect activity.
  • Ensure there are no competing light sources nearby that might distract insects from the UV light.
• Unusual Noises or Smells:
  • Immediately unplug the device.
  • Inspect for any foreign objects or damage. Do not attempt to repair it yourself. Contact customer support.

If these steps do not resolve the issue, please contact CLEVAST customer support for further assistance.

8. Specifications

Detailed technical specifications for the CLEVAST Bug Zapper.

Image 8.1: Visual representation of the bug zapper's dimensions (11.9 inches height, 6.6 inches width), weight (1.8 lbs), and cord length (7.87 feet).

9. Warranty and Support

CLEVAST products are manufactured to high-quality standards. For information regarding warranty coverage, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official CLEVAST website. Please have your model number (BZ03USG) and purchase date available when contacting support.
