SUPERLEX 4-in-1 Electric Milk Frother User Manual

1. Introduction

Thank you for purchasing the SUPERLEX 4-in-1 Electric Milk Frother, Model SMF001. This versatile appliance is designed to create perfect milk foam for your favorite beverages, including cappuccinos, lattes, macchiatos, and hot chocolate. It also functions as a milk warmer. Please read this manual carefully before first use to ensure safe and optimal operation.

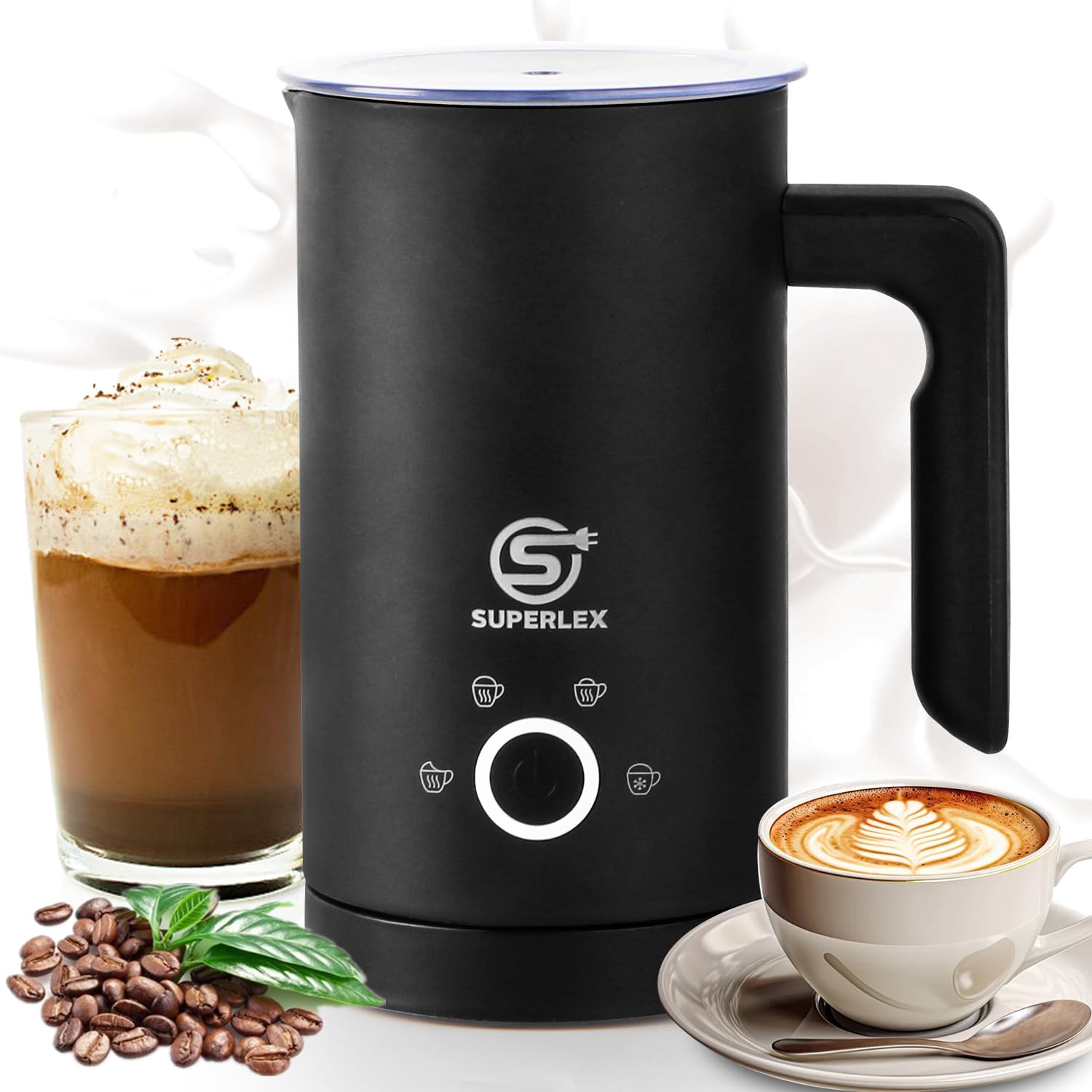

Image 1.1: The SUPERLEX Electric Milk Frother alongside various coffee and milk-based beverages, showcasing its versatility.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. Keep this manual for future reference.

• Read all instructions before use.
• Do not immerse the base unit or power cord in water or other liquids.
• This appliance is for household use only. Do not use outdoors.
• Ensure the voltage indicated on the appliance matches your local power supply before connecting.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The appliance features an automatic shut-off function and dry-burn protection to prevent overheating.
• Do not fill above the maximum fill line to prevent overflow.
• Keep hands and utensils out of the frother during operation to prevent injury.
• The exterior of the frother may become hot during operation. Handle with care.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Image 2.1: The SUPERLEX Milk Frother highlighting its safety features, including dry-burn and overheat protection, ensuring safe operation.

3. Product Components

Familiarize yourself with the parts of your SUPERLEX Milk Frother:

• Frother Jug: Stainless steel interior with non-stick coating and double-wall insulation.
• Lid: Transparent lid to observe frothing process.
• Whisk/Stirrer: Detachable whisk for frothing and stirring.
• Power Base: 360° swivel base with power cord.
• Control Panel: Single button with indicator lights for different modes.
• Handle: Ergonomic handle for easy pouring.

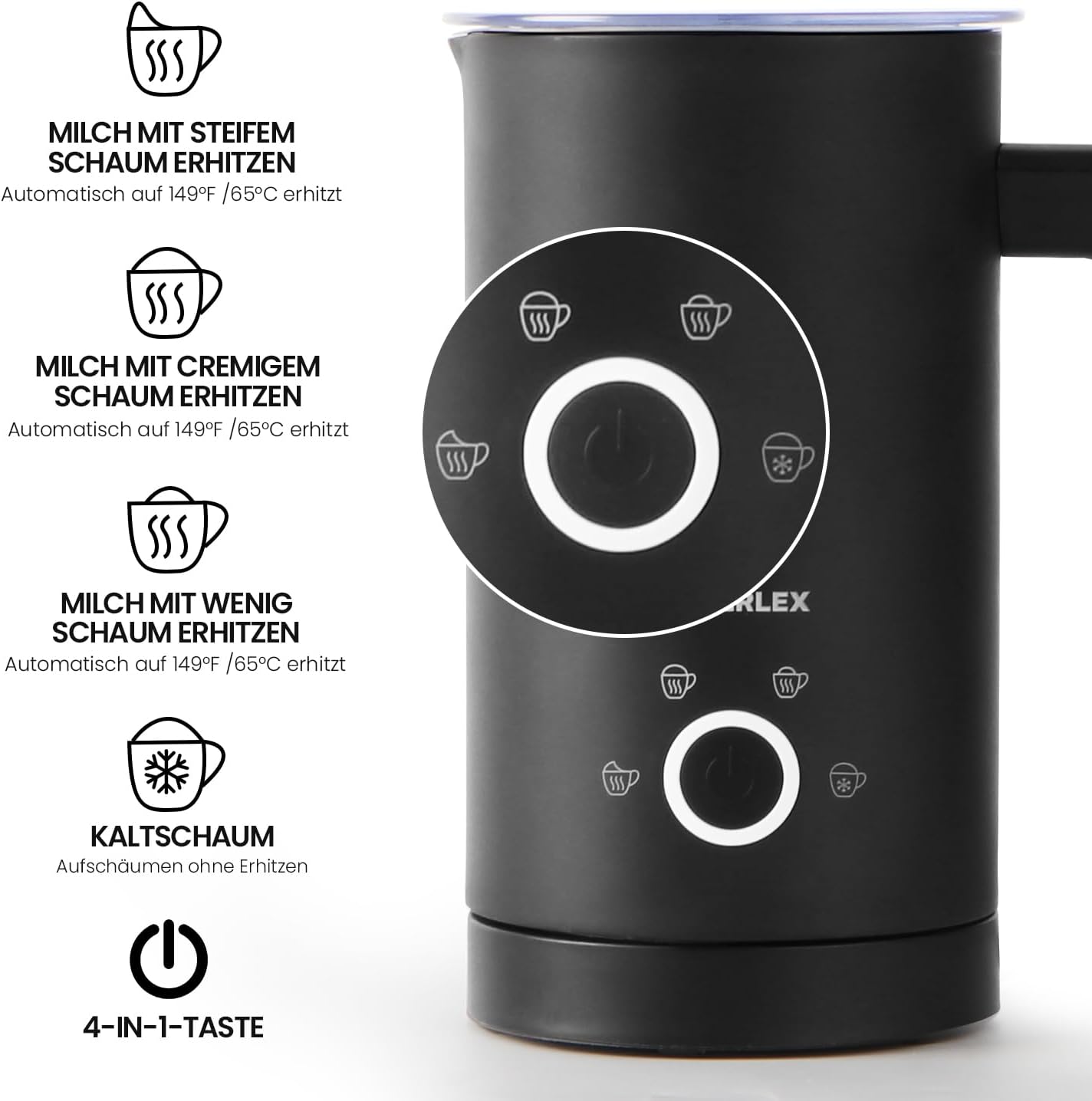

Image 3.1: Close-up of the SUPERLEX Milk Frother's control panel, illustrating the single button operation and indicators for its four distinct modes.

4. Setup and First Use

1. Unpack: Carefully remove all packaging materials and ensure all components are present.
2. Clean: Before first use, clean the frother jug and whisk with warm soapy water. Rinse thoroughly and dry. Do not immerse the power base in water.
3. Placement: Place the power base on a dry, flat, and stable surface.
4. Connect: Plug the power cord into a suitable electrical outlet.
5. Insert Whisk: Ensure the whisk is correctly inserted onto the shaft at the bottom of the jug.

5. Operating Instructions

The SUPERLEX Milk Frother offers four distinct functions, easily selected with a single button. Always ensure the whisk is properly installed before adding milk.

5.1 Fill Level Guidelines

Observe the MAX and MIN fill lines inside the jug:

• MAX (150 ml) for Frothing: Do not exceed this line when frothing milk to prevent overflow.
• MAX (300 ml) for Heating: For heating milk without frothing, you can fill up to this line.
• MIN (80 ml): Always ensure milk is above this minimum level for proper operation.

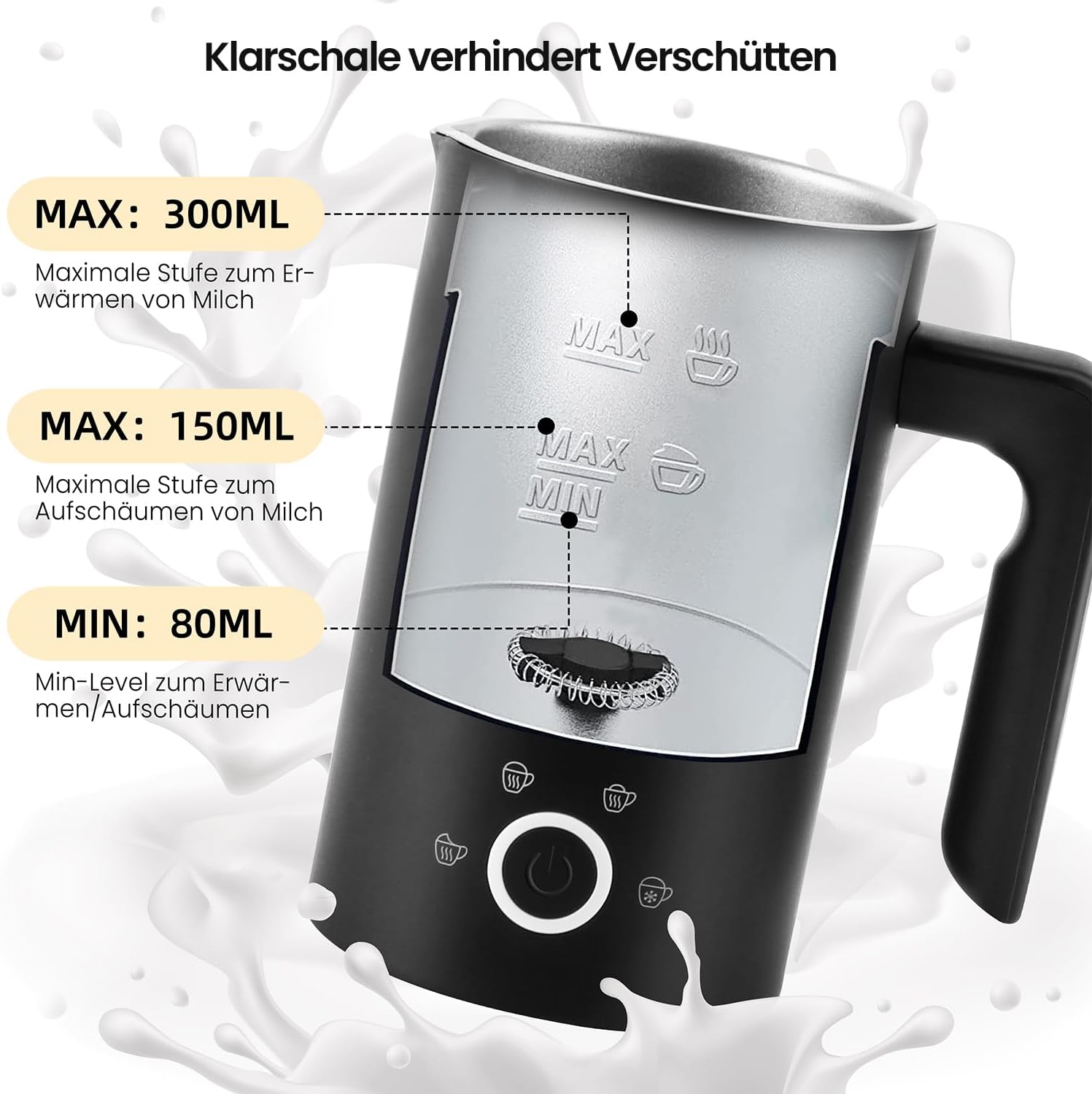

Image 5.1: The interior of the SUPERLEX Milk Frother, clearly showing the maximum fill lines for frothing (150ml) and heating (300ml), as well as the minimum fill line (80ml).

5.2 Selecting a Mode

Place the frother jug onto the power base. Add the desired amount of cold milk (dairy or non-dairy) according to the fill lines. Press the power button repeatedly to cycle through the modes:

1. Hot Dense Foam: Press once. The indicator light for hot dense foam will illuminate. The milk will be heated to approximately 70°C and frothed to a rich, thick consistency.
2. Hot Light Foam: Press twice. The indicator light for hot light foam will illuminate. The milk will be heated to approximately 70°C and frothed to a lighter, airier consistency.
3. Hot Milk (no foam): Press three times. The indicator light for hot milk will illuminate. The milk will be heated to approximately 70°C without frothing.
4. Cold Foam: Press four times. The indicator light for cold foam will illuminate. The milk will be frothed to a cold, creamy foam without heating.

The frother will automatically stop once the selected program is complete. The indicator light will turn off. Carefully remove the jug from the base and pour your frothed or heated milk.

Image 5.2: The SUPERLEX Milk Frother demonstrating its ability to produce different types of milk foam and heated milk for various beverages, including cold foam, hot light foam, hot dense foam, and hot milk.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your frother. Always unplug the appliance and allow it to cool completely before cleaning.

1. Remove Whisk: Carefully remove the whisk from the bottom of the jug.
2. Clean Jug: Wash the interior of the frother jug and the whisk with warm water and a mild dish soap. The non-stick coating makes cleaning easy. Use a soft sponge or cloth.
3. Rinse and Dry: Rinse all parts thoroughly with clean water and dry immediately with a soft cloth.
4. Exterior: Wipe the exterior of the frother jug and the power base with a damp cloth. Do not use abrasive cleaners or scourers.
5. Do NOT immerse: Never immerse the frother jug exterior or the power base in water or any other liquid.
6. Storage: Store the frother in a clean, dry place when not in use.

Image 6.1: The SUPERLEX Milk Frother being rinsed under a tap, demonstrating the ease of cleaning its non-stick interior.

7. Troubleshooting

If you encounter any issues with your SUPERLEX Milk Frother, please refer to the following common problems and solutions:

8. Technical Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact SUPERLEX customer service. Keep your proof of purchase for warranty claims.
