iVOLCONN Electronic Acupuncture Pen User Manual

1. Introduction

The iVOLCONN Electronic Acupuncture Pen is a rechargeable device designed for pain relief and improved circulation. It integrates traditional Chinese medicine principles with modern technology to automatically detect acupoints and deliver electrical pulses without needles. This manual provides detailed instructions for safe and effective use.

Figure 1: iVOLCONN Electronic Acupuncture Pen

2. Package Contents

Verify that all items are present in the package:

Electronic Acupuncture Pen Device
User Manual
USB Cable
Conductive Bar
Interchangeable Massage Probes (1 large for body, 1 small for ears/head)

Contents of the iVOLCONN Electronic Acupuncture Pen box including the pen, manual, USB cable, and conductive bar.

Figure 2: What's in the Box

3. Device Overview

Diagram of the iVOLCONN Electronic Acupuncture Pen showing display screen, charging port, intensity/switch knob, conductive sheet, mode button, start button, frequency control, indicator light, conductive bar port, and probe.

Figure 3: Electronic Acupuncture Pen Components

Display Screen: Shows intensity level and mode.
Intensity/Switch Knob: Turns the device ON/OFF and adjusts intensity (0-20 levels).
Conductive Sheet: Must be in contact with your skin for the device to function.
Mode Button: Selects between 3 different stimulation modes.
Start Button: Initiates therapy when pressed and held.
Indicator Light: Provides visual feedback during operation.
Charging Port: For recharging the device using the provided USB cable.
Conductive Bar Port: For connecting the external conductive bar.
Probes: Interchangeable tips for different application areas.

4. Setup and Preparation

4.1 Charging the Device

The iVOLCONN Electronic Acupuncture Pen is rechargeable. Connect the provided USB cable to the charging port on the device and to a suitable USB power source. The indicator light will show charging status.

4.2 Attaching Probes

Select the appropriate massage probe for your intended application:

Large Probe: Recommended for body applications.
Small Probe: Suitable for ears and head measurements.

Gently push the chosen probe onto the tip of the pen until it is securely attached.

Close-up of the iVOLCONN Electronic Acupuncture Pen showing two interchangeable probes: a larger, rounded probe for body use and a smaller, pointed probe for ears and head.

Figure 4: Interchangeable Massage Probes

4.3 Applying Conductive Medium

For optimal performance and comfort, especially on dry skin, apply a thin layer of conductive liquid or daily skin cream to the area where you will be applying therapy. This improves pulse wave transmission and effectiveness.

5. Operating Instructions

5.1 Power On/Off and Intensity Adjustment

To turn the device ON, rotate the Intensity/Switch knob clockwise from the "0" position.
Adjust the intensity level by continuing to rotate the knob. The device offers 20 levels of adjustable intensity. Start with a low intensity and gradually increase it to a comfortable level.
To turn the device OFF, rotate the Intensity/Switch knob counter-clockwise back to the "0" position.

5.2 Holding the Pen and Ensuring Circuit

When using the pen, ensure your thumb or thumb's web is in constant contact with the conductive sheet on the side of the pen. This completes the electrical circuit necessary for the device to function.

Video 1: Demonstrates how to hold the iVOLCONN Electronic Acupuncture Pen and ensure proper contact with the conductive sheet for operation.

5.3 Acupoint Detection

The pen features automatic acupoint detection. As you move the probe across the skin, the device will indicate when it is near an acupoint:

The numerical value on the display will change, getting closer to "460" when near an acupoint.
A buzzer sound will become more frequent as you approach the precise acupoint location.
The indicator light may flash more rapidly.

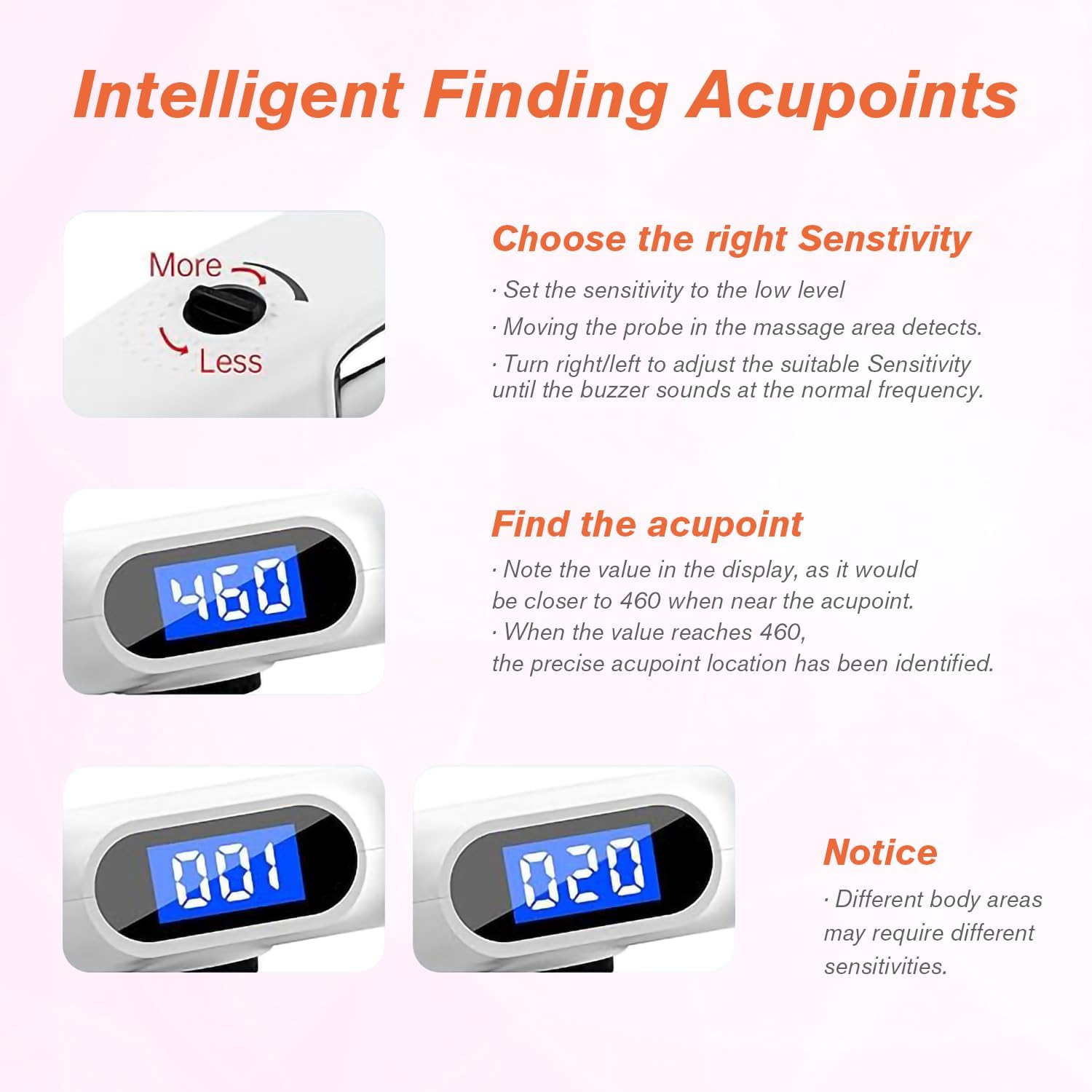

Four images demonstrating the intelligent acupoint finding feature of the pen. It shows adjusting sensitivity, a display value of 460 indicating an acupoint, and other numerical readings.

Figure 5: Intelligent Acupoint Detection

5.4 Selecting Modes

The device offers 3 unique modes, each with different Hertz frequencies for varying depths of stimulation. Press the Mode button to cycle through them:

Mode 1 (Continuous Wave): 50Hz, designed to reach deeper tissue. Display shows "50H".
Mode 2 (Intermittent Wave): 10Hz, designed for slightly deeper layers. Display shows "10H".
Mode 3 (Ripple Wave): 4Hz, designed for the outer layer of skin. Display shows "4H".

Diagram illustrating the three micro wave modes: Ripple Wave (50Hz) for outer layers, Intermittent Wave (10Hz) for slightly deeper layers, and Continuous Wave (4Hz) for deeper tissues, with corresponding display readings.

Figure 6: Three Micro Wave Modes

5.5 Applying Therapy

Once an acupoint is located and the desired mode and intensity are set, press and hold the Start button.
Apply the pen to the targeted area for approximately 1 minute.
Take a 5-second break, then repeat the application. Perform this cycle 3 times per targeted area.
Do not exceed 2 treatments per area per day.
For hard-to-reach areas like the back, use the provided conductive bar. Plug it into the conductive bar port, hold it with one hand, and have another person apply the pen. This helps complete the circuit and reduces electric reflux sensation.

A person using the electronic acupuncture pen on their upper back, illustrating the low-frequency therapy application.

Figure 7: Low Frequency Therapy Application

Video 2: Official iVOLCONN video demonstrating the Electronic Acupuncture Pen with 3 Modes and 20 Intensities for Pain Management.

6. Maintenance

To ensure the longevity and proper functioning of your iVOLCONN Electronic Acupuncture Pen:

Clean the probes and the device body with a soft, damp cloth after each use. Do not use abrasive cleaners or immerse the device in water.
Store the device in a cool, dry place, away from direct sunlight and extreme temperatures.
Keep out of reach of children.

7. Troubleshooting

Refer to the following common issues and their solutions:

Problem	Solution
Numerical value on screen always shows "460" or no buzz/value change.	Due to low impedance of your skin, adjust the sensitivity button (turn right to increase, left to decrease). Ensure skin is not too dry; use conductive liquid or cream.
No physiotherapy feeling or unobvious physiotherapy feeling.	The Start button must be pressed and held during therapy. Adjust the Intensity/Switch knob to increase the intensity.
Can't detect acupuncture points in some parts of the body.	Because of the stratum corneum and high impedance of the skin, you can perform physiotherapy in accordance with the health-care acupoint map provided in the manual.
What is the contact rod for?	For too high impulse intensity, insert the contact rod and hold it with one hand to decrease electric reflux feeling, and use it for physiotherapy with the other hand.

Image showing a comparison between traditional acupuncture with needles and needleless electronic acupuncture, highlighting safety and convenience.

Figure 8: Needleless and Painless Therapy

8. Specifications

Product Dimensions: 9 x 1.3 x 1.8 inches
Item Weight: 12.31 ounces
Manufacturer: iVolconn
ASIN: B0F2H9LNTQ
Intensity Levels: 20 adjustable levels
Modes: 3 (Continuous Wave 50Hz, Intermittent Wave 10Hz, Ripple Wave 4Hz)
Power Source: Rechargeable

9. Important Safety Information

Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. Consult with a healthcare professional before using this device, especially if you have pre-existing medical conditions, are pregnant, or have a pacemaker.

10. Warranty and Support

iVOLCONN provides a 12-month service for related quality issues. For any questions or support, please do not hesitate to contact us. We are committed to providing 100% satisfaction after the sale.
