DELTA 32'x16' Budget PE Party Tent (B Model) Instruction Manual

1. Product Overview

The DELTA 32'x16' Budget PE Party Tent (B Model) is designed to provide a versatile shelter for various outdoor events. It features a robust galvanized steel frame and a waterproof PE fabric cover, complete with removable window walls and zipper doors for adaptability and protection.

Image 1.1: Front view of the assembled DELTA 32'x16' Budget PE Party Tent.

Image 1.2: Side view of the assembled DELTA 32'x16' Budget PE Party Tent, showcasing its length.

2. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Weather Conditions: Do not use this tent in severe weather conditions, including heavy winds, snow, or thunderstorms. Disassemble the tent immediately if adverse weather is expected.
• Fire Safety: Keep all flame and heat sources away from the tent fabric. The fabric is not fireproof.
• Assembly: Always assemble the tent with at least two adults. Ensure all connections are secure before use.
• Anchoring: Always use the provided stakes and ropes to properly anchor the tent to the ground to prevent uplift or movement.
• Ventilation: Ensure adequate ventilation when using the tent, especially if using any heating or cooking appliances nearby (though not recommended inside).

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Galvanized Steel Frame Tubes (1.5 inches diameter)
• Metal Connectors (1.66 inches diameter)
• 160g PE Waterproof Top Cover
• 140g PE Removable Window Walls
• Zipper Doors
• 4 Super Stakes for stability
• 2 Long Storage Bags
• 1 Short Storage Bag

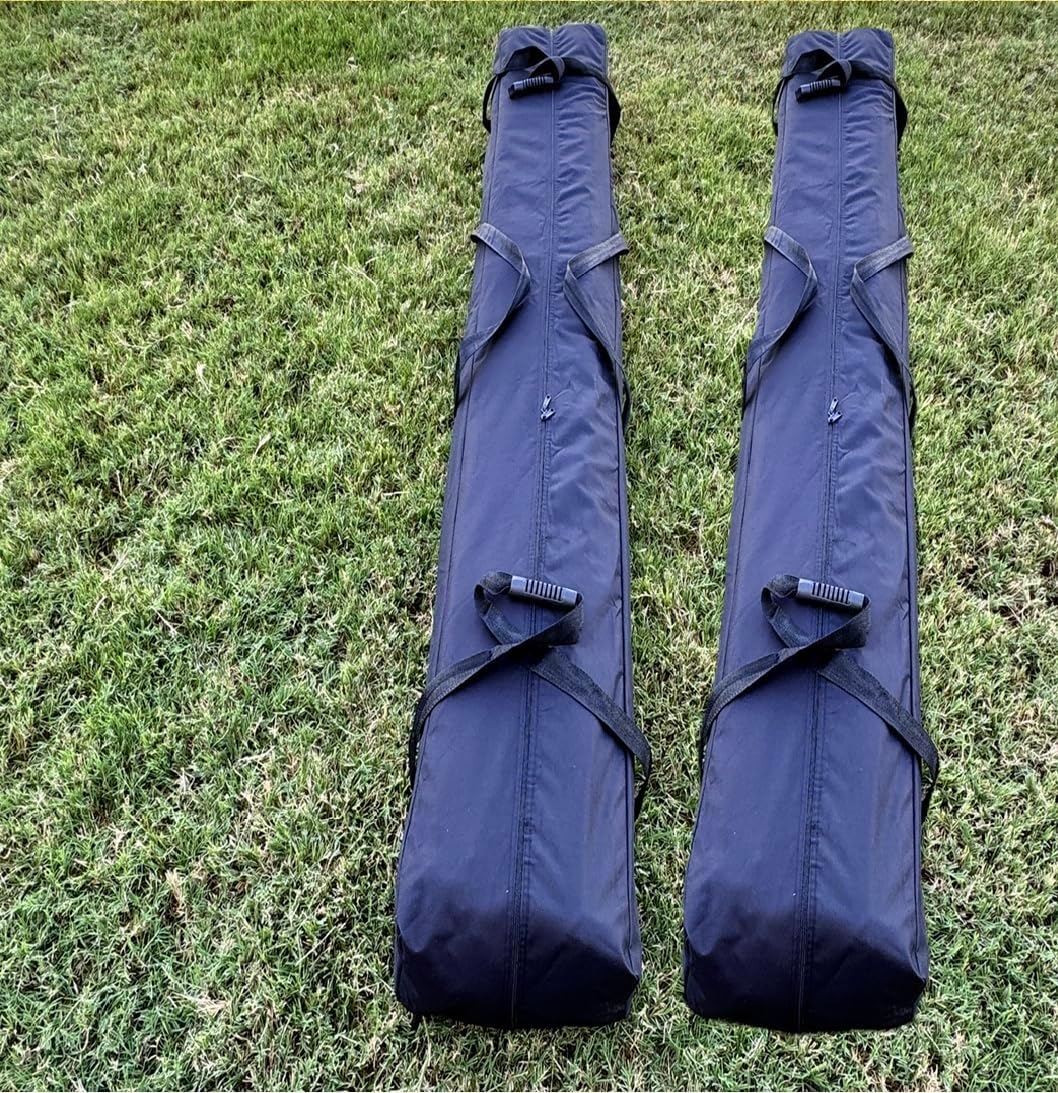

Image 3.1: Included storage bags for convenient transport and storage of tent components.

4. Setup Instructions

Assembly requires at least two adults. Follow these steps for a secure and efficient setup.

4.1. Frame Assembly

1. Unpack all frame components and lay them out on a flat, clear surface.
2. Connect the galvanized steel tubes using the metal connectors. The push-button system allows for quick and secure connections. Ensure each button snaps into place.
3. Gradually build the roof structure, then attach the leg poles.
4. Ensure the frame is level and stable before proceeding.

Image 4.1: Interior view showing the galvanized steel frame connections.

Image 4.2: Detail of a corner connection point on the tent frame.

4.2. Cover and Wall Installation

1. Carefully drape the 160g PE waterproof top cover over the assembled frame. Ensure it is centered and evenly distributed.
2. Secure the top cover to the frame using any integrated fasteners or ties.
3. Attach the 140g PE removable window walls and zipper doors to the frame. These typically attach with Velcro or ties along the top and sides.

4.3. Anchoring the Tent

1. Once the tent is fully assembled, use the provided 4 super stakes to anchor the tent securely to the ground.
2. Position stakes at each corner and along the sides as needed for maximum stability.
3. Ensure all ropes are taut and securely fastened to the stakes.

Image 4.3: Illustration of the spiral ground stakes and their installation for securing the tent.

5. Operating Instructions

The DELTA Party Tent is designed for ease of use and versatility.

• Window Walls: The window walls are removable, allowing you to adjust ventilation and light as needed. Simply detach them from the frame when not required.
• Zipper Doors: The zipper doors provide easy access and can be rolled up and secured to keep the entrance open.
• Ventilation: Utilize the removable window walls to ensure proper airflow, especially on warm days.

Image 5.1: The tent with one end open, demonstrating accessibility and ventilation options.

Image 5.2: The tent with side walls removed, illustrating its open canopy configuration.

6. Maintenance

Proper maintenance will extend the life of your DELTA Party Tent.

• Cleaning: Clean the PE fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as these can damage the material. Rinse thoroughly and allow to air dry completely before storage.
• Frame Care: Inspect the galvanized steel frame periodically for any signs of rust or damage. Clean any dirt or debris from the frame.
• Storage: Ensure the tent fabric and frame components are completely dry before disassembling and storing. Store all parts in the provided storage bags in a cool, dry place away from direct sunlight and extreme temperatures.
• Inspection: Before each use, inspect all components for wear and tear, especially the fabric for rips or holes, and the frame for bends or broken parts.

7. Troubleshooting

Here are solutions to common issues you might encounter:

• Tent is unstable: Ensure all frame connections are fully engaged. Verify that all super stakes are firmly in the ground and ropes are taut. Add additional anchoring if necessary, especially in breezy conditions.
• Water pooling on roof: Check that the top cover is stretched tightly and evenly over the frame. Ensure the frame is correctly assembled and not sagging.
• Difficulty with assembly: Refer to the frame assembly steps (Section 4.1). Ensure you have at least two people for assembly. Double-check that you are using the correct tubes and connectors for each section.
• Zipper sticking: Apply a silicone-based lubricant to the zipper teeth. Avoid forcing the zipper.

8. Specifications

9. Warranty and Support

For any questions, concerns, or issues regarding your DELTA 32'x16' Budget PE Party Tent, please contact the seller or manufacturer directly.

• Return Policy: This product typically includes a 30-day return policy. Please refer to your purchase details for specific terms.
• Manufacturer: WPIC
• Brand Store: Visit the official DELTA Store on Amazon for more information and products.
