GOWENIC 4L 750W Automatic Water Distiller

GOWENIC 4L 750W Automatic Water Distiller

Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using the appliance. Retain this manual for future reference.

  • Always ensure the distiller is placed on a stable, level, and heat-resistant surface.
  • Do not immerse the main unit in water or other liquids.
  • Keep out of reach of children.
  • Unplug the distiller from the power outlet when not in use, before cleaning, or during maintenance.
  • Do not operate the distiller if the power cord or plug is damaged.
  • The distiller features an automatic power-off function when the temperature is too high. Do not bypass this safety feature.
  • Allow the unit to cool completely before handling or cleaning.

2. Package Contents

Verify that all components are present and in good condition upon unpacking.

  • 1 x Water Distiller Main Unit
  • 1 x Base
  • 1 x Water Collection Container
  • 1 x Lid for Distiller
  • 1 x Power Cable
GOWENIC 4L Water Distiller and its components including the main unit, collection container, and power cord.
Image: The GOWENIC 4L Water Distiller main unit, the water collection container, and the power cable are shown together, illustrating the complete package contents.

3. Product Overview

The GOWENIC 4L 750W Automatic Water Distiller is designed to produce pure distilled water efficiently. It features a stainless steel interior for durability and ease of cleaning, and an automatic shut-off function for safety.

  • Capacity: 4 Liters
  • Power: 750W
  • Efficiency: Approximately 1 liter per hour
  • Material: Stainless Steel Interior
  • Safety: Over-temperature automatic power-off
Cutaway view of the GOWENIC 4L Water Distiller showing the internal heating element, boiling chamber, and condensation coil.
Image: A cutaway diagram of the distiller illustrates the water purification process, showing the heating element at the bottom, the boiling water, and the condensation coil at the top.
Various applications for distilled water, including drinking, humidifiers, aquariums, and medical devices.
Image: This visual demonstrates the versatility of distilled water, highlighting its uses for drinking, humidifiers, aquariums, dental care, lab work, breathing machines, personal hygiene, and cooking.

4. Setup

  1. Unpack: Carefully remove all components from the packaging.
  2. Placement: Place the distiller main unit on a flat, stable, and heat-resistant surface, ensuring adequate ventilation around the unit.
  3. Assemble Collection Container: Ensure the lid is securely placed on the water collection container.
  4. Connect Power: Plug the power cable into the distiller and then into a standard electrical outlet.

5. Operating Instructions

  1. Fill the Distiller: Remove the lid from the distiller. Fill the stainless steel boiling chamber with tap water up to the 'FULL' mark. Do not overfill.
  2. Replace Lid: Place the distiller lid securely back onto the main unit.
  3. Position Collection Container: Place the water collection container directly under the distiller's output nozzle.
  4. Start Distillation: Press the green 'START' button on the front of the unit. The distiller will begin the heating process.
  5. Automatic Shut-off: The distiller will automatically turn off once all the water has been distilled or if the temperature exceeds safe limits.
  6. Collect Distilled Water: Once the cycle is complete and the unit has cooled, carefully remove the collection container with distilled water.
  7. Stop Manually (Optional): To stop the distillation process at any time, press the red 'STOP' button.

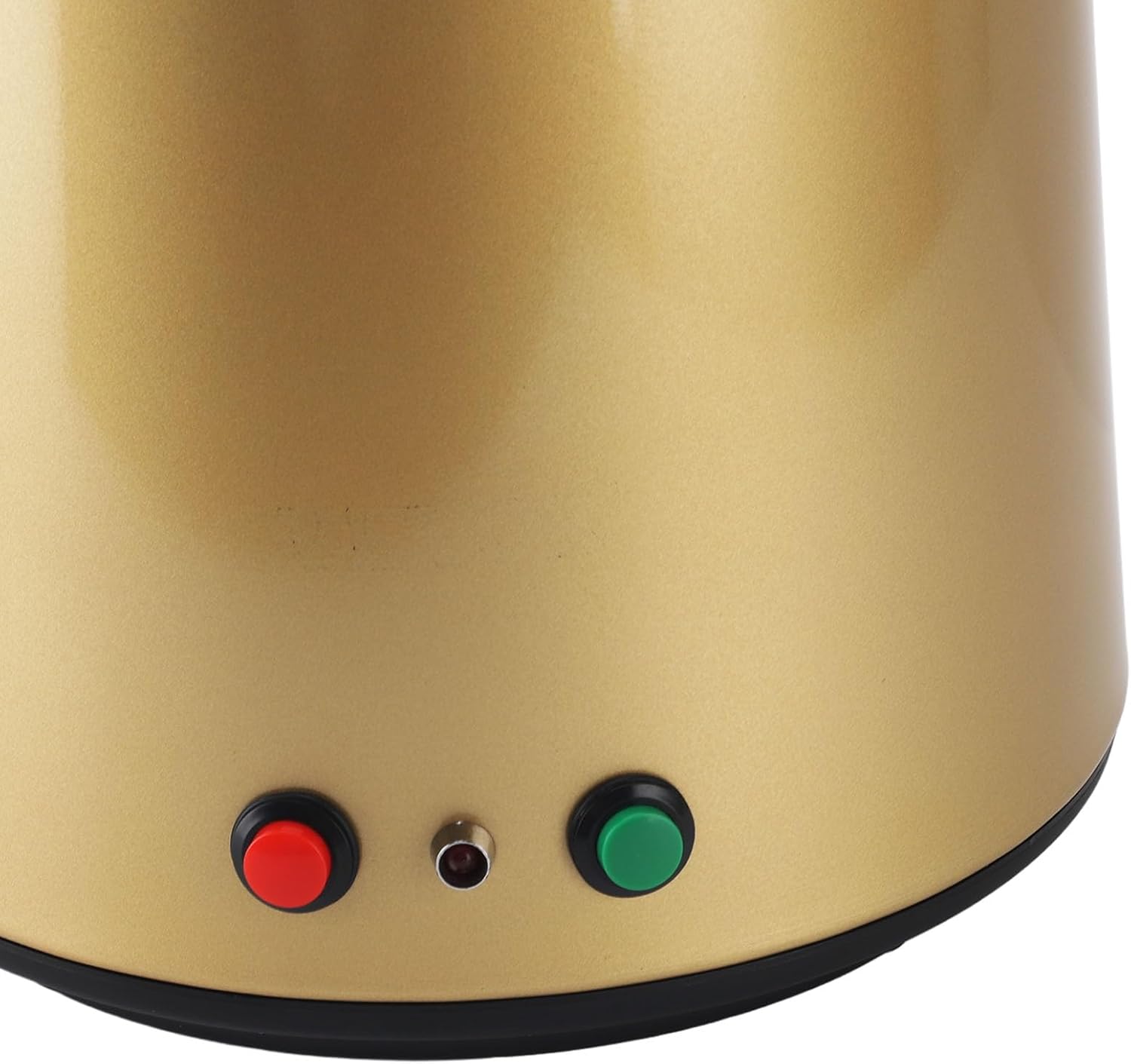

Close-up of the control panel with red stop button and green start button.
Image: A close-up view of the distiller's base shows the red 'STOP' button and the green 'START' button, which control the distillation process.
Interior of the stainless steel boiling chamber with a 'FULL' line indicator.
Image: The interior of the stainless steel boiling chamber is visible, clearly showing the 'FULL' line indicator for proper water filling.
Video: This short 6-second video from the seller demonstrates the internal working principle of the 4L Automatic Water Distiller, showing water boiling and condensing to produce pure water.

6. Maintenance

Regular cleaning ensures optimal performance and longevity of your distiller.

  1. Daily Cleaning: After each use, unplug the unit and allow it to cool. Empty any remaining water from the boiling chamber. Rinse the chamber and the collection container with clean water.
  2. Descaling: Over time, mineral deposits (scale) may build up in the boiling chamber. To descale, fill the chamber with a mixture of white vinegar and water (1:1 ratio) or a commercial descaling solution. Let it soak for several hours or overnight. Gently scrub with a non-abrasive brush or cloth, then rinse thoroughly.
  3. Exterior Cleaning: Wipe the exterior of the distiller with a damp cloth. Do not use abrasive cleaners or immerse the unit in water.
  4. Filter Replacement (if applicable): While this model primarily uses distillation, if any additional filters are used, refer to their specific replacement instructions.

7. Troubleshooting

Problem Possible Cause Solution
Distiller does not turn on. No power supply; Power cord not properly connected. Check if the unit is plugged into a working outlet. Ensure the power cord is securely connected to both the distiller and the outlet.
No distilled water produced. Boiling chamber empty; Lid not properly sealed; Unit not turned on. Ensure water is filled to the 'FULL' line. Check that the lid is securely in place. Press the green 'START' button.
Distiller stops prematurely. Automatic shut-off activated (water boiled dry or overheating). This is a normal safety feature. Allow the unit to cool down before refilling and restarting.
Slow distillation rate. Mineral buildup (scale) in the boiling chamber. Perform descaling as described in the Maintenance section.

8. Specifications

  • Item Type: Water Distiller
  • Material: Stainless Steel
  • Power: 750W
  • Capacity: 4 Liters
  • Efficiency: 1 Liter/Hour
  • Product Dimensions: 12.99"L x 11.02"W x 18.11"H
  • Special Feature: Automatic Shut-Off
  • Purification Method: Distillation

9. Warranty and Support

GOWENIC products are manufactured to high-quality standards. For any questions, technical support, or warranty claims, please contact your retailer or the manufacturer directly. Please retain your proof of purchase for warranty purposes.

For further assistance, please refer to the contact information provided with your purchase or visit the official GOWENIC website.
