Woleix A007G-09C
Woleix 9000 BTU Portable Air Conditioner
Model: A007G-09C
Introduction
Thank you for choosing the Woleix 9000 BTU Portable Air Conditioner. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read this manual thoroughly before use and retain it for future reference.
The Woleix portable air conditioner is designed to provide comfort through its versatile 3-in-1 functionality: cooling, dehumidifying, and fan modes. It features an innovative, energy-efficient POSI compressor, quiet operation, and a convenient drainage-free design.
Front view of the Woleix portable air conditioner, highlighting its compact design and the '10 J.Gar. 365 Tag Umt.' branding.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Ensure the power supply matches the voltage specified on the rating label.
- Do not operate the unit with a damaged cord or plug.
- Keep the air intake and exhaust vents clear of obstructions.
- Do not insert objects into the air vents.
- Always unplug the unit before cleaning or servicing.
- This appliance is for indoor use only.
Product Components
The following components are included with your Woleix Portable Air Conditioner:
A visual guide to the included accessories.
- Remote Control
- Drain Hose
- Exhaust Hose
- Adapter for Extendable Window Holder / Window
- Unit Connection
- Extendable Window Holder
- User Manual
Setup and Installation
Follow these steps to set up your portable air conditioner:
- Positioning: Place the unit on a flat, stable surface, ensuring there is at least 20 cm of space around the unit for proper airflow.
- Attach Exhaust Hose: Connect the exhaust hose to the air outlet on the back of the unit.
- Install Window Kit: Assemble the extendable window holder and attach the exhaust hose adapter. Insert the window kit into your window opening (suitable for horizontal and vertical sliding windows).
- Connect Exhaust Hose to Window Kit: Securely connect the other end of the exhaust hose to the window kit, ensuring no air leaks.
- Power Connection: Plug the power cord into a grounded electrical outlet.

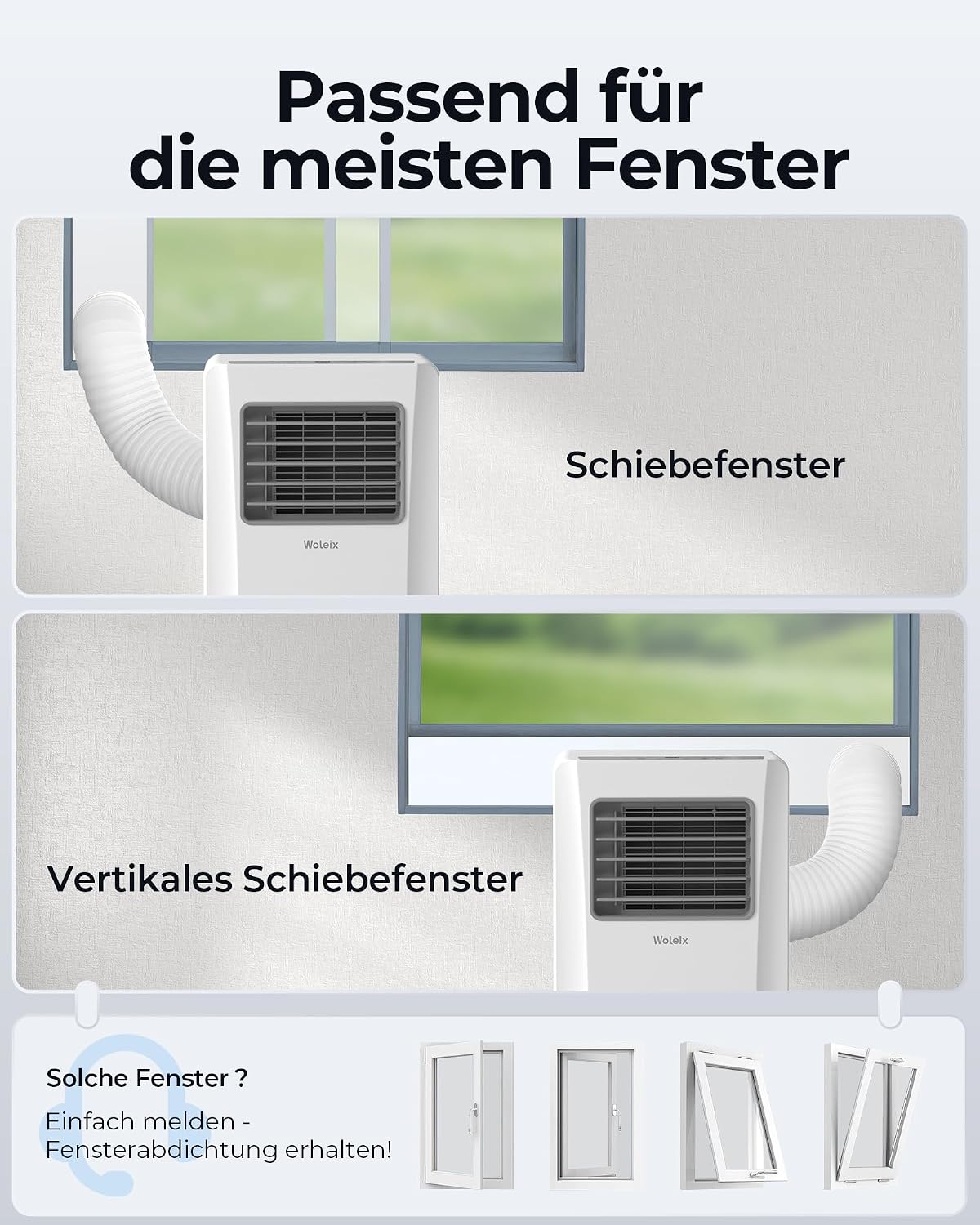

Instructions for installing the exhaust hose and window sealing kit, compatible with most window types including horizontal and vertical sliding windows.
Operating Instructions
Your Woleix portable air conditioner offers three operating modes for various comfort needs:

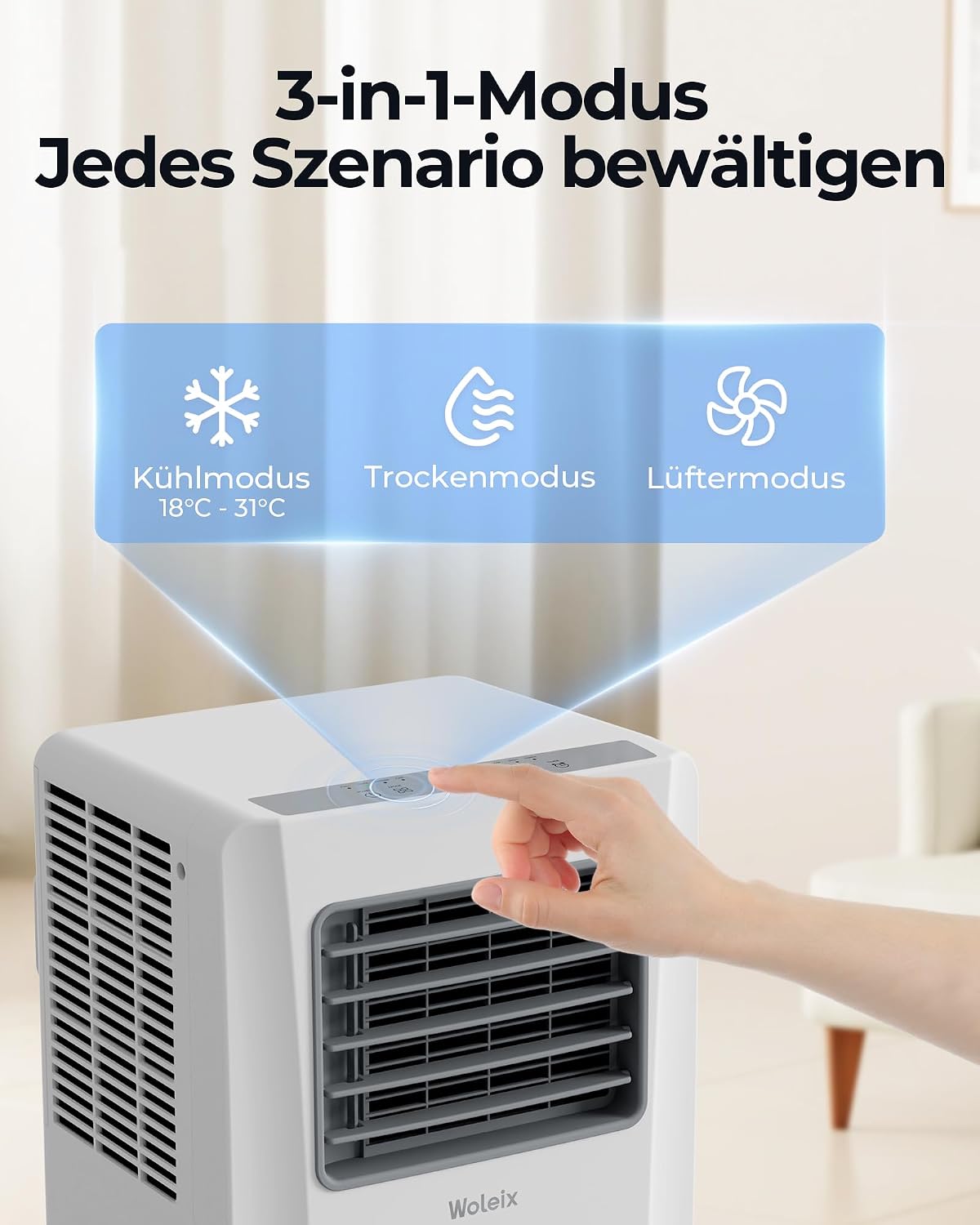

The control interface highlighting the three versatile operating modes.
- Cooling Mode: Set the desired temperature between 18°C and 31°C. The unit will cool the room to the set temperature.
- Dehumidifying Mode: This mode helps reduce humidity in the air without significant cooling.
- Fan Mode: Operates as a fan, circulating air without cooling or dehumidifying. You can select from multiple fan speeds.
Key Features:
- Wide Airflow: The unit features a 120° wide-angle airflow and a 5-meter long-range cooling capability, ensuring rapid and comprehensive cooling of your space.
- Timer Function: Use the 24-hour timer to program the unit to turn on or off automatically.
- Quiet Operation: Equipped with double noise reduction technology and a specially developed compressor, the unit operates quietly, reducing noise by 20%.
The air conditioner demonstrating its 5-meter long-range cooling and 120-degree wide-angle airflow, effectively cooling a living space.
The air conditioner in a bedroom setting, emphasizing its quiet operation due to double noise reduction technology.
Maintenance
Regular maintenance ensures optimal performance and longevity of your air conditioner.
Cleaning the Air Filter:
The unit is equipped with a washable grid filter. It is recommended to clean the filter every two weeks or more frequently depending on usage and air quality. To clean:
- Unplug the unit from the power outlet.
- Locate and remove the air filter.
- Wash the filter with warm, soapy water. Rinse thoroughly.
- Allow the filter to air dry completely before reinserting it into the unit.
Drainage-Free Cooling System:
This air conditioner features an efficient condensation evaporation system, which pumps water to the condenser for evaporation, eliminating the need for external drainage in most conditions. If excess water accumulates, the unit may indicate a full water tank, and you will need to drain it using the provided drain hose.
An illustration detailing the efficient condensation evaporation system, where water is pumped to the condenser for evaporation, eliminating the need for external drainage.
Troubleshooting
If you encounter issues with your air conditioner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power, power cord not plugged in, circuit breaker tripped. | Check power connection, reset circuit breaker. |
| Unit is not cooling effectively. | Air filter dirty, exhaust hose not properly installed, room too large, windows/doors open. | Clean air filter, ensure exhaust hose is sealed, close windows/doors, consider room size. |
| Unit is noisy. | Unit not on a level surface, internal components vibrating. | Ensure unit is on a flat surface. While the unit is designed for quiet operation, some operational noise is normal. |
| Water leakage. | Drain plug not properly sealed, unit not level, water tank full. | Check drain plug, ensure unit is level, drain water tank if full. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
Detailed technical specifications for the Woleix 9000 BTU Portable Air Conditioner:
| Specification | Value |
|---|---|
| Brand | Woleix |
| Model Number | A007G-09C |
| Dimensions (L x W x H) | 29.4 x 33 x 68.6 cm |
| Weight | 19 kg |
| Cooling Capacity | 9000 BTU |
| Annual Power Consumption | 2.6 Kilowatts |
| Noise Level | 60 dB |
| Installation Type | Window |
| Type | Portable |
| Color | White |
| Voltage | 230 Volts |
| Power | 1000 Watts |
| Material | Plastic |
| Refrigerant | R-290 |
| Filter Type | Grid Filter |
For more detailed product information, please refer to the official product data sheet and energy label:
Detailed product data sheet providing technical specifications and manufacturer information.
The energy efficiency label displaying the unit's A rating and other key performance indicators.
EPREL Database Link: https://eprel.ec.europa.eu/qr/2238345
Warranty and Support
Woleix is committed to providing high-quality products and excellent customer service.
- Warranty: This product comes with a 10-year warranty.
- Exchange Policy: We offer a 365-day exchange policy instead of repair within the first year.
- Spare Parts: Lifetime availability of spare parts.
- Customer Support: Our experienced product engineers are available to provide customer support and assist with any inquiries or issues you may have.
For assistance, please refer to the contact information provided in your purchase documentation or visit the official Woleix website.
