Aheaplus Closet System User Manual

Product Overview

The Aheaplus Closet System is a versatile and robust storage solution designed to organize your wardrobe. This system features a central tower with adjustable shelves and four wooden drawers, complemented by four expandable hanging rods. It is engineered to fit various closet sizes, ranging from 4 to 9 feet in width, providing ample space for hanging garments and folded items.

Figure 1: Overview of the Aheaplus Closet System, showcasing its modular design with a central storage tower and multiple hanging rods.

Constructed from durable wood, the system is designed for heavy-duty use, with a weight capacity of over 1000 lbs. It includes anti-tip kits for enhanced safety and stability, ensuring secure installation to your wall.

Setup and Installation

Careful assembly and installation are crucial for the stability and longevity of your Aheaplus Closet System. Please follow these instructions precisely.

1. Unpacking and Inventory

Unpack all components from the packaging. Verify that all parts listed in the included hardware and parts list are present and undamaged. If any parts are missing or damaged, contact Aheaplus customer support immediately.

2. Tools Required

• Power Drill (with Phillips head and Arnold head bits)
• Measuring Tape
• Level
• Pencil
• Stud Finder (recommended for wall mounting)

3. Assembly of Central Tower and Drawers

Begin by assembling the central tower unit. Follow the step-by-step diagrams provided in your physical instruction booklet for connecting the wooden panels. Ensure all cam locks and screws are tightened securely. Assemble the four wooden drawers according to the instructions, ensuring the drawer slides are correctly oriented for smooth operation.

Figure 2: Detailed view of key components: four large wooden drawers, adjustable height shelves, expandable depth rods, and anti-tip safety kits.

4. Wall Mounting and Anti-Tip Kit Installation

For safety and stability, the central tower must be securely mounted to a wall. Use a stud finder to locate wall studs. Position the tower against the wall and mark the drilling points for the anti-tip brackets. Drill pilot holes and secure the anti-tip brackets to both the tower and the wall studs using the provided hardware. This step is critical to prevent the unit from tipping over.

5. Installing Hanging Rods

The system includes four expandable hanging rods. Determine your desired configuration based on your closet width (4-9 ft). The rods can expand from 26 inches to 47 inches. Attach the rod supports to the central tower and the adjacent walls (or additional support structures if creating a wider system). Insert the rods and adjust their length to fit snugly. Ensure the rods are level before tightening all fasteners.

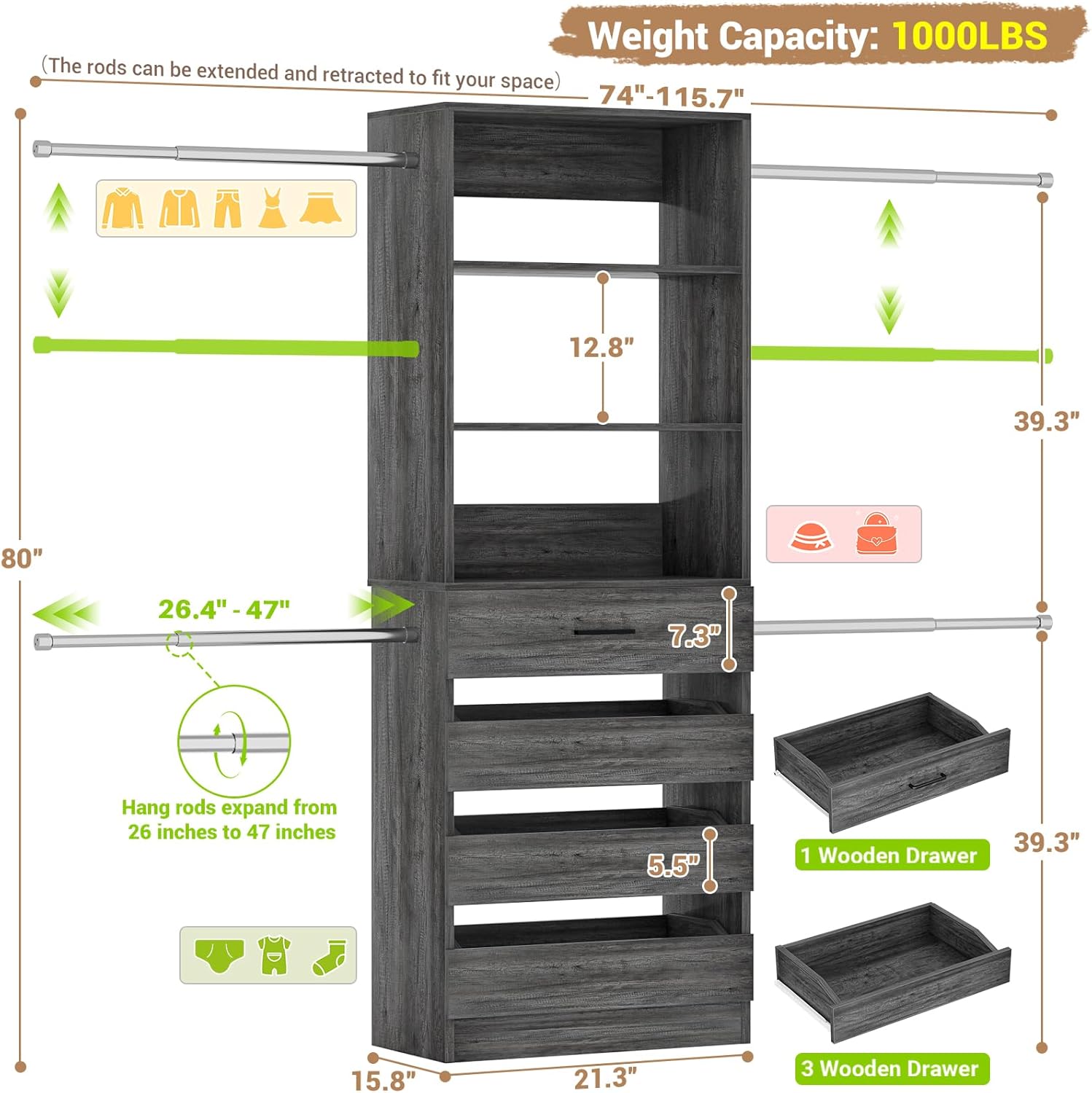

Figure 3: Dimensional diagram of the closet system, illustrating the expandable hanging rods and overall unit measurements. The system has a weight capacity of 1000 lbs.

6. Configuration Options

The Aheaplus Closet System is highly adaptable to various closet sizes. It can be configured for spaces ranging from 4 feet to 9 feet wide. For smaller spaces (4-5 ft), it is recommended to install rods on only one side of the central unit. Refer to the configuration examples below for guidance.

Figure 4: Various installation layouts demonstrating how the system can be adapted for closet widths from 4 feet to 9 feet. Note the recommendation for 3 rods on one side for children's closets.

Operating Instructions

Once installed, the Aheaplus Closet System provides efficient storage for your clothing and accessories.

• Hanging Rods: Utilize the four hanging rods for shirts, dresses, pants, and other garments. Distribute weight evenly across the rods to maintain stability.
• Wooden Drawers: The four wooden drawers are ideal for storing folded clothing, undergarments, socks, or accessories. Pull drawers out smoothly and push them in completely to ensure they sit level.
• Adjustable Shelves: The central tower features adjustable shelves. To change shelf height, remove the shelf, reposition the shelf pins to the desired height, and then reinsert the shelf. These shelves are suitable for folded items, bags, or storage bins.
• Weight Capacity: The system is designed to hold over 1000 lbs. Avoid exceeding this capacity to prevent damage or instability.

Maintenance

Regular maintenance will help preserve the appearance and functionality of your closet system.

• Cleaning: Wipe down all surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner specifically designed for wood surfaces. Avoid harsh chemicals or abrasive materials that could damage the finish.
• Hardware Check: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Re-tighten any loose hardware to maintain structural integrity.
• Drawer Slides: If drawers become stiff, a small amount of silicone-based lubricant can be applied to the drawer slides.
• Anti-Tip Kit: Regularly check the anti-tip kit connection to the wall and the unit to ensure it remains secure.

Troubleshooting

This section addresses common issues you might encounter with your Aheaplus Closet System.

Specifications

Warranty and Support

Return Policy

This product is subject to a 30-day return policy from the date of purchase, allowing for refund or replacement in case of defects or dissatisfaction. Please refer to your point of purchase for specific return procedures and conditions.

Customer Support

For any questions, missing parts, or assistance with assembly and troubleshooting, please contact Aheaplus customer support. You can typically find contact information on the packaging or through the retailer where the product was purchased. For Amazon purchases, you can reach the seller "Aheaplus" through your order history.

Note: Always provide your model number (YHCC-10B) and purchase date when contacting support for faster service.
